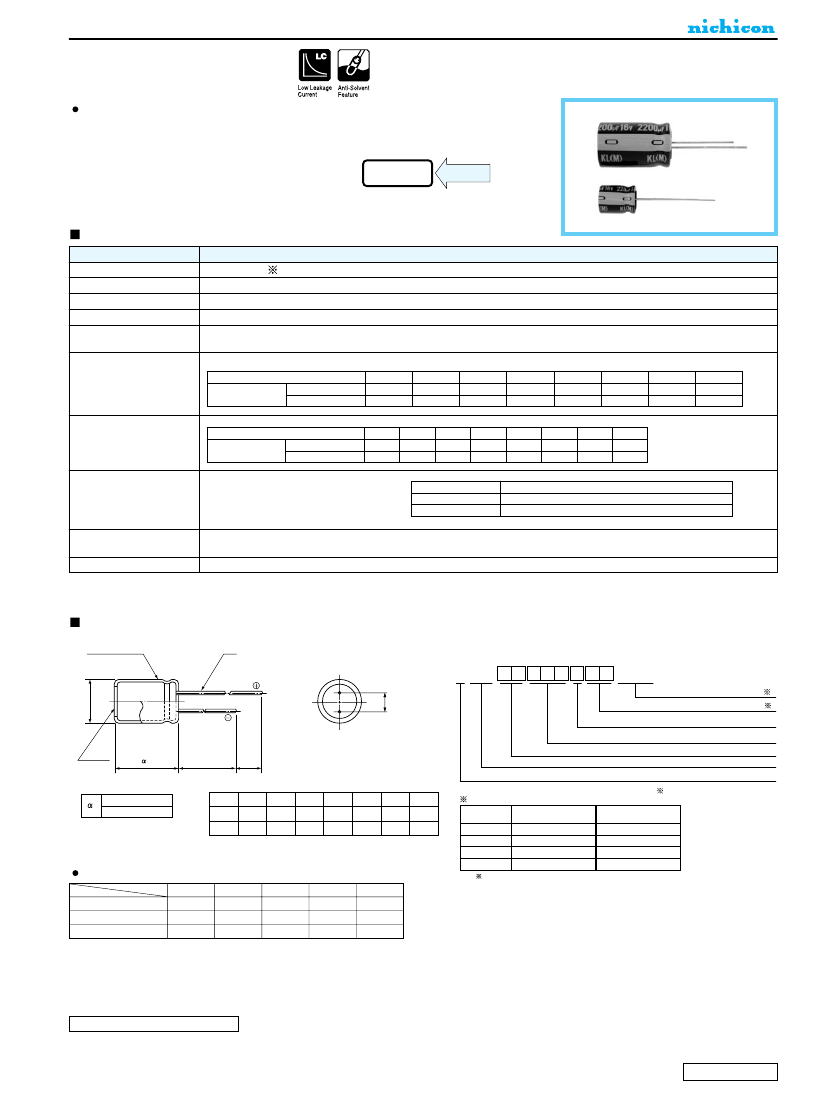

ALUMINUM ELECTROLYTIC CAPACITORS
KL
Low Leakage Current
series
Standard low leakage current series.
KL
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Low Leakage
Current
VR
Performance Characteristics
– 40 ~ +85°C (
6.3 ~ 100V
0.1 ~ 10000µF
– 40 ~ +105°C product also available upon request, but product rated at up to 50V less than or equal to
φ10 ×
12.5 Lmm)
± 20% (M), ± 10% (K) at 120Hz 20°C
After 1 minute's (for case size 10
×
12.5 or smaller) or 2 minute's (for case size 10
×
16 or larger) application of rated voltage,
leakage current is not more than 0.002CV or 0.2 (µA) whichever is greater.
For capacitance of more than 1000µF, add 0.02 for every increace of 1000µF.
Measurement frequency : 120Hz, Temperature : 20°C
tan
δ
Rated voltage (V)
~
φ
10
×
12.5
tan
δ
(MAX.)
φ
10
×
16 ~
6.3
0.18
0.21
10
0.15
0.17
16
0.12
0.14
25
0.08
0.12
35
0.08
0.12
50
0.08
0.10
63
0.07
0.08
100
0.07
0.08
Measurement frequency : 120Hz
stability at Low Temperature
Rated voltage (V)
Impedance ratio Z– 25°C / Z+20°C
ZT / Z20 (MAX.) Z– 40°C / Z+20°C
6.3
3 (4)
5 (8)
10
2 (3)
4 (6)
16
2
3 (4)
25
1.5
2 (4)
35
1.5
2 (3)
50
1.5
2 (3)
63
1.5
2 (3)
100
1.5
2 (3)
Values in ( ) applicable to
φ10 ×
16 or larger case size.
Endurance
After 2000 hours' application of rated voltage
at 85°C, or 1000 hours' at 105°C, capacitors
meet the characteristics requirements listed
at right.
Capacitance change
tan
δ
Leakage current
Within ±15% of initial value (6.3V : Within ±20%)
150% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After leaving capacitors under no load at 85°C for 1000 hours, they meet the specified
value for endurance characteristics listed above.
Printed with white color letter on black sleeve. (PVC sleeve product : Printed with black color letter on orange sleeve.)
Radial Lead Type
Sleeve (P.E.T.)
φd
Type numbering system (Example : 10V 47
µ
F)
1
2
3
4
5
6
7
8
9 10 11 12 13 14
UK L 1 A 4 7 0 M DD A N A
φD
+
0.5MAX
P
±
0.5
2
Configuration 1
Capacitance tolerance
(M :
±
20%, K :
±
10%)
Rated Capacitance (47µF)
Rated voltage (10V)
Series name
Type
Pressure
relief vent
(φ6.3up )
L+
MAX
15
MIN
4
MIN
(mm)
(~
φ10 ×
12.5) 1.0
(φ10
×
16 ~) 1.5
φD
P
φd
2 In case 105°C unit is required
1 Configuration
φ
D
5
Pb free lead finishing
Pb free PET sleeve
Sn-Pb lead finishing
PVC sleeve contain Pb
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
DD
DA
Frequency coefficient of rated ripple current
Cap.(µF)
Frequency
6.3
ED
EA
8 · 10
PD
PA
12.5 ~ 18
HD
HA
Please contact to us if other configurations are required.
50Hz
0.75
0.80
0.85
120Hz
1.00
1.00
1.00
300Hz
1.35
1.23
1.10
1kHz
1.57
1.34
1.13
10kHz ~
2.00
1.50
1.15
~ 68
100 ~ 680
1000 ~ 10000
Please refer to page 19, 20, 21 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.
Dimension table in next page.
