B18HB datasheet, PDF - EEWORLD Datasheet

B18HB: DescriptionToggle Switch, SPDT, (on)-off-(on), Horizontal, 7 PCB Hole Cnt, Solder Terminal, Paddle Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size1MB，7 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

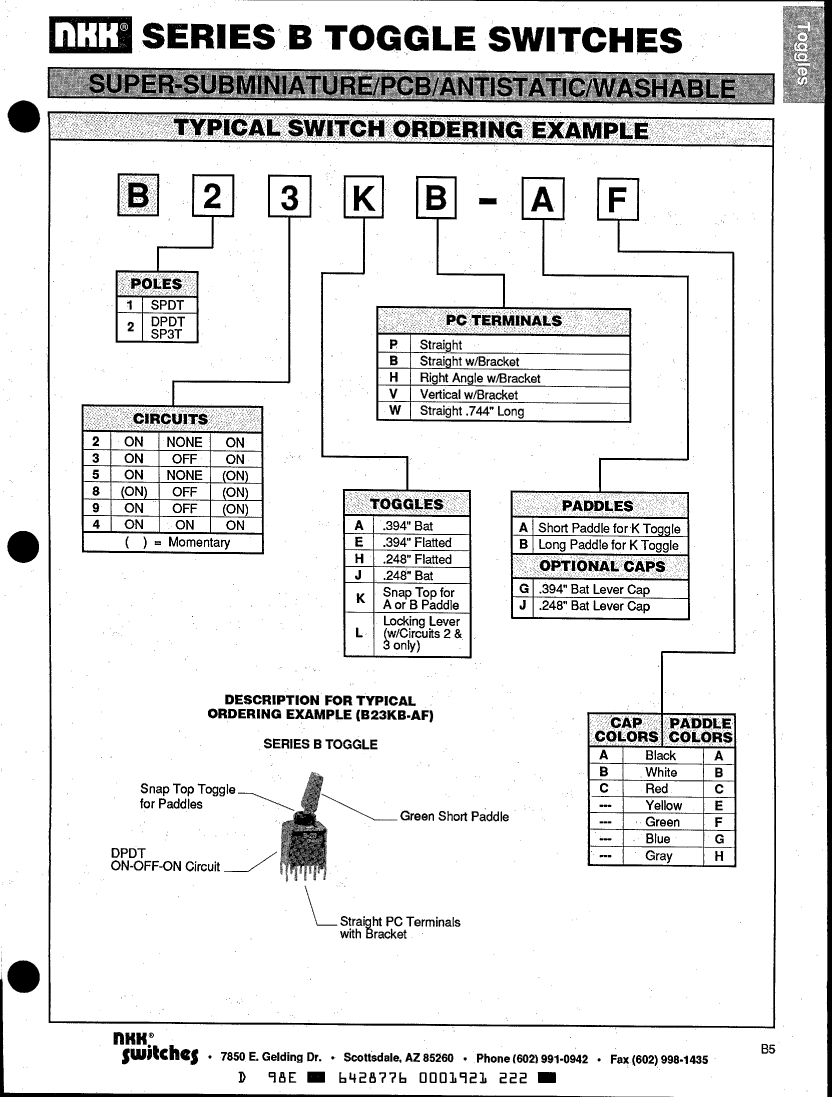

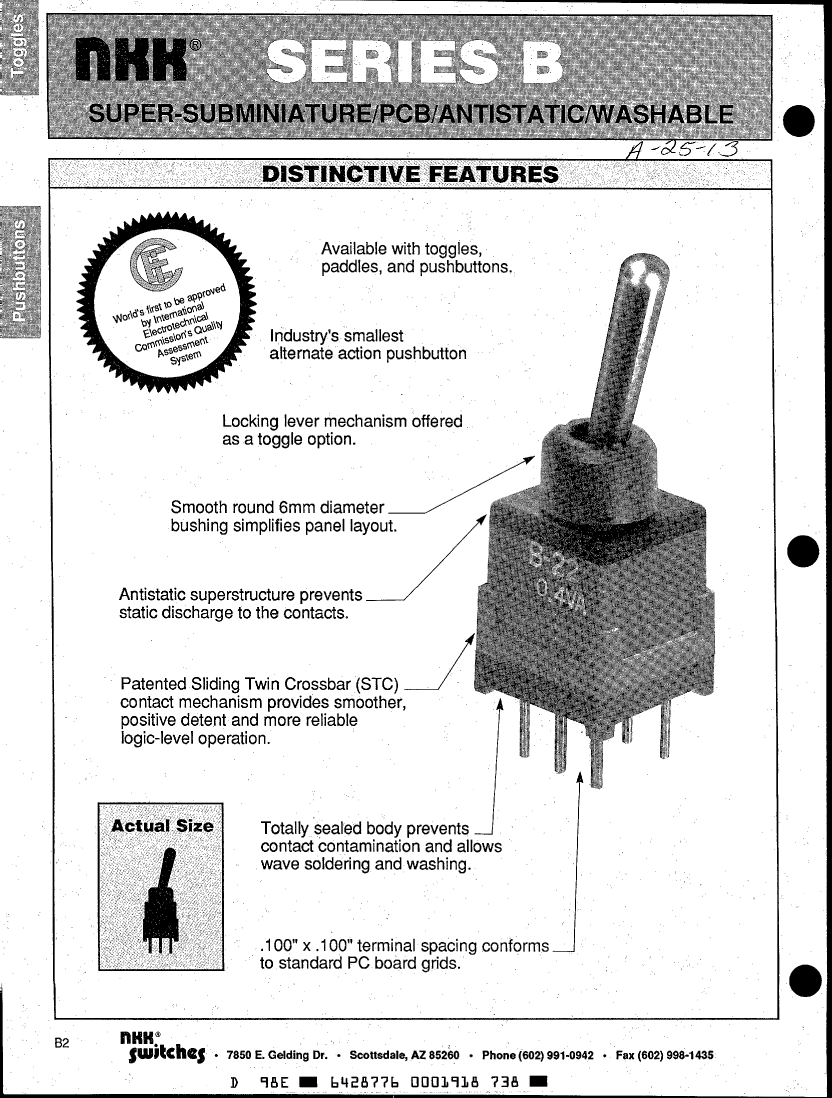

B18HB Overview

Toggle Switch, SPDT, (on)-off-(on), Horizontal, 7 PCB Hole Cnt, Solder Terminal, Paddle Actuator, Through Hole-straight

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NKK Switches
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator angle	26 deg
Executor completed	NICKEL
Actuator length	0.248 inch
Actuator material	BRASS
Actuator type	PADDLE
Other features	MOUNTING BRACKET
body width	8.001 mm
body height	22.5044 mm
Body length or diameter	8.7884 mm
Casing diameter	0.236 inch
Nozzle length	0.106 inch
Casing type	UNTHREADED
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD
Contact (DC) maximum rated power R load	0.4VA@28VDC

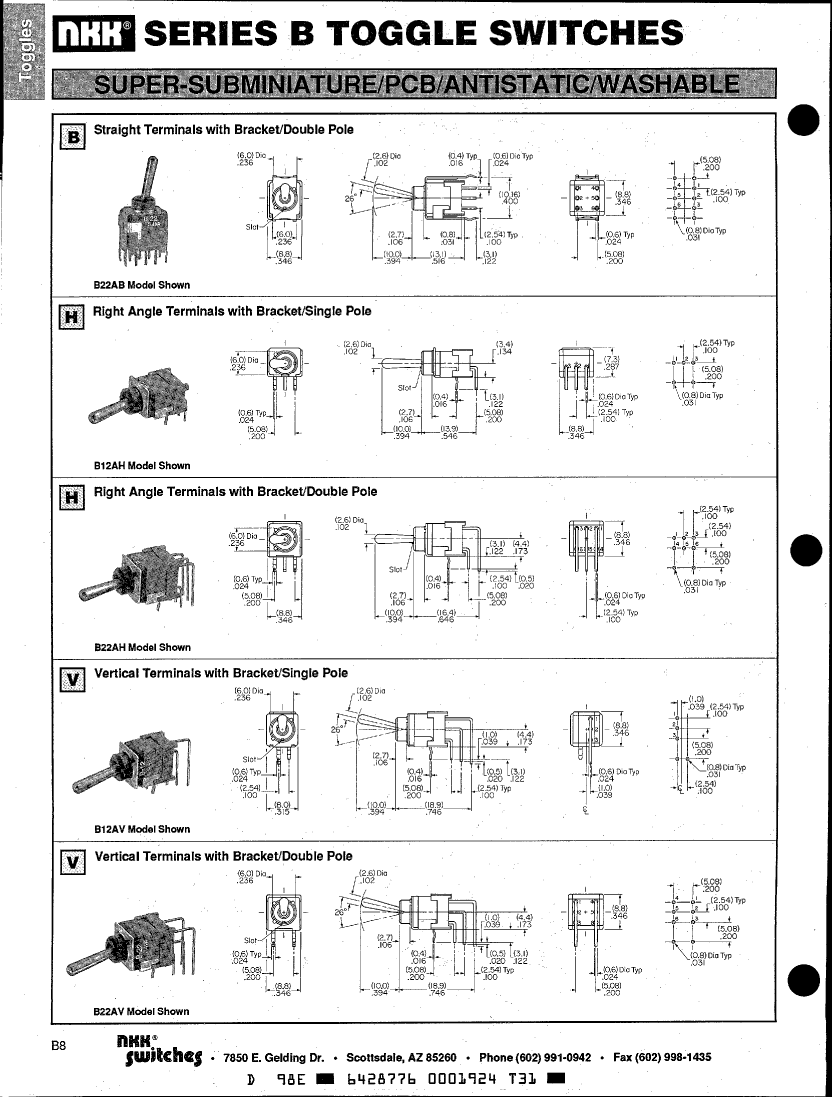

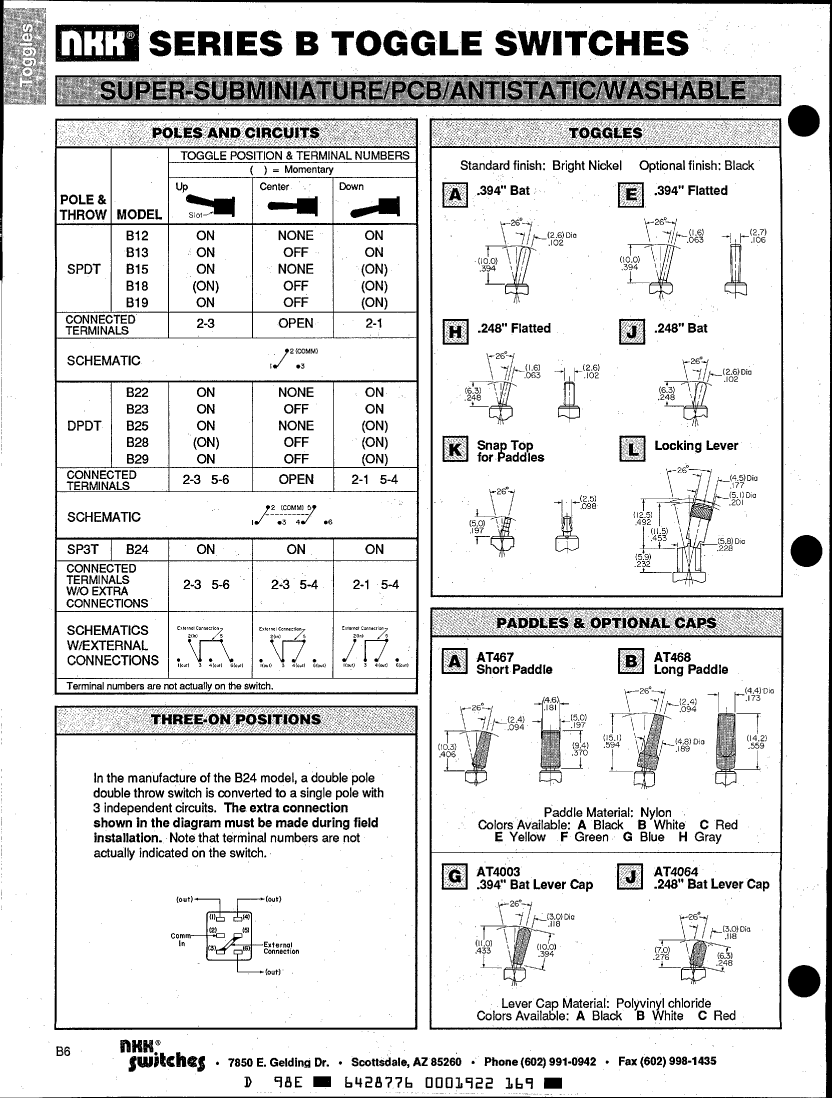

Contact function	(ON)-OFF-(ON)
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Dielectric withstand voltage	500VAC V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
Manufacturer's serial number	B
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C

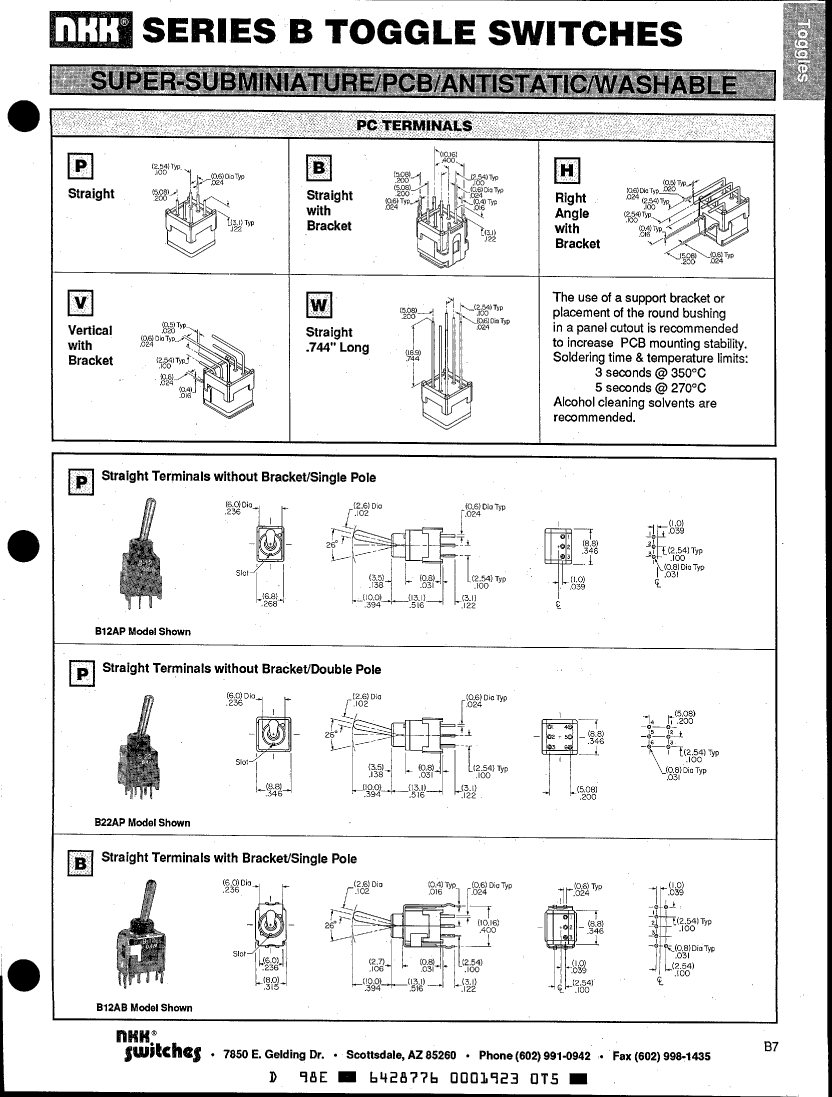

PCB hole count	7
seal	EPOXY
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au)
Terminal length	0.122 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
