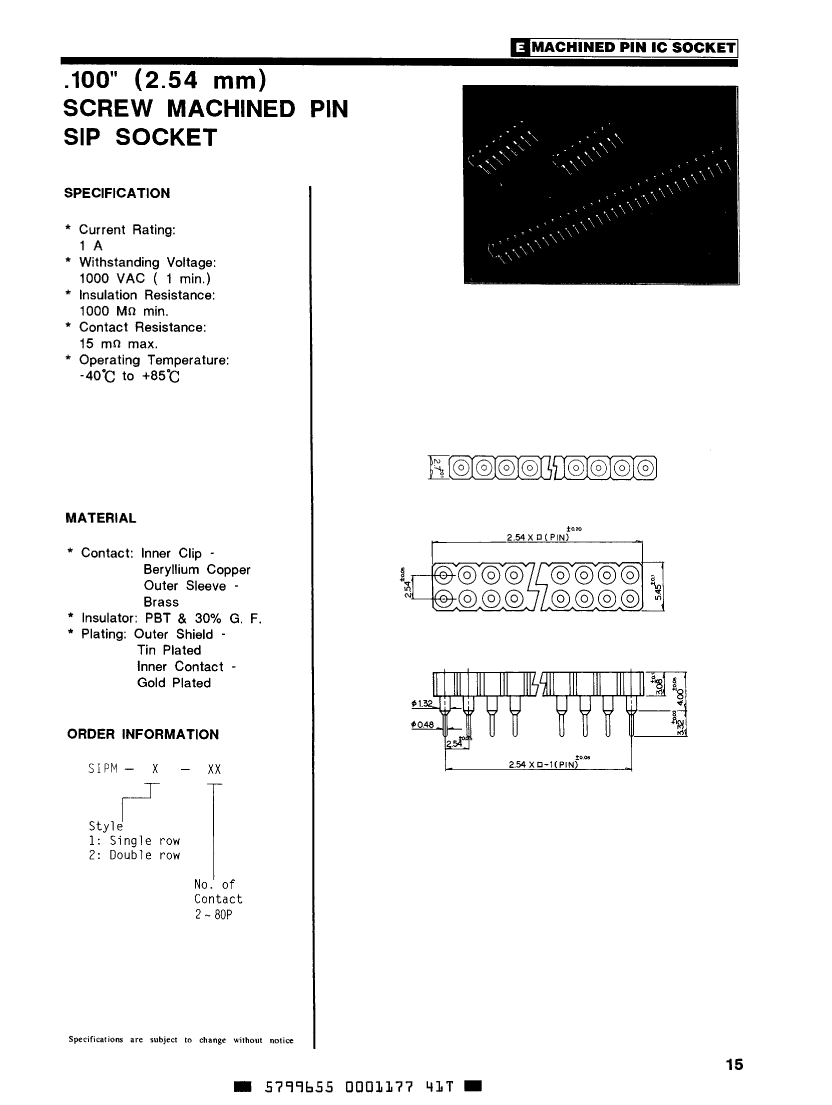

SIPM-1-14: DescriptionIC Socket, SIP14, 14 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size50KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric View All

SIPM-1-14 Overview

IC Socket, SIP14, 14 Contact(s), 2.54mm Term Pitch, Solder

Parameter Name	Attribute value
Maker	Marktech
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.106 inch
subject depth	0.157 inch
body length	1.4 inch
Contact to complete cooperation	AU
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SIP14
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	SIPM
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER
