ACLM-4535M221K-RC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ACLM-4535M221K-RC

ACLM-4535M221K-RC: DescriptionLimiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE M22; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ACLM-4535M221K-RC Overview

Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE M22

ACLM-4535M221K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aeroflex
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM
Adjustability	FIXED
structure	COAXIAL
Maximum input power (CW)	33 dBm
Maximum operating frequency	12000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	LIMITER
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

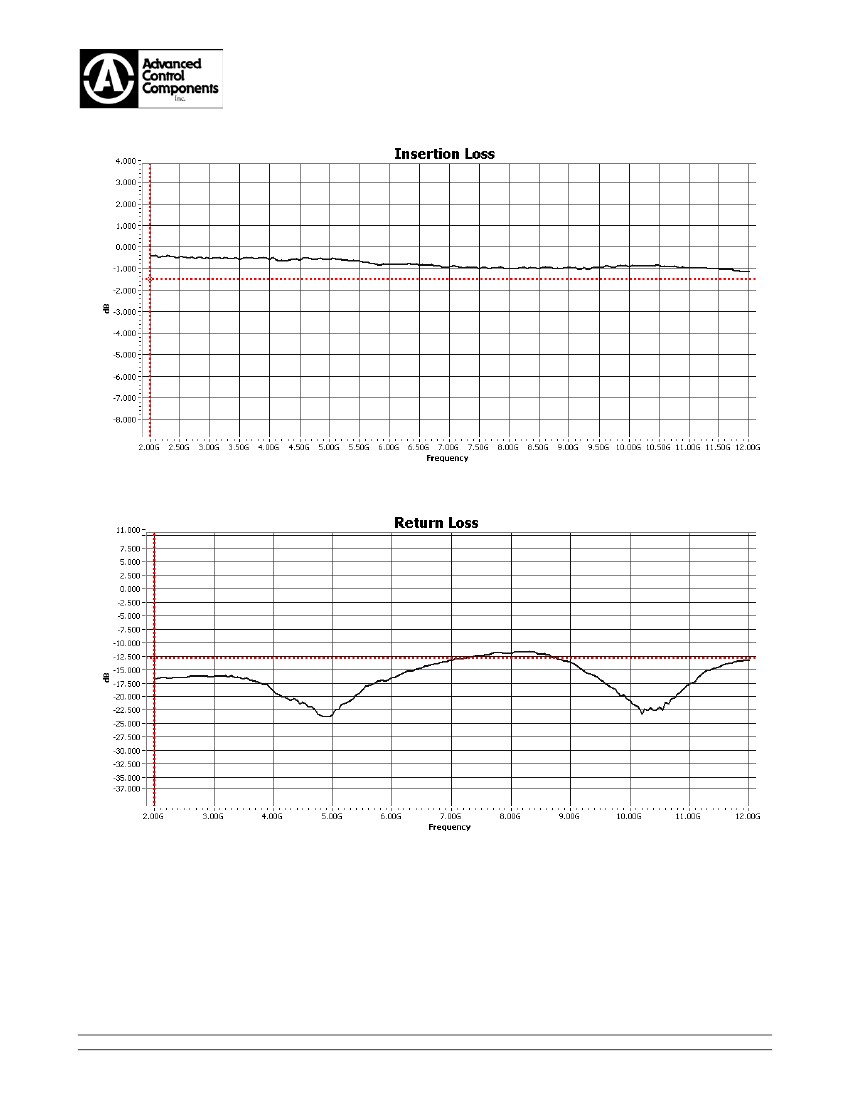

ACLM-4535

PIN DIODE LIMITER

Frequency Range (min)

Peak Input Power (max)

CW Input Power (max)

Peak Flat Leakage (max)

CW Flat Leakage (max)

Insertion Loss (max)

VSWR (max)

2 – 12

100

1.5

1.6:1

GHz

dBm

ratio

NOTES:

CW Leakage is measured at 1W input

Up to 1KW peak power handling is available. Insertion loss and VSWR will degrade slightly.

Power handling is linearly derated from full power at 25˚C to zero power at +150˚C.

ENVIRONMENTAL SPECIFICATIONS:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Shock: MIL-STD-202F, M213, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Vibration : MIL-STD-202F, M204, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

OPTIONAL HIGH-REL SCREENING (Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method 2001

Burn-in per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

STANDARD CASE STYLE C3

(Optional Case Styles – C36, C37, M22)

PART NUMBER ORDERING INFORMATION:

•

Add desired case style suffix: “C3” (Ex: ACLM-4535C3)

Add “R” suffix: Reverse Connector Configuration (Ex: ACLM-4535C3R) (SMA Female Input/SMA Male Output)

Add “1K” suffix: High power handling version: (Ex: ACLM-4535C3R1K)

Add “-RC” suffix: RoHS-compliant (Ex: ACLM-4535C3R1K-RC)

0109

611 Industrial Way West, Eatontown, NJ 07724

tel: 732-460-0212 fax: 732-460-0214

sales@advanced-control.com

www.advanced-control.com

ACLM-4535M221K-RC Related Products

	ACLM-4535M221K-RC	ACLM-4535M22R1K-RC	ACLM-4535C31K-RC	ACLM-4535C361K-RC	ACLM-4535C371K-RC	ACLM-4535C37R1K-RC	ACLM-4535C3R1K-RC	ACLM-4535C36R1K-RC
Description	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE M22	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE M22	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C3	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C36	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C37	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C37	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C3	Limiter, 2000MHz Min, 12000MHz Max, ROHS COMPLIANT, CASE C36
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33 dBm	33 dBm	33.01 dBm	33.01 dBm	33 dBm	33.01 dBm	33 dBm	33 dBm
Maximum operating frequency	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER
Maximum voltage standing wave ratio	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
