5292F-15TB/K3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5292F-15TB/K3

5292F-15TB/K3: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5292F-15TB/K3 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug

5292F-15TB/K3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.343 inch
body length	1.541 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5292F
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Termination type	SOLDER LUG
Total number of contacts	15

Preview

Download Datasheet

View All

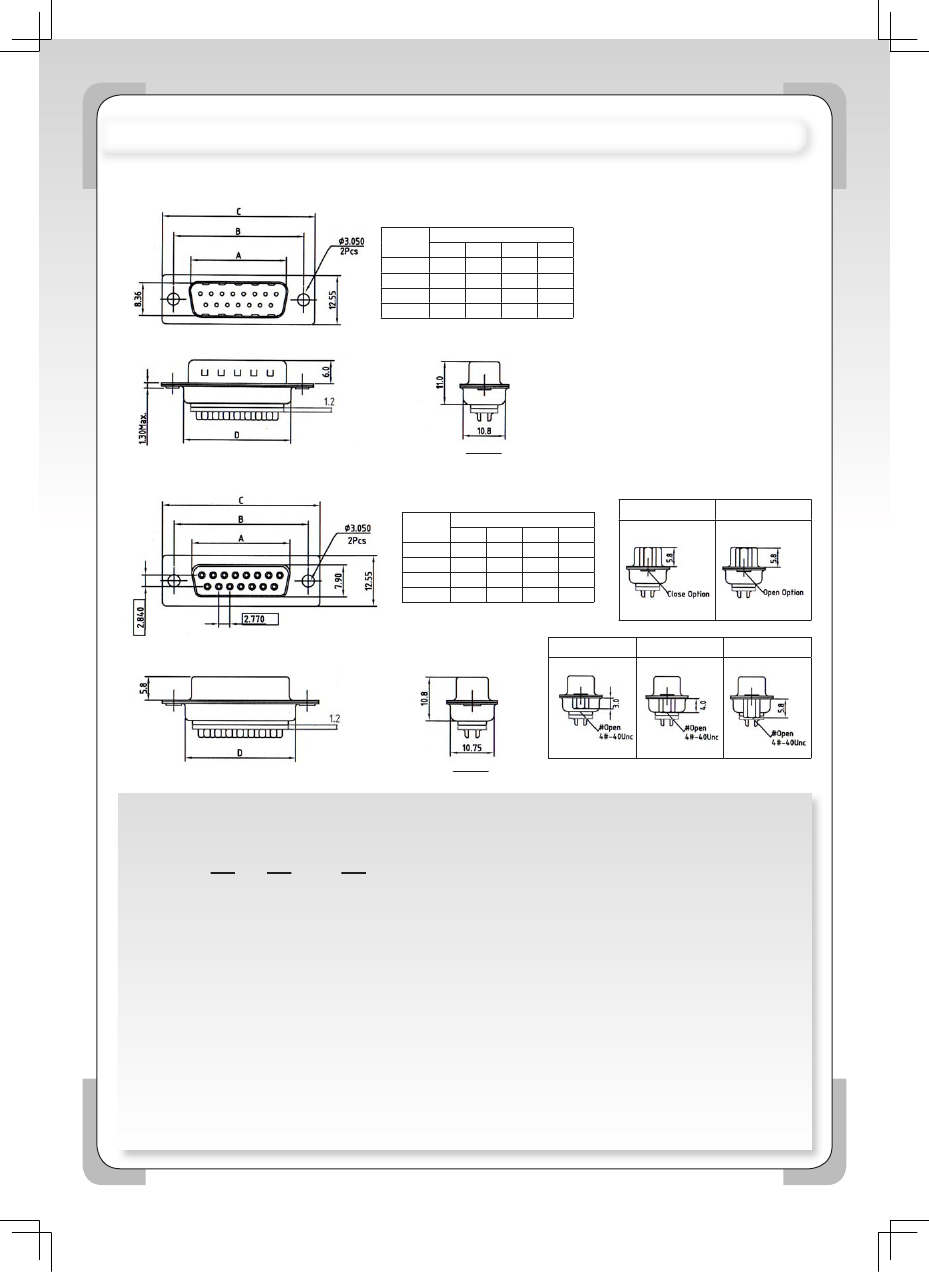

D-SUB. CONNECTOR SOLDER TYPE WITH FERRITE (EMI)

SPECIFICATIONS

No. of

Contacts

Dimensions(mm)

16.92 24.99 30.81 19.23

25.25 33.32 39.14 27.56

38.96 47.04 53.04 41.28

55.42 63.50 69.32 57.33

Current Rating:

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5291F

No. of

Contacts

Dimensions(mm)

16.33 24.99 30.81 19.23

24.66 33.32 39.14 27.56

38.38 47.04 53.04 41.28

54.84 63.50 69.32 57.33

5292F

ORDERING INFORMATION:

P/N 5 2 x x F - x x T B / x x

1. CONNECTOR TYPE:

"91" MALE

"92" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37

3. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

OTHERS: K, K3, K6, J, JT, J4

C0007

5292F-15TB/K3 Related Products

	5292F-15TB/K3	5292F-15TB/K	5291F-09TB/K	5291F-09TB/K3	5292F-09TB/K	5292F-09TB/K3	5292F-09TB/K6
Description	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.343 inch	0.343 inch	0.343 inch	0.343 inch	0.343 inch	0.343 inch	0.343 inch
body length	1.541 inch	1.541 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5292F	5292F	5291F	5291F	5292F	5292F	5292F
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	15	15	9	9	9	9	9
