3N258 datasheet, PDF - EEWORLD Datasheet

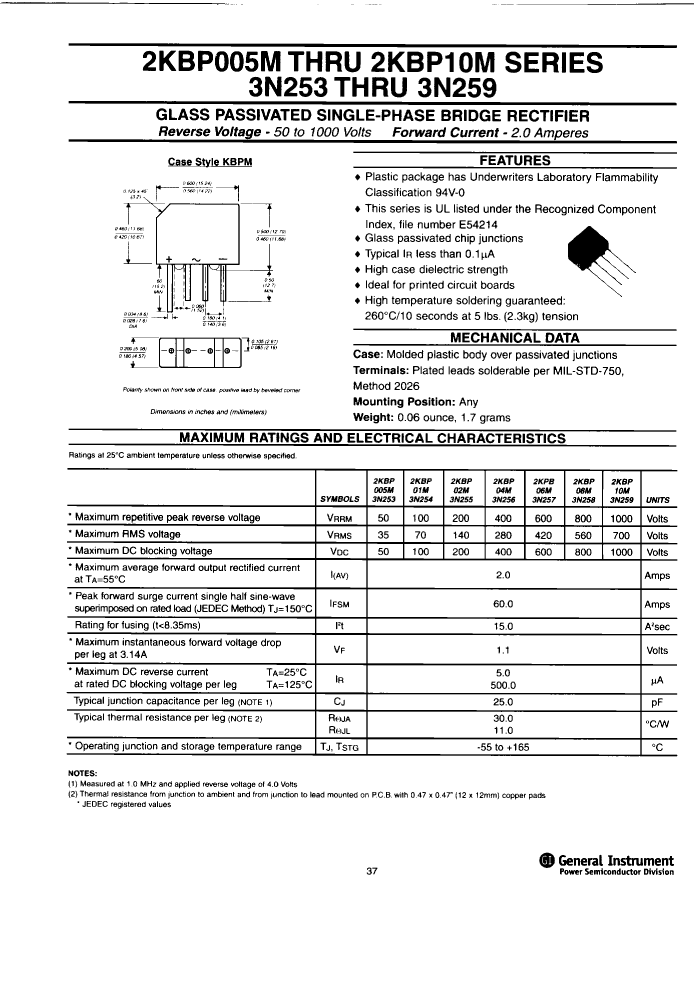

3N258: DescriptionBridge Rectifier Diode, 1 Phase, 2A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size71KB，2 Pages; ManufacturerGeneral Instrument

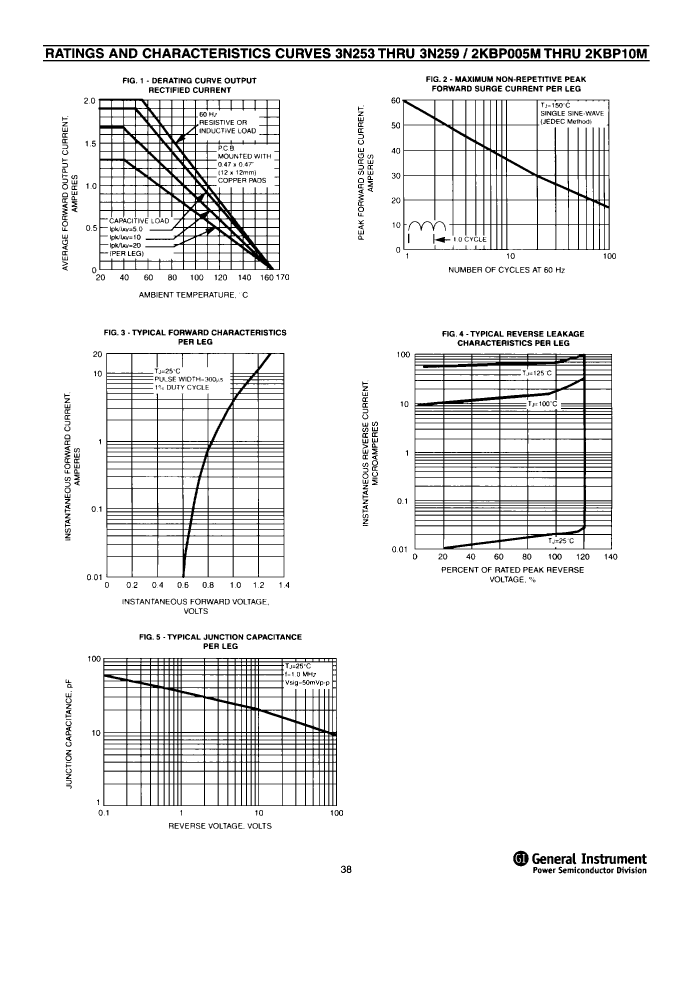

Download Datasheet Parametric Compare View All

3N258 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3N258	-	-	View	Buy Now

Bridge Rectifier Diode, 1 Phase, 2A, 800V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	General Instrument
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	165 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	5 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	3N258
Description	Bridge Rectifier Diode, 1 Phase, 2A, 800V V(RRM), Silicon,
Maker	General Instrument
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	165 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	5 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
