CWR19HC156JBEZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CWR19HC156JBEZ

CWR19HC156JBEZ: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 5% +Tol, 5% -Tol, 15uF, Surface Mount, 2010, CHIP; CategoryPassive components capacitor; File Size2MB，19 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

CWR19HC156JBEZ Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 5% +Tol, 5% -Tol, 15uF, Surface Mount, 2010, CHIP

CWR19HC156JBEZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	, 2010
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	ESR IS MEASURED AT 100 KHZ
capacitance	15 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	4000 mΩ
high	1.27 mm
JESD-609 code	e0
leakage current	0.002 mA
length	5.08 mm
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	15 V
Guideline	MIL-PRF-55365/11
size code	2010
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	J BEND
width	2.54 mm

Preview

Download Datasheet

View All

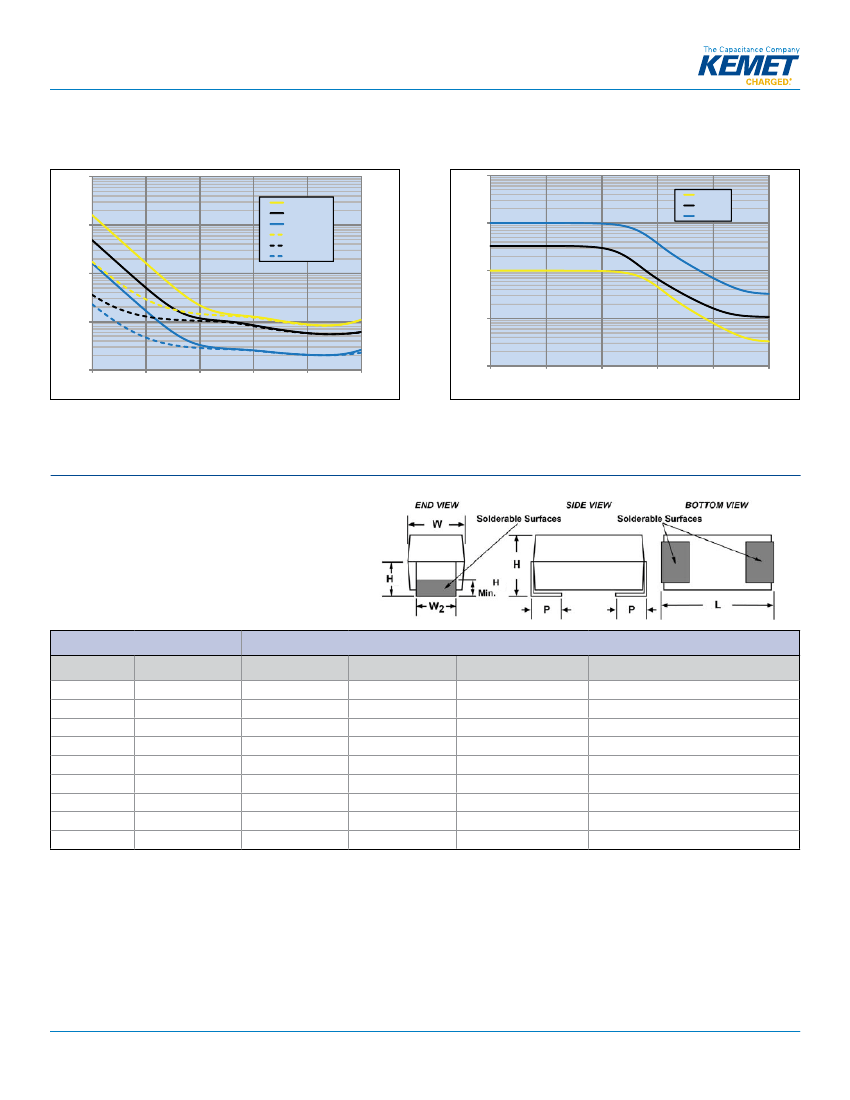

MIL–PRF (CWR Style) Established Reliability

T419 Series CWR19 Style MIL–PRF–55365/11

Overview

The KEMET T419 series is approved to MIL–PRF–55365/11

(CWR19), with Weibull failure rates of B level (0.1% failures per

1,000 hours), C level (0.01% failures per 1,000 hours), or D level

(0.001% failures per 1,000 hours). This CWR19 product is a

precision-molded device, with compliant terminations and indelible

laser marking. Tape and reeling per EIA 481–D is standard.

Benefits

•

Established reliability options

Taped and reeled per EIA 481–D

Symmetrical, compliant terminations

Laser-marked case

100% surge current test available on all case sizes

Qualified to MIL–PRF-55365/11, Style CWR19

Termination options B, C, H, K

Weibull failure options B, C, and D

Exponential failure rates M, P, R, S

Voltage rating of 4 – 50 VDC

Operating temperature range of -55˚C to +125˚C

Applications

Typical applications include decoupling and filtering in Military and

aerospace applications requiring CWR19 devices.

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn Solder.

SPICE

For a detailed analysis of specific part numbers, please visit kemet.com for a free download of

KEMET’s

SPICE software. The KEMET

SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over frequency,

temperature, ripple, and DC bias conditions.
