Features
•
Single 2.7V - 3.6V Supply
•
Serial Peripheral Interface (SPI) Compatible
– Supports SPI Modes 0 and 3
– Supports RapidS Operation
– Supports Dual-Input Program and Dual-Output Read
Very High Operating Frequencies
– 100MHz for RapidS
– 85MHz for SPI
– Clock-to-Output (t
V
) of 5ns Maximum
Flexible, Optimized Erase Architecture for Code + Data Storage Applications
– Uniform 4-Kbyte Block Erase
– Uniform 32-Kbyte Block Erase
– Uniform 64-Kbyte Block Erase
– Full Chip Erase
Individual Sector Protection with Global Protect/Unprotect Feature
– 64 Sectors of 64-Kbytes Each
Hardware Controlled Locking of Protected Sectors via WP Pin
Sector Lockdown
– Make Any Combination of 64-Kbyte Sectors Permanently Read-Only
128-Byte Programmable OTP Security Register
Flexible Programming
– Byte/Page Program (1- to 256-Bytes)
Fast Program and Erase Times
– 1.0ms Typical Page Program (256-Bytes) Time
– 50ms Typical 4-Kbyte Block Erase Time
– 250ms Typical 32-Kbyte Block Erase Time
– 400ms Typical 64-Kbyte Block Erase Time
Program and Erase Suspend/Resume
Automatic Checking and Reporting of Erase/Program Failures
Software Controlled Reset
JEDEC Standard Manufacturer and Device ID Read Methodology
Low Power Dissipation
– 12mA Active Read Current (Typical at 20MHz)
– 5µA Deep Power-Down Current (Typical)
Endurance: 100,000 Program/Erase Cycles
Data Retention: 20 Years
Complies with Full Industrial Temperature Range
Industry Standard Green (Pb/Halide-free/RoHS Compliant) Package Options
– 8-lead SOIC (208-mil wide)
– 8-pad Ultra Thin DFN (5 x 6 x 0.6mm)
•
•
32-Mbit
2.7V Minimum
Serial Peripheral
Interface Serial
Flash Memory
AT25DF321A
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
3686I–DFLASH–02/2019
1.
Description
The AT25DF321A is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer
based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution.
The flexible erase architecture of the AT25DF321A, with its erase granularity as small as 4-Kbytes, makes it ideal for data
storage as well, eliminating the need for additional data storage EEPROM devices.
The physical sectoring and the erase block sizes of the AT25DF321A have been optimized to meet the needs of today's code
and data storage applications. By optimizing the size of the physical sectors and erase blocks, the memory space can be used
much more efficiently. Because certain code modules and data storage segments must reside by themselves in their own
protected sectors, the wasted and unused memory space that occurs with large sectored and large block erase Flash memory
devices can be greatly reduced. This increased memory space efficiency allows additional code routines and data storage
segments to be added while still maintaining the same overall device density.
The AT25DF321A also offers a sophisticated method for protecting individual sectors against erroneous or malicious program
and erase operations. By providing the ability to individually protect and unprotect sectors, a system can unprotect a specific
sector to modify its contents while keeping the remaining sectors of the memory array securely protected. This is useful in
applications where program code is patched or updated on a subroutine or module basis, or in applications where data storage
segments need to be modified without running the risk of errant modifications to the program code segments. In addition to
individual sector protection capabilities, the AT25DF321A incorporates Global Protect and Global Unprotect features that
allow the entire memory array to be either protected or unprotected all at once. This reduces overhead during the
manufacturing process since sectors do not have to be unprotected one-by-one prior to initial programming.
To take code and data protection to the next level, the AT25DF321A incorporates a sector lockdown mechanism that allows
any combination of individual 64-Kbyte sectors to be locked down and become permanently read-only. This addresses the
need of certain secure applications that require portions of the Flash memory array to be permanently protected against
malicious attempts at altering program code, data modules, security information, or encryption/decryption algorithms, keys,
and routines. The device also contains a specialized OTP (One-Time Programmable) Security Register that can be used for
purposes such as unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc.
Specifically designed for use in 3V systems, the AT25DF321A supports read, program, and erase operations with a supply
voltage range of 2.7V to 3.6V. No separate voltage is required for programming and erasing.
2
AT25DF321A
3686I–DFLASH–02/2019
AT25DF321A
2.
Pin Descriptions and Pinouts
Asserted
State
Table 2-1.
Pin Descriptions
Symbol
Name and Function
CHIP SELECT:
Asserting the CS pin selects the device. When the CS pin is deasserted, the device will
be deselected and normally be placed in standby mode (not Deep Power-Down mode), and the SO pin
will be in a high-impedance state. When the device is deselected, data will not be accepted on the SI pin.
A high-to-low transition on the CS pin is required to start an operation, and a low-to-high transition is
required to end an operation. When ending an internally self-timed operation such as a program or erase
cycle, the device will not enter the standby mode until the completion of the operation.
SERIAL CLOCK:
This pin is used to provide a clock to the device and is used to control the flow of
data to and from the device. Command, address, and input data present on the SI pin is always latched in
on the rising edge of SCK, while output data on the SO pin is always clocked out on the falling edge of
SCK.
SERIAL INPUT (SERIAL INPUT/OUTPUT):
The SI pin is used to shift data into the device. The SI
pin is used for all data input including command and address sequences. Data on the SI pin is always
latched in on the rising edge of SCK.
With the Dual-Output Read Array command, the SI pin becomes an output pin (SIO) to allow two bits of
data (on the SO and SIO pins) to be clocked out on every falling edge of SCK. To maintain consistency
with SPI nomenclature, the SIO pin will be referenced as SI throughout the document with exception to
sections dealing with the Dual-Output Read Array command in which it will be referenced as SIO.
Data present on the SI pin will be ignored whenever the device is deselected (CS is deasserted).
SERIAL OUTPUT (SERIAL OUTPUT/INPUT):
The SO pin is used to shift data out from the device.
Data on the SO pin is always clocked out on the falling edge of SCK.
With the Dual-Input Byte/Page Program command, the SO pin becomes an input pin (SOI) to allow two
bits of data (on the SOI and SI pins) to be clocked in on every rising edge of SCK. To maintain
consistency with SPI nomenclature, the SOI pin will be referenced as SO throughout the document with
exception to sections dealing with the Dual-Input Byte/Page Program command in which it will be
referenced as SOI.
The SO pin will be in a high-impedance state whenever the device is deselected (CS is deasserted).
WRITE PROTECT:
The WP pin controls the hardware locking feature of the device. Please refer to
“Protection Commands and Features” on page 18
for more details on protection features and the WP
pin.
The WP pin is internally pulled-high and may be left floating if hardware controlled protection will not
be used. However, it is recommended that the WP pin also be externally connected to V
CC
whenever
possible.
HOLD:
The HOLD pin is used to temporarily pause serial communication without deselecting or
resetting the device. While the HOLD pin is asserted, transitions on the SCK pin and data on the SI pin
will be ignored, and the SO pin will be in a high-impedance state.
The CS pin must be asserted, and the SCK pin must be in the low state in order for a Hold condition to
start. A Hold condition pauses serial communication only and does not have an effect on internally self-
timed operations such as a program or erase cycle. Please refer to
“Hold” on page 40
for additional
details on the Hold operation.
The HOLD pin is internally pulled-high and may be left floating if the Hold function will not be used.
However, it is recommended that the HOLD pin also be externally connected to V
CC
whenever possible.
DEVICE POWER SUPPLY:
The V
CC
pin is used to supply the source voltage to the device.
Operations at invalid V
CC
voltages may produce spurious results and should not be attempted.
GROUND:
The ground reference for the power supply. GND should be connected to the system ground.
Type
CS
Low
Input
SCK
-
Input
SI (SIO)
-
Input/Output
SO (SOI)
-
Output/Input
WP
Low
Input
HOLD
Low
Input
V
CC
GND
-
-
Power
Power
3
3686I–DFLASH–02/2019
Figure 2-1.
CS
SO (SOI)
WP
GND
1
2
3
4
8-SOIC (Top View)
8
7
6
5
Figure 2-2.
CS
SO (SOI)
WP
GND
1
2
3
4
8-UDFN (Top View)
8
7
6
5
VCC
HOLD
SCK
SI (SIO)
VCC
HOLD
SCK
SI (SIO)
3.
Block Diagram
Figure 3-1.
Block Diagram
CS
CONTROL AND
PROTECTION LOGIC
I/O BUFFERS
AND LATCHES
SCK
SI (SIO)
SO (SOI)
SRAM
DATA BUFFER
INTERFACE
CONTROL
AND
LOGIC
ADDRESS LATCH
Y-DECODER
Y-GATING
WP
HOLD
X-DECODER
FLASH
MEMORY
ARRAY
4.
Memory Array
To provide the greatest flexibility, the memory array of the AT25DF321A can be erased in four levels of granularity including
a full chip erase. In addition, the array has been divided into physical sectors of uniform size, of which each sector can be
individually protected from program and erase operations. The size of the physical sectors is optimized for both code and data
storage applications, allowing both code and data segments to reside in their own isolated regions. The Memory Architecture
Diagram illustrates the breakdown of each erase level as well as the breakdown of each physical sector.
4
AT25DF321A
3686I–DFLASH–02/2019
AT25DF321A

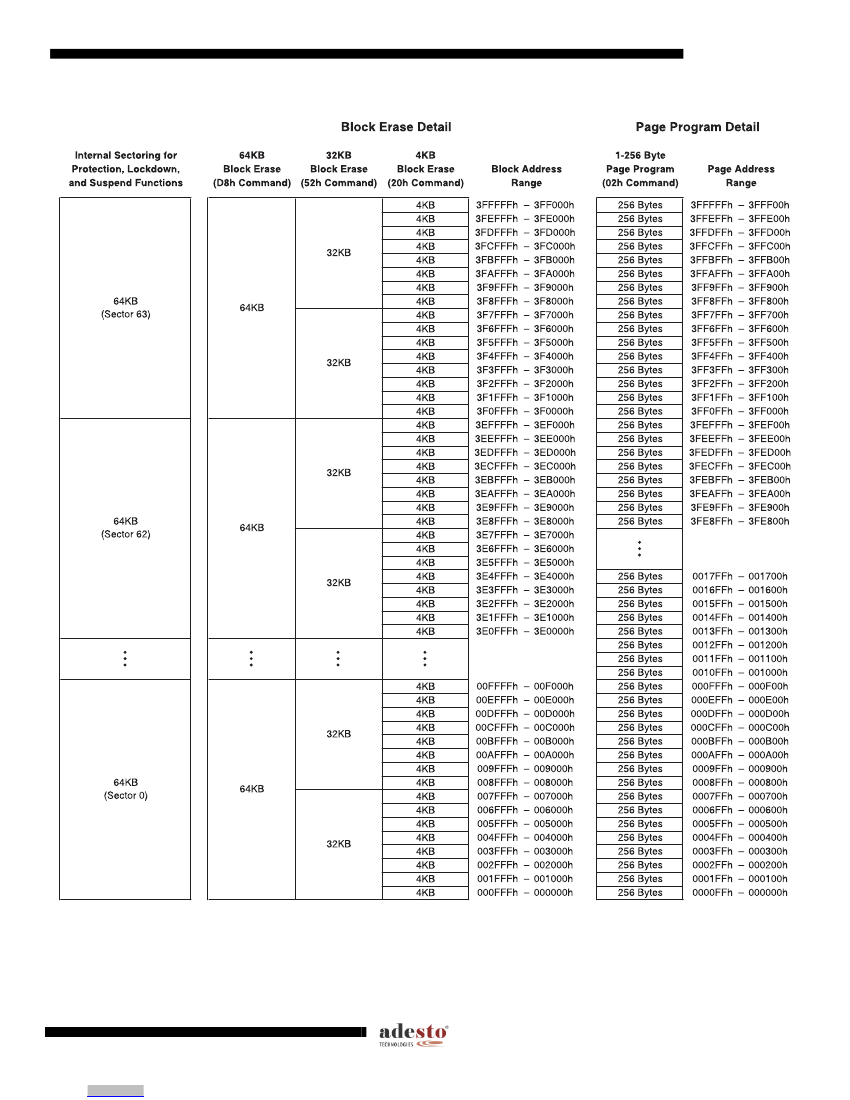

Figure 4-1.
Memory Architecture Diagram
5
3686I–DFLASH–02/2019
