JS-1001-12

Description
Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size111KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

JS-1001-12 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle

JS-1001-12 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.226 inch
subject depth0.276 inch
body length1.28 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberJS-1001
Plug contact pitch0.098 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.134 inch
Terminal pitch2.4892 mm
Termination typeSOLDER
Total number of contacts12
1
2
3
4
5
6
7
8
9
A
B
Recommended PCB Layout
SPECIFICATIONS
Voltage rating: 250VAC/VDC
Current rating:
3 amps AC/DC
Contact material: Brass
Contact plating: Tin
Contact resist.: 20 milliohms max.
Base material:
Nylon 66, UL94V-0
Insulation resist.: 1,000 megohms min.
Withstanding:
1,000VAC for 1 min.
Packaging:
1,000 pcs/bag

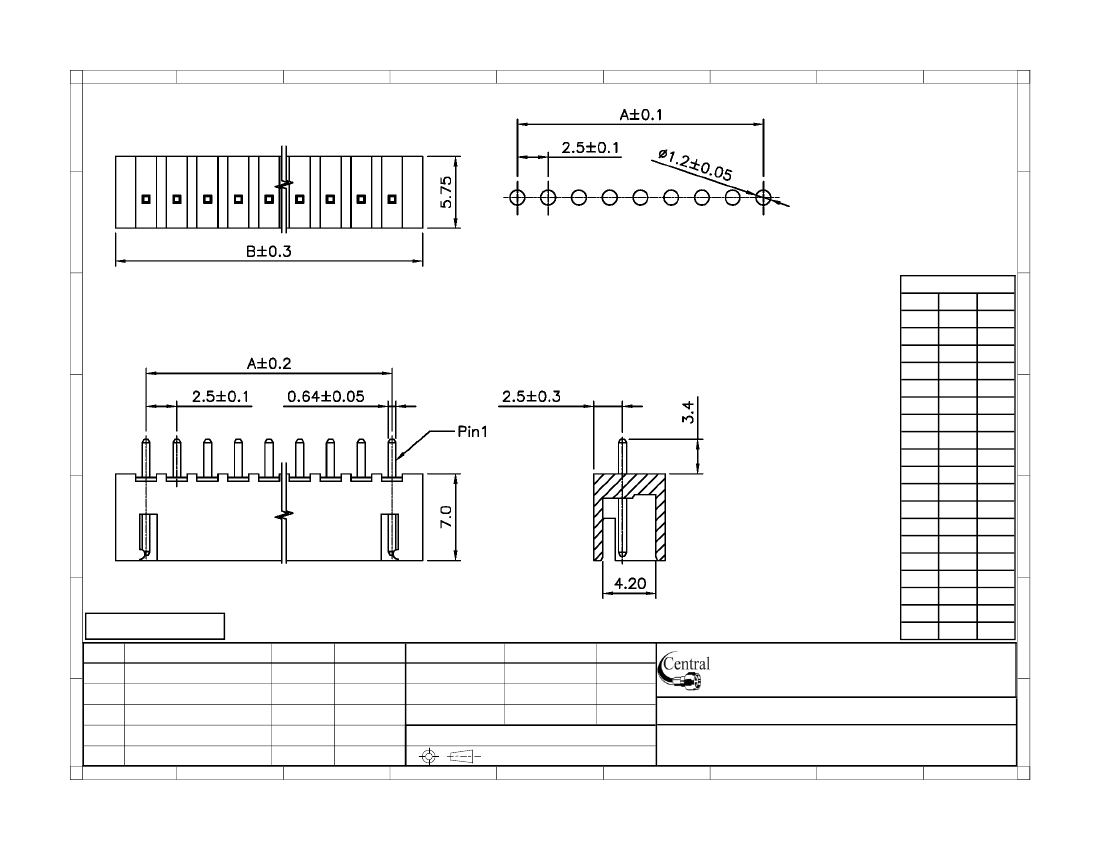

Dimensions (mm)
Poles A
B
2
2.50 7.50
3
5.00 10.00
4
7.50 12.50
5
10.00 15.00
6
12.50 17.50
7
15.00 20.00
8
17.50 22.50
9
20.00 25.00
10 22.50 27.50
11 25.00 30.00
12 27.50 32.50
13 30.00 35.00
14 32.50 37.50
15 35.00 40.00
16 37.50 42.50
17 40.00 45.00
18 42.50 47.50
19 45.00 50.00
20 47.50 52.50
A
B
C
C
D
D
E
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
05/15/05
05/15/05
05/15/05 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
JS-1001-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Crimp style connector wafer, 2.50mm pitch
G
