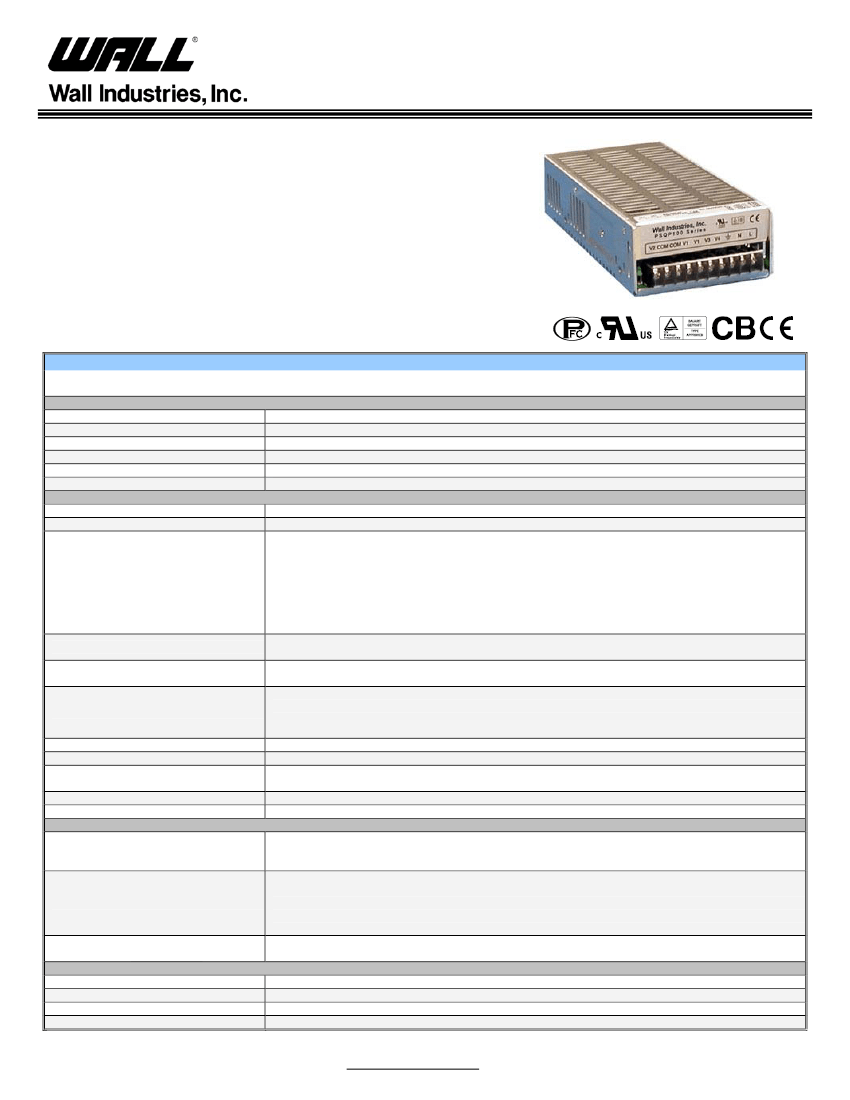

PSQP100 Series
100 Watt Quad Output
Built-In Active PFC Function
AC/DC Switching Power Supply
FEATURES
●
3 Year Warranty
●
Low Cost, High Reliability
●
CH.4: Polarity is Selectable
●
Cooling by Free Air Convection
●
Universal AC Input / Full Range
●
Fixed Switching Frequency at 100KHz
●
Built-In Active PFC Function, PF > 0.95
●
Soft-Start Circuit, Limiting AC Surge Current
●
Short Circuit, Overload, and Over Voltage Protected
SPECIFICATIONS:
PSQP100 Series
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
INPUT SPECIFICATIONS
Input Voltage Range (See Note 6)
90 ~ 264VAC (127 ~ 370VDC)
Input Frequency
47 to 63Hz
AC Current (typical)
1.5A @ 115VAC
0.75A @ 230VAC
Inrush Current (typical)
Cold Start
≤
40A @ 230VAC
Leakage Current
< 3.5mA @ 240VAC
Power Factor (typical)
PF > 0.95 @ 230VAC
PF > 0.98 @ 115VAC and full load
OUTPUT SPECIFICATIONS
Output Voltage
See Table
Output Power
See Table
PSQP1003A: CH.1: ±3.0%
CH.2: ±3.0%
CH.3: ±6.0%
CH.4: ±5.0%
PSQP1003B: CH.1: ±3.0%
CH.2: +3.0%
CH.3: ±6.0%
CH.4: ±5.0%
PSQP1003C: CH.1: ±3.0%
CH.2: ±3.0%
CH.3: +8, -6%
CH.4: ±5.0%
PSQP1003D: CH.1: ±3.0%
CH.2: ±3.0%
CH.3: ±6.0%
CH.4: ±5.0%
Voltage Tolerance (See Note 3)
PSQP100B:
CH.1: ±3.0%
CH.2: ±6.0%
CH.3: +10, -6% CH.4: ±5.0%
PSQP100C:
CH.1: ±3.0%
CH.2: +6, -10% CH.3: ±8.0%
CH.4: ±5.0%
PSQP100D:
CH.1: ±3.0%
CH.2: ±3.0%
CH.3: ±6.0%
CH.4: ±5.0%
PSQP100F:
CH.1: ±3.0%
CH.2: ±3.0%
CH.3: ±6.0%
CH.4: ±5.0%
PSQP100B & PSQP100C: CH.1: ±1.0%
CH.2: ±2.0%
CH.3: ±2.0%
CH.4: ±1.0%
Line Regulation (See Note 4)
Other Models:
CH.1: ±1.0%
CH.2: ±1.0%
CH.3: ±2.0%
CH.4: ±1.0%
PSQP100B:
CH.1: ±2.0%
CH.2: ±6.0%
CH.3: ±6.0%
CH.4: ±2.0%
Load Regulation
Other Models: CH.1: ±2.0%
CH.2: ±2.0%
CH.3: ±6.0%
CH.4: ±2.0%
PSQP1003A, PSQP1003B, PSQP1003C, & PSQP1003D: CH.1: 4.75 ~ 5.5V, CH.2: 3.14 ~ 3.63V
PSQP100B & PSQP100C: CH.1: 4.75 ~ 5.5V
Voltage Adjustment Range
PSQP100D: CH.1: 4.75 ~ 5.5V, CH.2: 11.4 ~ 13.2V
PSQP100F: CH.1: 4.75 ~ 5.5V, CH.2: 14.3 ~ 16.5V
Output Current
See Table
Ripple & Noise (max) (See Note 2)
See Table
PSQP100B & PSQP100C: 1000ms, 50ms at full load
Setup, Rise Time
Other Models: 800ms, 50ms @ 230VAC 800ms, 50ms @ 115VAC and full load
Hold Up Time (typical)
24ms @ 230VAC 24ms @ 115VAC and full load
Temperature Coefficient
±0.03%/°C (0 ~ 50°C)
PROTECTION
PSQP100B & PSQP100C: 105 ~ 135% rated output power
Overload Protection
Other Models: 105 ~ 150% rated output power
Protection Type: Hiccup mode, recovers automatically after fault condition is removed.
PSQP1003A, PSQP1003B, PSQP1003C, & PSQP1003D CH.1: 5.75 ~ 6.75VDC CH.2: 3.8 ~ 4.4V
PSQP100B & PSQP100C: CH.1 5.75 ~ 6.75V
PSQP100D: CH.1 5.75 ~ 6.75V CH.2: 13.8 ~ 16.2V
Over Voltage Protection
PSQP100F: CH.1 5.75 ~ 6.75V CH.2: 17.25 ~ 20.25V
Protection Type: Shutdown output voltage, re-power on to recover.
95°C ±5°C (TSW1)
Over Temperature (Option)
Protection Type: Shutdown output voltage, recovers automatically after temperature goes down.
GENERAL SPECIFICATIONS
Efficiency (typical)
See Table
Switching Frequency
100KHz
Withstand Voltage
3000VAC (Input to Output), 1500VAC (Input to FG), 500VAC (Output to FG)
Isolation Resistance
100MΩ/500DC (Input to Output, Input to FG, and Output to FG)
o
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
PSQP100 Series
100 Watt Quad Output
Built-In Active PFC Function
AC/DC Switching Power Supply
SPECIFICATIONS (CONTINUED):
ENVIRONMENTAL SPECIFICATIONS
Working Temperature
Storage Temperature
Working Humidity
Storage Humidity
Cooling
Vibration
MTBF
PHYSICAL SPECIFICATIONS
Weight

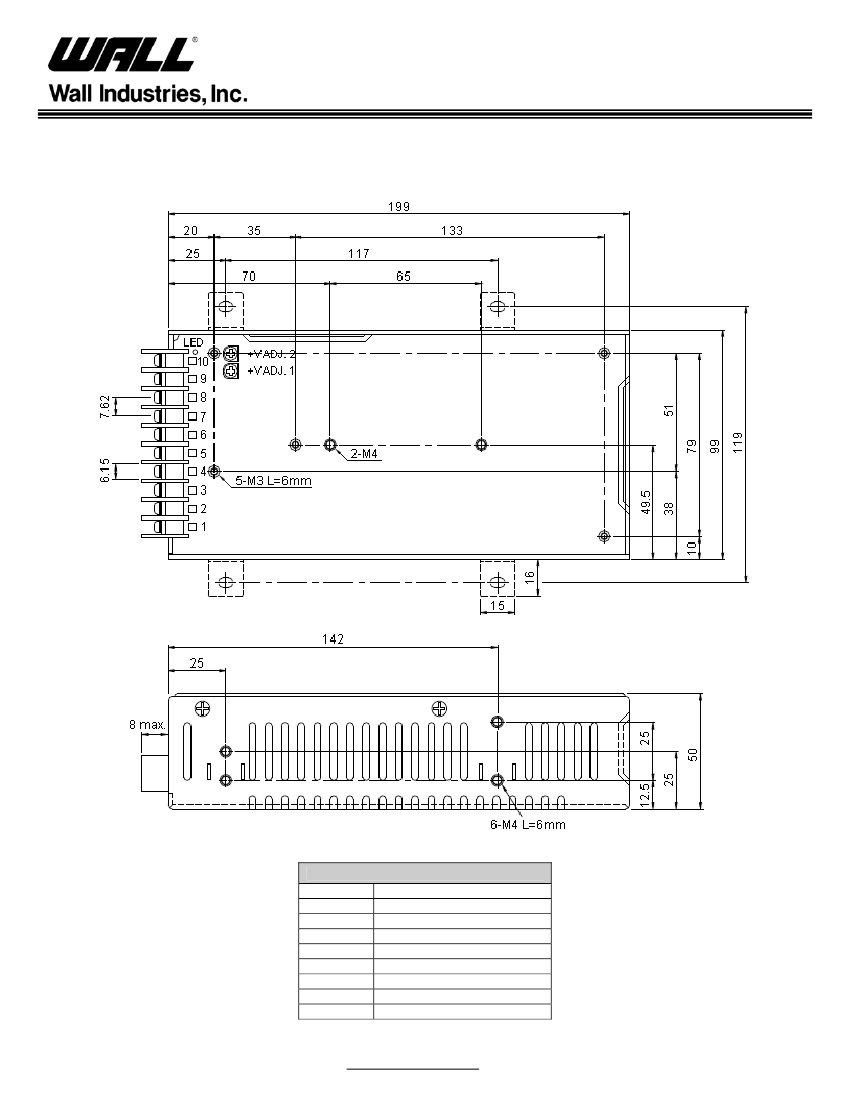

Dimensions
Warranty
SAFETY & EMC (See Note 5)
Safety Standards
EMI Conduction & Radiation
Harmonic Current
EMS Immunity
-10°C to +60°C (refer to output load derating curve)
-20°C to +85°C
20 ~ 90% RH non-condensing
10 ~ 95% RH
Free air convection
10 ~ 500Hz, 2G 10min./1 cycle, 60min each along X, Y, Z axes.
139,900 hours min. @ 25°C (MIL-HDBK-217F)
730 grams
199(L) x 99(W) x 50(H) mm
3 years
UL60950-1, TUV EN60950-1 Approved
Compliance to EN55022 (CISPR22) Class B
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
OUTPUT VOLTAGE / CURRENT RATING CHART
Model Number
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
CH: 1
CH: 2
CH: 3
CH. 4
Input Voltage
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
90 ~ 264VAC
(127 ~ 370VDC)
Output
Voltage
5 VDC
3.3 VDC
12 VDC
-5 VDC
5 VDC
3.3 VDC
12 VDC
-12 VDC
5 VDC
3.3 VDC
15 VDC
-15 VDC
5 VDC
3.3 VDC
24 VDC
-12 VDC
5 VDC
12 VDC
-12 VDC
-5 VDC
5 VDC
15 VDC
-15 VDC
-5 VDC
5 VDC
12 VDC
24 VDC
-12 VDC
5 VDC
15 VDC
24 VDC
-15 VDC
Rated
Output
Output Current Current Range
8A
8A
2.5A
0.6A
8A
8A
2.2A
0.6A
8A
8A
1.7A
0.6A
8A
8A
1.3A
0.6A
10A
3A
1A
0.6A
10A
2.2A
1A
0.6A
8A
2.4A
1A
0.6A
8A
2A
1A
0.6A
2 ~ 10A
0 ~ 10A
0.3 ~ 3A
0 ~ 1A
2 ~ 10A
0 ~ 10A
0.3 ~ 3A
0 ~ 1A
2 ~ 10A
0 ~ 10A
0.3 ~ 2A
0 ~ 1A
2 ~ 10A
0 ~ 10A
0.3 ~ 2A
0 ~ 1A
2 ~ 10A
0.3 ~ 4A
0.15 ~ 1A
0 ~ 1A
2 ~ 10A
0.3 ~ 3A
0.15 ~ 1A
0 ~ 1A
2 ~ 10A
0 ~ 3A
0.3 ~ 2A
0 ~ 1A
2 ~ 10A
0 ~ 3A
0.3 ~ 2A
0 ~ 1A
Ripple &
Noise
100mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
100mVp-p
120mVp-p
150mVp-p
200mVp-p
150mVp-p
120mVp-p
180mVp-p
200mVp-p
150mVp-p
Rated
Output Power
99.4W
Efficiency
PSQP1003A
74%
PSQP1003B
100W
74%
PSQP1003C
100.9W
75%
PSQP1003D
104.8W
75%
PSQP100B
101W
76%
PSQP100C
101W
77%
PSQP100D
100W
78%
PSQP100F
103W
78%
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
PSQP100 Series
100 Watt Quad Output
Built-In Active PFC Function
AC/DC Switching Power Supply
NOTES
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient
temperature.
2. Ripple & noise are measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF &
47uF parallel capacitor.
3. Tolerances include set up tolerance, line regulation, and load regulation.
4. Line Regulation is measured from low line to high line at rated load.
5. The power supply is considered a component, which will be installed into final equipment. The final equipment
must be re-confirmed that it still meets EMC directives
6. Derating may be needed under low input voltages. Please check the derating curve for more details.

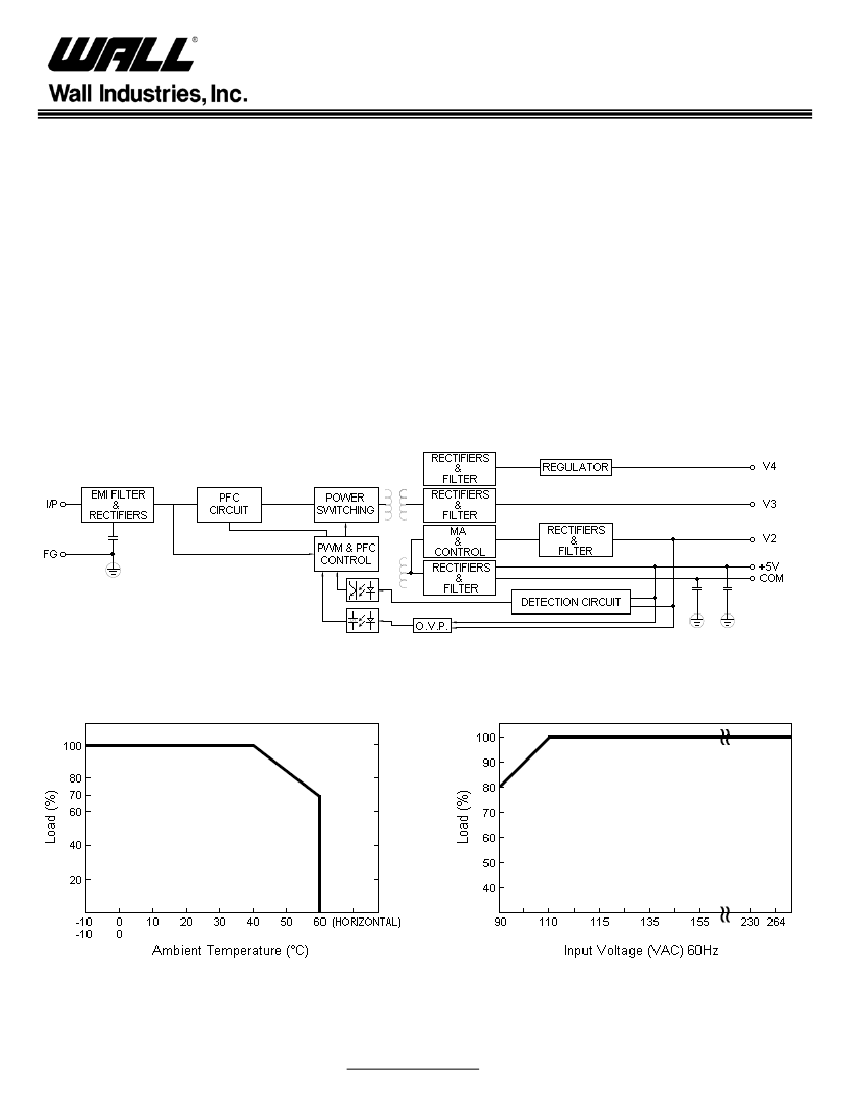

BLOCK DIAGRAM
fosc: 100KHz
DERATING CURVE
OUTPUT DERATING VS INPUT VOLTAGE
