RJC07R
Series
TOCOS
POTENTIOMETERS
®
3/4’’ Rectilinear, 13-Turn, Through-Hole, Sealed Cermet Trimmers

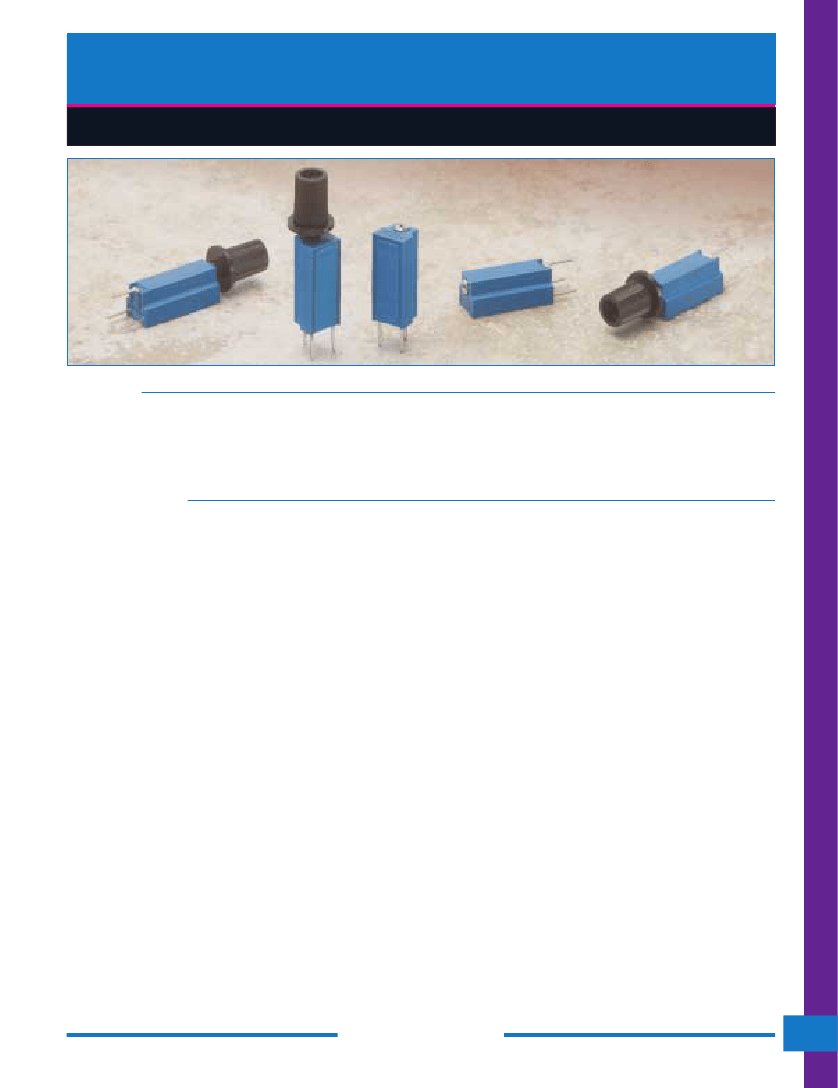

Features
3/4” rectilinear, 13-turn, through-hole, sealed cermet trimmers
Space-saving vertical mount design
Single-slot top adjustment
Knob style available for easier adjustment
High performance, excellent stability
Wide operating temperature range of 55 C to 125 C
PC board solderable pins
Sealed to withstand wave soldering and immersion cleaning
Meets UL flammability standards
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . . 10Ω to 1MΩ
(standard 1, 2 & 5 sequence )
Resistance Tolerance
. . . . . . . . . . . . . . .
10% and
20%
End Resistance
. . . . . . . . . . 1% or 3Ω, whichever is greater
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear
Peak Noise (C.R.V.)
. . . . . . . 1% or 1Ω, whichever is greater
for
*
10kΩ; 2% max. for
8
20kΩ
Power Rating
. . . . . . . 0.75 watt at
40 C, 0 watt at
125 C
Maximum Input Voltage
. . . . . . . . 300VDC or power rating,
whichever is smaller
Temperature Coefficient
. . .
100ppm / C, 200Ω to 500kΩ
250ppm / C, other values
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
55 C to
125 C
High Temperature Exposure
. . . . . . . . . 125 C, 250 hours
∆T/R
)
3%, S.S.
)
1%
Load Life
. . . . . . . . . . . . . . . .
40 C, 0.75 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
2%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,
30 minutes each, 5 cycles
∆T/R
)
2%, S.S.
)
1%
Shock
. . . . . . . . . . . . . 50G, 6ms, 6 directions, 3 times each
∆T/R
)
1%, S.S.
)
1%
Vibration
. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,
20G, 12 hours
)
1%, S.S.
)
1%
∆T/R
Humidity
. . . . . . . . . . . . . . . . . . . . . . . . . 40 C, 90-95%RH,
0.75 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
1%
Moisture Resistance
. . . . . . 10 C to 65 C, 80-98%RH,
0.75 watt, 10 cycles, 240 hours
∆T/R
)
3%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
1%
Seal Test
. . . . . . . . . . . . . . . .
85 C, hot water for 1 minute
Rotational Life
. . . . . . . . . . 200 cycles without discontinuity
∆T/R
)
5%
∆T/R
= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )
Insulation Resistance
. . . . . . .100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 900VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . .13 3 turns
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . .13 3 turns
Shaft Torque
. . . . . . . . 7.2 to 300
gf
•
cm
(0.10 to 4.16
oz
•
in)
Stop Strength
. . . . . . . . . . . . . . . . . . . . . . . . . Clutch action
Flammability of Plastic Materials
. . UL 94V-0 for housing;
UL 94HB for knob
Nominal Weight
. . . . . . . . . . . . . . . . . . 1.4g; 1.8g with knob
Marking
. . . . . . . . . . . . . . . . . . Resistance code, date code,
model type, wiring diagram
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
111

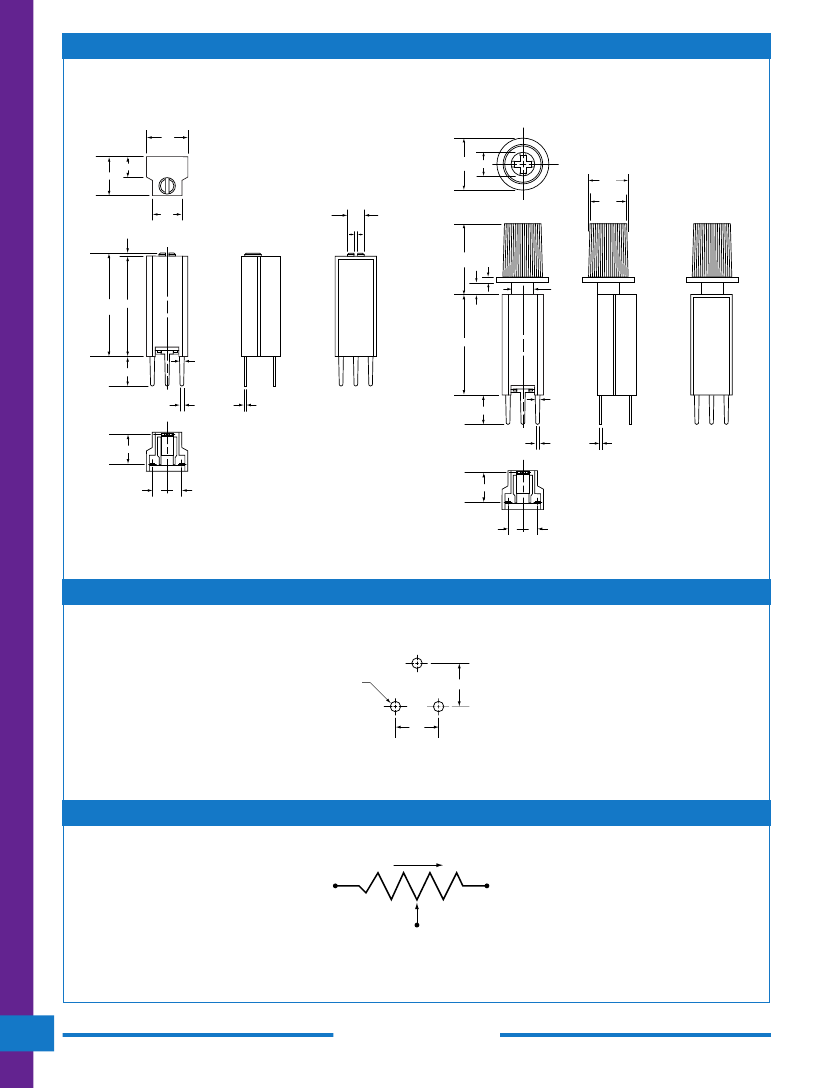

RJC07R Series
RJC07R
K2
B
102
K
Part Numbering System
Resistance Tolerance: K =
10%; M =
20%
Resistance Code: Expressed in ohms. A three digit code where the first two digits
are significant figures, and the third digit indicates the number of zeros that follow
these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω; 105 = 1,000,000Ω ).
Resistance Taper: B = Linear.
Adjustment Knob: K 2 = Permanent Large Knob, Extended Shaft.
Blank = No Knob, Single-Slot, Short Shaft.
TOCOS Series Name.

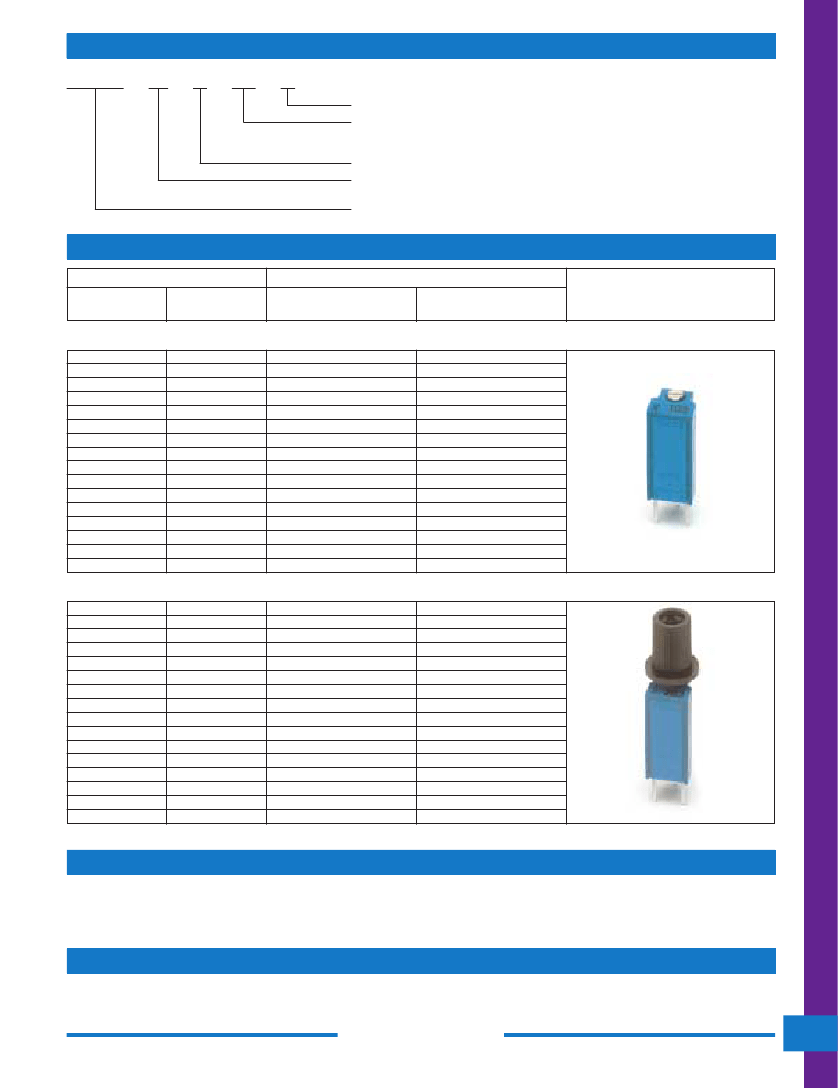

Part Numbers
Nominal Resistance
Value (
Ω
)
Code
Catalog No. Bulk
Resistance
Tolerance 10%
Resistance
Tolerance 20%
Potentiometer
Styles
RJC07R
Through-Hole, Single-Slot, Short Shaft, Top Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
RJC07R
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
RJC07R
RJC07RK2
Through-Hole, Extended Shaft, Permanent Knob, Top Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
RJC07RK2
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
RJC07RK2
Packaging
Standard:
Bulk Packaging
Quantity
RJC07R: 20 pieces per vinyl bag; 200 pieces per box.
RJC07RK2: 50 pieces per vinyl bag; 200 pieces per box.
Soldering and Cleaning Guidelines
For soldering, cleaning and other information, refer to Guidelines and Precautions for Using Potentiometers.
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
113
