URS0J102MND

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED
CategoryPassive components    capacitor
File Size42KB，2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric Compare View All

URS0J102MND Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED

URS0J102MND Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance1000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current0.189 mA
Manufacturer's serial numberRS
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTAPE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
ripple current510 mA
surface mountNO
Delta tangent0.28
Terminal surfaceMatte Tin (Sn)
Terminal shapeWIRE

Preview

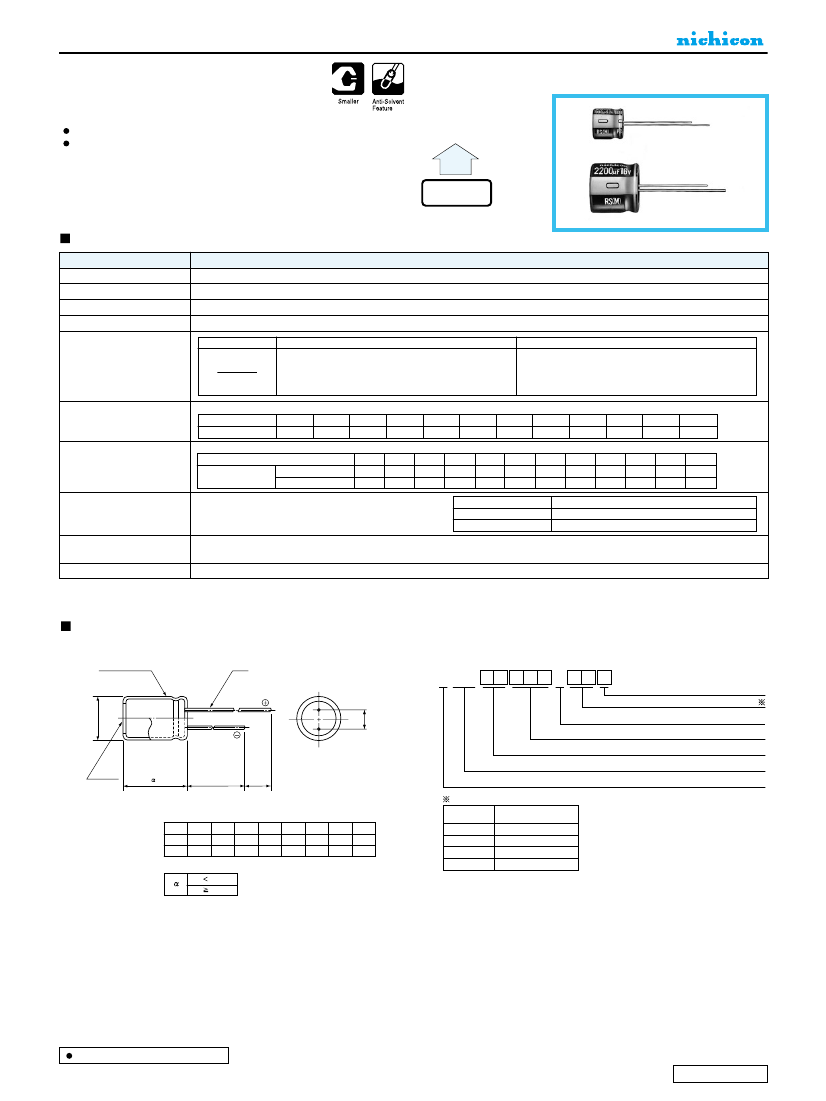

Download Datasheet
ALUMINUM ELECTROLYTIC CAPACITORS
RS
Compact & Low-profile Sized
series
(Through 100V only)
More compact & low profile case sizes than VS series.
Compliant to the RoHS directive (2002/95/EC).
RZ
High
Temperature
RS
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Performance Characteristics
– 40 to +85˚C
6.3 to 400V
0.1 to 10000µF
± 20% at 120Hz, 20˚C
Rated voltage
(
V
)
6.3 to 100
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
After 2 minutes' application of rated voltage, leakage current
is not more than 0.01CV or 3 (µA), whichever is greater.
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
160 to 400
After 1 minute's application of rated voltage.
I
= 0.04CV+100 (µA) or less
Leakage Current
Measurement frequency : 120Hz, Temperature : 20˚C
Tangent of loss angle (tan
δ)
Rated voltage (V)
tan
δ
(
MAX.
)
6.3
0.28
10
0.24
16
0.20
6.3
5
12
25
0.16
10
4
10
35
0.14
16
3
8
25
2
5
50
0.12
35
2
4
63
0.10
50
2
3
100
0.08
63
2
3
160
0.20
100
2
3
200
0.20
160
3
4
200
3
4
250
0.20
250
3
6
400
0.25
400
6
10
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25˚C / Z+20˚C
Impedance ratio
ZT / Z20 (MAX.
)
Z– 40˚C / Z+20˚C
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 2000 hours at 85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 10V 330µF)
φ
d
1
2
3
4
5
6
7
8
9 10 11
12
Size code
Configuration
P
±
0.5
URS 1 A 3 3 1 MPD
φD
+
0.5 MAX
Capacitance tolerance (±20%)
Rated capacitance (330µF)
Rated voltage (10V)
Pressure
relief vent
(φ8up)
Series name
L+
MAX
15
MIN
4
MIN
Type
Configuration
(mm)
φ
D
5 · 6.3
8 · 10
12.5 to 18
20
Pb-free leadwire
Pb-free PET sleeve
φD
P
φd
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
20
10.0
1.0
DD
PD
HD
RD
(φD 20) 1.5
(φD 20) 2.0
•
Please refer to page 20 about the end seal configulation.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
CAT.8100Y
