BI20-CP40-VP4X2-B1141: DescriptionInductive Sensor,; CategoryThe sensor; File Size387KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI20-CP40-VP4X2-B1141 Overview

Inductive Sensor,

BI20-CP40-VP4X2-B1141 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	40 mm
body height	40 mm
Body length or diameter	114 mm
shell	PLASTIC
Installation features	FLUSH MOUNT
Maximum working current	200 mA
Output interface type	4-WIRE INTERFACE
Output type	PNP
Package Shape/Form	RECTANGULAR
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	65 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

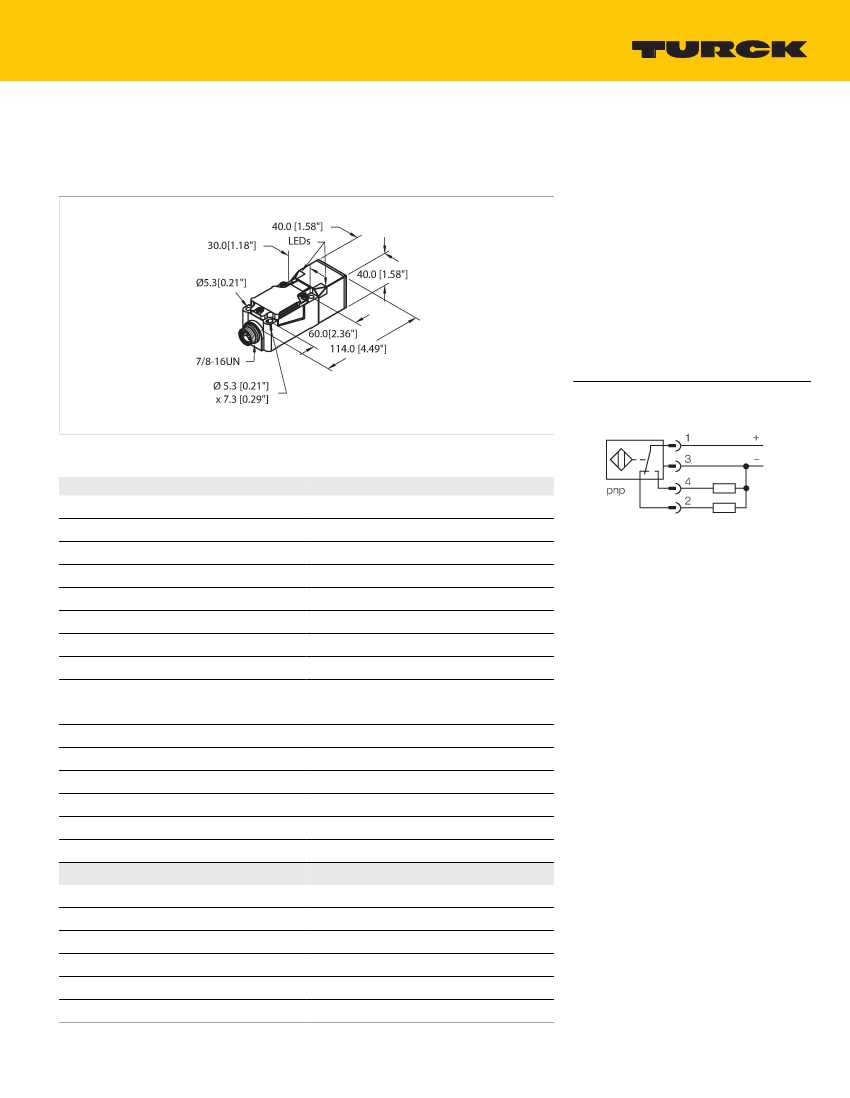

BI20-CP40-VP4X2-B1141

Inductive sensor

Features

■

Rectangular, height 40 mm

■

Variable orientation of active face in 9 directions

■

Plastic, PBT-GF30-VO

■

High-luminance corner LEDs

■

Optimum view of operating voltage and

switching state from any position

■

DC 4-wire, 10…65 VDC

■

Changeover contact, PNP output

■

7/8" male connector

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

Mounting conditions

Repeat accuracy

Hysteresis

Operating voltage

Residual ripple

DC rated operational current

No-load current

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

Active area material

Connector housing

Electrical connection

Vibration resistance

BI20-CP40-VP4X2-B1141

1501290

20 mm

Flush

≤ 2 % of full scale

3…15 %

10…65 VDC

≤ 10 % U

≤ 200 mA

≤ 0.1 mA

≤ 0.5 kV

yes / Cyclic

≤ 1.8 V

yes / Complete

4-wire, Complementary contact, PNP

0.1 kHz

Rectangular,CP40

114 x 40 x 40 mm

Plastic, PBT-GF30-V0, Black

Plastic, PBT-GF30-V0, yellow

metal

Connector, 7/8''

55 Hz (1 mm)

BI20-CP40-VP4X2-B1141| 09/15/2019 16-45 | technical changes reserved

1|2

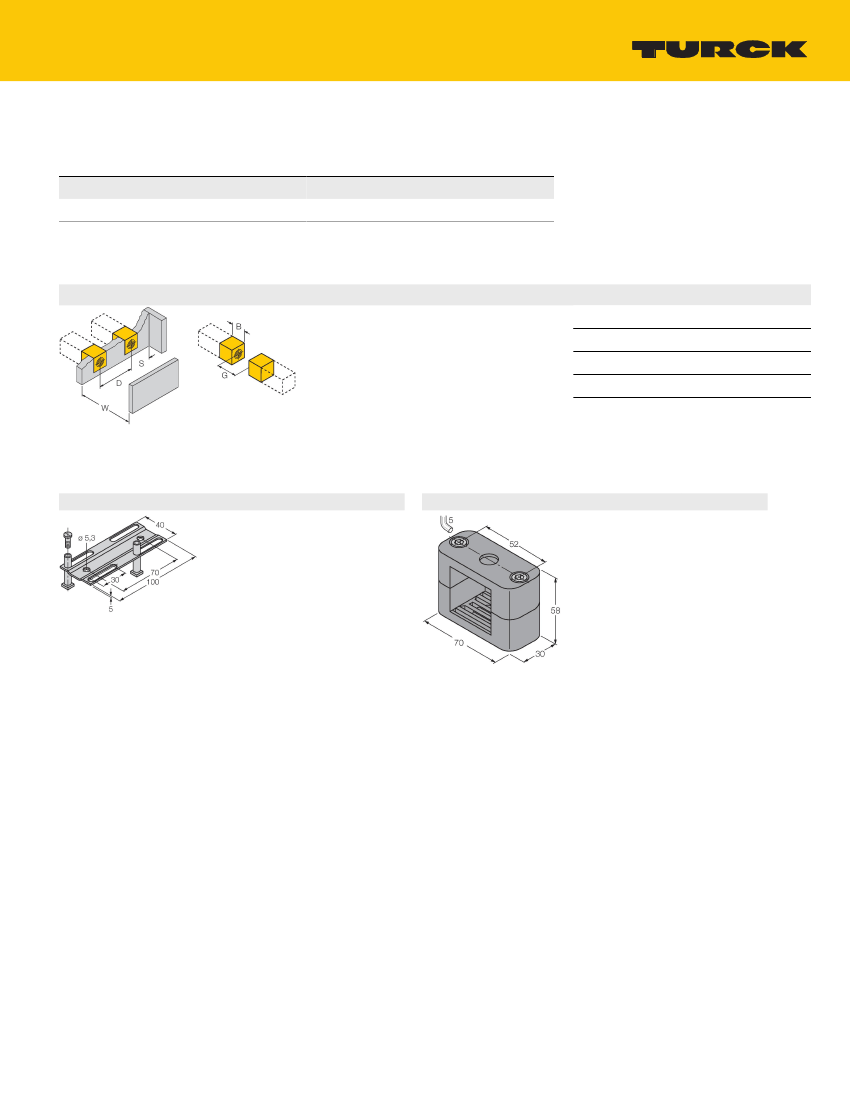

≤ 15 mA
