SN74LS47N

Description
LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, PDIP16
Categorylogic    logic
File Size135KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

SN74LS47N Online Shopping

Suppliers Part Number Price MOQ In stock
SN74LS47N - - View Buy Now

SN74LS47N Overview

LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, PDIP16

SN74LS47N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeDIP
package instructionPLASTIC, DIP-16
Contacts16
Reach Compliance Code_compli
ECCN codeEAR99
Is SamacsysN
seriesLS
Input adjustmentSTANDARD
JESD-30 codeR-PDIP-T16
JESD-609 codee0
length19.175 mm
Logic integrated circuit typeSEVEN SEGMENT DECODER/DRIVER
Number of functions1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)100 ns
Certification statusNot Qualified
Maximum seat height4.44 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1

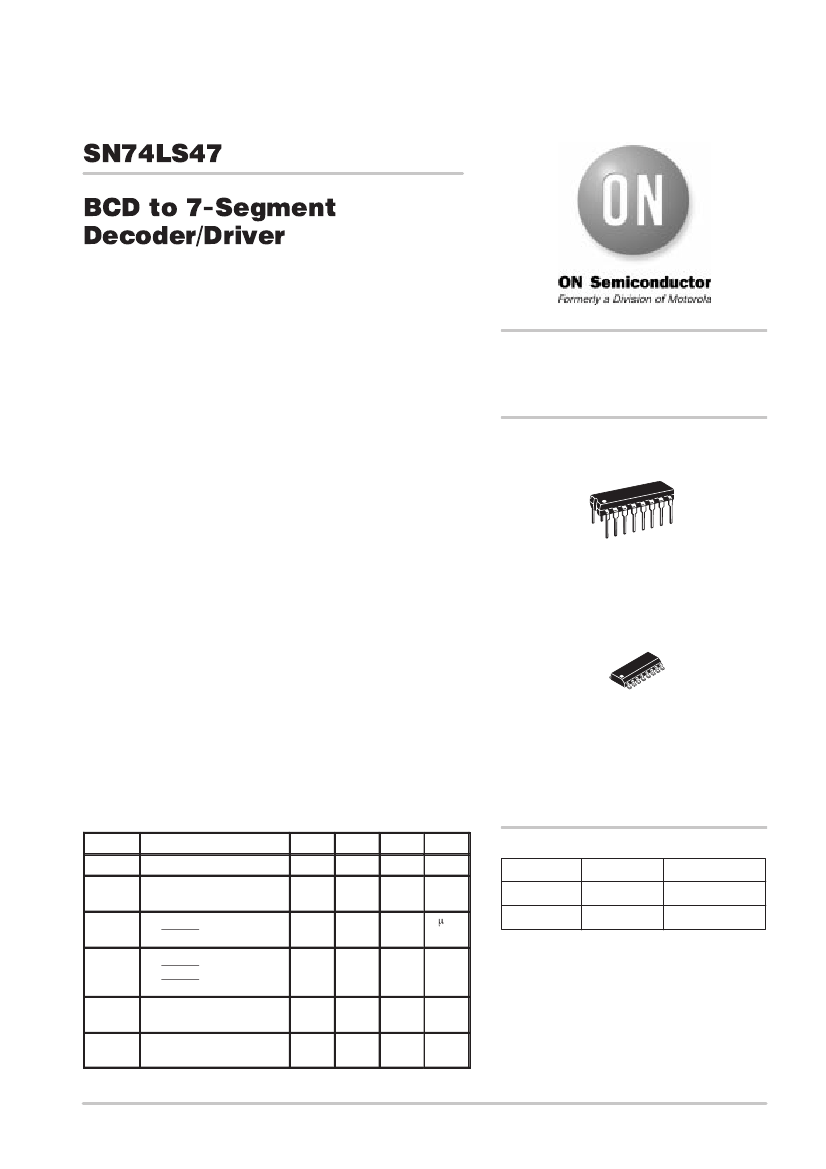

SN74LS47
BCD to 7-Segment
Decoder/Driver

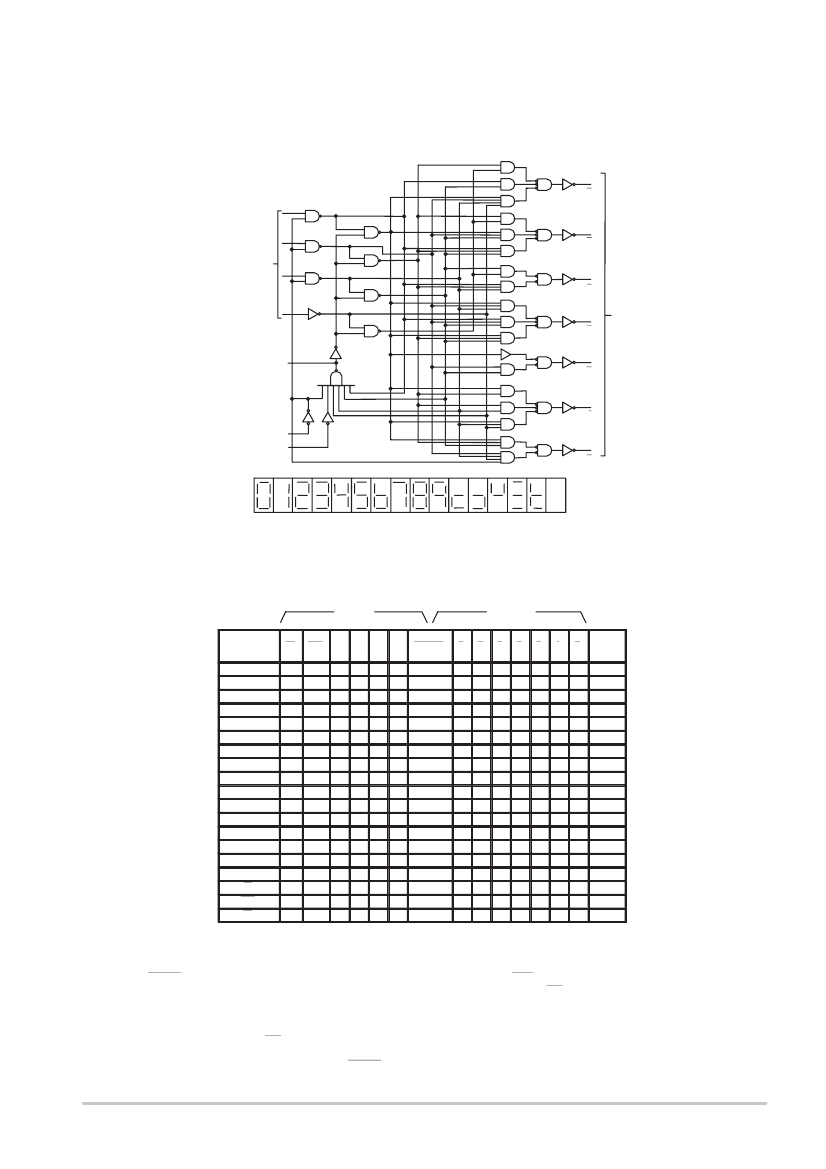

The SN74LS47 are Low Power Schottky BCD to 7-Segment
Decoder/ Drivers consisting of NAND gates, input buffers and seven
AND-OR-INVERT gates. They offer active LOW, high sink current
outputs for driving indicators directly. Seven NAND gates and one
driver are connected in pairs to make BCD data and its complement
available to the seven decoding AND-OR-INVERT gates. The
remaining NAND gate and three input buffers provide lamp test,
blanking input / ripple-blanking output and ripple-blanking input.
The circuits accept 4-bit binary-coded-decimal (BCD) and,
depending on the state of the auxiliary inputs, decodes this data to
drive a 7-segment display indicator. The relative positive-logic output
levels, as well as conditions required at the auxiliary inputs, are shown
in the truth tables. Output configurations of the SN74LS47 are
designed to withstand the relatively high voltages required for
7-segment indicators.
These outputs will withstand 15 V with a maximum reverse current
of 250
µA.
Indicator segments requiring up to 24 mA of current may
be driven directly from the SN74LS47 high performance output
transistors. Display patterns for BCD input counts above nine are
unique symbols to authenticate input conditions.
The SN74LS47 incorporates automatic leading and / or trailing-edge
zero-blanking control (RBI and RBO). Lamp test (LT) may be
performed at any time which the BI / RBO node is a HIGH level. This
device also contains an overriding blanking input (BI) which can be
used to control the lamp intensity by varying the frequency and duty
cycle of the BI input signal or to inhibit the outputs.
Lamp Intensity Modulation Capability (BI/RBO)
Open Collector Outputs
Lamp Test Provision
Leading/ Trailing Zero Suppression
Input Clamp Diodes Limit High-Speed Termination Effects
GUARANTEED OPERATING RANGES
Symbol
V
CC
T
A
I
OH
I
OL
Parameter
Supply Voltage
Operating Ambient
Temperature Range
Output Current – High
BI/RBO
Output Current – Low
BI/RBO
BI/RBO
Off–State Output Voltage
a to g
On–State Output Current
a to g
Min
4.75
0
Typ
5.0
25
Max
5.25
70
– 50
3.2
Unit
V
°C
http://onsemi.com
LOW
POWER
SCHOTTKY
16
1
PLASTIC
N SUFFIX
CASE 648
16
1
SOIC
D SUFFIX
CASE 751B
ORDERING INFORMATION
Device
SN74LS47N
SN74LS47D
Package
16 Pin DIP
16 Pin
Shipping
2000 Units/Box
2500/Tape & Reel
m
A
mA
V
O(off)
I
O(on)
15
24
V
mA
©
Semiconductor Components Industries, LLC, 1999
1
December, 1999 – Rev. 6
Publication Order Number:
SN74LS47/D

SN74LS47N Related Products

SN74LS47N SN74LS47D SN74LS47
Description LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, PDIP16 LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, PDSO16 LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, PDIP16
series LS LS LS
Number of functions 1 1 1
Number of terminals 16 16 16
Maximum operating temperature 70 °C 70 °C 70 Cel
Output polarity INVERTED INVERTED INVERTED
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE GULL WING THROUGH-hole
Terminal location DUAL DUAL pair
Is it Rohs certified? incompatible incompatible -
Maker ON Semiconductor ON Semiconductor -
Parts packaging code DIP SOIC -
package instruction PLASTIC, DIP-16 PLASTIC, SOIC-16 -
Contacts 16 16 -
Reach Compliance Code _compli _compli -
ECCN code EAR99 EAR99 -
Is Samacsys N N -
Input adjustment STANDARD STANDARD -
JESD-30 code R-PDIP-T16 R-PDSO-G16 -
JESD-609 code e0 e0 -
length 19.175 mm 9.9 mm -
Logic integrated circuit type SEVEN SEGMENT DECODER/DRIVER SEVEN SEGMENT DECODER/DRIVER -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY -
encapsulated code DIP SOP -
Encapsulate equivalent code DIP16,.3 SOP16,.25 -
Package shape RECTANGULAR RECTANGULAR -
Package form IN-LINE SMALL OUTLINE -
power supply 5 V 5 V -
propagation delay (tpd) 100 ns 100 ns -
Certification status Not Qualified Not Qualified -
Maximum seat height 4.44 mm 1.75 mm -
Maximum supply voltage (Vsup) 5.25 V 5.25 V -
Minimum supply voltage (Vsup) 4.75 V 4.75 V -
Nominal supply voltage (Vsup) 5 V 5 V -
surface mount NO YES -
technology TTL TTL -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal pitch 2.54 mm 1.27 mm -
width 7.62 mm 3.9 mm -
Base Number Matches 1 1 -
