S1K Overview

1 A, 800 V, SILICON, SIGNAL DIODE, DO-214AC

Preview

Download Datasheet

View All

Compact Technology

S1A thru S1M

REVERSE VOLTAGE

- 50

to

1000

Volts

FORWARD CURRENT

- 1.0

Amperes

SURFACE MOUNT

GLASS PASSIVATION RECTIFIERS

FEATURES

Glass passivation junction

Low cost

For surface mounted applications

Low reverse leakage current

Low forward voltage drop

High current capability

The plastic material carries UL recognition 94V-0

.065 (1.65)

.049 (1.25)

SMA

.110 (2.79)

.100 (2.54)

0.177 (4.50)

0.157 (3.99)

MECHANICAL DATA

Case : SMA

Polarity : Color band denotes cathode

Weight : 0.064 grams

Mounting position : Any

.090 (2.29)

.078 (1.98)

.060 (1.52)

.030 (0.76)

.208 (5.28)

.194 (4.91)

.012 (0.305)

.006 (0.152)

.008 (0.20)

.004 (0.10)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

1

of 2

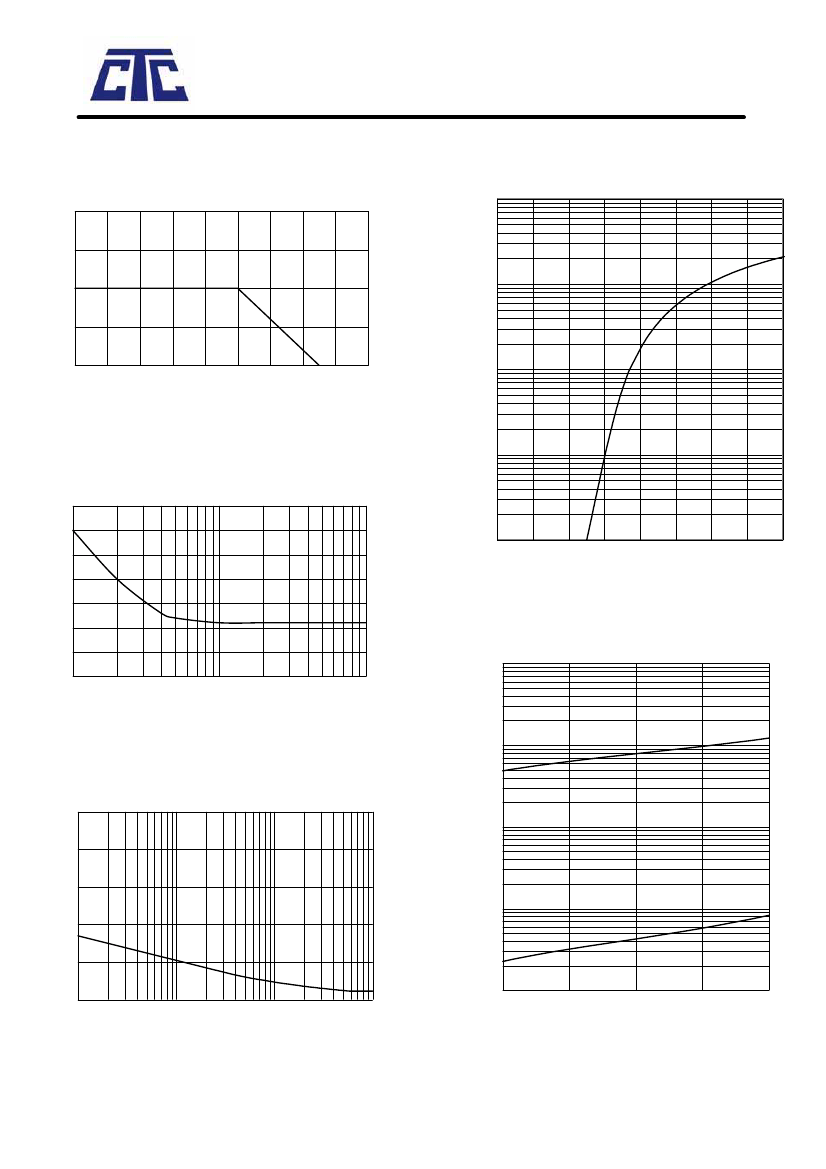

S1A thru S1M

S1K Related Products

	S1K	S1A	S1B	S1D	S1G	S1J	S1M
Description	1 A, 800 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AA	1 A, 100 V, SILICON, SIGNAL DIODE, DO-214AC	SIGNAL DIODE	1 A, 400 V, SILICON, SIGNAL DIODE	1 A, 600 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-214AC
Number of terminals	-	2	2	-	2	2	2
Number of components	-	1	1	-	1	1	1
Processing package description	-	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	GREEN, PLASTIC, SMA, 2 PIN	-	-	GREEN, PLASTIC, SMA, 2 PIN	Plastic, SMA, 2 PIN
Lead-free	-	Yes	Yes	-	-	Yes	Yes
EU RoHS regulations	-	Yes	Yes	-	-	Yes	Yes
state	-	ACTIVE	ACTIVE	ACTIVE	DISCONTINUED	ACTIVE	DISCONTINUED
packaging shape	-	RECTANGULAR	Rectangle	-	Rectangle	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	-	Yes	Yes	-	Yes	Yes	Yes
Terminal form	-	C BEND	C BEND	-	C BEND	C BEND	C BEND
terminal coating	-	NOT SPECIFIED	PURE Tin	-	-	PURE Tin	tin/silver
Terminal location	-	DUAL	pair	-	pair	pair	pair
Packaging Materials	-	PLASTIC/EPOXY	Plastic/Epoxy	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
structure	-	SINGLE	single	-	single	single	single
Diode component materials	-	SILICON	silicon	-	silicon	silicon	silicon
Diode type	-	SIGNAL DIODE	Signal diode	SIGNAL DIODE	Signal diode	Signal diode	Signal diode
Maximum repetitive peak reverse voltage	-	50 V	100 V	-	400 V	600 V	1000 V
Maximum average forward current	-	1 A	1 A	-	1 A	1 A	1 A
