57AE-40500-32B(D1) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 57AE-40500-32B(D1)

57AE-40500-32B(D1): DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug; CategoryThe connector The connector; File Size191KB，4 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

57AE-40500-32B(D1) Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug

57AE-40500-32B(D1) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH BRACKET AND SCREW
body width	0.5 inch
subject depth	0.543 inch
body length	3.26 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	57AE
Plug contact pitch	0.085 inch
Installation option 1	BAIL MT M
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Terminal length	0.187 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50

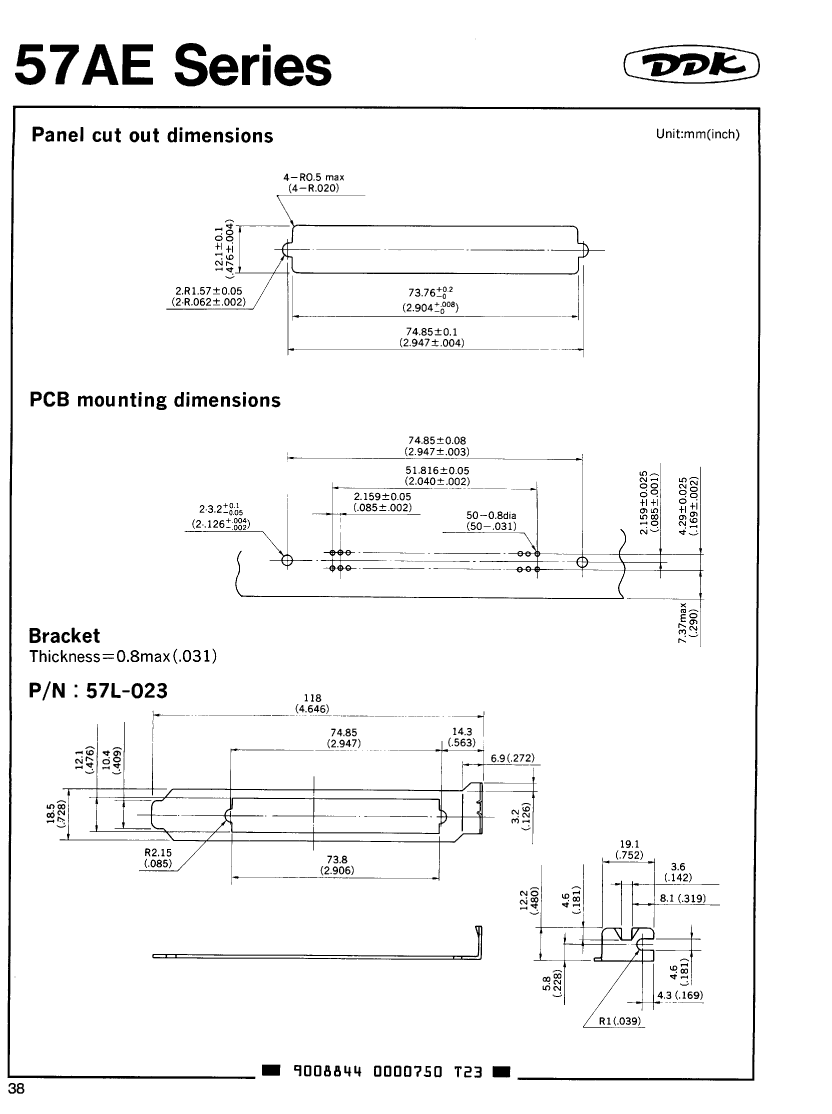

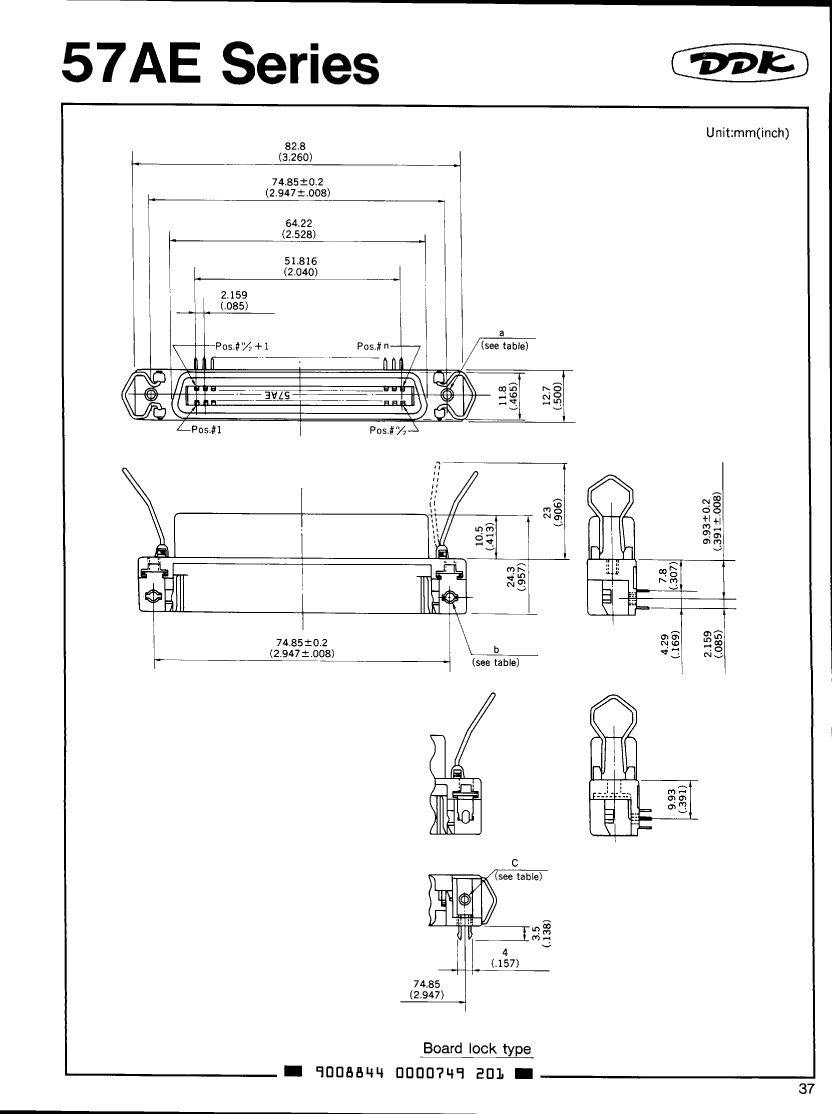

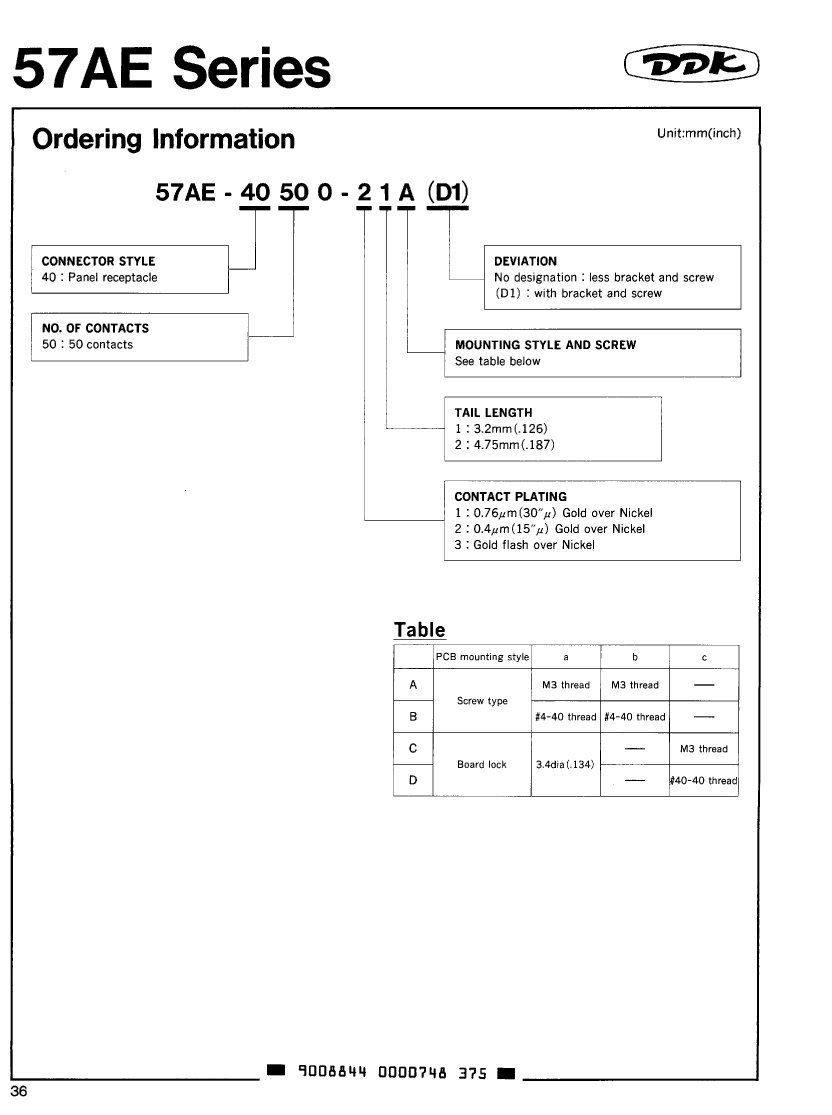

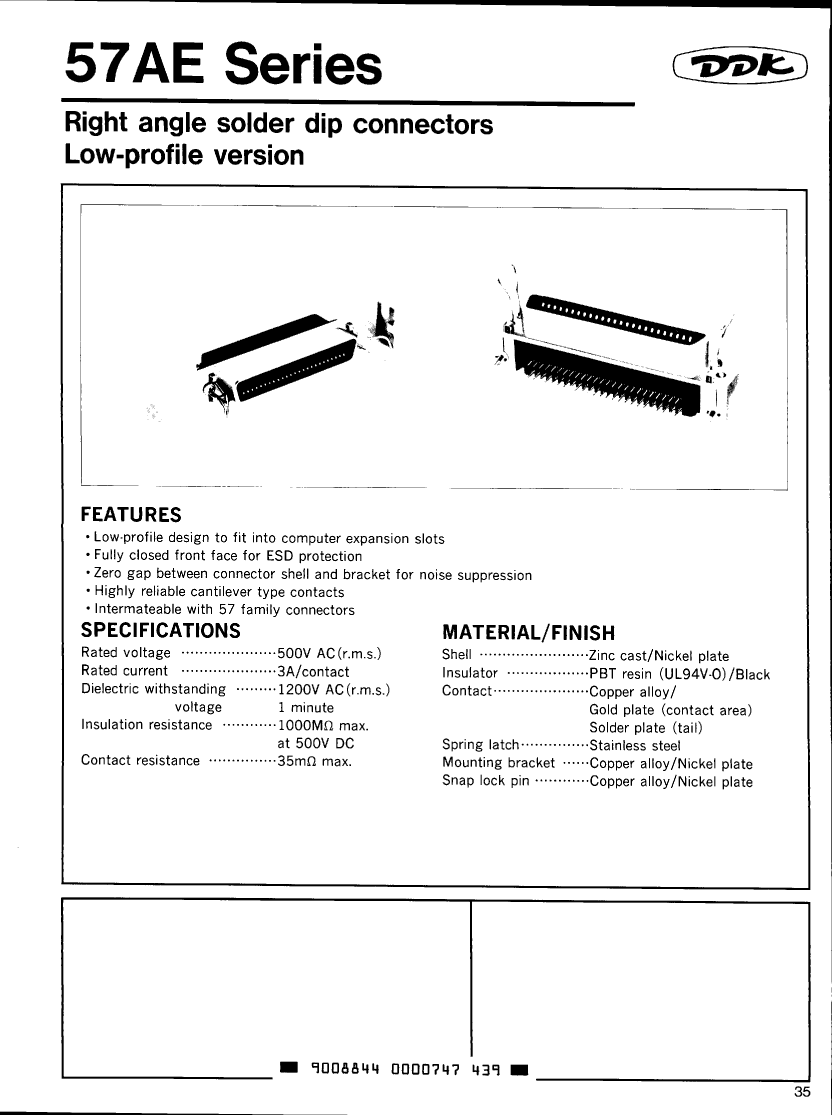

Preview

Download Datasheet

View All

57AE-40500-32B(D1) Related Products

	57AE-40500-32B(D1)	TW-24-04-G-S-120-055	57AE-40500-32A	57AE-40500-11B	57AE-40500-12B	57AE-40500-12B(D1)	57AE-40500-21B	57AE-40500-21B(D1)	57AE-40500-22B(D1)	57AE-40500-31B(D1)
Description	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.5 inch	0.079 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch
subject depth	0.543 inch	0.12 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch
body length	3.26 inch	1.896 inch	3.26 inch	3.26 inch	3.26 inch	3.26 inch	3.26 inch	3.26 inch	3.26 inch	3.26 inch
Body/casing type	PLUG	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	SQ PIN-SKT	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V	600VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V
Insulation resistance	1000000000 Ω	5000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	LIQUID CRYSTAL POLYMER	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.085 inch	0.079 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	1	2	2	2	2	2	2	2	2
Number of rows loaded	2	1	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	20u inch	FLASH inch	30u inch	30u inch	30u inch	15u inch	15u inch	15u inch	FLASH inch
Rated current (signal)	3 A	5.2 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.187 inch	0.055 inch	0.187 inch	0.126 inch	0.187 inch	0.187 inch	0.126 inch	0.126 inch	0.187 inch	0.126 inch
Terminal pitch	2.159 mm	2 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	24	50	50	50	50	50	50	50	50
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH BRACKET AND SCREW	-	WITHOUT BRACKET AND SCREW	WITHOUT BRACKET AND SCREW	WITHOUT BRACKET AND SCREW	WITH BRACKET AND SCREW	WITHOUT BRACKET AND SCREW	WITH BRACKET AND SCREW	WITH BRACKET AND SCREW	WITH BRACKET AND SCREW
Contact resistance	35 mΩ	-	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Manufacturer's serial number	57AE	-	57AE	57AE	57AE	57AE	57AE	57AE	57AE	57AE
Installation option 1	BAIL MT M	-	BAIL MT M	BAIL MT M	BAIL MT M	BAIL MT M	BAIL MT M	BAIL MT M	BAIL MT M	BAIL MT M
PCB contact row spacing	4.2926 mm	-	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm
Shell surface	NICKEL	-	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC	-	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC
