SD603C..C Series
Vishay High Power Products
Fast Recovery Diodes
(Hockey PUK Version), 600 A
FEATURES
• High power FAST recovery diode series
• 1.0 to 2.0 µs recovery time
• High voltage ratings up to 2200 V
• High current capability
B-43
RoHS
COMPLIANT
• Optimized turn-on and turn-off characteristics
• Low forward recovery
• Fast and soft reverse recovery
• Press PUK encapsulation
• Case style conform to JEDEC B-43
• Maximum junction temperature 125 °C
• Lead (Pb)-free
PRODUCT SUMMARY
I
F(AV)
600 A
• Designed and qualified for industrial level
TYPICAL APPLICATIONS
• Snubber diode for GTO
• High voltage freewheeling diode
• Fast recovery rectifier applications
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER
I
F(AV)
I
F(RMS)
TEST CONDITIONS
VALUES
600
T
hs
T
hs
50 Hz
60 Hz
50 Hz
60 Hz
Range
55
942
25
8320
8715
346
316
400 to 2200
1.0 to 2.0
T
J
25
- 40 to 125
UNITS
A
°C
A
°C
A
I
FSM
I
2
t
V
RRM
t
rr
T
J
kA
2
s
V
µs
°C
Document Number: 93178
Revision: 04-Aug-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
1
SD603C..C Series
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
04
SD603C..S10C
08
10
12
SD603C..S15C
14
16
SD603C..S20C
20
22
V
RRM
, MAXIMUM REPETITIVE PEAK
AND OFF-STATE VOLTAGE
V
400
800
1000
1200
1400
1600
2000
2200
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK VOLTAGE
V
500
900
1100
1300
1500
1700
2100
2300
45
I
RRM
MAXIMUM
AT T
J
= 125 °C
mA
Fast Recovery Diodes
(Hockey PUK Version), 600 A
FORWARD CONDUCTION
PARAMETER
Maximum average forward current
at heatsink temperature
Maximum RMS current
SYMBOL
I
F(AV)
I
F(RMS)
TEST CONDITIONS
180° conduction, half sine wave
Double side (single side) cooled
25 °C heatsink temperature double side cooled
t = 10 ms
Maximum peak, one-cycle
non-repetitive forward current
I
FSM
t = 8.3 ms
t = 10 ms
t = 8.3 ms
t = 10 ms
Maximum I
2
t for fusing
I
2
t
t = 8.3 ms
t = 10 ms
t = 8.3 ms
Maximum I
2
√t
for fusing
Low level value of threshold voltage
High level value of threshold voltage
Low level of forward slope resistance
High level of forward slope resistance
Maximum forward voltage drop
I
2
√t
V
F(TO)1
V
F(TO)2
r
f1
r
f2
V
FM
No voltage
reapplied
100 % V
RRM
reapplied
No voltage
reapplied
100 % V
RRM
reapplied
VALUES
600 (300)
55 (75)
942
8320
8715
7000
Sinusoidal half wave,
initial T
J
= T
J
maximum
7330
346
316
245
224
3460
1.36
1.81
0.87
0.67
2.97
kA
2
√s
V
kA
2
s
A
UNITS
A
°C
t = 0.1 to 10 ms, no voltage reapplied
(16.7 % x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
maximum
(I >
π
x I
F(AV)
), T
J
= T
J
maximum
(16.7 % x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
maximum
(I >
π
x I
F(AV)
), T
J
= T
J
maximum
I
pk
= 1885 A, T
J
= 25 °C; t
p
= 10 ms sinusoidal wave
mΩ
V
RECOVERY CHARACTERISTICS
MAXIMUM VALUE
AT T
J
= 25 °C
CODE
t
rr
AT 25 % I
RRM
(µs)
1.0
1.5
2.0
1000
25
- 30
TEST CONDITIONS
I
pk
SQUARE
PULSE
(A)
TYPICAL VALUES
AT T
J
= 125 °C
V
r
(V)
t
rr
AT 25 % I
RRM
(µs)
2.0
3.2
3.5
Q
rr
(µC)
45
87
97
I
rr
(A)
34
51
55
I
FM
dI/dt
(A/µs)
t
rr
t
Q
rr
I
RM(REC)
S10
S15
S20
dir
dt
www.vishay.com
2
For technical questions, contact: ind-modules@vishay.com
Document Number: 93178
Revision: 04-Aug-08
SD603C..C Series
Fast Recovery Diodes
Vishay High Power Products
(Hockey PUK Version), 600 A
THERMAL AND MECHANICAL SPECIFICATIONS
PARAMETER
Maximum operating junction
temperature range
Maximum storage temperature range
Maximum thermal resistance,
junction to heatsink
Mounting force, ± 10 %
Approximate weight
Case style
See dimensions - link at the end of datasheet
SYMBOL
T
J
T
Stg
DC operation single side cooled
R
thJ-hs
DC operation double side cooled
TEST CONDITIONS
VALUES
- 40 to 125
°C
- 40 to 150
0.076
K/W
0.038
9800 (1000)
83
B-43
N (kg)
g
UNITS
ΔR
thJ-hs
CONDUCTION
SINUSOIDAL CONDUCTION
CONDUCTION ANGLE
SINGLE SIDE
180°
120°
90°
60°
30°
0.006
0.008
0.010
0.015
0.026
DOUBLE SIDE
0.007
0.008
0.010
0.015
0.025
SINGLE SIDE
0.005
0.008
0.011
0.016
0.026
DOUBLE SIDE
0.005
0.008
0.011
0.015
0.025
T
J
= T
J
maximum
K/W
RECTANGULAR CONDUCTION
TEST CONDITIONS
UNITS
Note
• The table above shows the increment of thermal resistance R
thJ-hs
when devices operate at different conduction angles than DC
Document Number: 93178
Revision: 04-Aug-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
3
SD603C..C Series
Vishay High Power Products
Fast Recovery Diodes
(Hockey PUK Version), 600 A
Maximum Allowable Heatsink T
emperature (°C)
130
120
110
100
90
80
70
60
50
DC
40
0
200
400
600
800
1000
Average Forward Current (A)
30°
60°
90°
120°
180°
Conduction Period
Maximum Allowable Heatsink T
emperat ure (°C)
130
120
110
100
90
80
S
D603C..C S
eries
(S
ingle S
ide Cooled)
R
thJ-hs
(DC) = 0.076 K/ W
S
D603C..C S
eries
(Double S Cooled)
ide
R
thJ-hs
(DC) = 0.038 K/ W
Conduction Angle
30°
70
0
50
100
150
60°
90°
120°
250
180°
200
300
350
Average Forward Current (A)

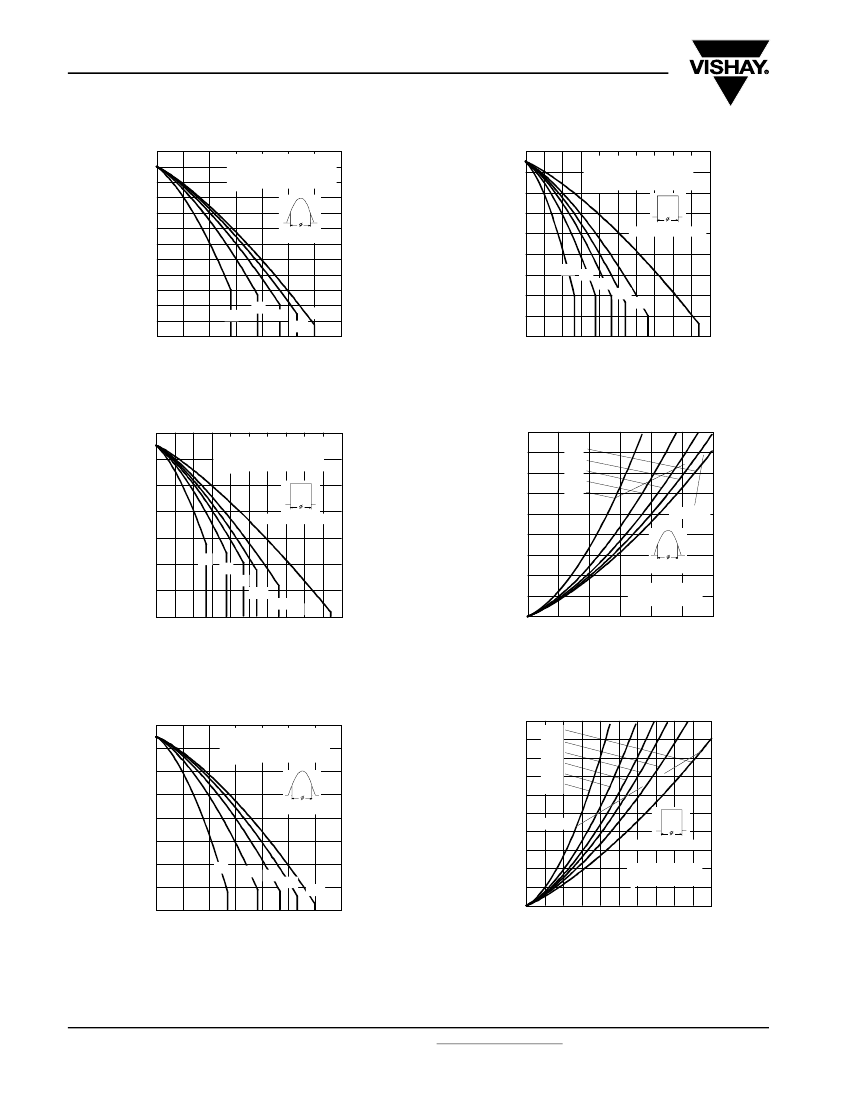

Fig. 1 - Current Ratings Characteristics
Fig. 4 - Current Ratings Characteristics
Maximum Allowable Heatsink T
emperature (°C)
Maximum Average F
orward Power Loss (W)
130
120
110
100
90
80
70
60
0
100
200
300
30°
60°
90°
120°
180°
DC
400
500
S
D603C..C S
eries
(S
ingle S
ide Cooled)
R
thJ-hs
(DC) = 0.076 K/ W
1800
1600
1400
1200
1000
800
600
400
200
0
0
100
200
300
400
500
600
Average Forward Current (A)
Conduction Angle
180°
120°
90°
60°
30°
RMS Limit
Conduction Period
S
D603C..C S
eries
T = 125°C
J
Average Forward Current (A)
Fig. 2 - Current Ratings Characteristics
Fig. 5 - Forward Power Loss Characteristics
Maximum Allowable Heatsink T
emperature (°C)
130
120
110
100
Maximum Average Forward Power Loss (W)
2500
DC
180°
120°
90°
60°
30°
S
D603C..C S
eries
(Double S Cooled)
ide
R
thJ-hs
(DC) = 0.038 K/ W
2000
1500
Conduction Angle
90
80
70
60
50
0
100 200
300
400
500
600
700
Average Forward Current (A)
30°
60° 90°
1000
RMS Limit
Conduc tion Period
500
120°
180°
S
D603C..C S
eries
T = 125°C
J
0
0
200
400
600
800
1000
Average Forward Current (A)
Fig. 3 - Current Ratings Characteristics
Fig. 6 - Forward Power Loss Characteristics
www.vishay.com
4
For technical questions, contact: ind-modules@vishay.com
Document Number: 93178
Revision: 04-Aug-08
SD603C..C Series
Fast Recovery Diodes
Vishay High Power Products
(Hockey PUK Version), 600 A
Peak Half S Wave F
ine
orward Current (A)
8000
10000
Instantaneous Forward Current (A)
At Any Rated Load Condition and With
7500
R
ated V
RRM
Applied Following S
urge.
Initial T = 125°C
J
7000
@60 Hz 0.0083 s
6500
@50 Hz 0.0100 s
6000
5500
5000
4500
4000
3500
3000
2500
1
10
100
Number of Equa l Amplitude Ha lf Cyc le Current Pulses (N)
1000
T = 25 °C
J
100
T = 125 °C
J
S
D603C..C S
eries
S
D603C..C S
eries
10
.5
1.5
2.5
3.5
4.5
5.5
6.5
7.5
8.5
Instantaneous Forward Voltage (V)

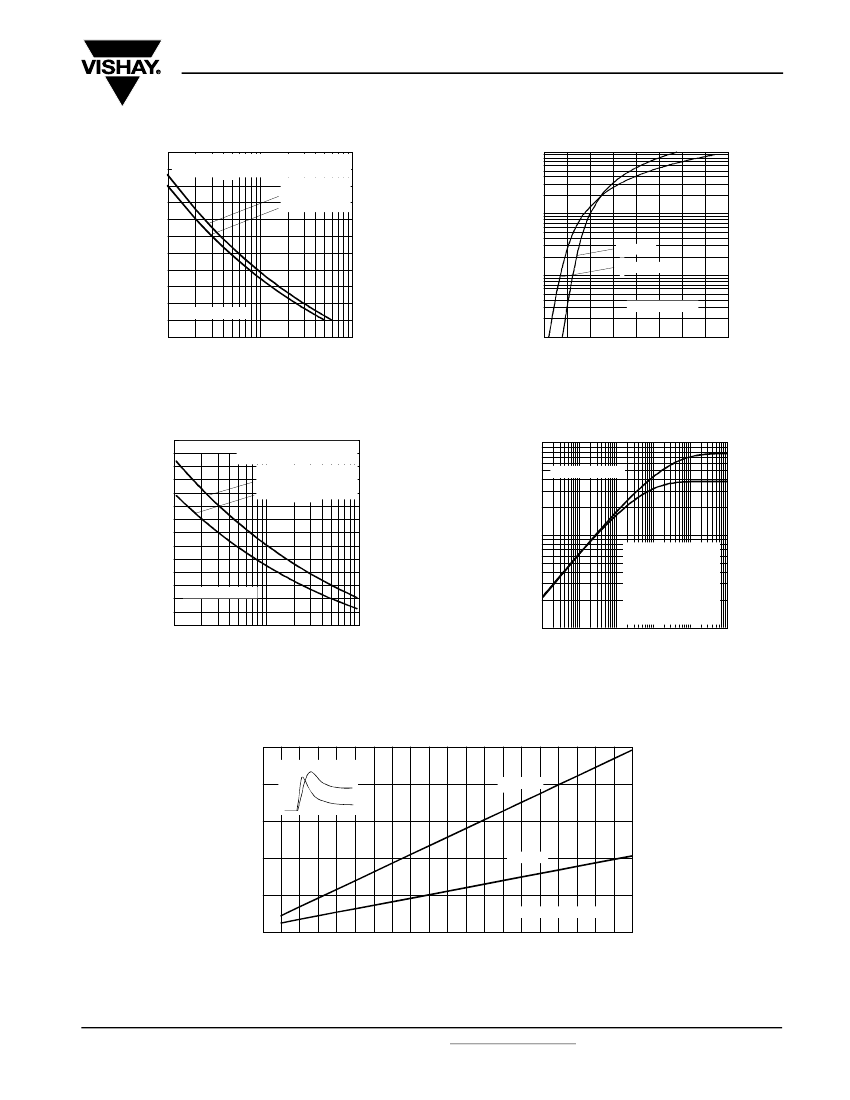

Fig. 7 - Maximum Non-Repetitive Surge Current
Single and Double Side Cooled
Fig. 9 - Forward Voltage Drop Characteristics
8000
7000
6000
5000
4000
3000
Maximum Non R
epetitive S
urge Current
Versus Pulse T
rain Duration.
Initial T = 125 °C
J
No Voltage Reapplied
R
ated V
RRM
Reapplied
T
ransient T
hermal Impedance Z
thJ-hs
(K/ W)
Peak Half S Wave F
ine
orward Current (A)
9000
0.1
S
D603C..C S
eries
0.01
S
tead y S
tate Va lue :
R
thJ-hs
= 0.076 K/ W
(S
ingle S Cooled)
ide
R
thJ-hs
= 0.038 K/ W
(Double S Cooled)
ide
(DC Operation)
0.001
0.001
0.01
0.1
1
10
100
S
D603C..C S
eries
2000
0.01
0.1
Pulse T
rain Duration (s)
1
S
quare Wave Pulse Duration (s)
Fig. 8 - Maximum Non-Repetitive Surge Current
Single and Double Side Cooled
Fig. 10 - Thermal Impedance Z
thJ-hs
Characteristics
100
V
FP
80
F
orward R overy (V)
ec
I
T
J
= 125°C
60
40
T
J
= 25°C
20
S
D603C..S
20C S
eries
0
0
200
400
600
800
1000
1200
1400
1600
1800
2000
R
ate Off R Of F
ise
orward Current di/ d t (A/ usec)
Fig. 11 - Typical Forward Recovery Characteristics
Document Number: 93178
Revision: 04-Aug-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
5
