SPECIFICATION FOR APPROVAL
REF : 20091008-A
PROD.
NAME
PAGE: 1
ABC'S DWG NO.
ABC'S ITEM NO.
SH6028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

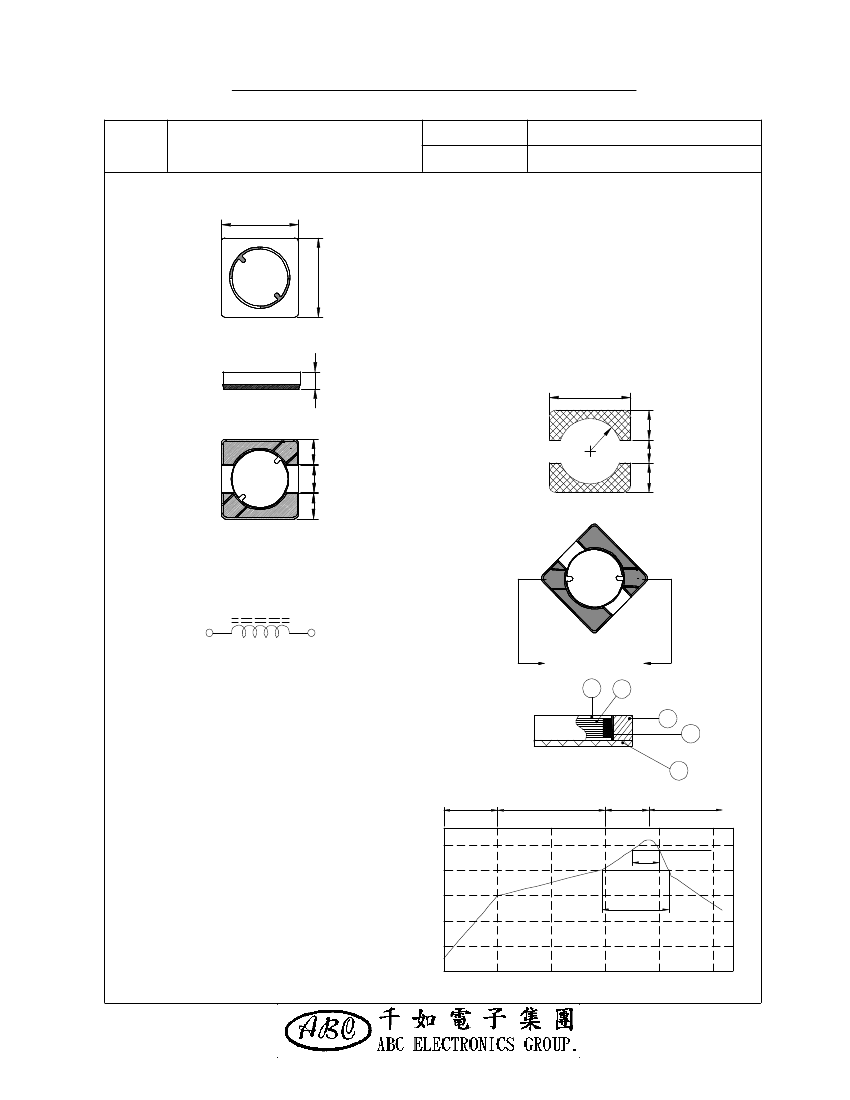

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A
B
C
D
E
G
H
I
R
:
:
:
:
:
:
:
:
:
6.80
6.80
2.80
2.30
2.20
2.10
7.30
2.60
2.70
H
I
D
±0.2
±0.2
±0.2
typ.
typ.
ref.
ref.
ref.
ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
100
C
B
R
LCR Meter
a
c
E
D
( PCB Pattern suggestion )
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Core：Ferrite RI core
c﹒Wire
：Enamelled
copper wire ( Class H )
d﹒Adhesive
：Epoxy
resin
e﹒Terminal：Ag/Ni/Sn
f﹒Remark：Products comply with RoHS'
requirements
250
Temperature (
℃
)
I
b
d
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
G
e
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
70sec max.
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise
：30℃
max.
b﹒Storage temp.：-40℃ ----+125℃
c﹒Operating temp.：-40℃----+105℃
d﹒Resistance to solder heat：260℃.10 secs.
200
150
100
50
0
50
100
150
Time ( seconds )
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF :
20091008-A
PROD.
NAME
PAGE: 2
ABC'S DWG NO.
ABC'S ITEM NO.
SH6028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅴ﹒
ELECTRICAL CHARACTERISTICS：
DWG No.
SH60282R5YL□ -□□□
SH60283R3YL□ -□□□
SH60283R9YL□ -□□□
SH60285R0YL□ -□□□
SH60286R0YL□ -□□□
SH60287R3YL□ -□□□
SH60288R6YL□ -□□□
SH6028100YL□ -□□□
SH6028150YL□ -□□□
SH6028220YL□ -□□□
SH6028330YL□ -□□□
SH6028470YL□ -□□□
SH6028680YL□ -□□□
SH6028101YL□ -□□□
SH6028151YL□ -□□□
SH6028221YL□ -□□□
SH6028331YL□ -□□□
SH6028471YL□ -□□□
SH6028681YL□ -□□□
SH6028102YL□ -□□□
1).
2)."-
Inductance
(
μH
)
2.5
±30％
3.3
±30％
3.9
±30％
5.0
±30％
6.0
±30％
7.3
±30％
8.6
±30％
10.0
±30％
15.0
±30％
22.0
±30％
33.0
±30％
47.0
±30％
68.0
±30％
100.0
±30％
150.0
±30％
220.0
±30％
330.0
±30％
470.0
±30％
680.0
±30％
1000.0
±30％
SRF
(MHz)
typ.
50
45
40
38
35
30
28
25
22
20
18
16
15
14
13
12
10
9
8
7
RDC
(mΩ)
typ.
19.0
21.0
24.0
27.0
30.0
38.0
42.0
47.0
58.0
88.0
120.0
185.0
245.0
385.0
540.0
660.0
1100.0
1650.0
2450.0
3600.0
max.
25.0
28.0
32.0
36.0
40.0
52.0
56.0
65.0
78.0
115.0
155.0
235.0
300.0
500.0
680.0
820.0
1400.0
2100.0
3100.0
4500.0
Irms
(A)
max.
2.80
2.50
2.45
2.40
2.30
2.20
2.10
2.00
1.70
1.40
1.15
0.92
0.80
0.58
0.50
0.45
0.37
0.27
0.22
0.15
Isat
(A)
typ.
3.00
2.60
2.30
2.10
2.00
1.85
1.82
1.70
1.30
1.08
0.92
0.72
0.60
0.55
0.42
0.36
0.27
0.22
0.20
0.17
□□□
":Reference code
：Packaging
Information… A：Bulk
B & C：Taping Reel
3). Inductance Test Freq.
：100KHz
/0.1V
4). Irms base on Temp. rise 30
℃
max.
5). Isat base on
△L/L0A＝35％
typ.
@ Inductance VS. DC Currrent Curve
10 3
7
5
3
2
102
Inductance（uH）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 0
101
100
3R3
2
3
5 7 10 1
2
3
5 7 10 2
2
3
5 7 10 3
DC Current (mA)
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20091008-A
PROD.
NAME
PAGE: 3
ABC'S DWG NO.
ABC'S ITEM NO.
SH6028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

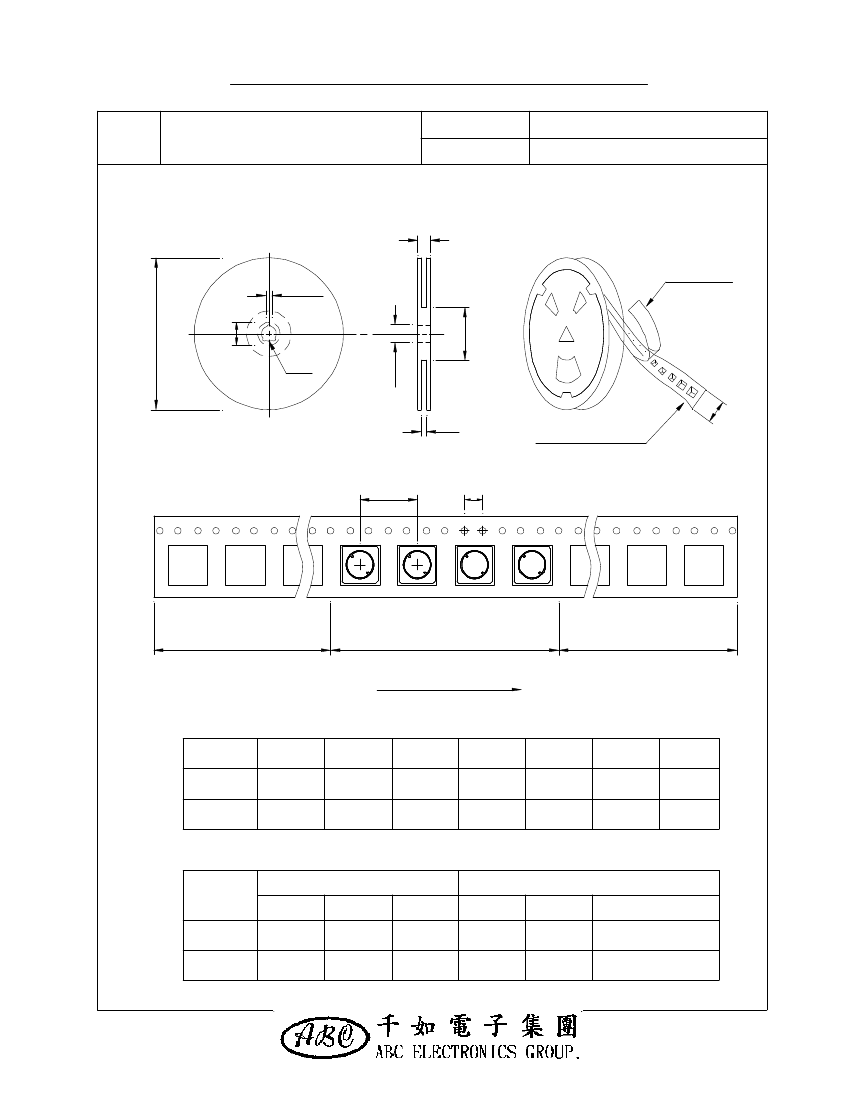

Ⅵ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover tape
2.0±0.5
A
B
N
∮
C
∮
C
G
Embossed carrier
※
Carrier tape width : D
P:12 m/m
End
4 m/m
Start
100
100
100
100
Leadr
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
07 - 16
13 - 16
A
178
330
B
21±0.8
21±0.8
C
13
13±0.5
D
16
16
G
18
18
+0
+0
N
50
50
-0
-0
Unit:m/m
T
20.5
22.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SH6028
SH6028
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
500
1500
300
900
07 - 16
13 - 16
15,000
9,000
13.00
6.40
42 x 41 x 24
40 x 40 x 24
AR-001A
D
SPECIFICATION FOR APPROVAL
REF :
20091008-A
PROD.
NAME
PAGE: 4
ABC'S DWG NO.
ABC'S ITEM NO.
SH6028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
H
6
0
2
8
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
C
Inner package
T.B.D.
T / R ( Reel package )
T / R ( Reel package )
Inner package Q'TY
T.B.D.
500
1500
pcs
pcs
Remark
AR-001A
SPECIFICATION FOR APPROVAL
REF :
20091008-A
PROD.
NAME
PAGE: 5
ABC'S DWG NO.
ABC'S ITEM NO.
SH6028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
Test condition
Preheat : 155
℃
/ 4 hours.
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 5±0.5 seconds
Solderability
More than 95% of the
terminal electrode
Shall be covered
With fresh solder.
Thermal shock test
( Temp. cycle )
Electrical oharacteristics shall
not change more
than
±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-40
℃
30 minutes
+105
℃
30 minutes
Biased
Humidity
Temperature : 40±2℃
Humidity : 90±5%
Time : 1000 hours
High temp.
Resistance test
Temperature : 105±5℃
Applied current : Per spec.
Time : 96 hours
AR-001A
