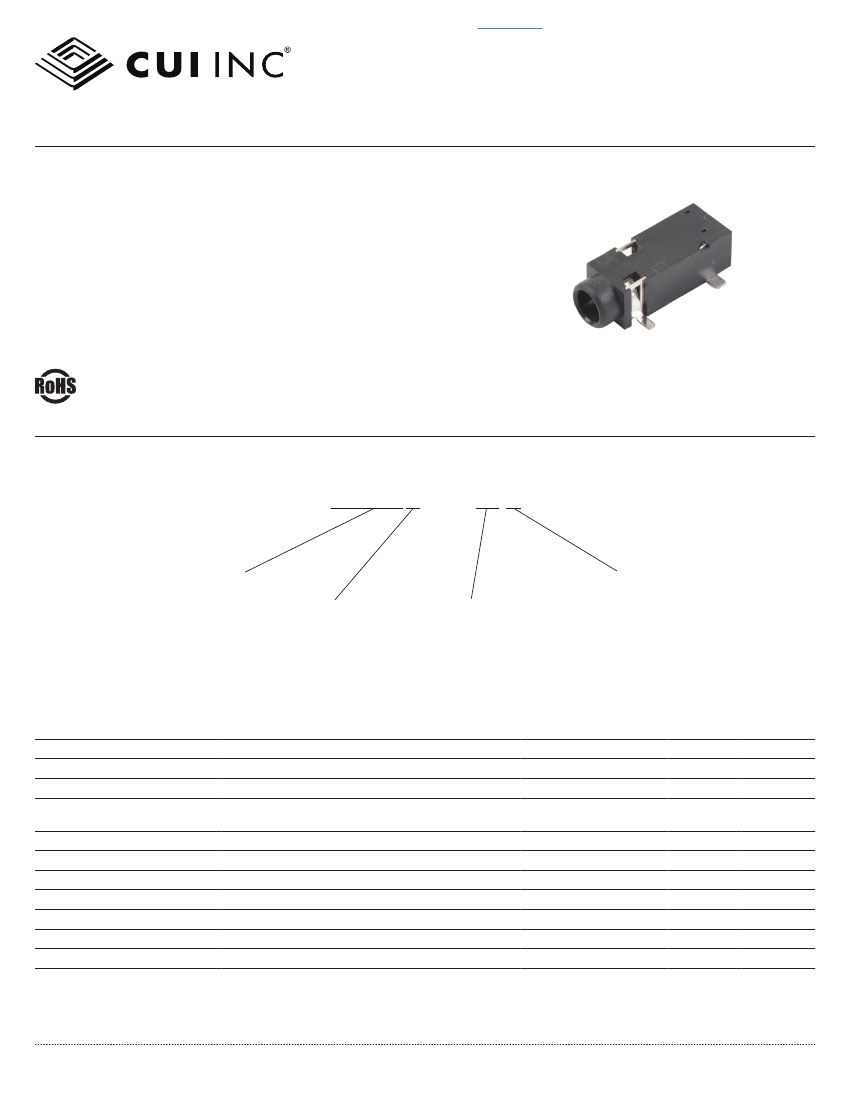

2. When measured at a current of less than 100 mA/1 kHz
3. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ-352X-SMT
│
DESCRIPTION:
AUDIO JACK
date
02/15/2018│
page
2 of 4

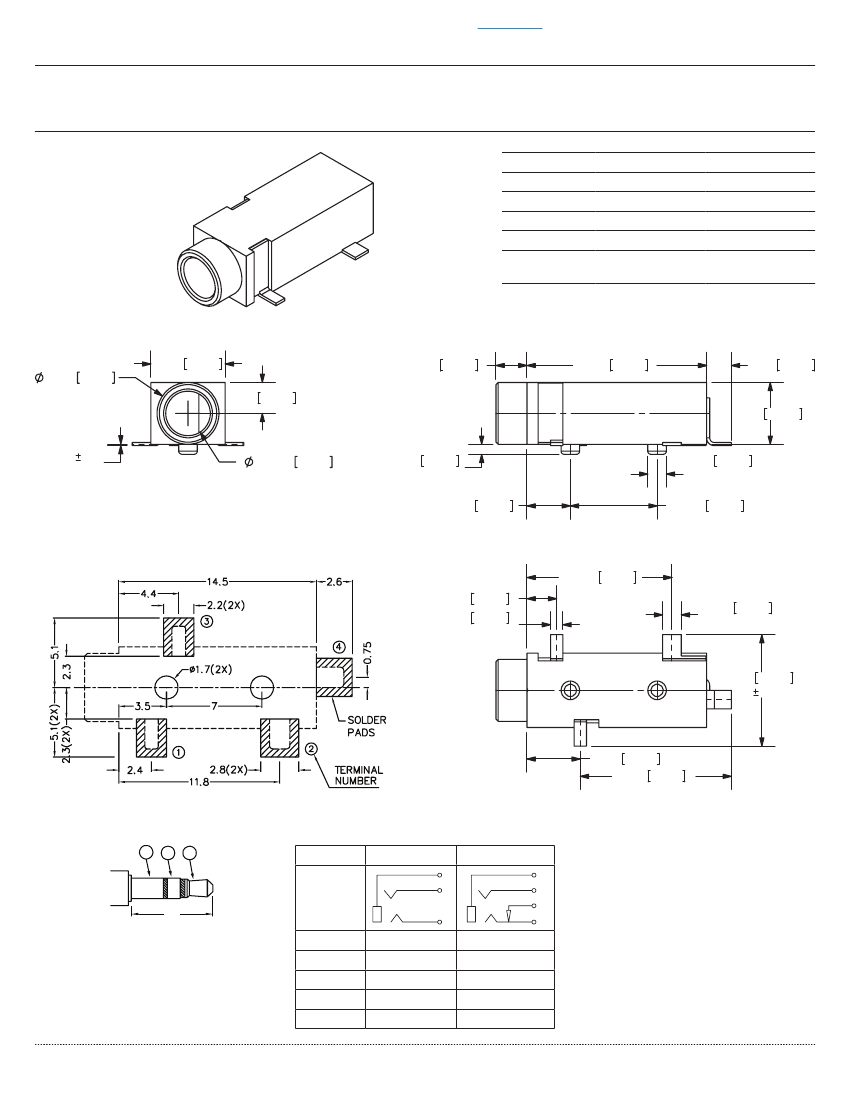

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
PCB: ±0.05 mm
terminal 1
terminal 2
terminal 3
terminal 4
plastic
MATERIAL
copper alloy
copper alloy
copper alloy
brass
PA6T or
equivalent
PLATING
silver
silver
silver
silver
5.00 0.197
6.00 0.236
2.50 0.098
2.50 0.098
14.5 0.571
2.0 0.079
5.0 0.197
0.1 .07
(TYP)
3.600 0.142
0.80 0.031
(2 Plcs)
3.50 0.138
1.5 0.059 (2 PLCS)
+0.0
-0.1
7.00 0.276
11.8 0.465
2.4 0.094
1.00 0.039
(2 PLCS)
1
2
4
9.0 0.354
0.3
1.50 0.059
(2 PLCS)
3
4.4 0.173
12.2 0.480
Recommended PCB Layout
Top View
1
3
2
Model No.
Schematic
SJ-3523-SMT
1
3
2
SJ-3524-SMT
1
3
4
2
14
Ø3.5 MATING PLUG
PIN
1
2
3
4
sleeve
tip
ring
NP
cui.com
sleeve
tip
ring
tip switch
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ-352X-SMT
│
DESCRIPTION:
AUDIO JACK
date
02/15/2018│
page
3 of 4

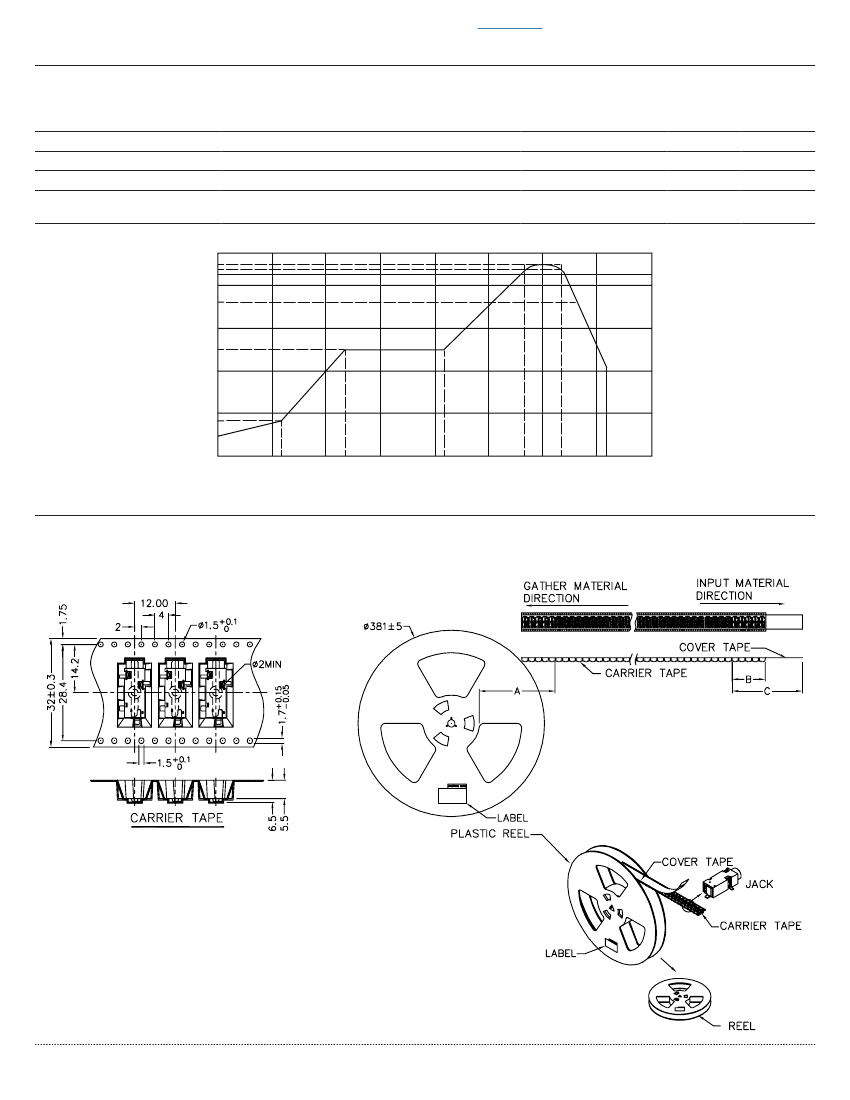

SOLDERABILITY
parameter
reel storage
reflow soldering
1
drying conditions
2
Note:
conditions/description
at relative humidity <80%
see reflow profile
min
255
typ
260
max
40
265
units
°C
°C
parts in reel: bake at 40°C ±5°C for 72 hours
parts removed from reel: bake at 40°C ±5°C for 10 hours
1. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
2. When exceeding floor life by >72 hours.
270
260
250
240
Temperature (°C)
217
180
150
120
60
50
70
60
120
140
180
240
250
300
340
360
380
420
430
480
Time (sec)
PACKAGING
units: mm
Reel Size: Ø381 mm
Reel QTY: 1,000 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ-352X-SMT
│
DESCRIPTION:
AUDIO JACK
date
02/15/2018│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
description
initial release
new template applied
added TR package and color options
added storage and drying conditions, and tape and reel
packaging details
date
02/07/2006
01/25/2012
11/01/2012
02/15/2018
The revision history provided is for informational purposes only and is believed to be accurate.
