54F373/BRA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F373/BRA

54F373/BRA: DescriptionIC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver; Categorylogic logic; File Size190KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F373/BRA Overview

IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver

54F373/BRA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknow
series	F/FAST
JESD-30 code	R-GDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	55 mA
propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

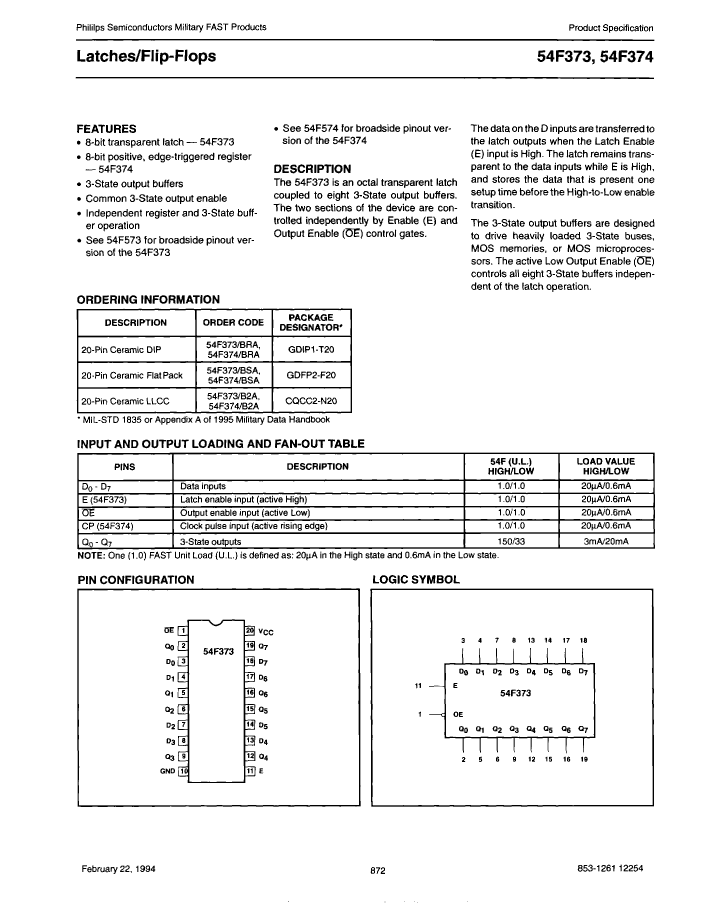

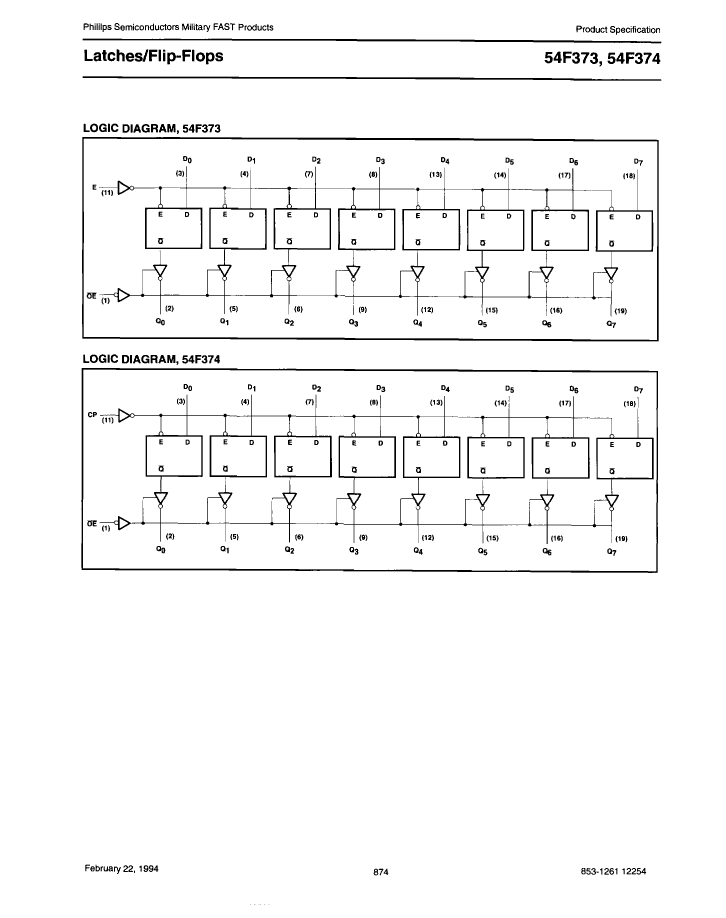

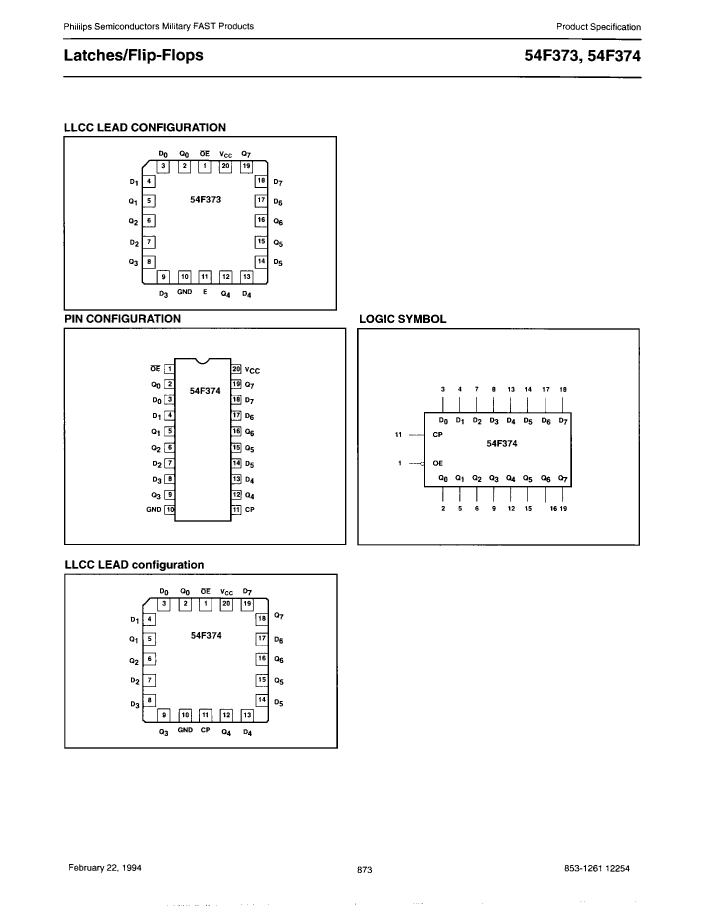

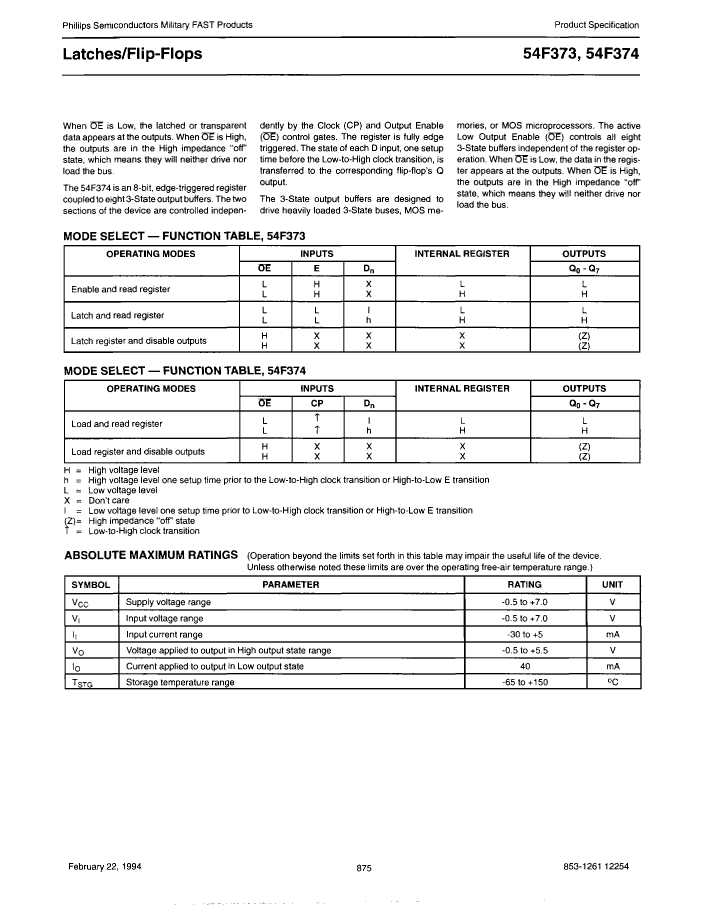

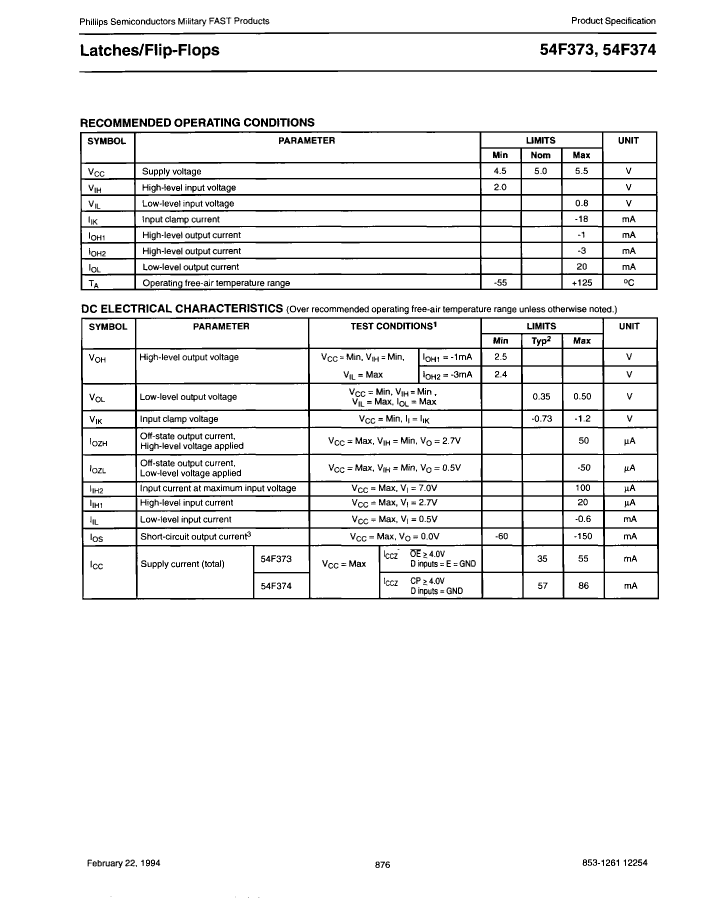

Preview

Download Datasheet

View All

54F373/BRA Related Products

	54F373/BRA	54F373/B2A	54F374/B2A	54F373/BSA	54F374/BRA	54F374/BSA
Description	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20, Bus Driver/Transceiver
Maker	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	DIP	QLCC	QLCC	DFP	DIP	DFP
package instruction	DIP,	QCCN,	CERAMIC, LLCC-20	CERAMIC, FP-20	DIP,	DFP,
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1	1
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	-
JESD-30 code	R-GDIP-T20	S-CQCC-N20	S-CQCC-N20	R-CDFP-F20	R-GDIP-T20	-
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	-
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-
Number of digits	8	8	8	8	8	-
Number of functions	1	1	1	1	1	-
Number of ports	2	2	2	2	2	-
Number of terminals	20	20	20	20	20	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	-
encapsulated code	DIP	QCCN	QCCN	DFP	DIP	-
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	FLATPACK	IN-LINE	-
Maximum supply current (ICC)	55 mA	55 mA	86 mA	55 mA	86 mA	-
propagation delay (tpd)	8.5 ns	8.5 ns	11.5 ns	8.5 ns	11.5 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	5.08 mm	1.905 mm	1.905 mm	2.54 mm	5.08 mm	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-
surface mount	NO	YES	YES	YES	NO	-
technology	TTL	TTL	TTL	TTL	TTL	-
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	-
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	-
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL	-
width	7.62 mm	8.89 mm	8.89 mm	6.9215 mm	7.62 mm	-
