C06S-40-A-D-B-1: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.

Download Datasheet Parametric View All

C06S-40-A-D-B-1 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle,

C06S-40-A-D-B-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHORT LATCH
body width	0.236 inch
body length	2.193 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	C06S
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

C06s

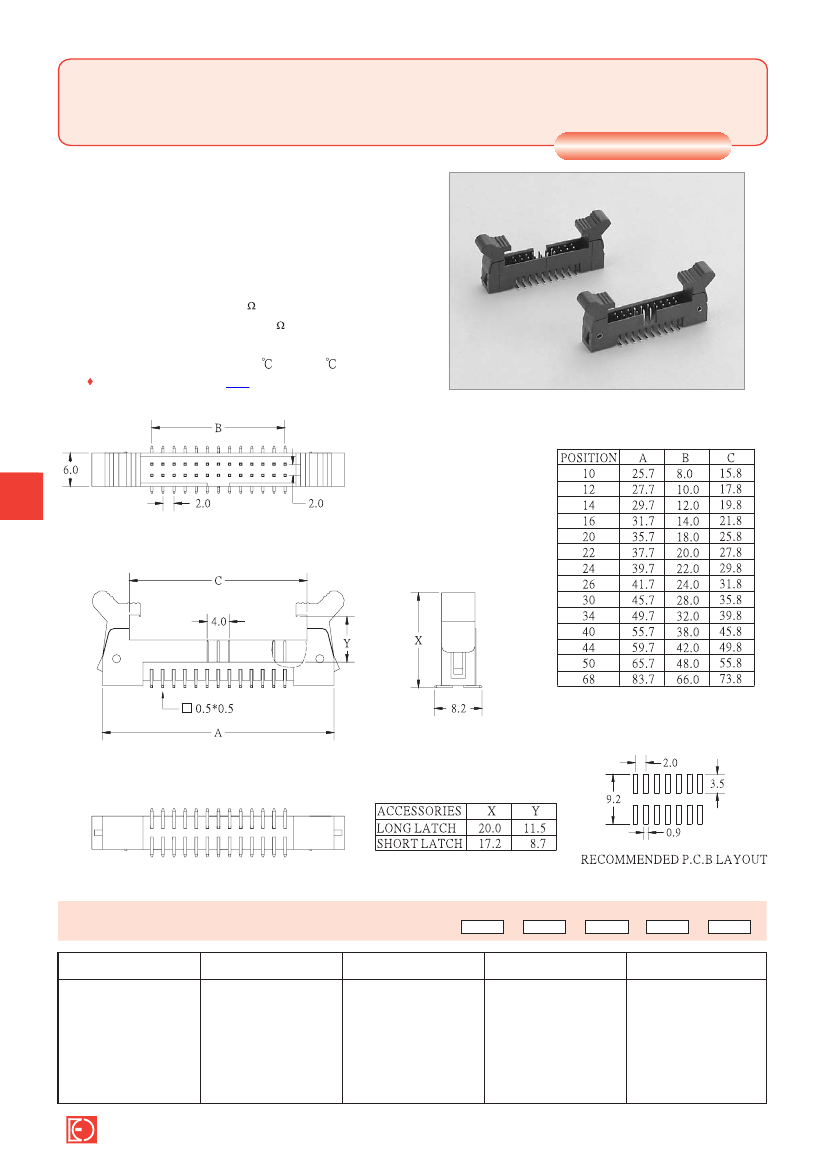

SPECIFICATIONS

Material

Contact : Brass

SHROUDED HEADER SMT TYPE

PITCH: 2.0mm

Insulator : Nylon 6T, glass reinforced, rated UL 94V-0

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 m

max.

min.

to +105

Insulation Resistance : 3000 M

Operating Temperature : -40

Dielectric Withstanding Voltage : 500V AC for 1minute

Mating Suggestion :

A05

series.

C

HOW TO ORDER:

1.NO. OF CONTACT

10 12 14 16 20

22 24 26 30 34

40 44 50 68

C06s -

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

1

-

2

-

3

-

4

-

5

2.CONTACT MATERIAL

A: BRASS

4.ACCESSORIES

A: LONG LATCH

B: SHORT LATCH

5.INSULATOR COLOR

1. BLACK

DON CONNEX

ELECTRONICS CO., LTD.

TEL:886 2-86483356 FAX:886 2-86485885

E-mail:don@mail.donnex.com.tw
