54000-104-R datasheet, PDF - EEWORLD Datasheet

54000-104-R: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack,; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

54000-104-R Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack,

Parameter Name	Attribute value
Objectid	2142124837
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.1
Other features	STANDARD: RJ45, 8 PORT, 4-POSITION EACH
body width	0.996 inch
subject depth	1.122 inch
body length	2.32 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE66
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	8
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Guideline	UL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

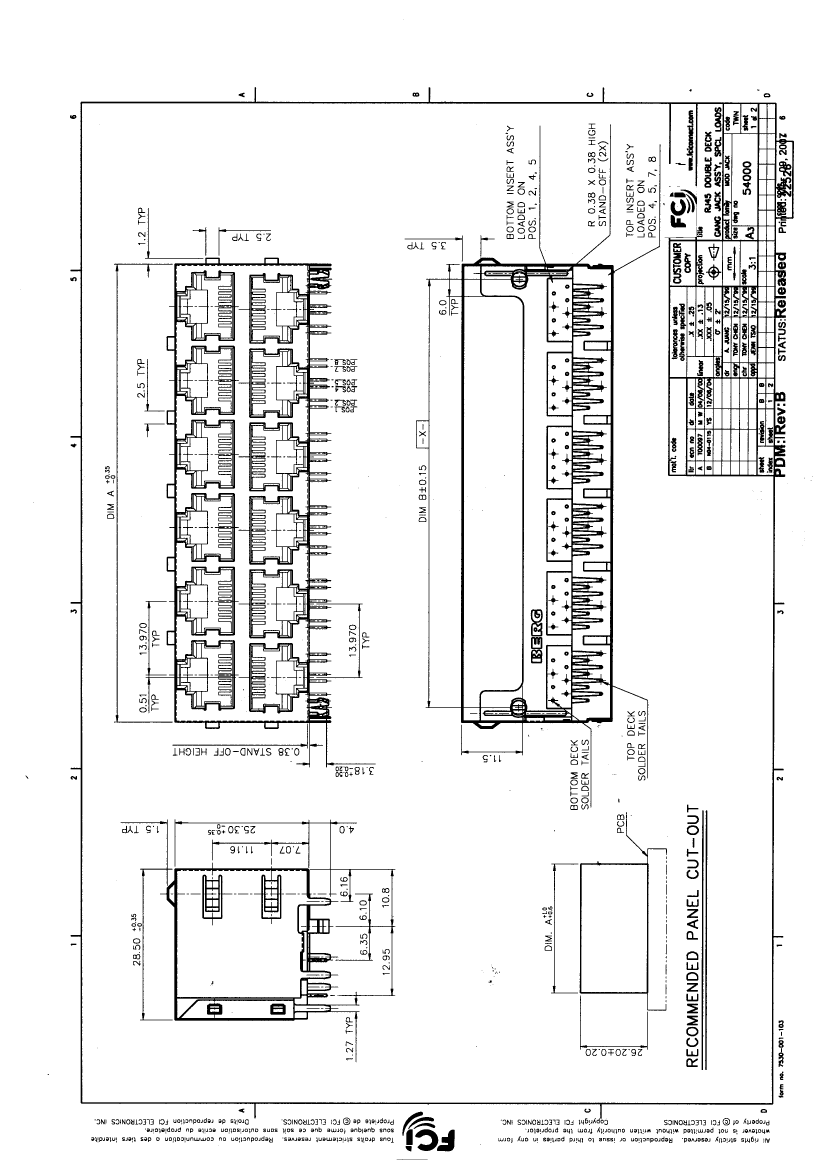

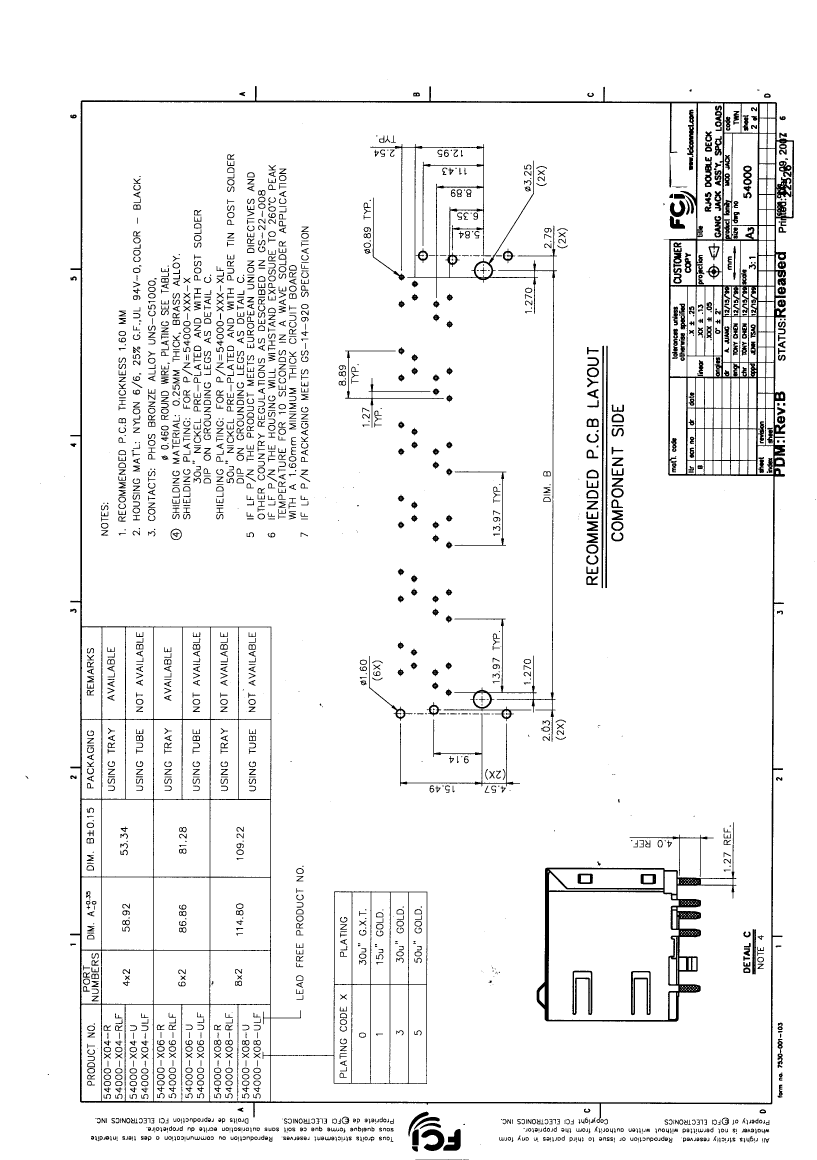

PDM: Rev:B

STATUS:

Released

Printed: Feb 18, 2008

.
