2112AH3UE: DescriptionON-DELAY RELAY, DPDT, MOMENTARY, 5086mW (COIL), 10A (CONTACT), 30VDC (CONTACT), 0.75-10s, PANEL MOUNT; CategoryMechanical and electronic products relay; File Size76KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2112AH3UE Overview

ON-DELAY RELAY, DPDT, MOMENTARY, 5086mW (COIL), 10A (CONTACT), 30VDC (CONTACT), 0.75-10s, PANEL MOUNT

2112AH3UE Parametric

Parameter Name	Attribute value
Objectid	2143296977
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum adjustable time delay	10 s
Minimum adjustable time delay	0.75 s
body width	38.61 mm
body height	100 mm
Body length or diameter	38.61 mm
Coil current (AC) maximum value	0.044 A
Coil power	5086 mW
Coil resistance	2600 Ω
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@30VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	2100
Installation features	PANEL MOUNT
Maximum operating temperature	185 °C
Minimum operating temperature	-67 °C
physical size	38.61mm X 38.61mm X 100mm
Guideline	CE; MIL-R-6106E
Relay action	MOMENTARY
Relay function	DPDT
Relay type	ON-DELAY RELAY
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

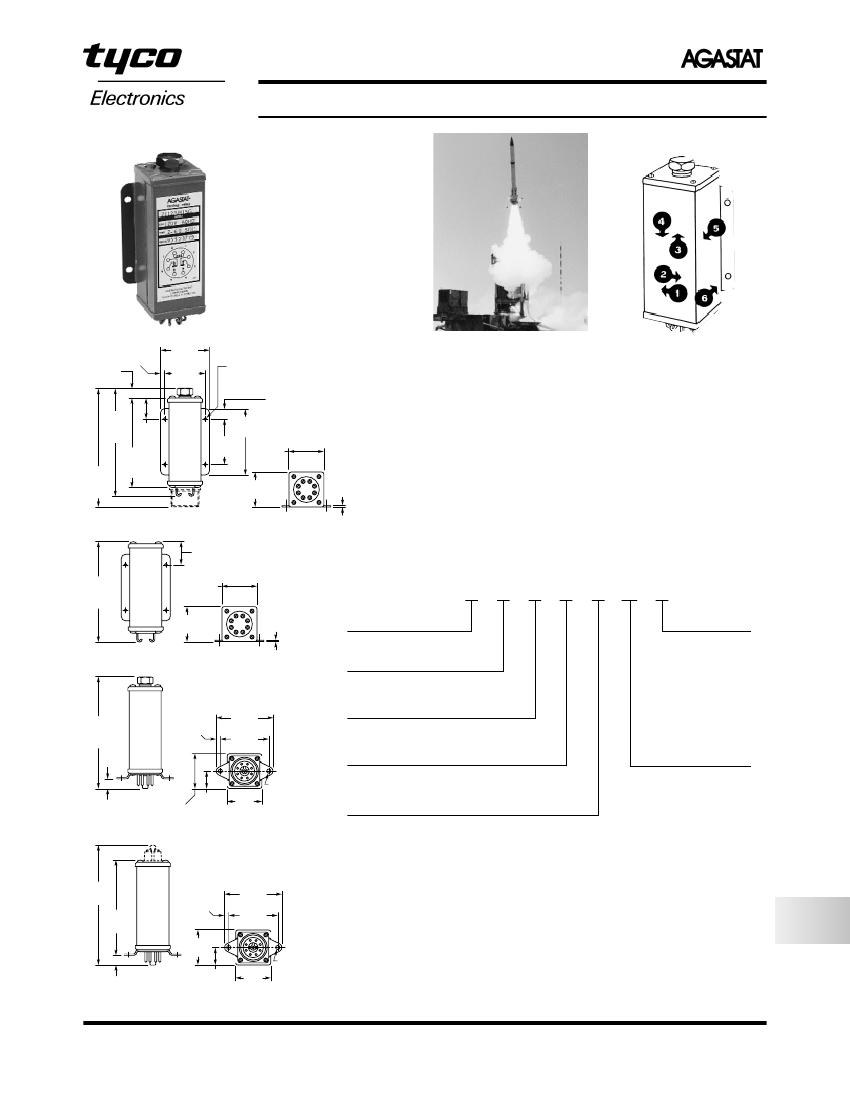

Electropneumatic Timing Relays

Series 2100 MIL-Spec and Hermetically Sealed

Specifications

Dielectric

— In accordance with spec-

ification MIL-R-6106E (ASG). Also with-

stands 1,000 Volts RMS at 60 Hz

between non-connected terminals.

Other

— AGASTAT Miniature Timing

Relays also conform to applicable

MIL-Spec. requirements covering:

Moisture, Ozone, Humidity, Sunshine,

Sand/Dust, Acoustic Noise, Salt Spray,

and Prolonged Storage.

.438

[11.11]

.19

[4.83]

2.19

[55.63]

1.812

[46.02]

.173

Dia.

[4.39]

Mtg. Holes

2 Plcs.

8 pin solder

hook or MS/AN

Connector

.438

[11.11]

AGASTAT timing relays perform

to military specifications

in patriot missiles.

4.781

[121.44]

.969

Max. [24.61]

3.937

[100.00]

5.218

Max.

[132.54]

Max.

2.875

[73.03]

1.52

2.000

[38.61]

[50.80]

Max.

1.52

Max.

[38.61]

.024

[0.61]

Panel Mount —H1, —H3

1.031

[26.19]

4.406

[111.91]

Max.

1.52

[38.61]

Max.

1.52

Max.

[38.61]

.024

[0.61]

8 pin solder

hook or MS/AN

Connector

Ordering Information — MIL-Spec & Hermetically Sealed

Model Series

2100 Timing Relay

Timing Range

A — .03 to .1 sec.

B — .1 to .3 sec.

C — .15 to 1.0 sec.

D — .375 to 3.0 sec.

E — .750 to 10.0 sec.

F — 1.0 to 30.0 sec.

G — 2.0 to 60.0 sec.

H — 5.0 to 120.0 sec.

J — 5.0 to 180.0 sec.

K — 1.5 to 30.0 cyc.

L — 3.0 to 120.0 cyc.

Panel Mount —9

Octal Plug (with internal

adjustment or external

adjustment knob)

5.000

[127.00]

Max.

.188

[4.76]

2.50

[63.50]

2.125

[53.98]

Octal

Plug

Operation

1 — On-Delay

2 — Off-Delay

Contact Arrangement

2 — Double Pole

Double Throw

Operating Current

.177

Dia.

[4.50]

Mtg. Holes

2 Plcs.

A — AC

D — DC

Coil Voltage

M — 12 VDC

N — 28 VDC

P — 48 VDC

R — 110 VDC

S — 120 VAC 60 Hz

T — 240 VAC 60 Hz

U — 115 VAC 400 Hz

Y — 125 VDC

.375

[9.53]

.75

1.52

Max. [19.05]

[38.61]

1.52

[38.61]

Physical Characteristics

Enclosure

MIL-Spec.

H1 Hermet. Seal

H2 Hermet. Seal

H3 Hermet. Seal

4 — Unsealed

5 — Unsealed

9 — Unsealed

Adjustment

Ext. Screw

Ext. Knob

Internal Key

Connector

Solder Hook

Octal Plug

“AN” Conn.

Octal Plug

Solder Hook

Mounting

Panel Mount

Chassis Mount

Panel Mount

Chassis Mount

Solder Hook

Chassis Mount —H2

Octal Plug (with internal

adjustment or external

adjustment knob)

4.875

[123.83]

4.261

[108.23]

1.52

[38.61]

.75

[19.05]

1.52

[38.61]

2.50

[63.50]

2.125

[53.98]

.188

[4.76]

.406

[10.31]

.177

Dia.

[4.50]

Mtg. Holes

2 Plcs.

Relays

12011

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

Chassis Mount —4, —5

Catalog 1308940

Revised 5-03

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.
