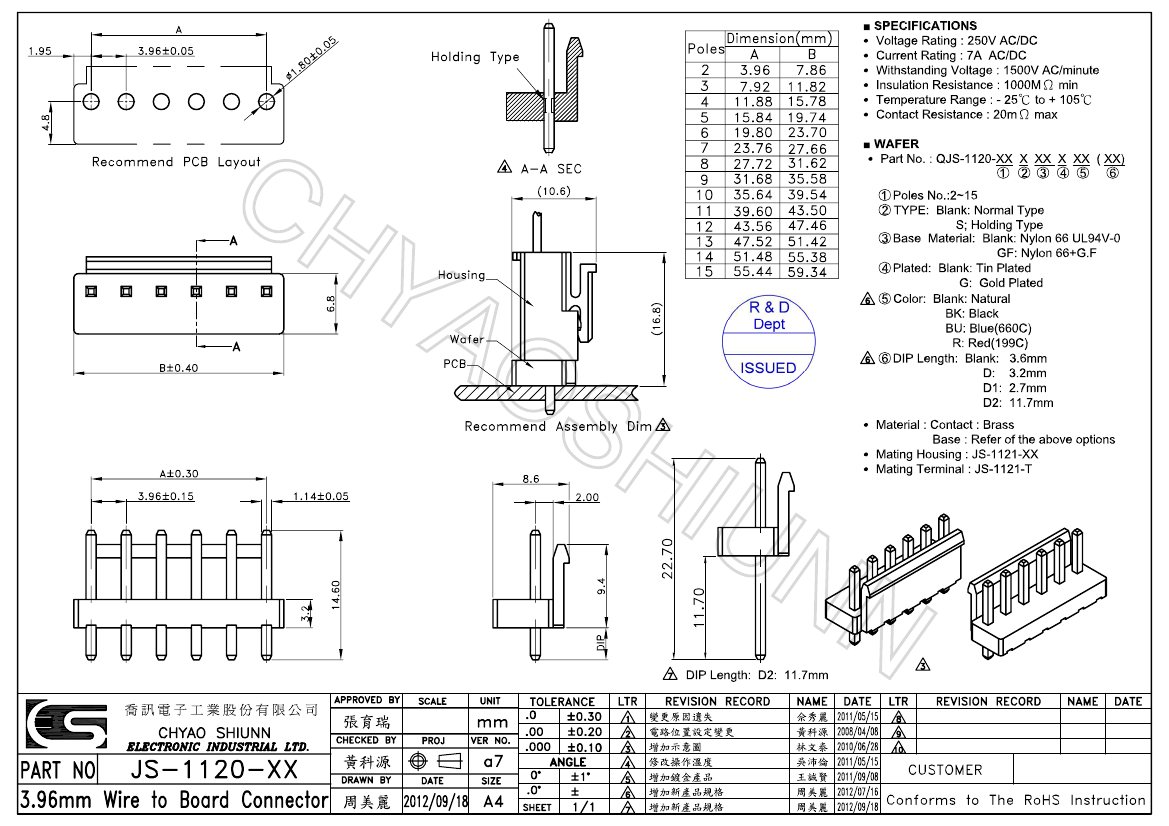

JS-1120-13D2 datasheet, PDF - EEWORLD Datasheet

JS-1120-13D2: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size830KB，4 Pages; ManufacturerChyao Shiunn Electronic Industrial Ltd

Download Datasheet Parametric View All

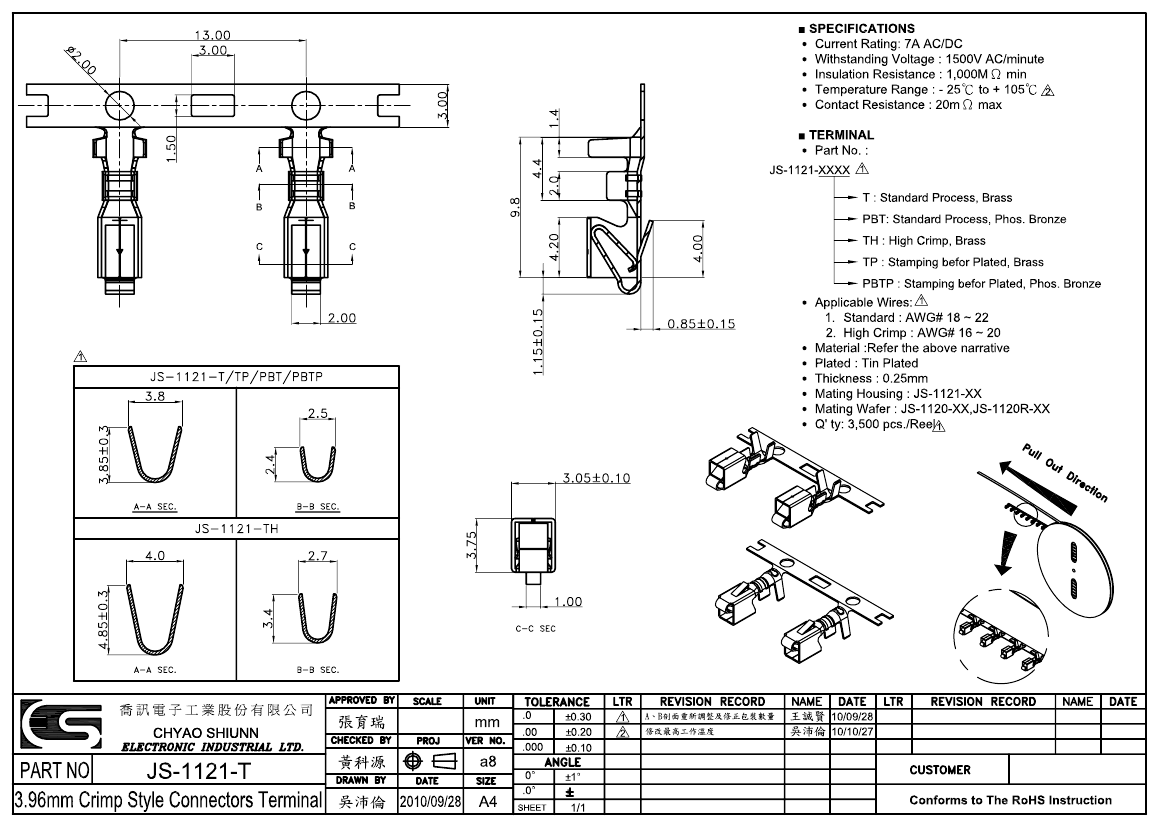

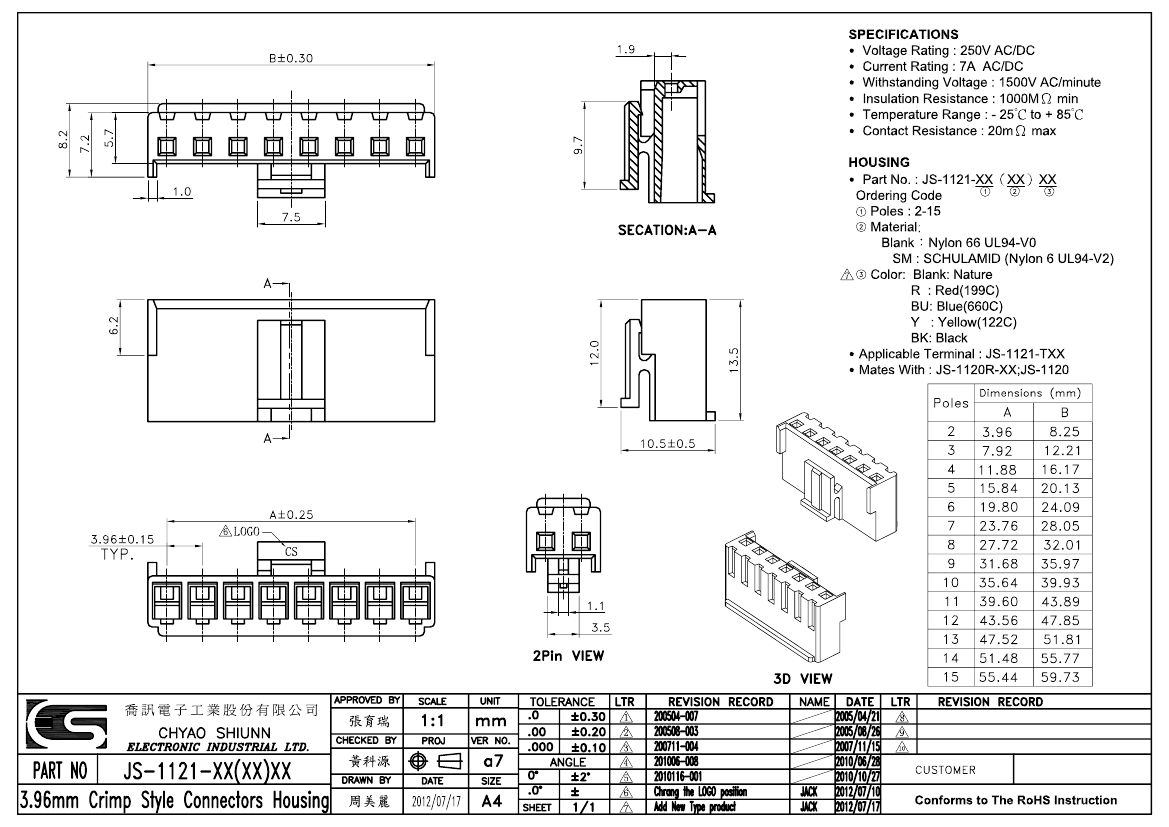

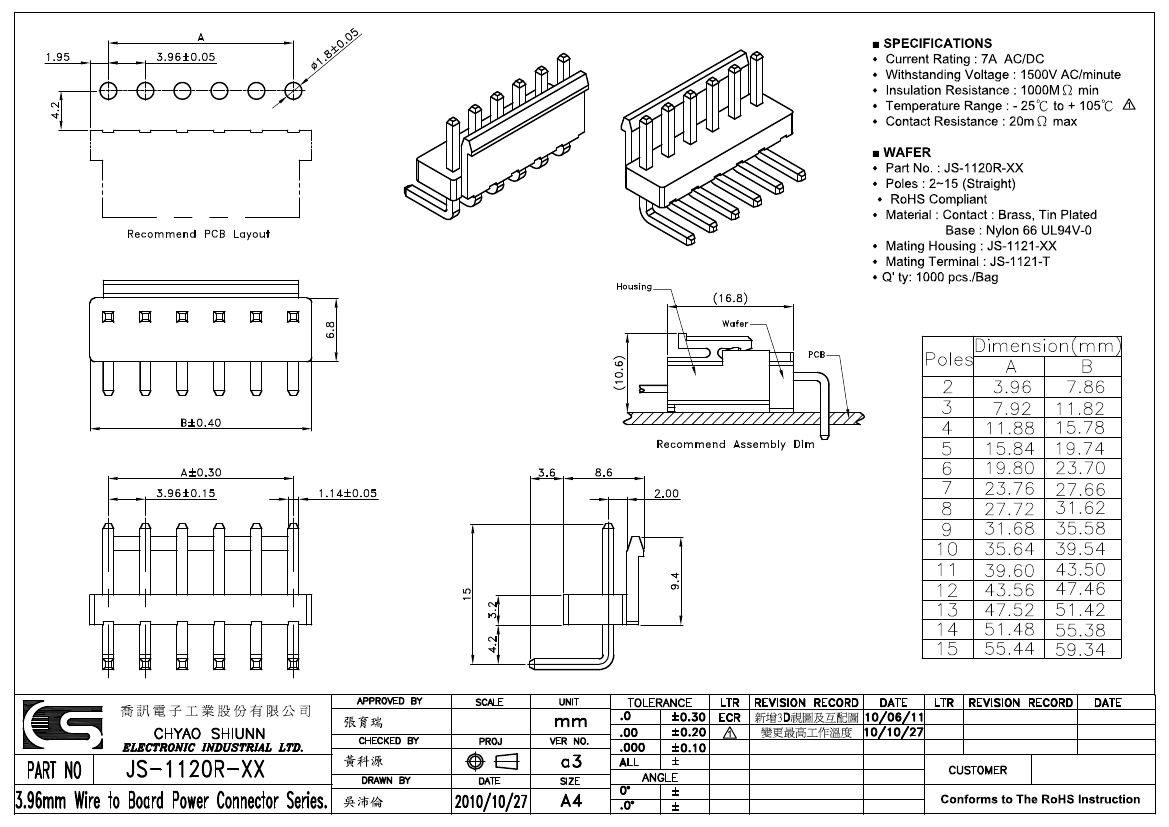

JS-1120-13D2 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Wire Wrap Terminal, Locking, Natural Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.339 inch
subject depth	0.37 inch
body length	2.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	JS-1120
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.461 inch
Terminal pitch	3.9624 mm
Termination type	WIRE WRAP
Total number of contacts	13
