Vertical Mount Printed Circuit Board
13 Amp Current Rating
– Combo Micro-D's combine the size and weight
advantages of a Micro -D connector with the added ability to handle higher
power needs.
Printed Circuit Board Terminals
– Ideal for flexible circuits or rigid boards,
these gold plated PC tail contacts are sealed with epoxy encapsulant and
are non-removable.

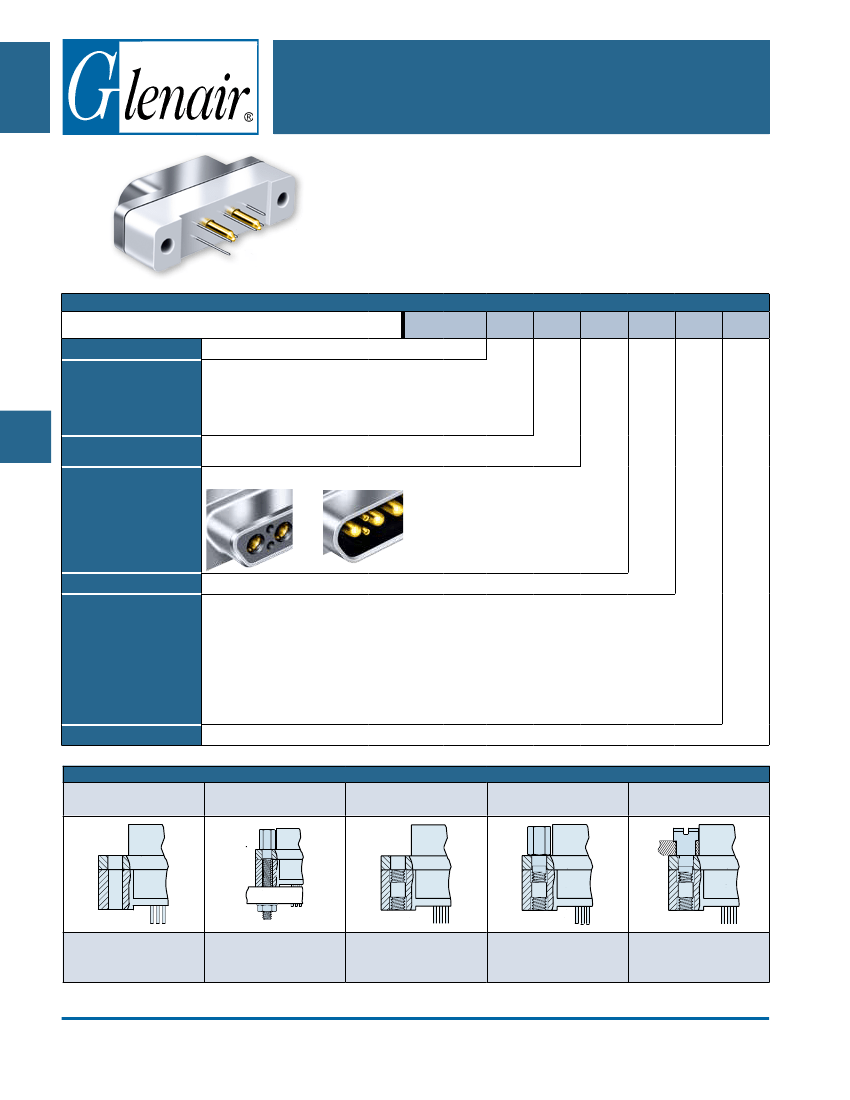

How To Order Vertical Mount PCB Combo Micro-D Connectors
Sample Part Number
Series
GMPM
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
B112, D112, D113, E113, G103
P
– Plug
R
– Receptacle
Stainless Steel Shell
3
– Passivated
GMPM Combo Micro-D
for High Power Applications
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
Thru-Hole
PC BOARD
Micro-D Combo
Shell Finish
Shell Size and
Insert Arrangement
Shell Style
Termination Style
CBS
- Compact Vertical Mount
Hardware
PC Tail Length
NN
PN and RN
Jackpost Kit
PN – .062 (1.6) PCB
RN – .196 (5.0) PCB
GMPM
2
B112
R
CBS
PN
-.109
NN
– No Jackpost, No Threaded Insert
PN
– Extended Jackpost for .062" (1.6) PCB, No
Threaded Insert
RN
– Extended Jackpost for .196" (5.0) PCB, No
Threaded Insert
NU
– 2-56 UNC Threaded Insert, No Jackposts
NM
– Metric M2 Threaded Insert, No Jackposts
SU
– Short Jackpost, 2-56 UNC Threaded Insert
SM
– Short Jackpost, M2 Metric Threaded Insert
Rear Panel Jackposts
Supplied either with
U
style 2-56 UNC
or
M
style M2 Threaded Inserts
TU
or
TM
– 0.094" (2.4) Panel
VU
or
VM
– 0.062" (1.6) Panel
WU
or
WM
– 0.047" (1.2) Panel
XU
or
XM
– 0.031" (0.8) Panel
XU
or
XM
– 0.023" (0.6) Panel
.109, .150, .172, .190, .250
Length in Inches ± .015 (0.38)
Table I: Jackpost Options
NU, NM
SU, SM
TU,VU,WU,XU,YU
TM,VM,WM,XM,YM
Threaded Inserts
Jackpost With Threaded
Insert
Jackpost for Rear Panel
Mounting
INDEX
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-10
E-Mail: sales@glenair.com
Vertical Mount Printed Circuit Board
Table II: Dimensions For Shell Size B, D, E and G
A
B
C
A
B
C
D
E
D
.096/.088 (2.44/2.24)
(See Table I)
DIA. 2 PLCS.
J
E
F
Tail Length
.172 (4.37) ± .015 (0.38)
G
G
H
J
mm.
4.68
5.01
4.68
5.01
4.68
5.01
4.68
5.01
4.68
4.95
.079 (2.0) ± .002 (0.05)
.020 (0.51) ± .002 (0.05)
A Max.
Layout
B112P
B112R
D112P
D112R
D113P
D113R
E113P
E113R
G103P
G103R
In.
.935
.935
1.185
1.185
1.185
1.185
1.335
1.335
1.435
1.435
mm.
23.75
23.75
30.01
30.01
30.01
30.01
33.91
33.91
36.45
36.45
± .003
B
C Max.
mm.
± 0.08
18.16
18.16
24.51
24.51
24.51
24.51
28.32
28.32
30.86
30.86
In.
.481
.547
.731
.798
.731
.798
.881
.949
.983
1.051
D Max.
In.
.242
.315
.242
.315
.242
.315
.242
.315
.228
.296
E Max.
In.
.315
.315
.315
.315
.315
.315
.315
.315
.351
.351
G Max.
J Max.
In .
mm.
12.21
13.92
18.56
20.27
18.56
20.27
22.37
24.11
24.97
26.70
mm.
6.15
8.00
6.15
8.00
6.15
8.00
6.15
8.00
5.79
7.52
mm.
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.92
8.92
In.
.355
.355
.355
.355
.355
.355
.355
.355
.355
.355
mm.
9.02
9.02
9.02
9.02
9.02
9.02
9.02
9.02
9.02
9.02
In.
.184
.197
.184
.197
.184
.197
.184
.197
.184
.195
K
L
M
N
P
Q
INDEX
.715
.715
.965
.965
.965
.965
1.115
1.115
1.215
1.215
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-11
E-Mail: sales@glenair.com
Micro-D Combo
GMPM Combo Micro-D
for High Power Applications
Vertical Mount Printed Circuit Board
Power and Combo Micro-D
for High Power Applications
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
Micro-D Combo
Patterns shown are for connector mounting side of PC board.

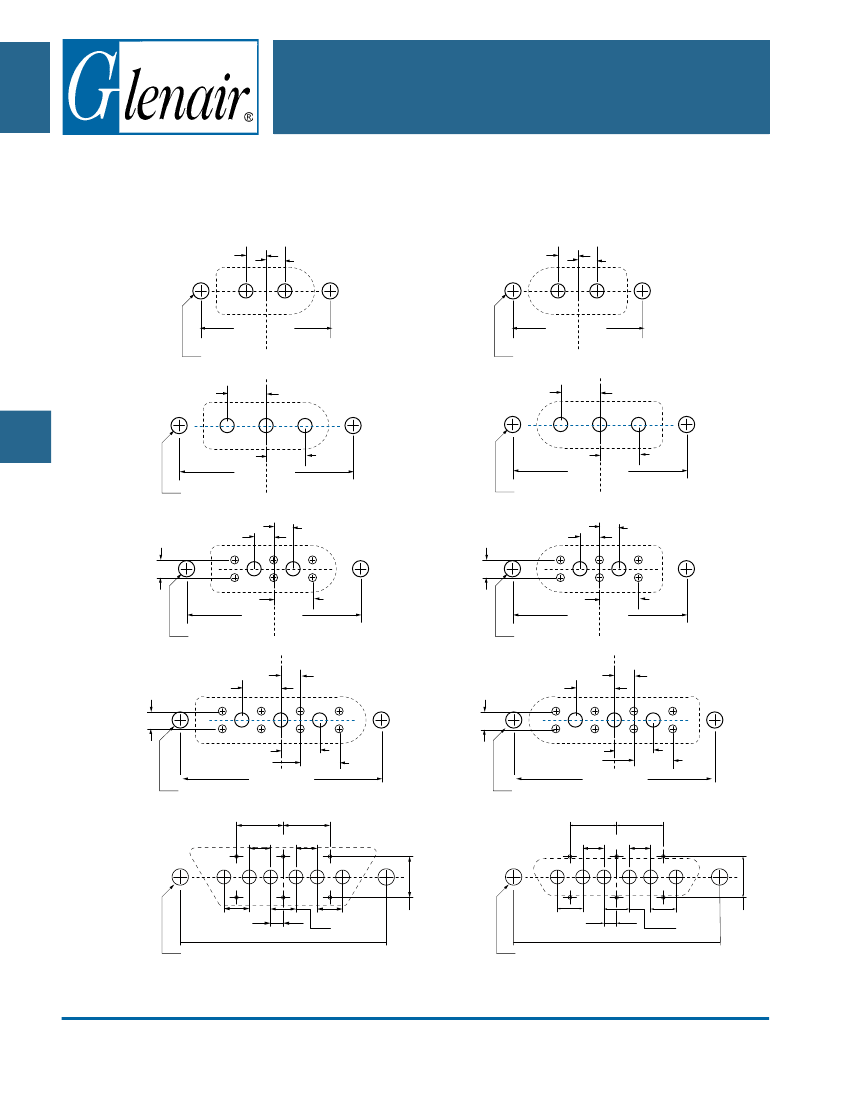

Power and Combo Micro-D PCB Layouts
Receptacle Connectors
.108 (2.74)
C
L
.108 (2.74)
Plated thru-holes to accept .081 (2.06) maximum diameter power pins marked A - C, and .022(.56) maximum diameter signal pins marked 1 – 8.
Plug Connectors
.108 (2.74)
C
L
.108 (2.74)
B112
A
.715 (18.16)
.096 (2.44) DIA REF
.216 (5.49)
C
L
B
B
A
.715 (18.16)
.096 (2.44) DIA REF
.216 (5.49)
C
L
D112
A
.216 (5.49)
B
.965 (24.51)
C
C
.216 (5.49)
B
.965 (24.51)
A
.096 (2.44) DIA REF
C
L
.098 (2.49)
.108 (2.74)
1
A
4
.216 (5.49) 2 PLCS
2
5
B
.108 (2.74)
3
6
.098 (2.49)
.096 (2.44) DIA REF
C
L
.108 (2.74)
3
6
B
2
5 A
.108 (2.74)
1
4
D113
.216 (5.49) 2 PLCS
.965 (24.51)
.096 (2.44) DIA REF
C
L
C
L
.108 (2.74) 2 PLC S
.098 (2.49)
.216 (5.49)
4
8
3
C 7
B
2
6
A
.108 (2.74) 2 PLC S
1
5
.965 (24.51)
.096 (2.44) DIA REF
.098 (2.49)
.216 (5.49)
1
2
3
7
4
C
8
E113
A
6 B
5
.216 (5.49)
.216 (5.49) 2 PLCS
.216 (5.49)
.216 (5.49) 2 PLCS
1.115 (28.32 )
.096 (2.44) DIA REF
.276 (7.00) .276 (7.00)
3
F
6
.150 (3.81)
.150 (3.81)
.242 (6.14)
F
6
.150 (3.81)
0.075 (1.91)
1.215 (30.86)
.096 (2.44) DIA REF
.13 (3.18) C .13 (3.18)
L
2
1
E
D
5
C
B
4
.150 (3.81)
.150 (3.81)
.242 (6.14)
A
1.115 (28.32 )
.096 (2.44) DIA REF
.276 (7.00) .276 (7.00)
.13 (3.18) C .13 (3.18)
L
2
3
B
4
.150 (3.81)
.075 (1.91)
1.215 (30.86)
.096 (2.44) DIA REF
C
5
D
E
1
G103
A
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-12
E-Mail: sales@glenair.com
