RC324-050-211-4000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> RC324-050-211-4000

RC324-050-211-4000: DescriptionBoard Connector, 50 Contact(s), 3 Row(s), Female, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking; CategoryThe connector The connector; File Size721KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

RC324-050-211-4000 Overview

Board Connector, 50 Contact(s), 3 Row(s), Female, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking

RC324-050-211-4000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Board mount options	HOLE .125-.137
body width	0.35 inch
subject depth	0.3 inch
body length	2.01 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	1.112 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	RC324
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.3 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	50
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

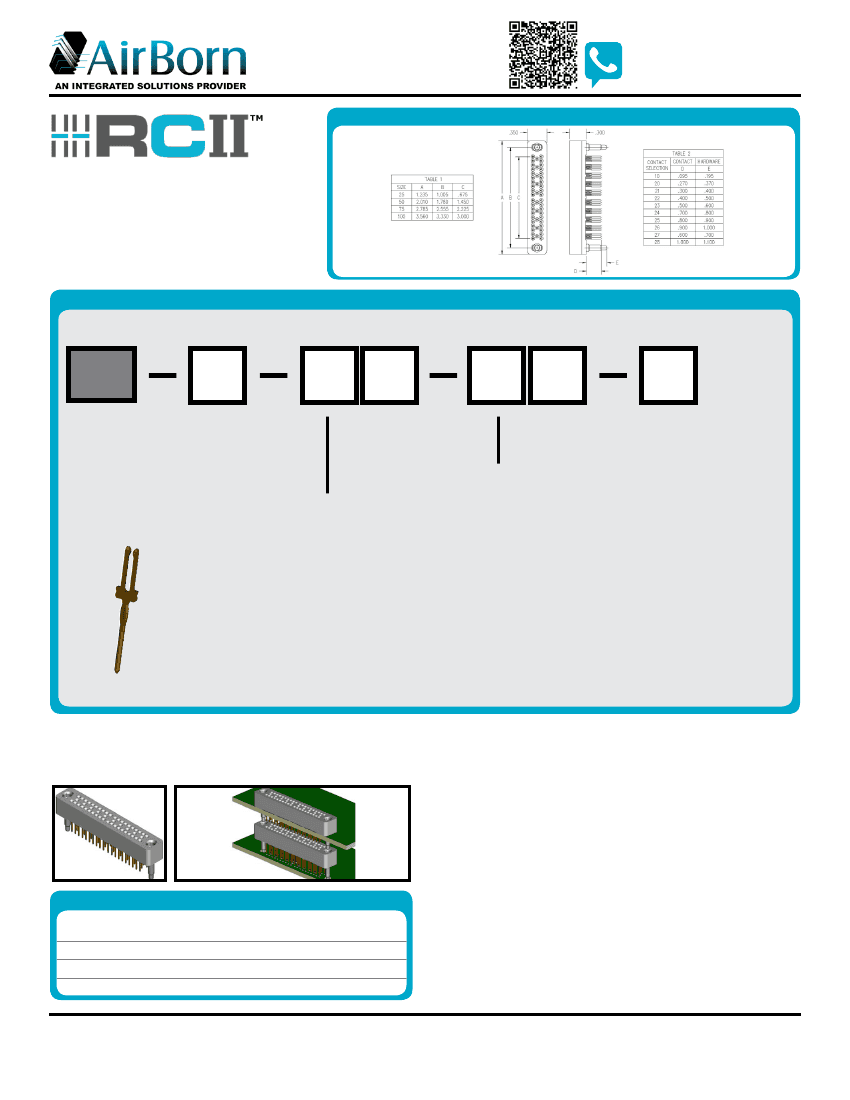

DIMENSIONS

Stackable, Press-Fit, Compilant

Pin/Socket

CONTACT CUSTOMER SERVICE

A high-density, aligned field for improved signal

integrity, press-fit mounted connector using pat-

ented stacking contacts consisting of a female/

compliant/male configuration used in board-to-

board stacking applications.

Contact spacing: 0.075” (1.91 mm)

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: RC324-050-201-3900

ENTER

CODE

ENTER

CODE

ENTER

CODE

RC324

SERIES

Stackable

Compliant

Full-Profile

3 Rows

0.075” Spacing

CONFIGURATION

025 – 3 Rows/1 Bay

050 – 3 Rows/2 Bay

075 – 3 Rows/3 Bay

100 – 3 Rows/4 Bay

PLATING

–

50 µ” Au

–

30 µ” Au

–

50 µ” Au/

20 µ” Au

–

30 µ” Au/

20 µ” Au

CONTACT

10 – 0.095” Long

20 – 0.270” Long

21 – 0.300” Long

22 – 0.400” Long

23 – 0.500” Long

24 – 0.700” Long

25 – 0.800” Long

26 – 0.900” Long

27 – 0.600” Long

28 – 1.000” Long

TYPE

00 – None

VARIATION

Blank – None

XXX – Consult Factory

HARDWARE

30 – 0.195” Long (use with -10 contact)

39 – 0.370” Long (use with -20 contact)

40 – 0.400” Long (use with -21 contact)

41 – 0.500” Long (use with -22 contact)

42 – 0.600” Long (use with -23 contact)

43 – 0.800” Long (use with -24 contact)

44 – 0.900” Long (use with -25 contact)

45 – 1.000” Long (use with -26 contact)

46 – 0.700” Long (use with -27 contact)

47 – 1.100” Long (use with -28 contact)

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATED HEIGHT

The connector body height is 0.300” and, when used with the -20 or -30 (0.270”) contact, the

mounting is flush (board-bottom mounted to connector top). This board-bottom to connector top

spacing can be modified based on the contact selected by approximately the difference in pin

length . See Table 2 .

MATERIALS and FINISHES

Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . .BeCu per ASTM-B768 (BeCu C17410 brush alloy 174)

Contact Finish: . . . . . . . . . . . . . . . . . . . . . . Gold per MIL-G-45204 over nickel per IAW QQ-N-290

Molded Insulator: . . . . . . . . . . . . . . . . .

Glass-filled polyphenylene sulfide (PPS) per MIL-M-24519

Hardware: . . . . . . . . . . . . . . . . . . . . . Stainless steel per ASTM-A582, passivated per ASTM-A967

Guide Pin/Socket:

. . . . . . . . . . . . . . . . . . .

BeCu per ASTM-B196/197, nickel-plated per QQ-N-290

NOTE: AirBorn can manufacture special configurations to your exact specifications.

PERFORMANCE

SI DATA – Differential 100 Ohm

Diff . Insertion Loss

Diff . Return Loss

FEXT

6 .0 GHz @ -3 dB

4 .6 GHz @ -20 dB

4 .0 GHz @ -50 dB

4 .0 GHz @ -48 dB

Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 amperes

Operating Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65° C to +125° C

Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC

Durability: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles

Contact Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 5 milliohms (contact length dependent)

Contact Engagement Force: . . . . . . . . . . . . . . . . . . . . .

4.0 oz. (113 g.) max. w/0.0246” dia. test pin

Contact Separation Force: . . . . . . . . . . . . . . . . . . . . . . . .

0.5 oz. (14 g.) min. w/0.0226” dia. test pin

Compliant Insertion Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 .5 lb . (10 .21 Kg .) max . per contact

Compliant Removal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 .5 lb . (2 .04 Kg .) min . per contact

NOTE: Performance values are estimates at this time. Actual values will be determined when final

product testing is complete .

www.airborn.com

(512 ) 863-5585

RC324-PNB-2C
