20847715000850: DescriptionBoard Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

20847715000850 Overview

Board Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT

20847715000850 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8477
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

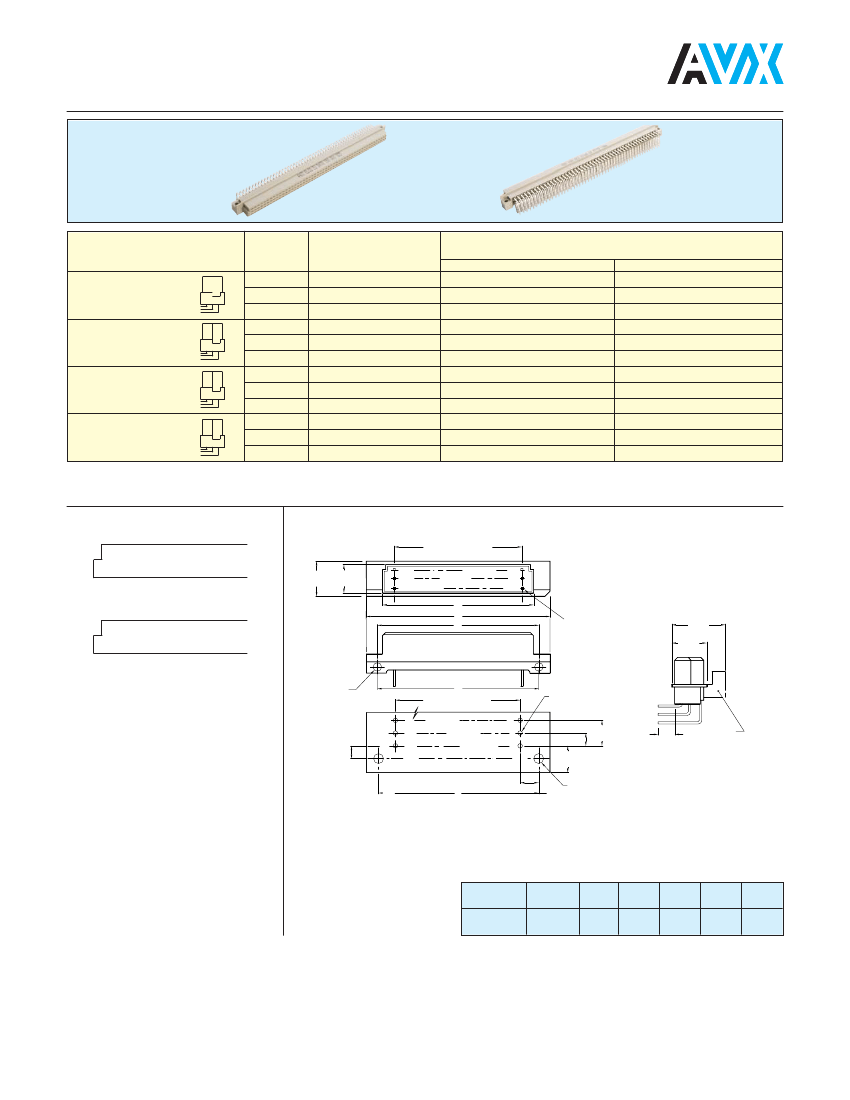

Female Style R Expanded

Series 8477 – 3 rows (3 x 50)

Contact Design

and

Termination Length

0.6 x 0.6 mm Post Profile

11.43 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

3.0 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

11.43 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

4.5 mm (Y) Right Angled

Number of

Contacts

100

150

100

150

100

150

100

Loading Description

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

Part Number

Performance classes according to DIN 41612

20 8477 150 008 025

20 8477 150 008 026

20 8477 150 002 025

20 8477 150 002 026

20 8477 150 008 025

20 8477 150 008 026

20 8477 150 012 025

20 8477 150 012 026

20 8477 150 008 050

20 8477 150 008 049

20 8477 150 002 049

20 8477 150 002 050

20 8477 150 008 049

20 8477 150 008 050

20 8477 150 012 049

20 8477 150 012 050

NB: Alternative Prefix Variations Available: 22, 26 & 27, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

ROW C

10.5

[0.413]

8.46

[0.333]

ROW A

ROW B

100 contacts, rows a + c fully loaded

●

13.4

[0.528]

10.5

[0.413]

150 contacts, rows a + b + c fully loaded

2.54

DIA.

[0.100]

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

ROW C

2.54

[0.100]

ROW B

ROW A

5.08

[0.200]

2.54

5.31 [0.100]

[0.209]

For Y dimension see

contact design

KEYING

5.08 [0.200]

HOLE PATTERN

2.84 DIA.

[0.112]

Unit: millimeters (inches)

No. Contact

Positions

150

Contact

Rows

3 (3 x 50)

125.50

(4.940)

139.60

(5.496)

134.62

(5.300)

130.61

(5.142)

20847715000850 Related Products

	20847715000850	20847715001250	20847715000849	20847715000249	20847715000250	20847715001249
Description	Board Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Euro Connector, 150 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Euro Connector, 150 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Euro Connector, 150 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compli	compli	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8477	8477	8477	8477	8477	8477
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	3	3	2	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	100	100	150	150	100	150
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
