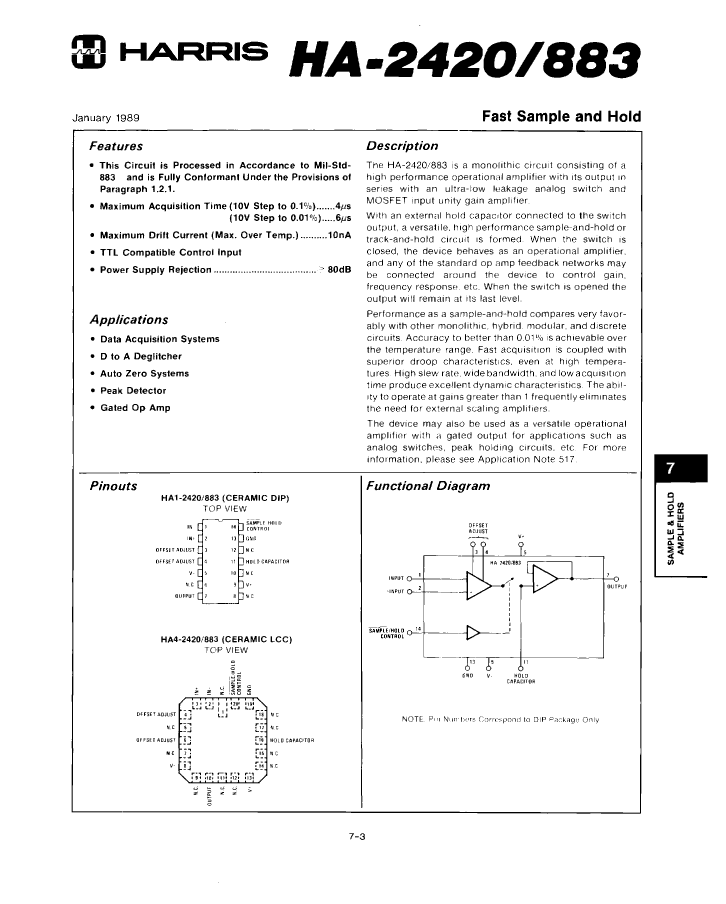

80016012A amplifier basic information:
80016012A is a SAMPLE AND HOLD CIRCUIT. The commonly used packaging method is QCCN,
80016012A amplifier core information:
The minimum operating temperature of the 80016012A is -55 °C and the maximum operating temperature is 125 °C.
The nominal supply voltage of 80016012A is 15 V, and its corresponding nominal negative supply voltage is -15 V.
Related dimensions of 80016012A:
80016012A has 20 terminals. Its terminal position type is: QUAD.
80016012A amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N20. The packaging code of 80016012A is: QCCN. The materials of 80016012A package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
The 80016012A package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD.
80016012A amplifier basic information:
80016012A is a SAMPLE AND HOLD CIRCUIT. The commonly used packaging method is QCCN,
80016012A amplifier core information:
The minimum operating temperature of the 80016012A is -55 °C and the maximum operating temperature is 125 °C.
The nominal supply voltage of 80016012A is 15 V, and its corresponding nominal negative supply voltage is -15 V.
Related dimensions of 80016012A:
80016012A has 20 terminals. Its terminal position type is: QUAD.
80016012A amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N20. The packaging code of 80016012A is: QCCN. The materials of 80016012A package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
The 80016012A package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD.

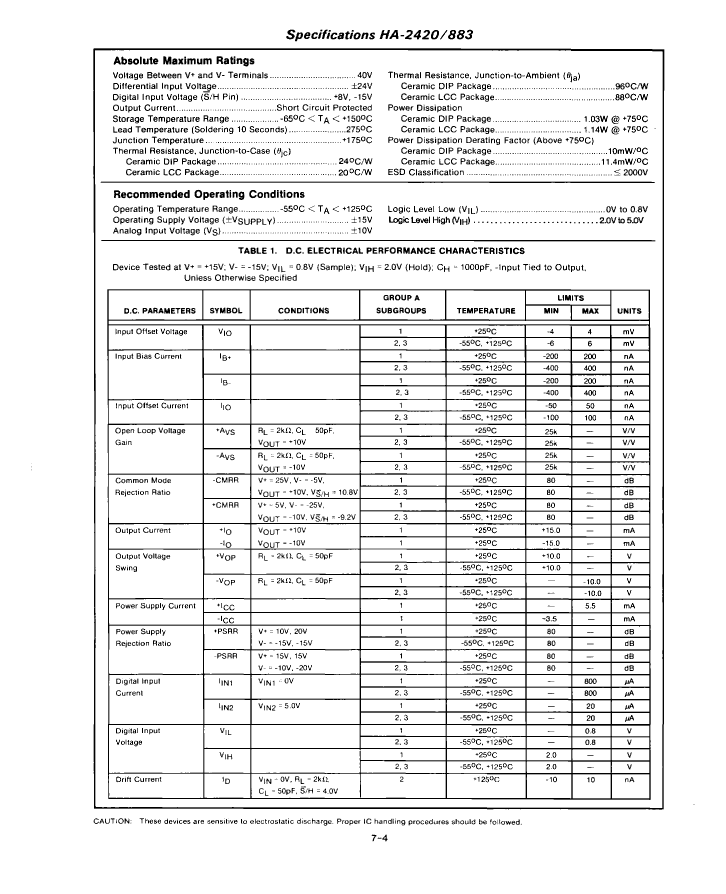

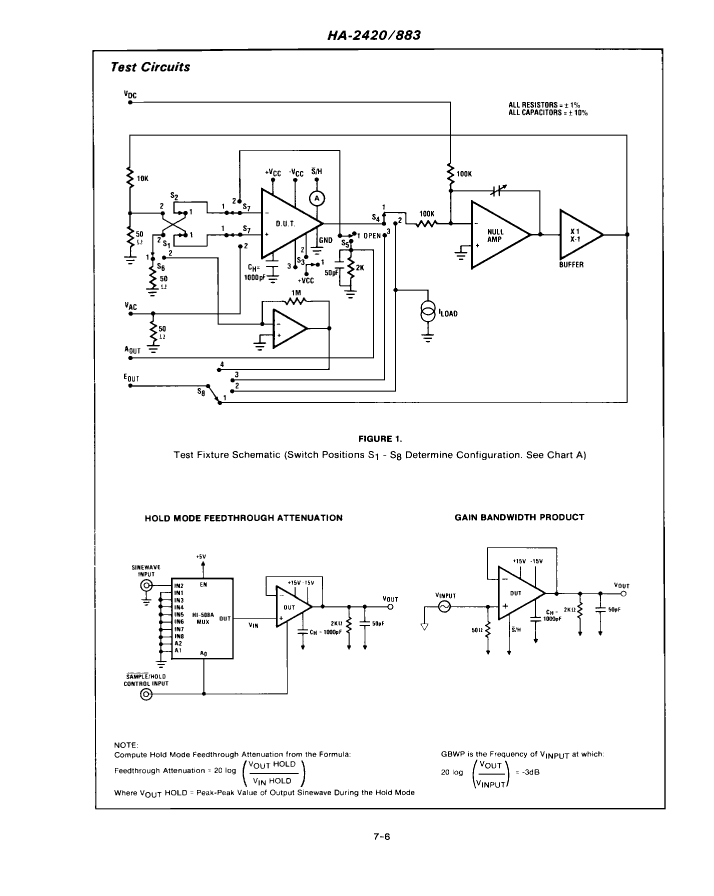

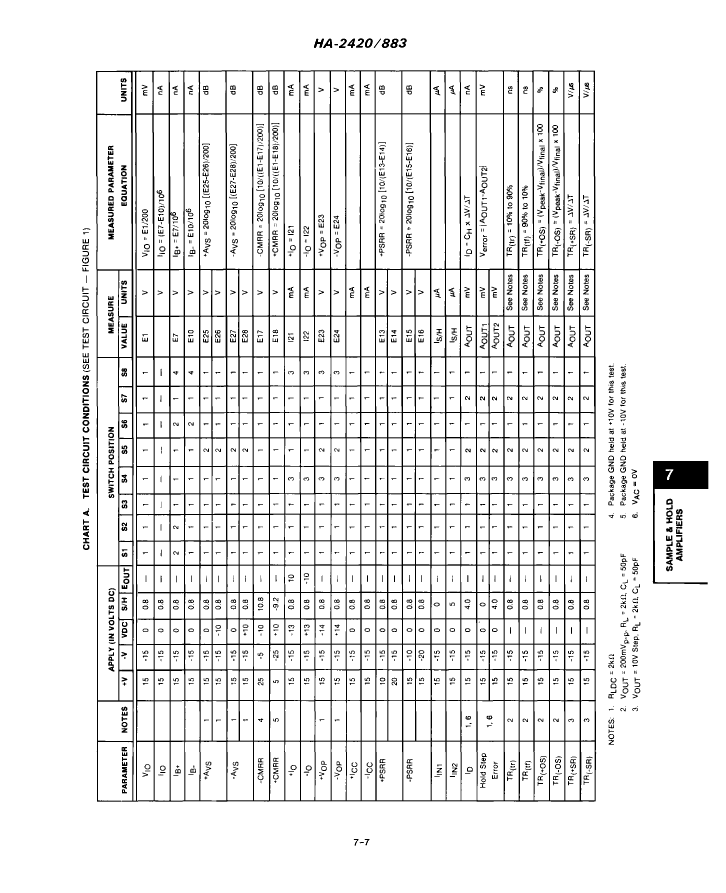

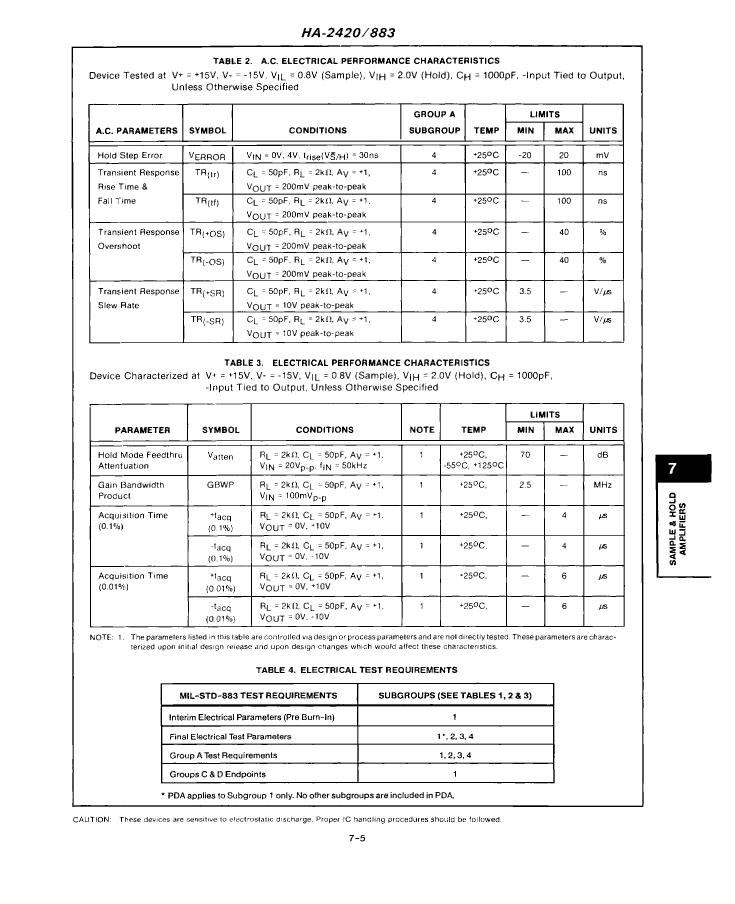

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | QCCN, |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum acquisition time | 6 µs |
| Amplifier type | SAMPLE AND HOLD CIRCUIT |
| Maximum analog input voltage | 10 V |
| Minimum analog input voltage | -10 V |
| JESD-30 code | S-CQCC-N20 |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Certification status | Not Qualified |
| Sample and hold/Track and hold | SAMPLE |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal location | QUAD |
| Base Number Matches | 1 |
| 80016012A | 8001601CX | |
|---|---|---|
| Description | Sample and Hold Circuit, 1 Func, Sample, CQCC20, CERAMIC, QCC-20 | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CDIP14, CERAMIC, DIP-14 |
| Maker | Harris | Harris |
| Reach Compliance Code | unknow | unknown |
| ECCN code | EAR99 | EAR99 |
| Maximum acquisition time | 6 µs | 6 µs |
| Amplifier type | SAMPLE AND HOLD CIRCUIT | SAMPLE AND HOLD CIRCUIT |
| Maximum analog input voltage | 10 V | 10 V |
| Minimum analog input voltage | -10 V | -10 V |
| JESD-30 code | S-CQCC-N20 | R-CDIP-T14 |
| Negative supply voltage upper limit | -20 V | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 1 | 1 |
| Number of terminals | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE |
| Certification status | Not Qualified | Not Qualified |
| Sample and hold/Track and hold | SAMPLE | SAMPLE |
| Supply voltage upper limit | 20 V | 20 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | YES | NO |
| Temperature level | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE |
| Terminal location | QUAD | DUAL |
| Base Number Matches | 1 | 1 |
| Part Number | Manufacturer | Description |
|---|---|---|
| SMP11BRC/883 | Precision Monolithics Inc | Sample and Hold Circuit, 1 Func, PQCC20, |
| HA4-2420/883 | Rochester Electronics | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CQCC20 |
| 5962-89541022C | Precision Monolithics Inc | Sample and Hold Circuit, 1 Func, Sample, CQCC20, CERAMIC, LCC-20 |
| SHM-14LM | Murata(村田) | SAMPLE AND HOLD AMPLIFIER, 0.025 us ACQUISITION TIME, CQCC20 |
| HA4-5330/883 | Harris | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CQCC20 |
| AM6420LM | AMD(超微) | Sample and Hold Circuit, 1 Func, Sample, 0.5us Acquisition Time, BIPolar, CQCC20, LCC-20 |
| 5962-87677012A | Harris | Sample and Hold Circuit, 1 Func, Sample, CQCC20, CERAMIC, QCC-20 |
| SHM-12L | C&D | Sample and Hold Circuit, 1 Func, Sample, 0.015us Acquisition Time, BIPolar, CQCC20, CERAMIC, LCC-20 |
| SHM-14L | C&D | Sample and Hold Circuit, 1 Func, Sample, 0.02us Acquisition Time, BIPolar, CQCC20, CERAMIC, LCC-20 |
| TS81210E | Atmel (Microchip) | Sample and Hold Circuit, 1 Func, Track, 0.0176us Acquisition Time, BICMOS, CQCC20, CERAMIC, LCC-20 |
| SP4-5330-4 | SIPEX | Sample and Hold Circuit, 1 Func, Sample, 0.5us Acquisition Time, BIPolar, CQCC20, CERAMIC, LCC-20 |
| 5962-9306302M2A | Harris | Sample and Hold Circuit, 1 Func, Sample, 1us Acquisition Time, CQCC20 |
| AM6420XCB | AMD(超微) | Sample and Hold Circuit, 1 Func, Sample, 0.5us Acquisition Time, DIE |
