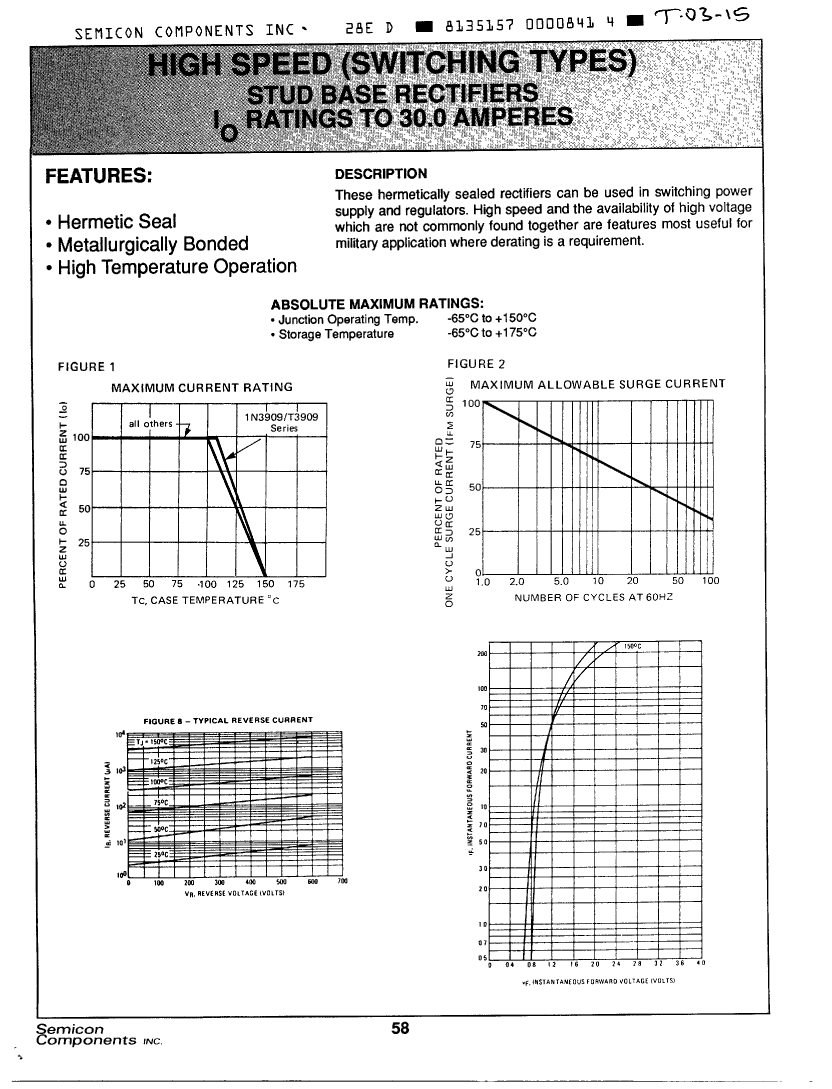

Rectifier Diode, 1 Phase, 1 Element, 30A, 800V V(RRM), Silicon,

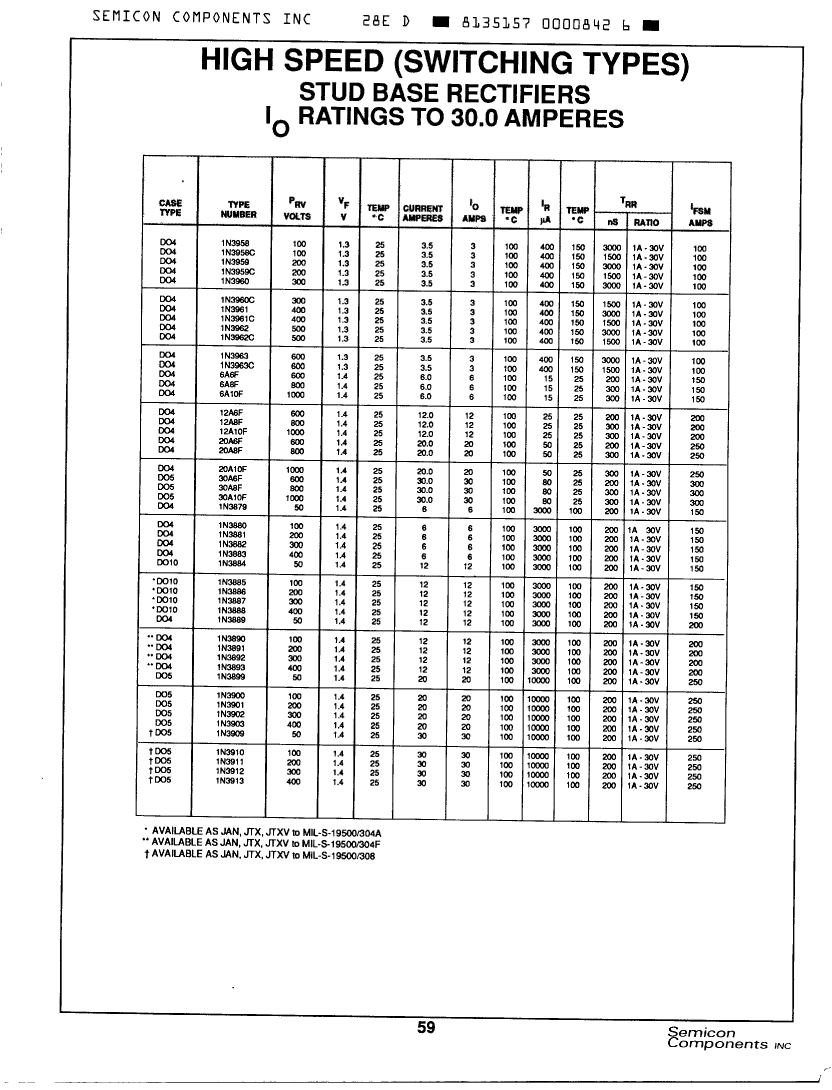

| Parameter Name | Attribute value |
| package instruction | O-MUPM-D1 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | FAST RECOVERY |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.4 V |
| JESD-30 code | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 300 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 30 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| Maximum reverse current | 80 µA |
| Maximum reverse recovery time | 0.3 µs |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| 30A8F | 20A6F | 20A10F | 12A10F | 12A6F | 12A8F | 20A8F | 6A8F | 6A6F | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 30A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 20A, 600V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 20A, 1000V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 12A, 1000V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 12A, 600V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 12A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 20A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 6A, 600V V(RRM), Silicon, |
| Reach Compliance Code | unknown | unknown | unknown | unknow | unknow | unknow | unknow | unknow | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.4 V | 1.4 V | 1.4 V | 1.4 V | 1.4 V | 1.4 V | 1.4 V | 1.4 V | 1.4 V |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 300 A | 250 A | 250 A | 200 A | 200 A | 200 A | 250 A | 150 A | 150 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Maximum output current | 30 A | 20 A | 20 A | 12 A | 12 A | 12 A | 20 A | 6 A | 6 A |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | 600 V | 1000 V | 1000 V | 600 V | 800 V | 800 V | 800 V | 600 V |
| Maximum reverse current | 80 µA | 50 µA | 50 µA | 25 µA | 25 µA | 25 µA | 50 µA | 15 µA | 15 µA |
| Maximum reverse recovery time | 0.3 µs | 0.2 µs | 0.3 µs | 0.3 µs | 0.2 µs | 0.3 µs | 0.3 µs | 0.3 µs | 0.2 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| package instruction | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | - | O-MUPM-D1 |
| Maker | - | Semicon Components Inc | Semicon Components Inc | Semicon Components Inc | Semicon Components Inc | Semicon Components Inc | Semicon Components Inc | Semicon Components Inc | - |
