TECHNICAL DATA SHEET
1/3

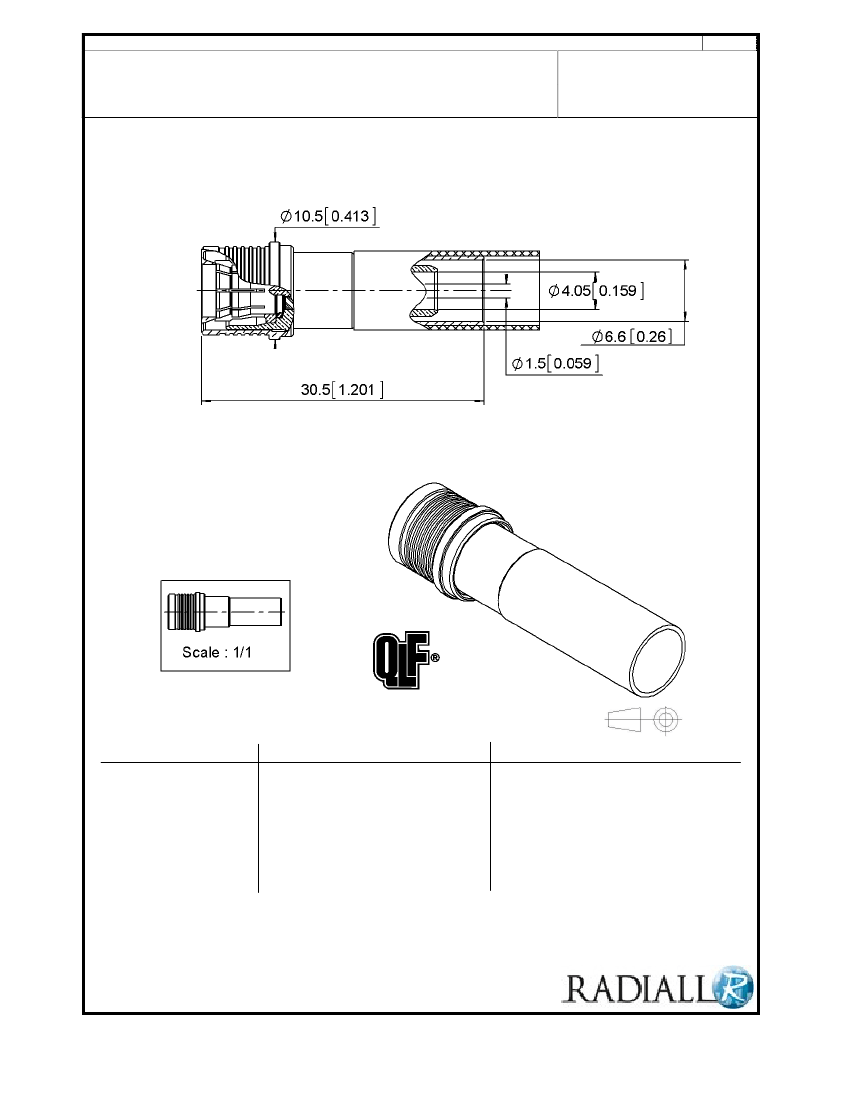

STRAIGHT PLUG CRIMP TYPE
CABLE 6.1/50D
R123W.076.310
Series :
WQMA
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS.
BRASS.
BRASS.
PTFE
SILICONE RUBBER
BRASS.
-
-
BBR2
NPGR
BBR2
PLATING
(µm)
BBR2
-
-
Issue : 1246
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/3
STRAIGHT PLUG CRIMP TYPE
CABLE 6.1/50D
R123W.076.310
Series :
WQMA
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-6
GHz
VSWR
1.12* + 0.0000
x F(GHz) Maxi
Insertion loss
0.05
√F(GHz)
dB Maxi
RF leakage
- (
**80
- F(GHz)) dB Maxi
Voltage rating
335
Veff Maxi
Dielectric withstanding voltage
1000
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
4.20
b
10.0
c
15.0
d
0.00
e
10.8
f
0.00
mm

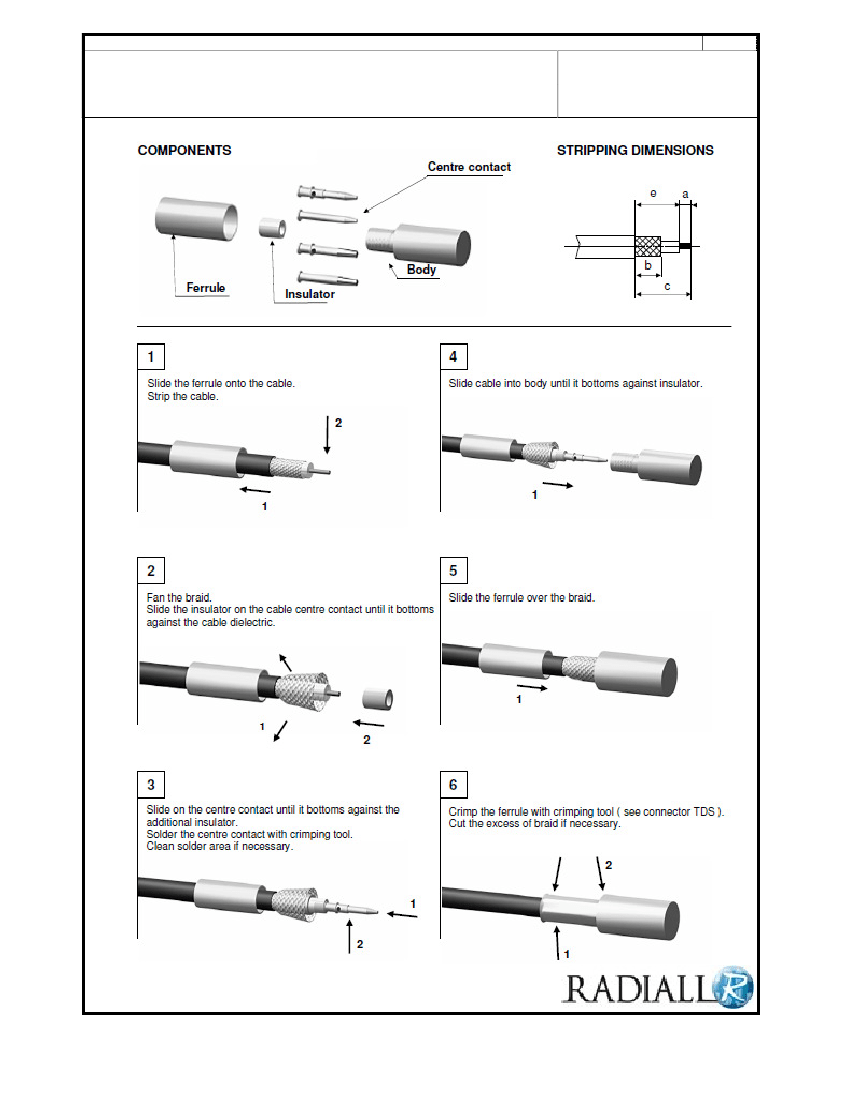

Assembly instruction
:
Recommended cable(s)
KSR240
LMR 240
AEP-240FR
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
18
N mini
18
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
220
N mini
NA
N.cm
TOOLING
Part Number
R282223000
R282235013
R282293000
Description
CRIMPING TOOL
CRIMPING DIES
CRIMPING TOOL
M22520/5-01
Hexagon
6.48
6.48
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0.0000
N.cm
N.cm
N.cm
mm
100
Cycles mini
7.6500
g
OTHER CHARACTERISTICS
*VSWR: 1.12 max@0-3GHz, 1.2 max@3-6GHz
**RF: leakage(interf.): 3<F<6<GHz:<-70dB
IP68(IEC60529) mated condition
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+105
° C
NA
Atm.cm3/s
NA
Issue : 1246
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
