SG-8003CE166.0000M-PECL0: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 166MHz Max, 166MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components oscillator; File Size1MB，3 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric View All

SG-8003CE166.0000M-PECL0 Overview

CMOS Output Clock Oscillator, 1MHz Min, 166MHz Max, 166MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

SG-8003CE166.0000M-PECL0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LCC4,.09X.12,86/63
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	2.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	166 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	166 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	LCC4,.09X.12,86/63
physical size	3.2mm x 2.5mm x 1.05mm
power supply	1.8 V
Certification status	Not Qualified
longest rise time	2.5 ns
Maximum slew rate	10 mA
Maximum supply voltage	2.2 V
Minimum supply voltage	1.6 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

SG-8003CE166.0000M-PECL0 Preview

Crystal oscillator

CRYSTAL OSCILLATOR

PROGRAMMABLE

OUTPUT : CMOS

Product Number (please contact us)

CG :X1G004xx1xxxx00

CE :Q33519Exxxxxx00

CA :X1G003xx1xxxx00

LB,JF :X1G003xxxxxxx00

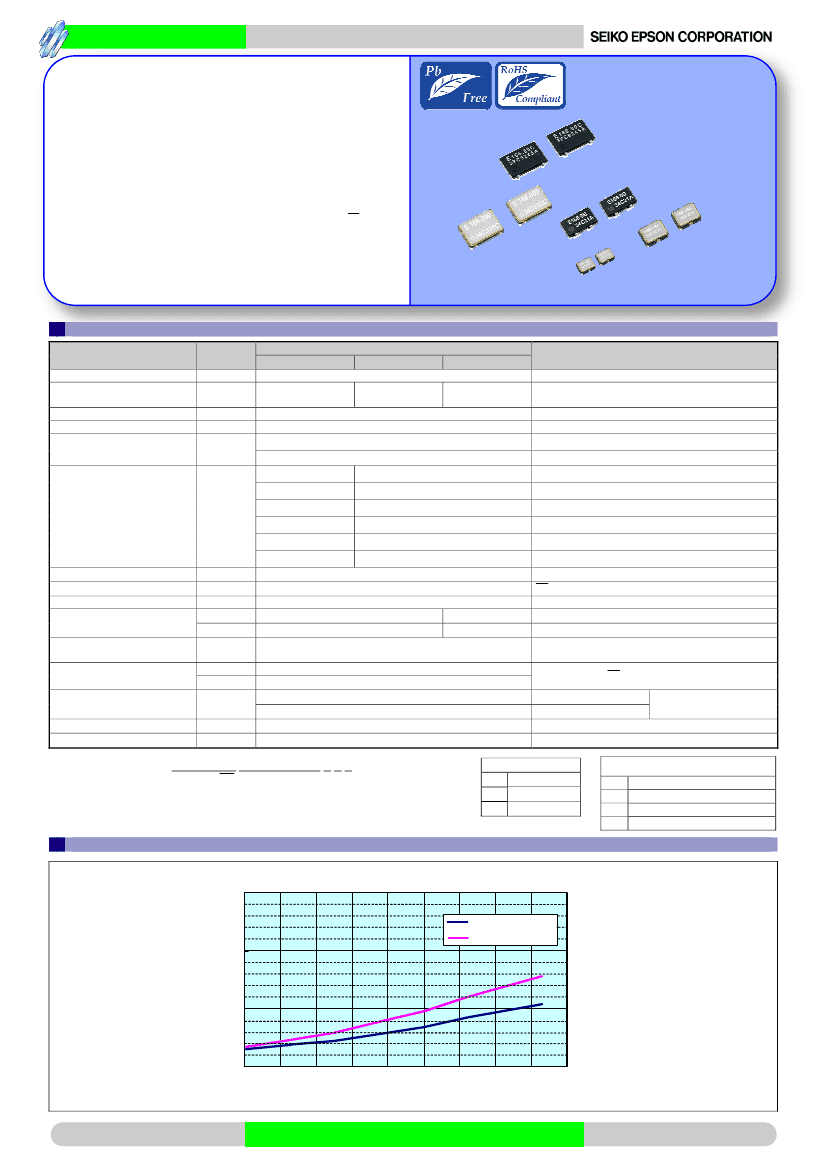

SG - 8003

series

•Frequency

range

•Supply

voltage

•Function

:

1 MHz to 166 MHz

:

1.8 V / 2.5 V / 3.0 V / 3.3V

:

Output enable(OE) or Standby(

ST

)

•Short

mass production lead time by PLL technology.

•SG-Writer

available to purchase.

Please contact Epson or local sales representative.

Specifications (characteristics)

Item

Output frequency range

Supply voltage

Storage temperature

Operating temperature

Frequency tolerance

Symbol

f

0

V

CC

T_stg

T_use

f_tol

Specifications

Conditions / Remarks

PD

/

SD

PC

/

SC

1 MHz to 166 MHz

1.8 V Typ.

2.5 V Typ.

3.3 V Typ.

1.6 V to 2.2 V

2.2 V to 2.8 V

2.7 V to 3.6 V

-40

°C

to +85 °

C

Storage as single product.

-20

°C

to +70 ° / -40

°C

to +85 °

C

B:

±50 ×

10

-6

, C:

±100 ×

10

-6

-20

°C

to +70

°C

-6

L:±50

×

10 , M:

±100 ×

10

-40

°C

to +85

°C

No load condition, 1 MHz f

0

25 MHz

3.5 mA Max.

4.0 mA Max.

No load condition, 25 MHz f

0

50 MHz

5.0 mA Max.

6.5 mA Max.

PE

/

SE

6.0 mA Max.

7.0 mA Max.

8.5 mA Max.

10.0 mA Max.

Output disable current

Stand-by current

Symmetry

Output voltage

Output load condition

(CMOS)

Input voltage

Rise and Fall time

Start-up time

Frequency aging

Product Name

(Standard form)

I_dis

I_std

SYM

V

OH

V

OL

L_CMOS

V

IH

V

IL

t

r

/ t

f

t_str

f_aging

8.5 mA Max.

10.5 mA Max.

12.5 mA Max.

No load condition, 50 MHz f

0

75 MHz

No load condition, 75 MHz f

0

100 MHz

No load condition, 100 MHz f

0

125 MHz

No load condition, 125 MHz f

0

166 MHz

OE=GND (PE,PD,PC)

ST

=GND (SE,SD,SC)

50 % V

CC

level, L_CMOS

≤

15 pF

I

OH

=-4 mA(PD,SD,PE,SE), -8.0 mA(PC,SC)

I

OL

= 4 mA(PD,SD,PE,SE), 8.0 mA(PC,SC)

Current consumption

I

CC

15.0 mA Max.

8 mA Max.

50 µA Max.

45 % to 55 %

90 % V

CC

Min.

V

CC

-0.4 V Min.

0.4 V Max.

10 % V

CC

Max.

15 pF Max.

80 % V

CC

Min.

20 % V

CC

Max.

5.0 ns Max.

2.5 ns Max.

5 ms Max.

±3 × 10

-6

/ year Max.

OE terminal or

ST

terminal

1 MHz f

0

80 MHz

20 % V

CC

to 80 % V

CC

80 MHz f

0

166 MHz level, L_CMOS=15 pF

t=0 at 90 % V

CC

+25 ° First year, V

CC

=1.8 V, 2.5 V, 3.3 V

C,

Supply voltage

C

3.3 V Typ.

D

2.5 V Typ.

E

1.8 V Typ.

Frequency tolerance

B

±50 × 10

-6

/ -20 to +70°

C

-6

C

±100 × 10 / -20 to +70°

C

L

±50 × 10

-6

/ -40 to +85°

C

M

±100 × 10

-6

/ -40 to +85°

C

SG-8003 CG 166.000000MHz P E B

Model

Package type

Frequency

Function (P: Output enable, S:Standby)

Supply voltage

Frequency tolerance

Current consumption

Current consumption (Typ.)

15

PE/SE

PD/SD/PC/SC

10

I

CC

(mA)

5

0

20

40

60

100

120

80

Frequency [MHz]

140

160

180

Crystal oscillator

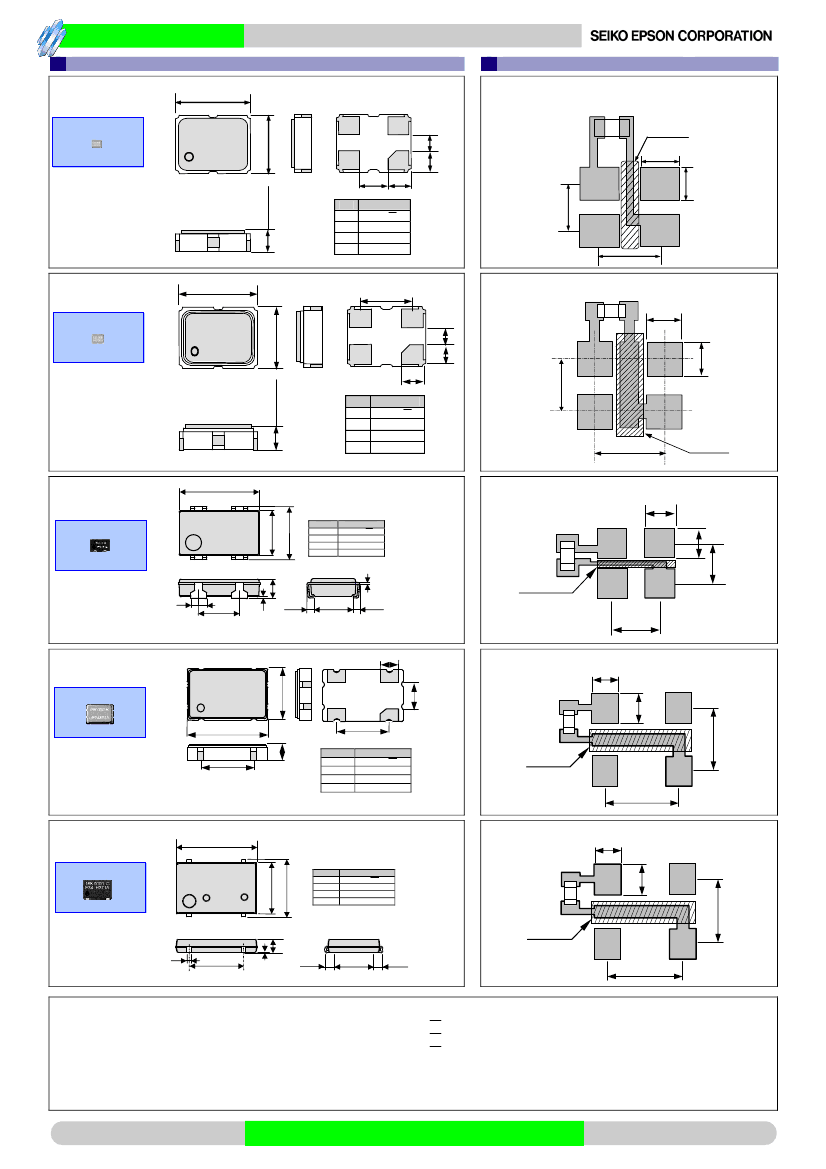

External dimensions

SG-8003CG

2.5±0.15

(Unit:mm)

Footprint (Recommended)

SG-8003CG

C

(ex. 0.01 µF)

Resist

(Unit:mm)

Actual size

#4

#3

#4

1831A

#1

#2

0.7 0.6

166.0B

2.0±0.15

#4

1.1

#3

0.7±0.1

Pin map

1

2

3

4

Connection

OE or ST

GND

OUT

V

CC

1.3

#1

#2

1.7

SG-8003CE

Actual size

#4

3.2±0.2

#3

SG-8003CE

2.2

#4

C (ex.0.01 µF)

1.4

2.5±0.2

0.7 0.9

166.0B4

E37ZTA

#1

#2

#4

#3

1.2

#2

1.05±0.15

Pin map

1

2

3

4

Connection

OE or ST

GND

OUT

V

CC

1.9

0.9

#1

2.4

#2

Resist

SG-8003LB

#4

5.0±0.2

#3

SG-8003LB

Pin map

Actual size

3.2±0.2

2.8

E3H91A

#1

#2

1.5

166.0C

1

2

3

4

Connection

OE or ST

GND

OUT

V

CC

C

(ex. 0.01

µF)

1.6

0.9

#2

0.9

0.8

#1

1.2 Max

0.1

Resist

2.54

1.0

2.54

0 Min.

(0.35)

2.5

(0.35)

Metal may be exposed on the top or bottom of this product.

This will not affect any quality, reliability or electrical spec.

SG-8003CA

Actual size

#4

#3

5.0

±0.2

#3

1.4

#4

SG-8003CA

2.6

166.000 B

E34891A

#1

7.0

±0.2

#2

C

(ex. 0.01

µF)

1.8

2.0

#2

+0.1

-0.15

5.08

Pin map

1

2

3

4

Connection

OE or ST

GND

OUT

V

CC

1.4

Resist

5.08

SG-8003JF

7.1±0.2

SG-8003JF

1.8

#3

Pin map

1

2

3

4

Connection

OE or ST

GND

OUT

V

CC

Actual size

#4

C

(ex. 0.01

µF)

2.0

4.6±0.2

E34H371A

#1

#2

5.1±0.2

166.00C

1.5 Max.

Resist

(0.75)

3.8

(0.75)

0.4

5.08

0 Min.

5.08

Note.

OE Pin (PE, PD, PC)

OE Pin = "H" or "open" : Specified frequency output.

OE Pin = "L" : Output is low level (weak pull - down)

ST

Pin (SE, SD, SC)

ST

Pin = "H" or "open" : Specified frequency output.

ST

Pin = "L" : Output is low level (weak pull - down), oscillation stops.

To maintain stable operation, provide a 0.01uF to 0.1uF by-pass capacitor at a location as near as possible to the power source terminal of the crystal product

(between Vcc - GND).

4.2

5.08

#1

2.2

PROMOTION OF ENVIRONMENTAL MANAGEMENT SYSTEM

CONFORMING TO INTERNATIONAL STANDARDS

At Seiko Epson, all environmental initiatives operate under the

Plan-Do-Check-Action (PDCA) cycle designed to achieve continuous

improvements. The environmental management system (EMS)

operates under the ISO 14001 environmental management standard.

All of our major manufacturing and non-manufacturing sites, in

Japan and overseas, completed the acquisition of ISO 14001

certification.

ISO 14000 is an international standard for environmental

management that was established by the International

Standards Organization in 1996 against the background of

growing concern regarding global warming, destruction of

the ozone layer, and global deforestation.

WORKING FOR HIGH QUALITY

In order provide high quality and reliable products and services

than meet customer needs,

Seiko Epson made early efforts towards obtaining ISO9000 series

certification and has acquired ISO9001 for all business

establishments in Japan and abroad. We have also acquired ISO/TS

16949 certification that is requested strongly by major automotive

manufacturers as standard.

►Explanation

of the mark that are using it for the catalog

►Pb

free.

►Complies

with EU RoHS directive.

*About the products without the Pb-free mark.

Contains Pb in products exempted by EU RoHS directive.

(Contains Pb in sealing glass, high melting temperature type solder or other.)

►Designed

for automotive applications such as Car Multimedia, Body Electronics, Remote Keyless Entry etc.

ISO/TS16949 is the international standard that added the

sector-specific supplemental requirements for automotive

industry based on ISO9001.

►Designed

for automotive applications related to driving safety (Engine Control Unit, Air Bag, ESC etc ).

Notice

•

This material is subject to change without notice.

Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Seiko Epson.

The information about applied data, circuitry, software, usage, etc. written in this material is intended for reference only. Seiko Epson

does not assume any liability for the occurrence of customer damage or infringing on any patent or copyright of a third party. This

material does not authorize the licensing for any patent or intellectual copyrights.

When exporting the products or technology described in this material, you should comply with the applicable export control laws and

regulations and follow the procedures required by such laws and regulations.

You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of

weapon of mass destruction or for other military purposes. You are also requested that you would not make the products available to

any third party who may use the products for such prohibited purposes.

These products are intended for general use in electronic equipment. When using them in specific applications that require extremely

high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance.

/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related (automobiles, aircraft, trains,

vessels, etc.) / Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment

and security equipment / traffic control equipment / and others requiring equivalent reliability.

•

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.

Seiko Epson Corporation
