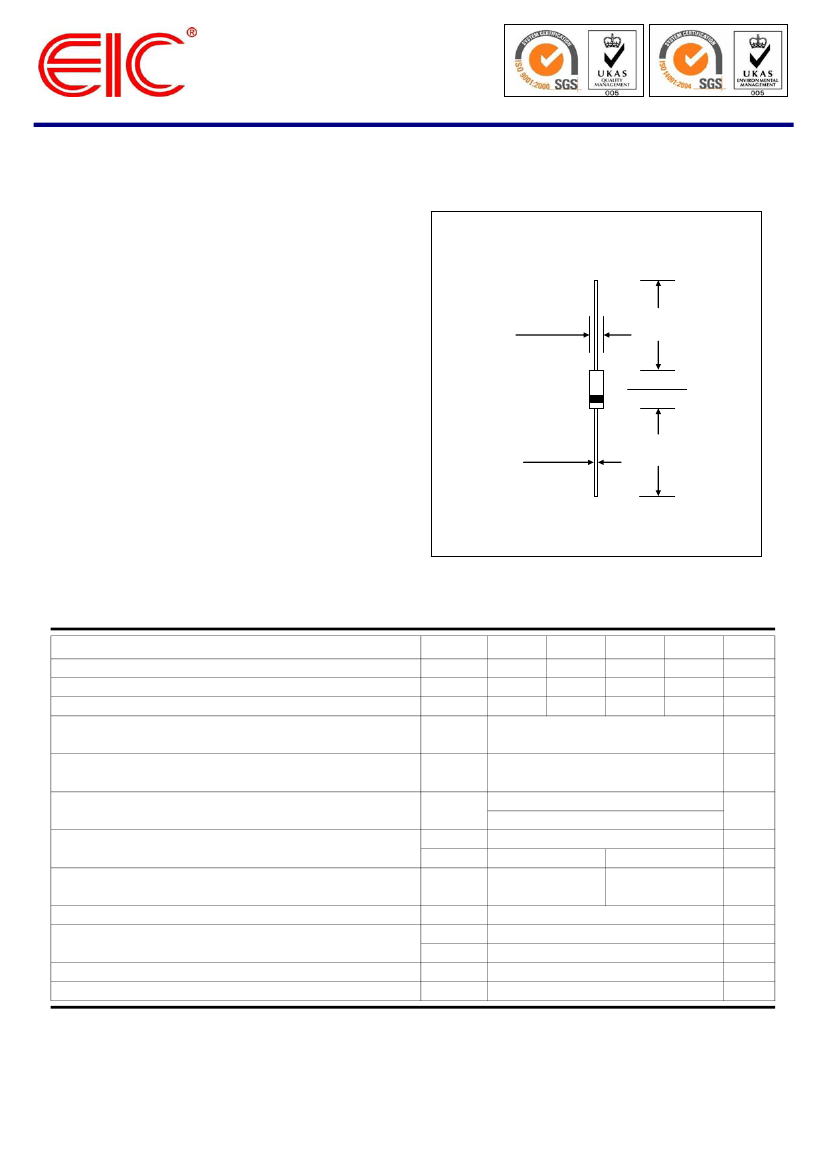

1N5624 - 1N5627
PRV : 200 - 800 Volts
Io : 3.0 Amperes
FEATURES :
*
*
*
*
*
*
Glass passivated cavity-free junction
Low forward voltage drop
High reliability
Low reverse current
High forward surge capability
Pb / RoHS Free
GLASS PASSIVATED JUNCTION
SILICON RECTIFIERS
D2A
0.161 (4.1)
0.154 (3.9)
1.00 (25.4)
MIN.
0.284 (7.2)
0.268 (6.8)
MECHANICAL DATA :
* Case : D2A Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.645 gram
0.0400 (1.02)
0.0385 (0.98)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length Ta = 70 °C
Peak Forward Surge Current, 8.3ms Single half
sine wave Superimposed on rated load (JEDEC Method)
at I
F
= 3.0 A , Ta = 25 °C
Maximum Forward Voltage
at I
F
= 3.0 A , Ta = 175 °C
Maximum DC Reverse Current
Ta = 25 °C
at rated DC Blocking Voltage
Ta = 175 °C
Maximum Full Load Reverse Current, Full Cycle Average
0.375"(9.5mm) Lead Length at Ta = 70 °C
Typical Junction Capacitance (Note1)
Typical Thermal Resistance (Note2)
Junction Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
I
R(AV)
C
J
R
ӨJA
R
ӨJL
T
J
T
STG
1N5624
200
140
200
1N5625
400
280
400
1N5626
600
420
600
1N5627
800
560
800
UNIT
V
V
V
A
A
V
µA
µA
µA
pF
°C/W
°C/W
°C
°C
3.0
125
1.00
0.95
5.0
300
150
40
20
10
- 65 to + 175
- 65 to + 175
200
100
Notes :
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length,
with both leads attached between heat sinks
Page 1 of 2
Rev. 02 : July 19, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM

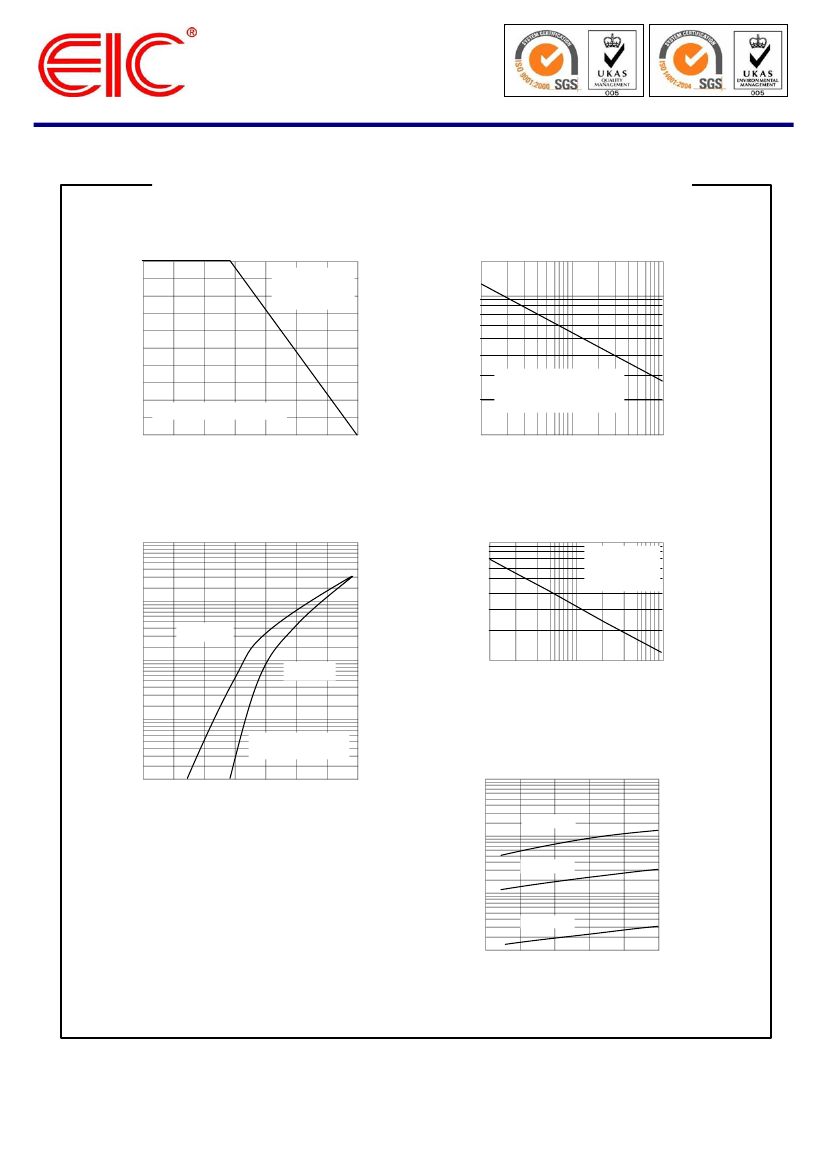

RATING AND CHARACTERISTIC CURVES ( 1N5624 ~ 1N5627 )
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, (A)
3.0
200
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, (A)
2.4
60 Hz Resistive
or Inductive Load
100
1.8
1.2
0.6
0.375"(9.5mm) Lead Length
0
25
50
75
100
125
150
175
T
J
= T
Jmax.
8.3ms Single Half sine wave
(JEDEC Method)
10
1
10
100
0
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
JUNCTION CAPACITANCE, (pF)
FIG 4 . - TYPICAL JUNCTION CAPACITANCE
100
100
INSTANTANEOUS FORWARD CURRENT, (A)
T
J
= 25 °C
f = 1MHz
Vsig = 50mVp-p
40
10
T
J
= 150 °C
1.0
20
10
T
J
= 25 °C
1
2
10
20
40
100
REVERSE VOLTAGE, (A)
0.1
Pulse Width = 300 µs
1% Duty Cycle
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
10
FIG. 5 - TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS FORWARD
VOLTAGE, (V)
REVERSE CURRENT, (µA)
T
J
= 100
1.0
T
J
= 75 °C
0.1
T
J
= 25 °C
0.01
0
20
40
60
80
100
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 02 : July 19, 2006
