D390CH19FF0 datasheet, PDF - EEWORLD Datasheet

D390CH19FF0: DescriptionSilicon Controlled Rectifier, 1590000mA I(T), 1900V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size464KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

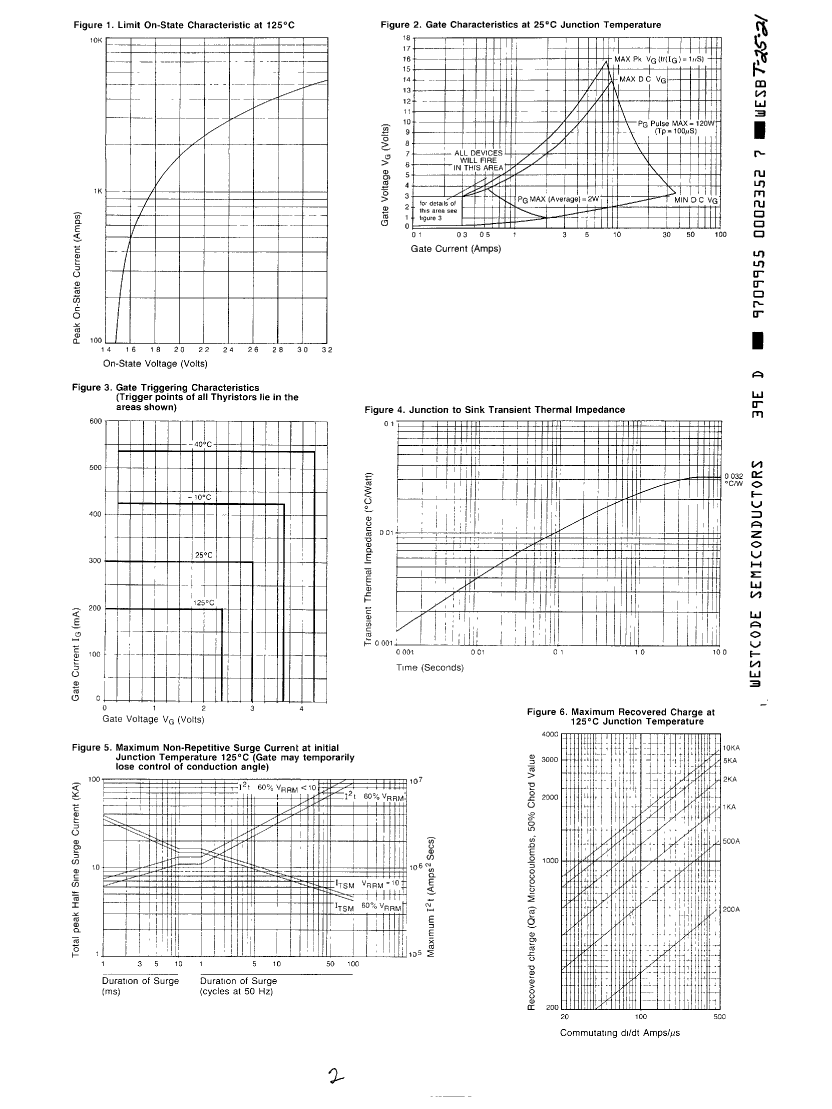

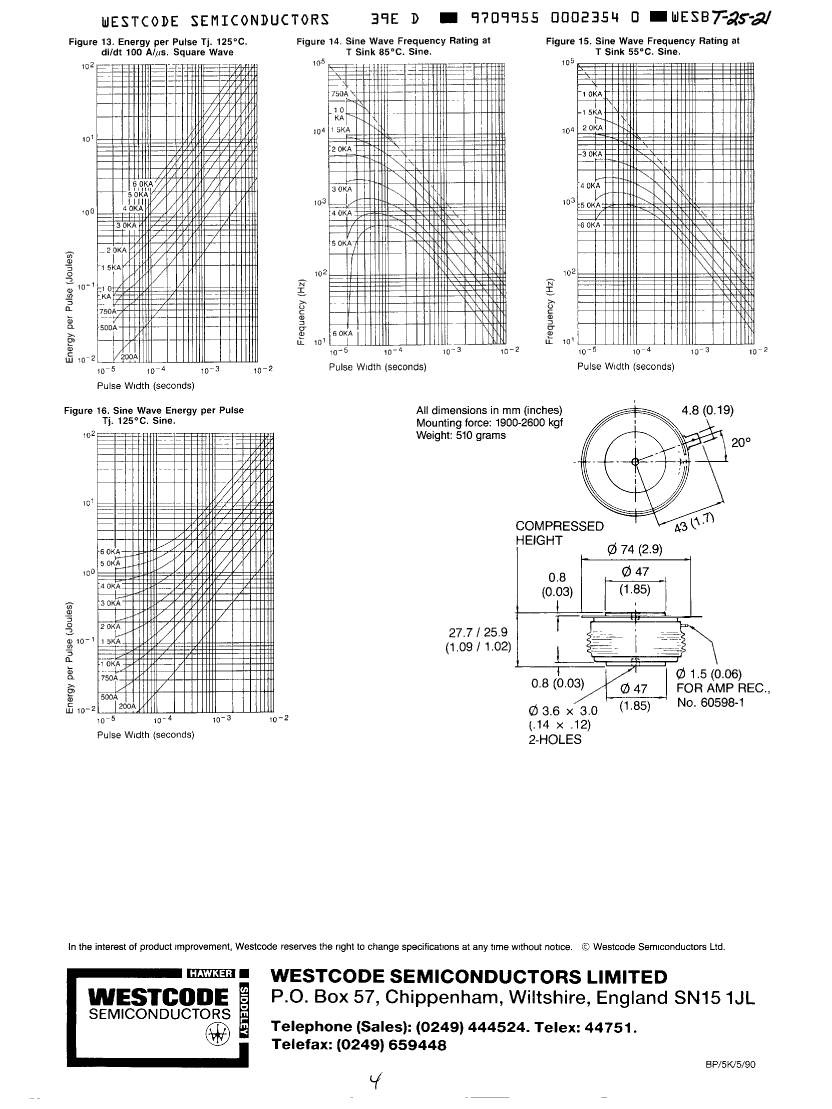

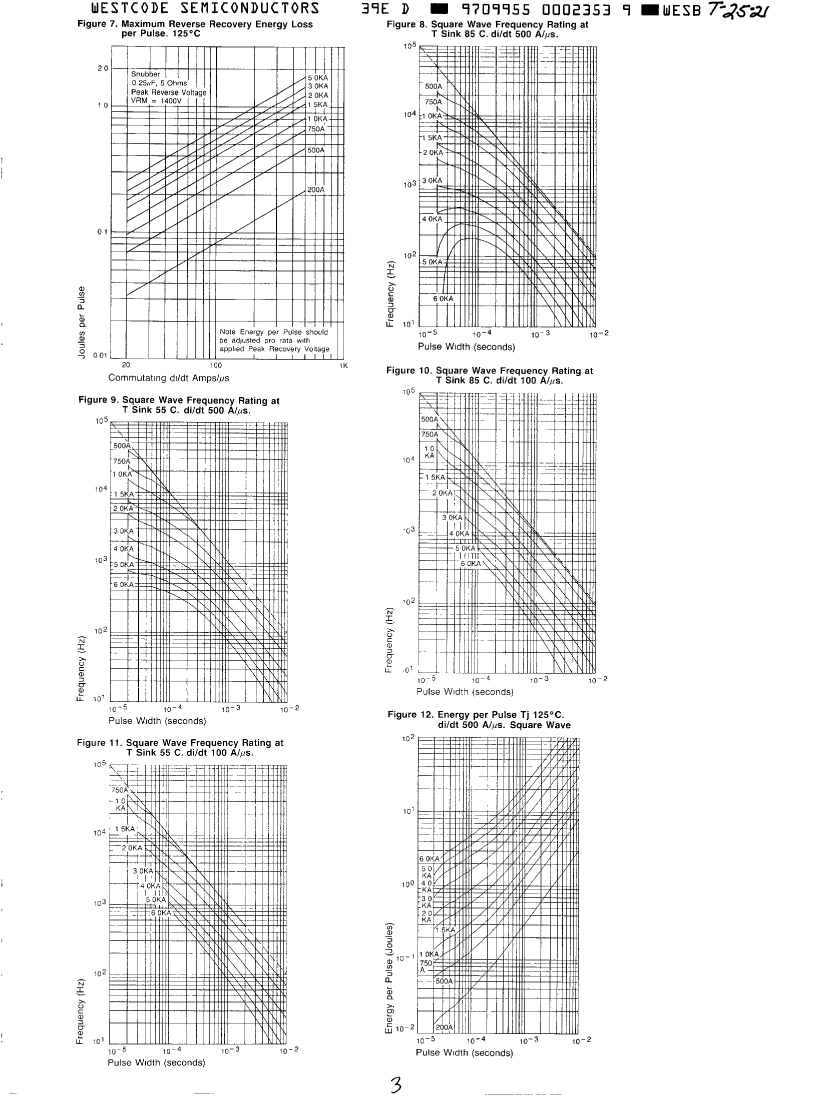

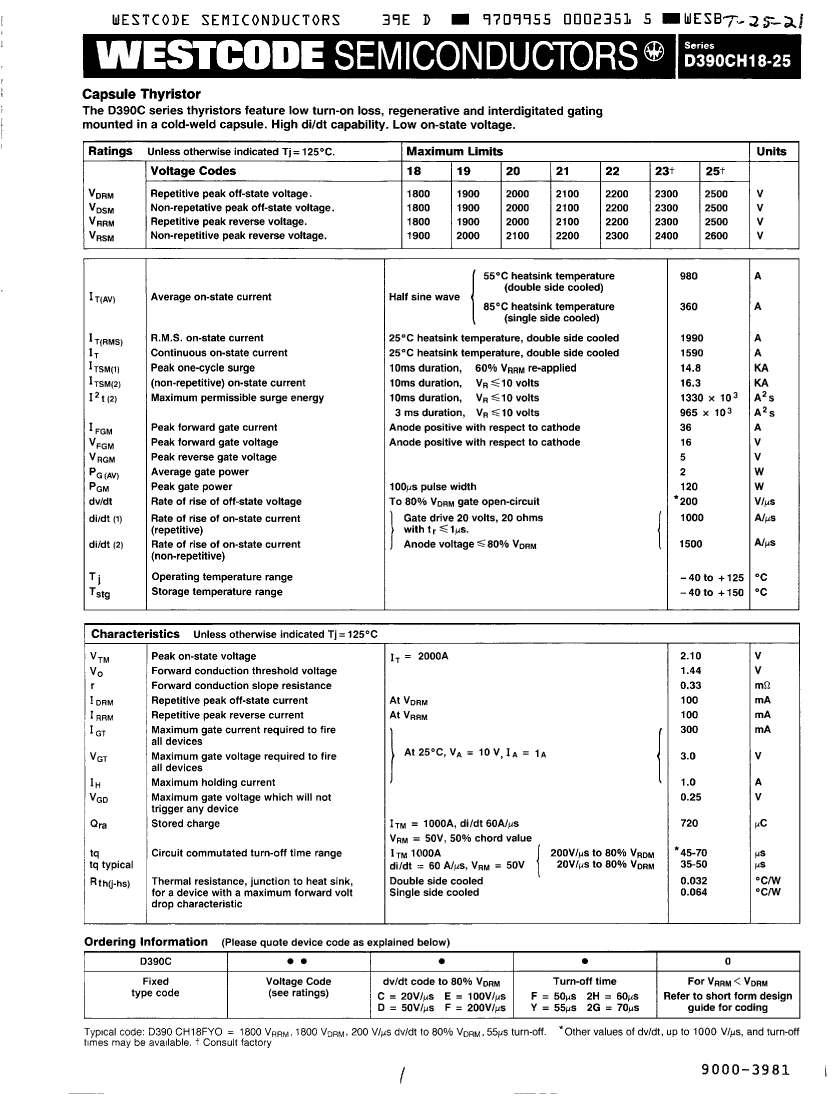

D390CH19FF0 Overview

Silicon Controlled Rectifier, 1590000mA I(T), 1900V V(DRM),

Parameter Name	Attribute value
Reach Compliance Code	compliant
Nominal circuit commutation break time	50 µs
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	1000 mA
Maximum leakage current	100 mA
On-state non-repetitive peak current	14800 A
Maximum on-state voltage	2.1 V
Maximum on-state current	1590000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	1900 V
surface mount	NO
Trigger device type	SCR

	D390CH19FF0	D390CH23FF0
Description	Silicon Controlled Rectifier, 1590000mA I(T), 1900V V(DRM),	Silicon Controlled Rectifier, 1590000mA I(T), 2300V V(DRM),
Reach Compliance Code	compliant	compliant
Nominal circuit commutation break time	50 µs	50 µs
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us
Maximum DC gate trigger current	300 mA	300 mA
Maximum DC gate trigger voltage	3 V	3 V
Maximum holding current	1000 mA	1000 mA
Maximum leakage current	100 mA	100 mA
On-state non-repetitive peak current	14800 A	14800 A
Maximum on-state voltage	2.1 V	2.1 V
Maximum on-state current	1590000 A	1590000 A
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Off-state repetitive peak voltage	1900 V	2300 V
surface mount	NO	NO
Trigger device type	SCR	SCR
