NOTE: All specifications are in this datasheet measured at an ambient temperature of 25°C, humidity<75%, nominal input
voltage and at rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency approvals
Standards
cULus
UL60950-1
Pin Out Specifications
Pin
1
2
8,17
10,15
12,13

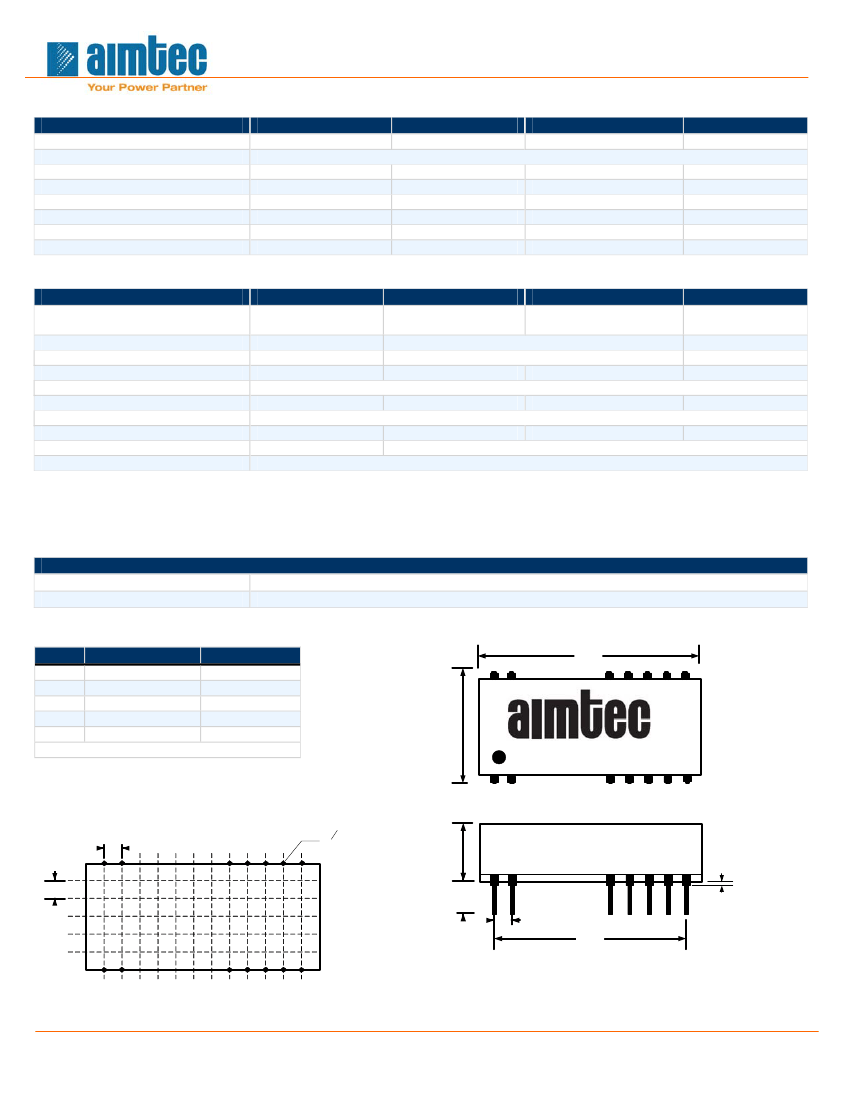

Dimensions
Dual
Top
View
Single
32.30
(1.27)
+V Input
+V Input
-V Input
-V Input
N.C.
-V Output
-V Output
Common
+V Output
+V Output
All other pins No Connection
16.65
(0.65)
Footprint
2.54
(0.10)
2.54
(0.01)
1.00 0 + 0.15/-0
Side
View
10.30
(0.40)
4.00
(0.16)
2.54
(0.10)
27.94
(1.10)
0.65
(0.03)
www.aimtec.com
F 051e R6.J
Tel: +1 514 620 2722
2 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2N-NZ
2 Watt | DC-DC Converter

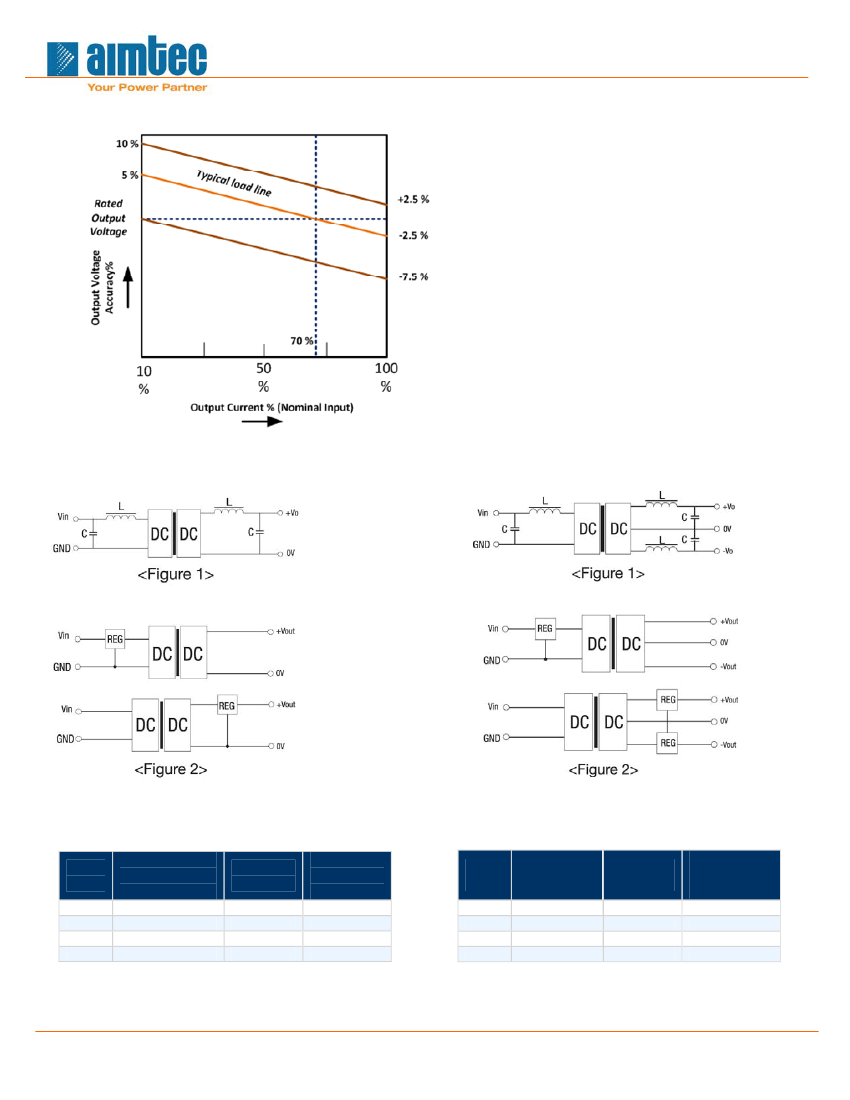

Typical characteristics
Filtering single output
Filtering dual output
External capacitor – Single output
Vin
(VDC)
5
12
-
-
External capacitor – Dual output
Vin
(VDC)
5
12
-
-
External
capacitor
(uF)
4.7
2.2
-
-
Vout
(VDC)
5
9
12
15
External
capacitor
(uF)
10
4.7
2.2
1
External
capacitor
(uF)
4.7
2.2
-
-
Vout
(VDC)
5
9
12
15
External
capacitor
(uF)
4.7
2.2
1
0.47
www.aimtec.com
F 051e R6.J
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2N-NZ
2 Watt | DC-DC Converter

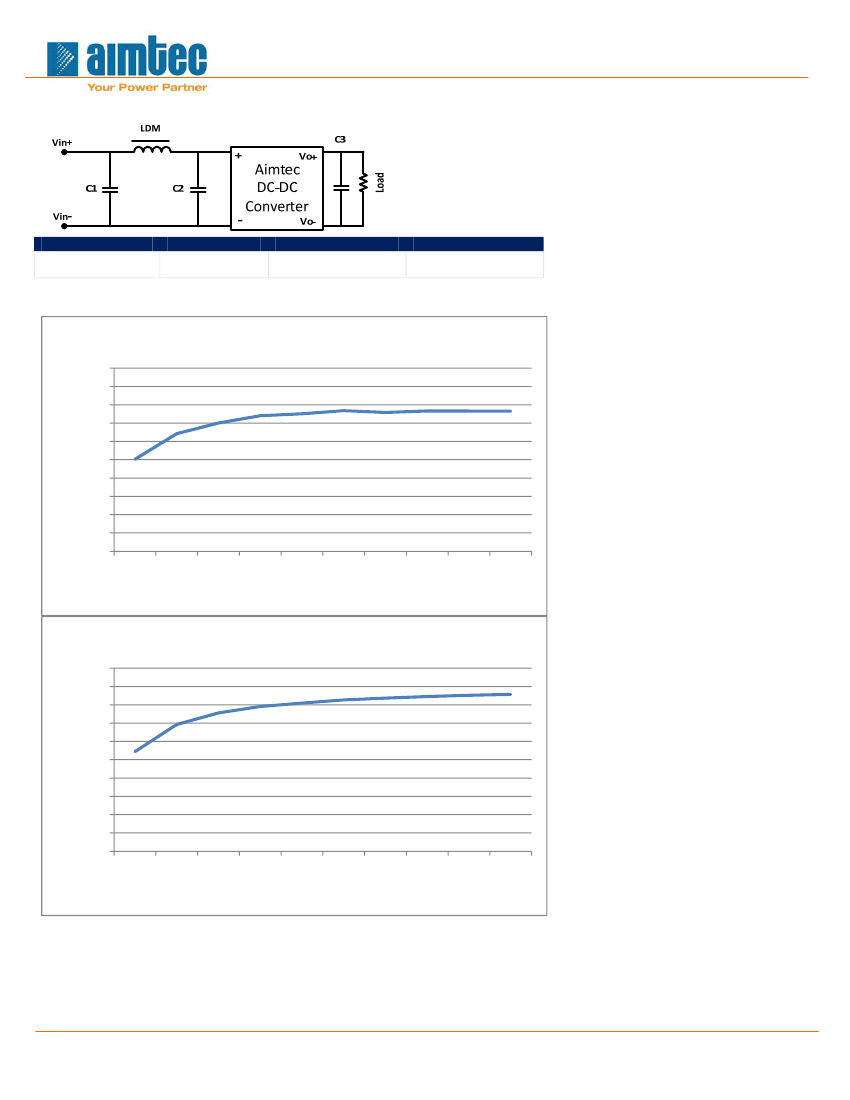

EMI Filtering Recommended Circuit
C1
4.7 µF / 50V
LDM
6.8 µH
C2
4.7 µF / 50V
C3
See external Capacitor
tables Above
Typical Efficiency Example Charts
AM2N‐0505S‐NZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Loading %
Eff %
AM2N‐1209D‐NZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Loading %
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
