NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency Approval
CE (except for 5V input models)
EN55022 Class A, EN55024
IEC61000-4-2, Perf. Criteria B
IEC61000-4-3, Perf. Criteria A
IEC61000-4-4, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-5, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-6, Perf. Criteria A
IEC61000-4-8, Perf. Criteria A
Note: also designed to meet IEC 60950-1:2001
Standards
Pin Out Specifications
Pin
2
3
9
11
14
16
22
23
-V Input
-V Input
No pin
N.C.
+V Output
-V Output
+V Input
+V Input
1500 and 3500VDC
Single
Dual

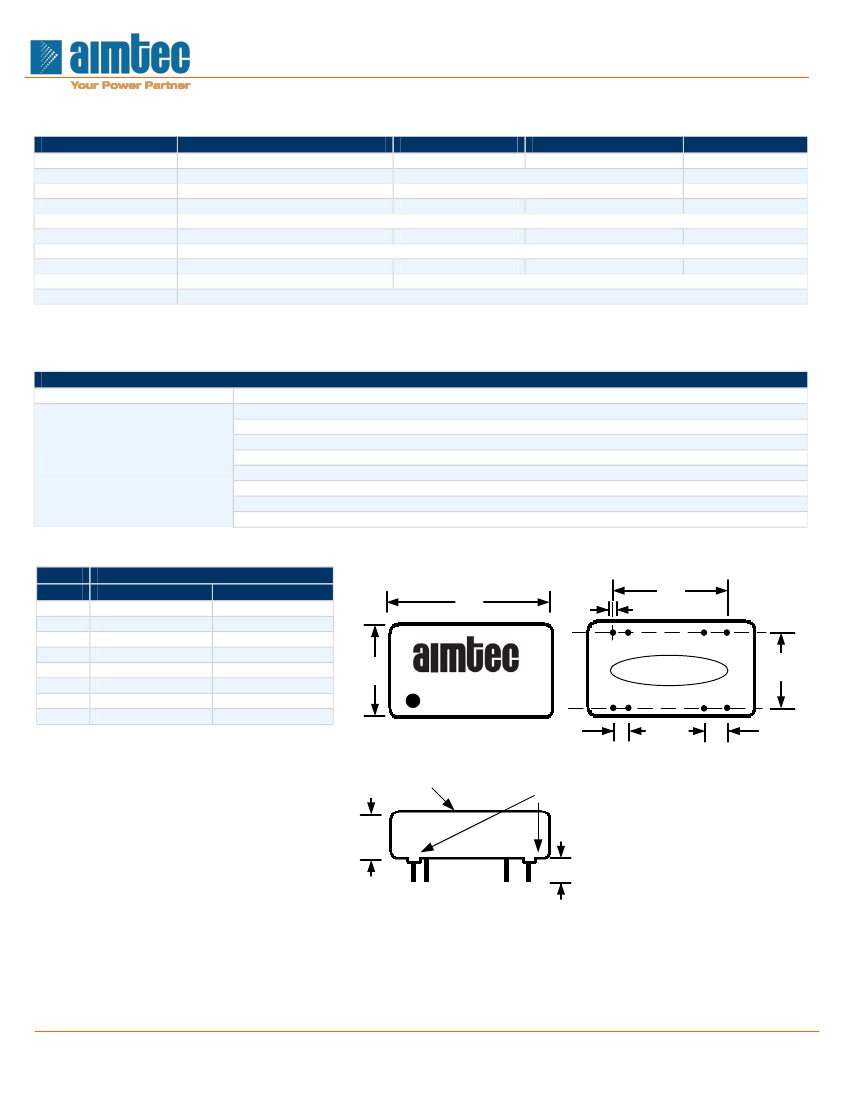

Dimensions
32.25
(1.28)
0.50
(0.02)
-V Input
-V Input
Common
-V Output
+V Output
Common
+V Input
+V Input
22.86
(0.90)
21.35
(0.84)
Bottom View
23 22
2.54
(0.10)
16
14
5.08
(0.20)
Printed Face
Built-in Stand-offs to
ease PCB cleaning
10.50
(0.41)
www.aimtec.com
F 051e R12.D
Tel: +1 514 620 2722
4 of 5
3.05
(0.12)
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
15.24
(0.60)
2
3
9
11

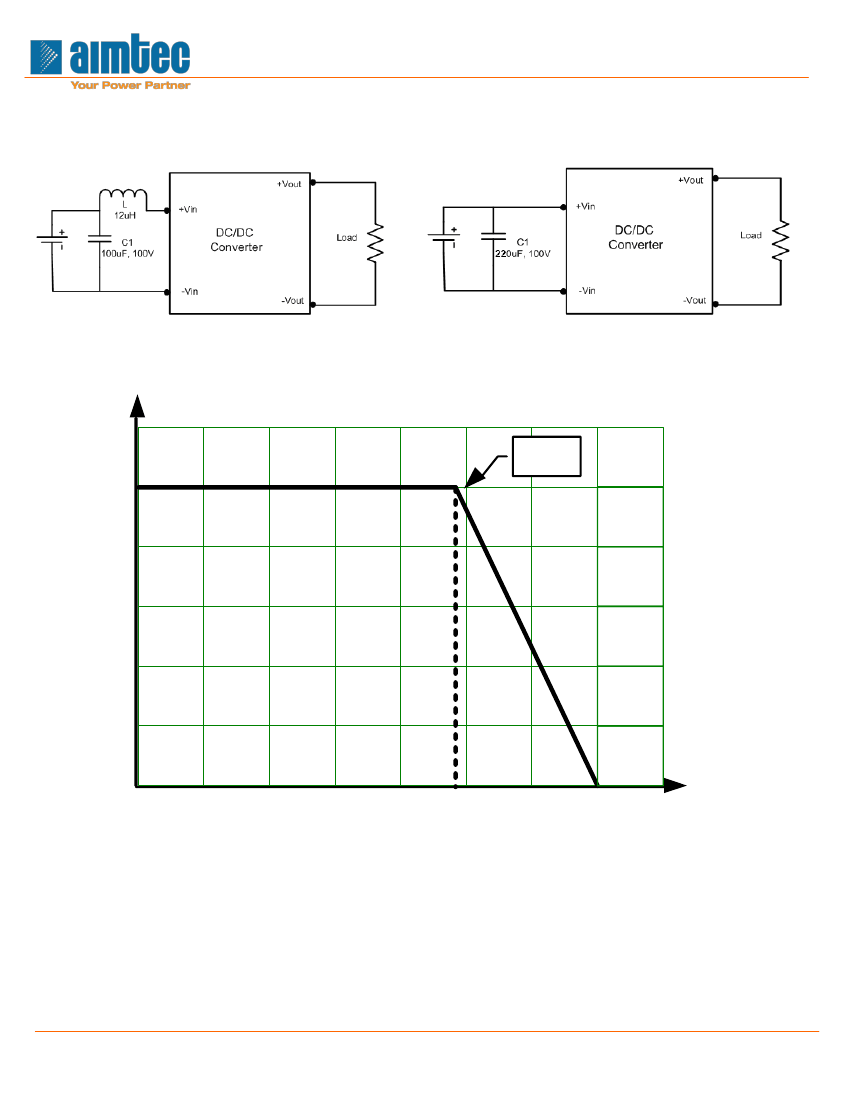

Test Circuits
Conducted Emissions:
4 Watt | DC-DC Converter
Surge:
Series AM4T-Z
Derating
(AM4T-05xxxx Devices only)
Free Air Convection
60 º C
100
Output Power %
80
60
40
20
0
-40
-25
Safe Operating Area
0
25
50
60
75
85
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
