BC856BT

Description
PNP general purpose transistors
CategoryDiscrete semiconductor    The transistor
File Size342KB,2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

BC856BT Overview

PNP general purpose transistors

BC856BT Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCentral Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F3
Contacts3
Reach Compliance Code_compli
ECCN codeEAR99
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage65 V
ConfigurationSINGLE
Minimum DC current gain (hFE)220
JESD-30 codeR-PDSO-F3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)0.25 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
BC856T SERIES
BC857T SERIES
SURFACE MOUNT
PNP SILICON TRANSISTOR
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BC856T and
BC857T Series types are PNP Silicon Transistors
manufactured by the epitaxial planar process, epoxy
molded in a surface mount package, designed for
general purpose switching and amplifier applications.
MARKING CODE: SEE MARKING CODE TABLE
ON FOLLOWING PAGE

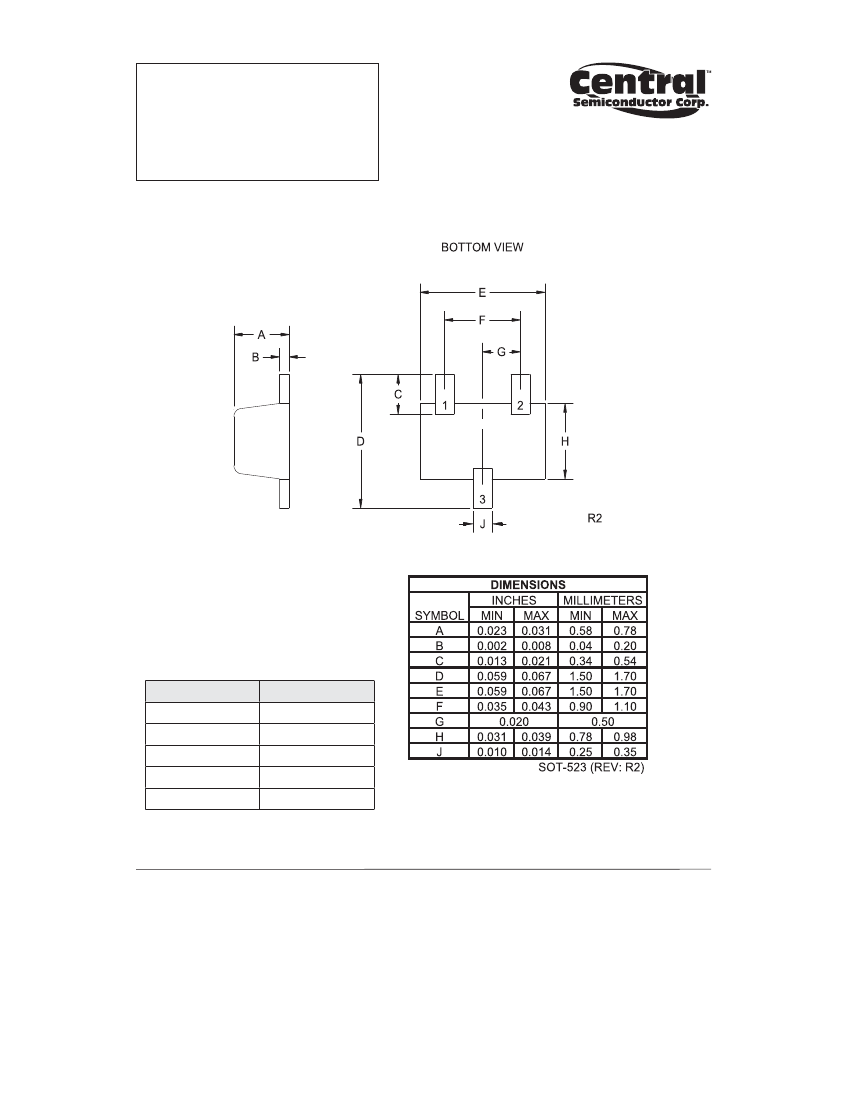

SOT-523 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Peak Base Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
ICM
IBM
PD
TJ, Tstg
Θ
JA
BC857T
50
45
BC856T
80
65
UNITS
V
V
V
mA
mA
mA
mW
°C
°C/W
5.0
100
200
100
250
-65 to +150
500
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless
SYMBOL
TEST CONDITIONS
ICBO
VCB=30V
ICBO
VCB=30V, TA=150°C
IEBO
VEB=5.0V
BVCBO
IC=10μA (BC857T)
BVCBO
IC=10μA (BC856T)
BVCEO
IC=10mA (BC857T)
BVCEO
IC=10mA (BC856T)
BVEBO
IE=10μA
VCE(SAT)
IC=10mA, IB=0.5mA
VCE(SAT)
IC=100mA, IB=5.0mA
VBE(ON)
IC=2.0mA, VCE=5.0V
VBE(ON)
IC=10mA, VCE=5.0V
fT
VCE=5.0V, IC=10mA, f=100MHz
Cc
VCB=10V, IE=0, f=1.0MHz
Ce
VEB=0.5V, IC=0, f=1.0MHz
NF
VCE=5.0V, IC=200μA,
RS=2.0KΩ, f=1.0KHz, BW=200Hz
otherwise noted)
MIN
TYP
MAX
15
5.0
100
50
80
45
65
5.0
0.20
0.40
0.70
0.77
2.5
10
10
BC856BT
BC857BT
MIN
MAX
220
475
0.58
100
UNITS
nA
μA
nA
V
V
V
V
V
V
V
V
V
MHz
pF
pF
dB
hFE
VCE=5.0V, IC=2.0mA
BC856AT
BC857AT
MIN
MAX
125
250
BC857CT
MIN
MAX
420
800
R1 (20-November 2009)

BC856BT Related Products

BC856BT BC856AT BC856T BC857AT BC857CT
Description PNP general purpose transistors PNP general purpose transistors PNP general purpose transistors PNP general purpose transistors PNP general purpose transistors
Is it lead-free? Contains lead Contains lead - Contains lead Contains lead
Is it Rohs certified? incompatible incompatible - incompatible incompatible
Maker Central Semiconductor Central Semiconductor - - Central Semiconductor
package instruction SMALL OUTLINE, R-PDSO-F3 SMALL OUTLINE, R-PDSO-F3 - SMALL OUTLINE, R-PDSO-F3 SMALL OUTLINE, R-PDSO-F3
Contacts 3 3 - 3 3
Reach Compliance Code _compli _compli - _compli _compli
ECCN code EAR99 EAR99 - EAR99 EAR99
Maximum collector current (IC) 0.1 A 0.1 A - 0.1 A 0.1 A
Collector-emitter maximum voltage 65 V 65 V - 45 V 45 V
Configuration SINGLE SINGLE - SINGLE SINGLE
Minimum DC current gain (hFE) 220 125 - 125 420
JESD-30 code R-PDSO-F3 R-PDSO-F3 - R-PDSO-F3 R-PDSO-F3
JESD-609 code e0 e0 - e0 e0
Number of components 1 1 - 1 1
Number of terminals 3 3 - 3 3
Maximum operating temperature 150 °C 150 °C - 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE - SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED
Polarity/channel type PNP PNP - PNP PNP
Maximum power dissipation(Abs) 0.25 W 0.25 W - 0.25 W 0.25 W
Certification status Not Qualified Not Qualified - Not Qualified Not Qualified
surface mount YES YES - YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT FLAT - FLAT FLAT
Terminal location DUAL DUAL - DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING - SWITCHING SWITCHING
Transistor component materials SILICON SILICON - SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz - 100 MHz 100 MHz
