200LLE4R7MEFCCC6.3X11

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size197KB,2 Pages
Manufacturerrubycon
Websitehttp://www.rubycon.co.jp/cn/
Environmental Compliance
Download Datasheet Parametric View All

200LLE4R7MEFCCC6.3X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

200LLE4R7MEFCCC6.3X11 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance4.7 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter6.3 mm
dielectric materialsALUMINUM (WET)
leakage current0.134 mA
length11 mm
Manufacturer's serial numberLLE
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)200 V
ripple current49 mA
seriesLLE
surface mountNO
Delta tangent0.24
Terminal pitch2.5 mm
Terminal shapeWIRE
小½アルミニウム電解コンデンサ

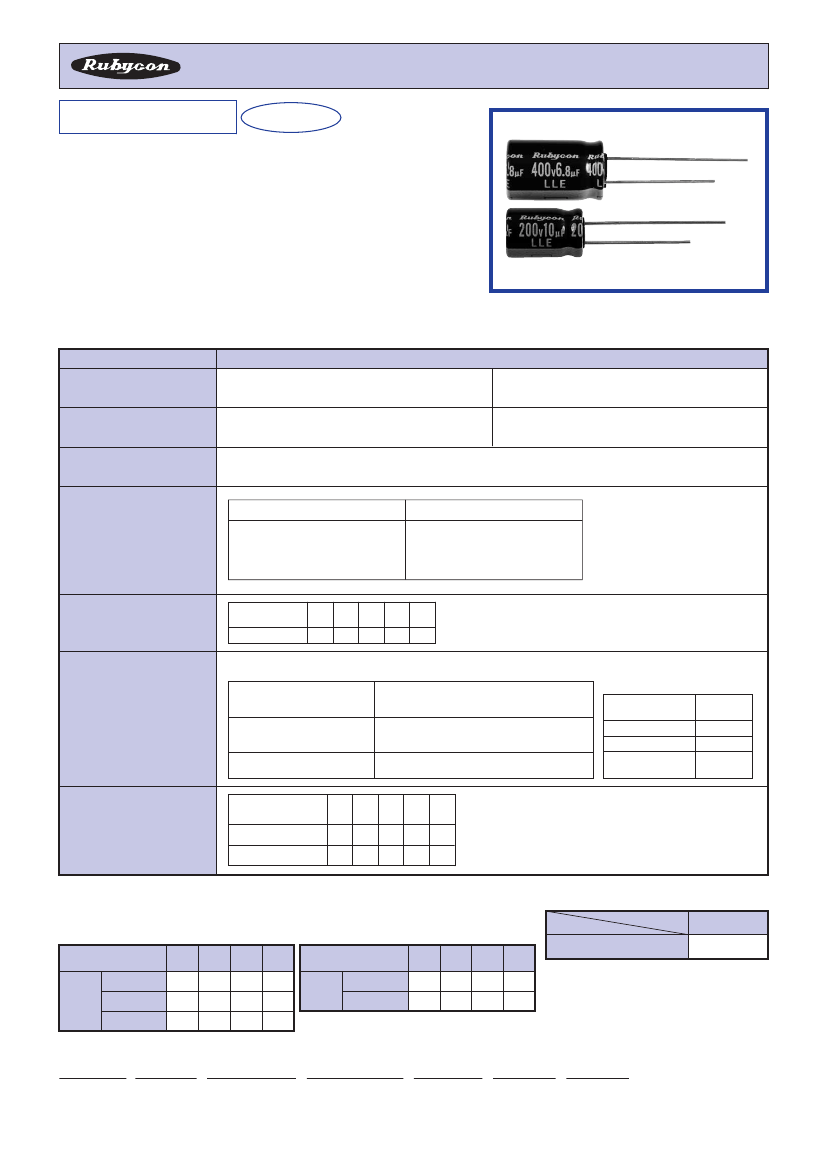

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
LLE
LLE
シリーズ
SERIES
UPGRADE
105℃ 12000∼20000時間品
Load Life 105℃ 12000∼20000hours.
◆特 長/FEATURES
超長寿½品。
Ultra Long Life.
LED照明用電源回路に最適。
For LED Lighting.
RoHS指令対応品。
RoHS compliance.
◆規格表/SPECIFICATIONS
項 目  
Items
カテゴリ温 度 範 囲
Category Temperature Range
特   性      
Characteristics
−40∼+105℃
160∼400V.DC
±20%
(20℃,
120Hz)
I=漏れ電流(μA)
Leakage Current
C=静電容量(μF)
  Capacitance
−25∼+105℃
450V.DC
定 格 電 圧 範 囲
Rated Voltage Range
静 電 容 量 許 容 差
Capacitance Tolerance
CV≦1000
Leakage Current(MAX)
CV>1000
I=0.04CV+100μA以下(1分値)
I=0.04CV+100
A (1minute)
μ
I=0.02CV+25μA以下(5分値)
I=0.02CV+25
A (5minutes)
μ
I=0.1CV+40μA以下(1分値)
I=0.1CV+40
A (1minute)
μ
I=0.03CV+15μA以下(5分値)
I=0.03CV+15
A (5minutes)
μ
V=定格電圧(V)
  Rated Voltage
損 失 角 の 正 接 (tanδ)
Dissipation Factor(MAX)
定格電圧(V)
120Hz)
160 200 250 400 450
(20℃,
Rated Voltage
tanδ
0.24 0.24 0.24 0.24 0.24
105℃、
右表の時間定格電圧 プル重畳)
(リ
印加後、
下記項目
を満足する と。
After life test with rated ripple current at conditions stated in the table below at 105℃,the capacitors shall meet the following requirements.
静 電 容 量 変 化 率
Capacitance Change
初期値の±30%以内
Within ±30% of the initial value.
規格値の300%以下
Not more than 300% of the specified value.
規格値以下
Not more than the specified value.
ケースサイ
Case Size
6.3×11,8×9,10×9
8×11.5,10×12.5
10X16、
10X20
φD≧12.5
時間
(hrs)
Life Time
12000
15000
20000
Endurance
損 失 角 の 正
Dissipation Factor
Leakage Current
½
Low Temperature Stability
定格電圧(V)
Rated Voltage
160 200 250 400 450
3
8
3
8
6
10
6
(120Hz)
(イ
ンピーダンス比)
Impedance Ratio(MAX)
Z
(−25℃) (20℃) 3
/Z
Z
(−40℃) (20℃) 8
/Z
◆リ
プル電流補正係数/MULTIPLIER FOR RIPPLE CURRENT
 周波数係数 Frequency Coefficient
160∼400V.DC
周波数
(Hz)
Frequency
◆副記号/OPTION
記号
Code
PETス ー
リ ブ 
PET Sleeve
EFC
120
1.0
1.0
1.0
1k
1.6
1.5
1.4
450V.DC
周波数
(Hz)
10k 100k≦
Frequency
1.8
1.7
1.6
2.0
1.9
1.8
Coefficient
120
0.3
0.4
1k
0.6
0.7
10k 100k≦
0.9
0.9
1.0
1.0
1∼5.6μF
Coefficient
係数
係数
4.7∼15μF
22∼68μF
6.8∼18μF
22∼33μF
◆呼称方法 PART NUMBER
□□□
定格電圧
Rated Voltage
LLE
シ ーズ名
Series
□□□□□
静電容量
Capacitance
M
静電容量許容差
Capacitance Tolerance
□□□
副記号
Option
□□
リー
ド加工記号
Lead Forming
D×L
ケースサイズ
Case Size
2012.11
