TECHNICAL DATA
Melody Generator with Accompaniment
BT8040
FEATURES
•
Two Sound Sources with Envelope (CR Envelope)
•
Melody is inserted up to four.
•
According to customer’s request, the inserted melody is
flexible.
•
3.0V to 5.0V Operating Voltage
•
DC or AC Triggered Performance Start Mode (Mask
Selected)
•
Can Drive an 8 Ohm Dynamic Loudspeaker if Provided
Externally with a Transistor
•
Bare chip or 16-pin DIP (Plastic) Package available
ORDERING INFORMATION
BT8040N Plastic
BT8040D SOIC
T
A
= -40° to 85° C for all packages
DESCRIPTION
The BT8040 is a CMOS LSI chip, which plays a prearranged melody.
ABSOLUTE MAXIMUM RATINGS ( T
a
= 25
o
C )
Characteristic
Power Supply Voltage
Input Terminal Voltage
Operating Temperature
Storage Temperature
Soldering Temperature and Time
Symbol
V
DD
V
10
T
a
T
stg
T
sol
Value
- 0.3 to + 7.0
- 0.2 to V
DD
+ 0.2
-40 to + 85 (V
SS
=
1.5V)
- 65 to + 150
260
o
C, 10s (at lead)
Unit
V
V
o
C
C
o
* Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device.
These are stress ratings only and functional operation of the device at these or any other conditions beyond those
indicated under “recommended operating conditions” is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2011, February Ver. 01
BT8040
ELECTRICAL CHARACTERISTICS
(V
DD
= 5V, T
a
= 25
o
C; unless otherwise specified)
Characteristic
Operating Voltage
Input Voltage
“1”
“0”
MT Power Supply Time
Response Time
MO OUTPUT PIN EQUIVALENT CIRCUIT
Symbol
V
DD
V
IH
V
IL
Test Condition
Min
3.0
V
DD
- 0.3
V
SS
150
600
Typ
5.0
-
-
Max
5.5
V
DD
V
SS
+ 0.3
ms
ms
Unit
V
V
130k
Main Melody
150k
Accompaniment
MO Pin
Inside of BT8040
Inside of BT8032
BLOCK DIAGRAM
OSC1
OSC2
OSCILLA TOR
RHYTHM
ROM
A CCOMPANMENT
GENERATOR
ENVELOPE
MIX ER
ENV1
ENV2
TEMPO ROM
MELODY
ROM
RHYTHM
GENERATOR
B/ E
ENVELOPE
MIX ER
MO
MELODY ROM
SEL1
SEL2
MT
CONTROL
A DDRESS
COUNTER
P1
CONTROL ROM
TONE
GENERATOR
DRIVER
OUT1
OUT2
2011, February Ver. 01
BT8040
PIN DESCRIPTION
Pin.
No.
1
2
3
4
Pin
Name
OSC1
OSC2
TST2
MT
Pull-Down
Resistor
-
-
Provided
Provided
Functions
A resistor is connected between both terminals to from a ring
oscillator, or external reference signals are applied to OSC1.
LSI Test Input/Output.
For binary selection: Controls Start and Stop of Performance.
For direct selection: Selects Melody 1 and Controls Start and Stop
of it’s Performance.
For binary selection: this Terminal in Conjunction with SEL1,
selects a Melody.
For direct selection: Selects Melody 3 and Controls Start and Stop
of it’s Performance.
For binary selection: this Terminal in Conjunction with SEL1,
selects a Melody.
For direct selection: Selects Melody 2 and Controls Start and Stop
of it’s Performance.
BUSY or END Signal Output Terminal.
Power Supply Terminal (0V).
LSI Test Input.
Connects Resistor and Capacitor to add Envelope to Main Melody.
Connects Resistor and Capacitor to add Envelope to
Accompaniment.
Output Terminal or Acoustic Signals that have not been Amplified.
Connects PNP/NPN Transistors, resistors and Capacitors to form
Provided
-
a Low-Frequency Linear Amplifier Circuit.
3.0V to 5.0V Operating Voltage
5
SEL2
Provided
6
SEL1
Provided
7
8
9
10
11
12
13
14
15
16
B/E
V
SS
TST1
ENV1
ENV2
MO
P1
OUT1
OUT2
VDD
-
-
Provided
-
-
-
2011, February Ver. 01
BT8040
APPLICATION CIRCUIT (basic external connection)
1N4004
100Ω 1W
470Ω
100µF/25V
10µF/25V
1N4004
ZD 1W 13V
ZD 5.1V
104
104
4.7µF/25V
12V
Rx4
01
02
Rx1
Rx2
05
06
07
08
Speaker out
or Buzzer
Amplifier
(IL34119)
04
104
03
Rx3
02
07
01
08
Vss
TST1
B/E
ENV1
OSC1
Vdd
16
15
14
13
12
11
10
09
OSC2
OUT2
03
ON / OFF
04
05
06
TST2
OUT1
MT
BT8040
P1
SEL2
MO
SEL1
ENV2
Rx1 = Buzzer(1MΩ), Speaker(2.2k)
Rx2,Rx3 = VR (Rx2 = 20k~50k, Rx3 = 5k~10k)
Rx4 = Speed VR (500k~1.5MΩ)
RECOMMENDED CONDITIONS FOR EXTERNAL DEVICES
Symbol
VR1
VR2
R1
R2
Ratings
1-2
50
100
100
Unit
MΩ
kΩ
kΩ
kΩ
Symbol
C1
C2
C3
-
Ratings
4.7
4.7
0.1
-
Unit
µF
µF
µF
-
SELECTION CONDITION FOR MELODY
Condition
#5
High
High
Low
Low
#6
High
Low
High
Low
Melody
*Test melody
*Ding – Dong
*Do – Mi – Sol – Do
*Do- Sol – Mi - Do
* Revision & Injection of Melody is possible according to customer’s request.
2011, February Ver. 01
100k
100k
4.7µF/25V
BT8040

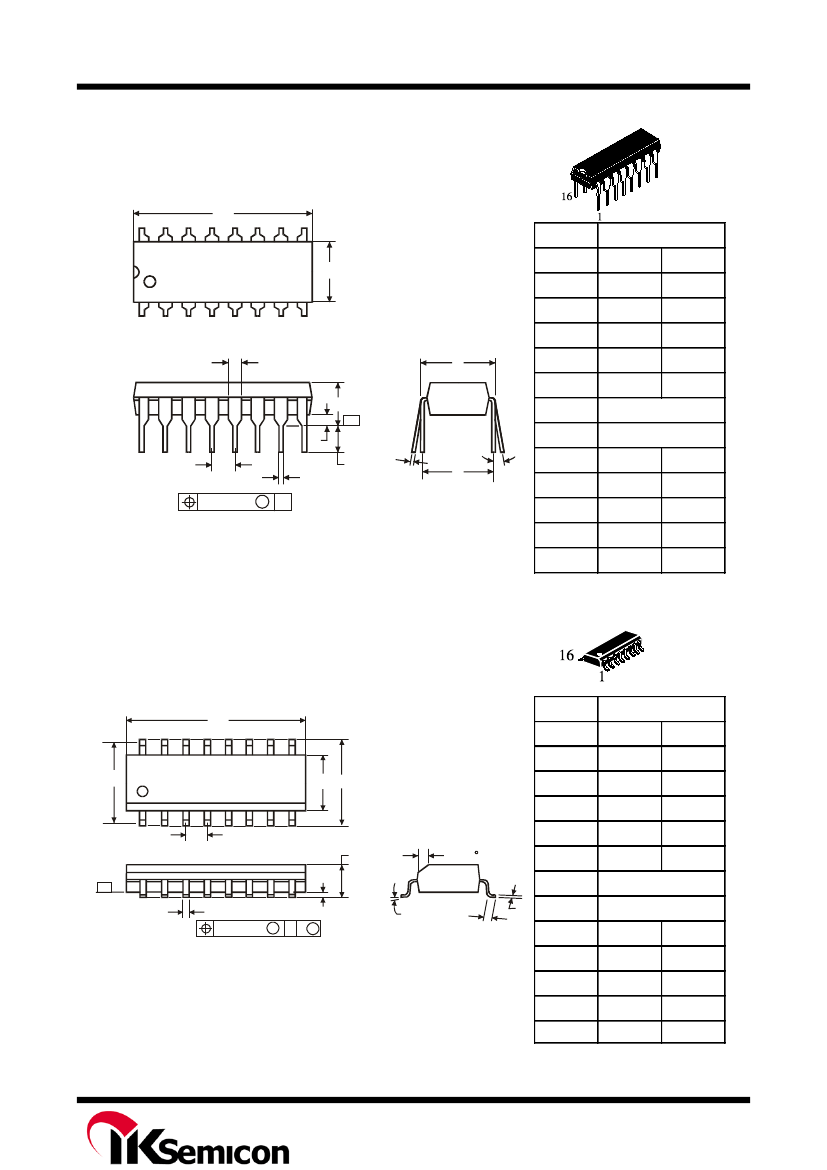

N SUFFIX PLASTIC DIP
(MS - 001BB)
A
Dimension, mm
16
9
B
Symbol
A
MIN
18.67
6.10
MAX
19.69
7.11
5.33
1
8
B
C
F
L
D
F
0.36
1.14
2.54
7.62
0°
2.92
7.62
0.20
0.38
0.56
1.78
C
-T-
N
G
D
0.25 (0.010) M T
K
M
H
J
SEATING
PLANE
G
H
J
K
L
M
N
10°
3.81
8.26
0.36
NOTES:
1. Dimensions “A”, “B” do not include mold flash or protrusions.
Maximum mold flash or protrusions 0.25 mm (0.010) per side.
D SUFFIX SOIC
(MS - 012AC)
Dimension, mm
A
16
9
Symbol
A
MIN
9.80
3.80
1.35
0.33
0.40
1.27
5.72
0°
0.10
0.19
5.80
0.25
MAX
10.00
4.00
1.75
0.51
1.27
H
B
P
B
C
1
G
8
C
R x 45
D
F
G
-T-
D
0.25 (0.010) M T C M
K
SEATING
PLANE
J
F
M
H
J
K
M
P
R
8°
0.25
0.25
6.20
0.50
NOTES:
1. Dimensions A and B do not include mold flash or protrusion.
2. Maximum mold flash or protrusion 0.15 mm (0.006) per side
for A; for B
‑
0.25 mm (0.010) per side.
2011, February Ver. 01
