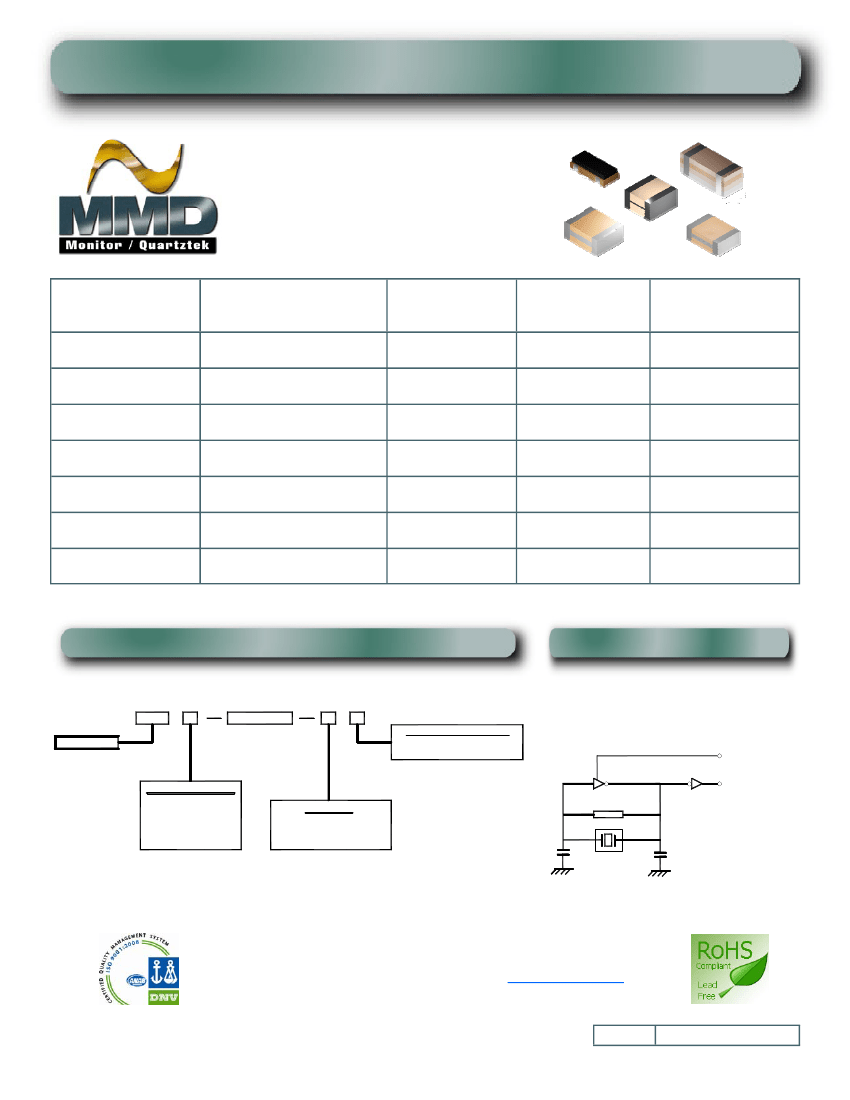

MZTAC Series Ceramic Resonator
5 Package Options
Ceramic SMD
RoHS Compliant
Part Number
= MHz
MZTACC MG
MZTACR MG
MZTACS MT
MZTACV MT
MZTACS MX
MZTACV MX
MZTACW MX
Frequency
Range
2.0 MHz to 8.00 MHz
4.00 MHz to 8.00 MHz
6.00 MHz to 13.00 MHz
8.00 MHz to 13.00 MHz
13.01 MHz to 50.00 MHz
16.00 MHz to 50.00 MHz
20.00 MHz to 50.00 MHz
Frequency
Accuracy
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Temperature
Stability
(-25°C to +85°C
)
±0.3%
±0.3%
±0.4%
±0.4%
±0.3%
±0.3%
±0.3%
Aging for
10 Years
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
Part Number Guide
Schematic
M ZTA
2 L e a d P a rt
F re q u e n cy
V a lu e A d d e d O p tio n s
B la n k = N o A d d e d O p tio n s
T = Tape & Reel
VDC: +5V
IC
P a c ka g e C a se S ize
CC
CR
CS
CV
CW
= 7 .4 X 3 .4 X 1 .8
= 4 .5 X 2 .0 X 1 .2
= 4 .7 X 4 .1 X 1 .5
= 3 .7 X 3 .1 X 1 .5
= 2 .5 X 2 .0 X 1 .2
S c h e m a tic
M G = IC : T C 4 0 6 9 U B P
M T = IC : T C 4 0 6 9 U B P
M X = IC : T C 7 4 H C U 0 4
C1
C2
Rf = 1 M Ohms
IC
C1 C2 (MG/MT): 30pF
(MX) : 30pF (13.01 to 20.000 MHz)
15pF (20.01 to 25.999 MHz)
5pF (26.00 to 50.00 MHz)
P le a se C o n su lt w ith M M D S a le s D e p a rtm e n t fo r a n y o th e r P a ra m e te rs o r O p tio n s
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
MZTAC011111G
Pg 1 of 2

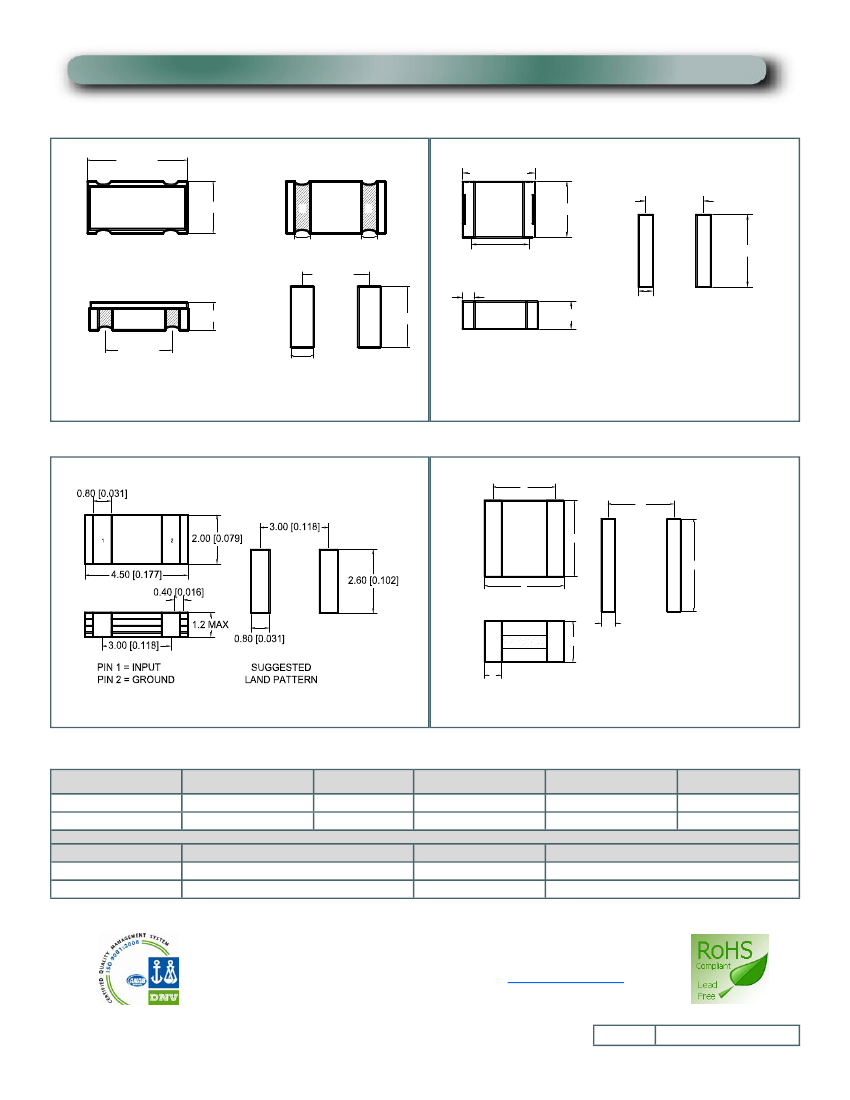

Package Dimensions
CC
7.40 [0.29]
CW
2.50 [0.10]
2.00 [0.08]
3.40 [0.13]
1
2
1
2 2.00 [0.08]
1.20 [0.05]
1.20 [0.05]
2.00 [0.08]
5.00 [0.20]
2.60 [0.10]
0.40 [0.02]
0.50 [0.02]
4.00 [0.16]
1.80 [0.07]
1.00 [0.04]
5.00 [0.20]
1.70 [0.07]
PIN1 = INPUT
PIN2 = OUTPUT
SUGGESTED
LANDING PATTERN
PIN1 = INPUT
PIN2 = OUTPUT
SUGGESTED
LAND PATTERN
CR
T
CS/CV
T2
W
W1
L
T1
H
P
PIN1 = INPUT
PIN2 = GROUND
SUGGESTED
LAND PATTERN
Model
CS
CV
Model
CS
CV
L
4.7±0.2
3.7±0.2
T1
0.8±0.2
0.7±0.2
W
4.1±0.2
H
1.5±0.2
P
0.8±0.2
0.7±0.2
W1
5.1±0.2
4.1±0.2
T
3.9±0.2
3.7±0.2
3.1±0.2
1.5±0.2
LAND PATTERN DIMENSIONS
T2
3.9±0.2
3.0±0.2
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
MZTAC011111G
Pg 2 of 2
