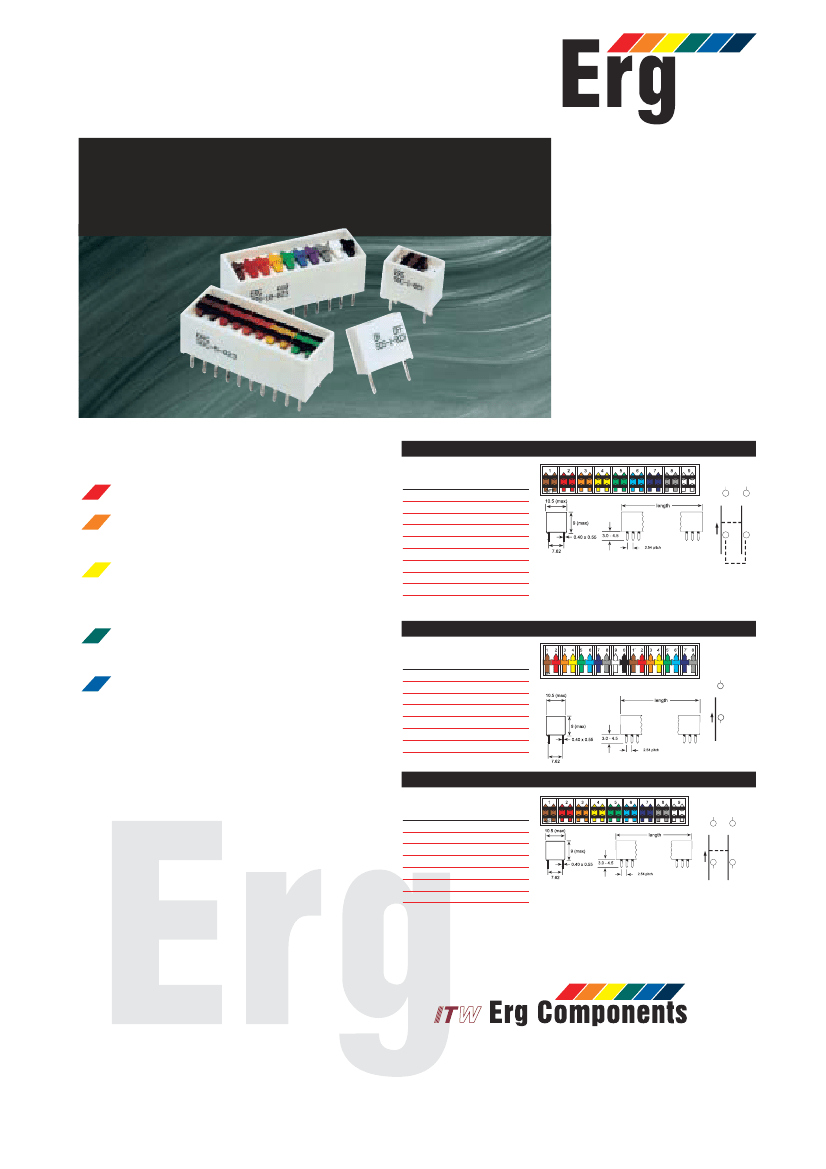

SpectraDIL - 023 style
SpectraDIL - 023 style
SDS, SDC, SDD ranges
This is UK industry’s standard range of dual
in line programme switches which feature:
1 to 16 selectable s.p.s.t.
1 to 8 selectable d.p.s.t or s.p.d.t. (PCB
linked).
Large numerals and EIA colour coded
sliders which are recessed to prevent
unintentional changes to the settings.
Base and tape sealed for flow soldering
and solvent/aqueous washing.
1µm hard gold plated wiping contact gives
high reliability in low level circuits.
SpectraDIL ON/OFF s.p.s.t
Number of
s.p.s.t
1
2
3
4
6
8
10
12
16
Part Nos
SDS-plus
suffix
1-023
2-023
3-023
4-023
6-023
8-023
10-023
12-023
16-023
Length
mm
max
4.0
6.7
9.0
11.8
16.8
21.9
27.0
32.1
42.2
SDS 023 series
SpectraDIL CHANGEOVER s.p.d.t.
Number of
s.p.d.t
1
2
3
4
5
6
8
Part Nos
SDC-plus
suffix
1-023
2-023
3-023
4-023
5-023
6-023
8-023
Length
mm
max
6.7
11.8
16.8
21.9
27.0
32.1
42.2
SDC 023 series
SpectraDIL GANGED ON/OFF d.p.s.t
Number of
d.p.s.t
1
2
3
4
5
6
8
Part Nos
SDD-plus
suffix
1-023
2-023
3-023
4-023
5-023
6-023
8-023
Length
mm
max
6.7
11.8
16.8
21.9
27.0
32.1
42.2
SDD 023 series
This leaflet is believed to contain the best information available at the time of printing, but is subject to change without notice. Performance figures, where quoted, are actually estimates based on
our experience or that of our customers or statutory authorities. In common with all components reliability varies with many factors, and users are invited to contact us in appropriate cases so that
where relevant information is available it may be considered by the user. All supplies are subject to the Company’s standard conditions of sale which are available on request.
Engelking Elektronik GmbH Albstrasse 16
D-78609 Tuningen
Tel: +49 (0) 7464 9865 0 Fax: +49 (0) 7464 9865 71
sales@itw-switches.de www.itw-switches.de
