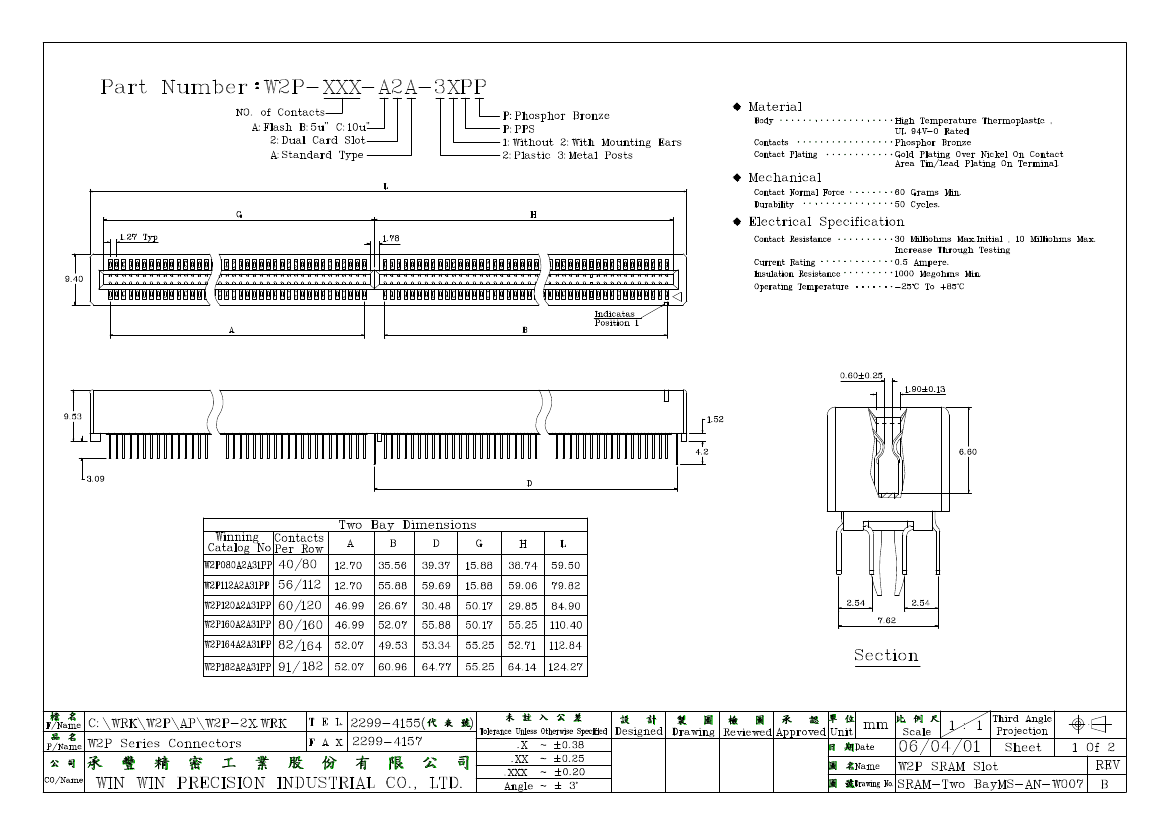

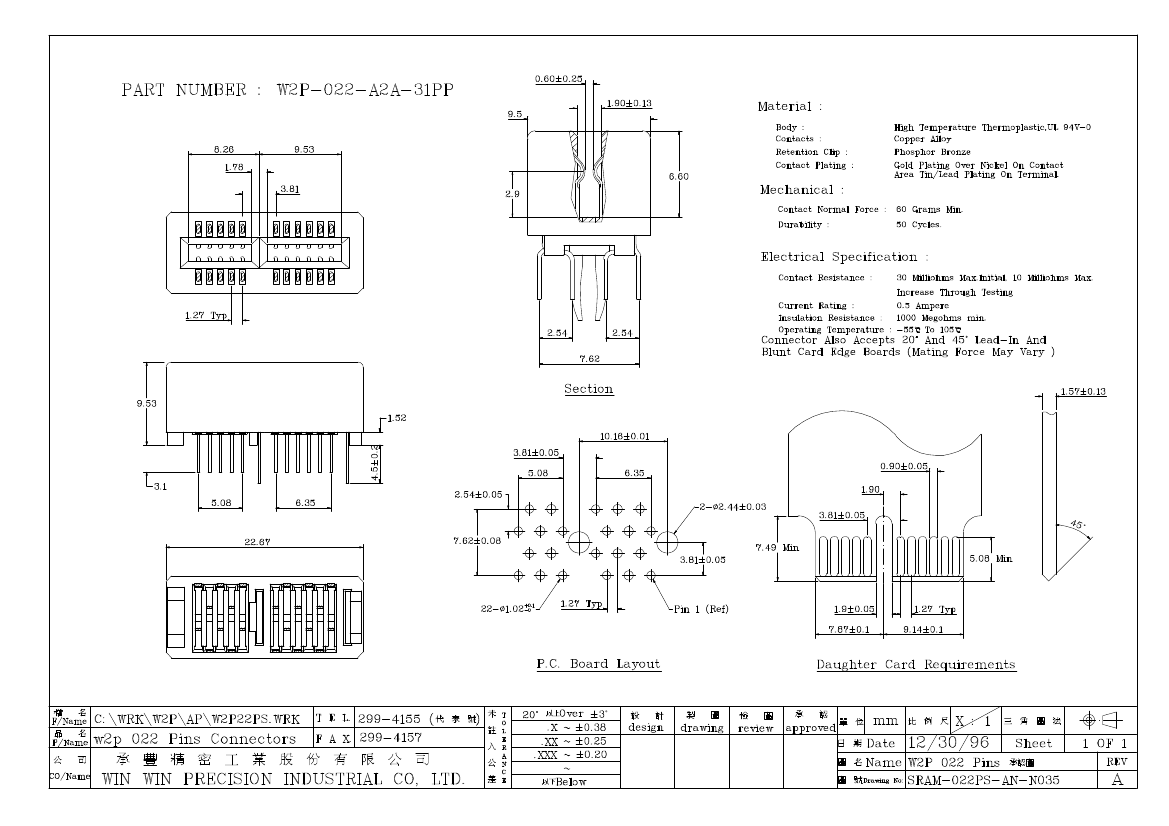

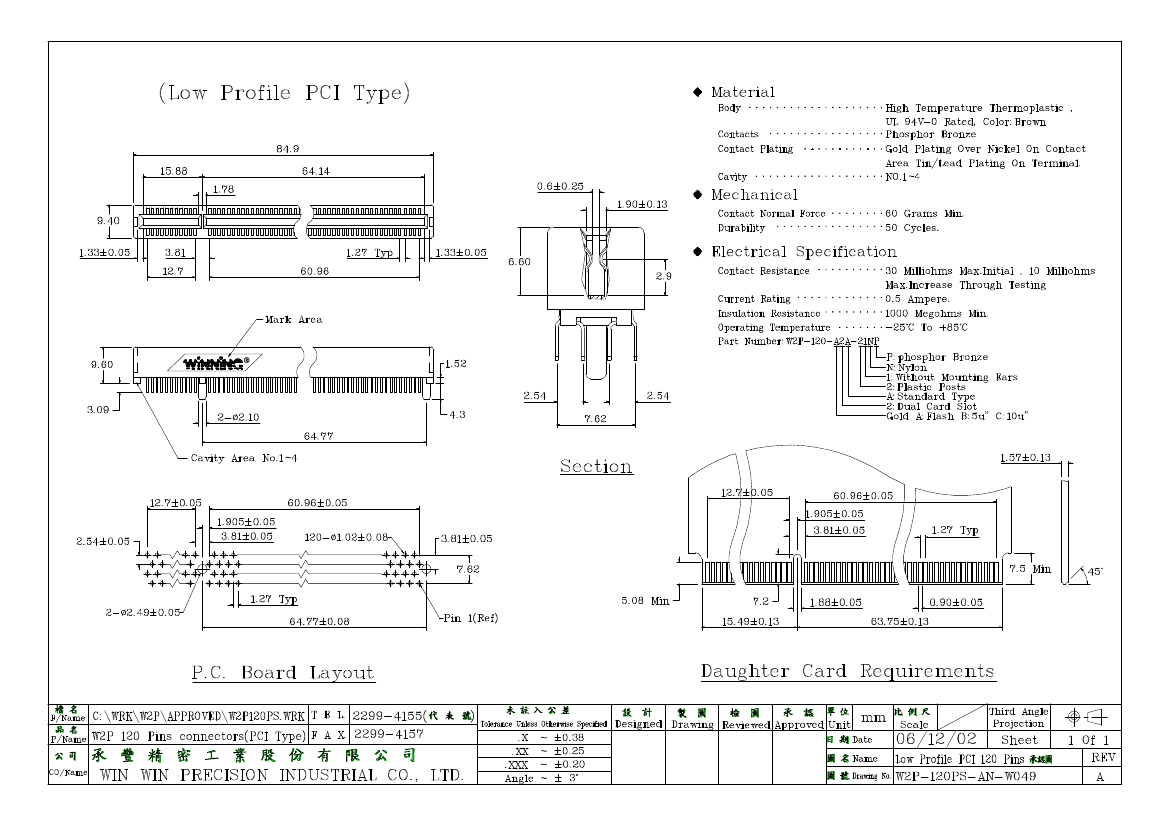

Card Edge Connector, 112 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Brown Insulator, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | WITH MOUNTING EARS |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.37 inch |
| subject depth | 0.375 inch |
| body length | 3.143 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 40 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V |
| Durability | 50 Cycles |
| maximum insertion force | .973 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BROWN |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | W2P |
| Plug contact pitch | 0.05 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 5u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.165 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 112 |
| Evacuation force-minimum value | .2224 N |
