3VT49/2JFB12DCS datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3VT49/2JFB12DCS

3VT49/2JFB12DCS: DescriptionCard Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size364KB，4 Pages; ManufacturerWPI Viking Electronics Inc.

Download Datasheet Parametric Compare View All

3VT49/2JFB12DCS Overview

Card Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle,

3VT49/2JFB12DCS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.37 inch
subject depth	0.61 inch
body length	5.46 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	600VDC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	JFB
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	MIL-C-21097
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	98
Evacuation force-minimum value	.556 N

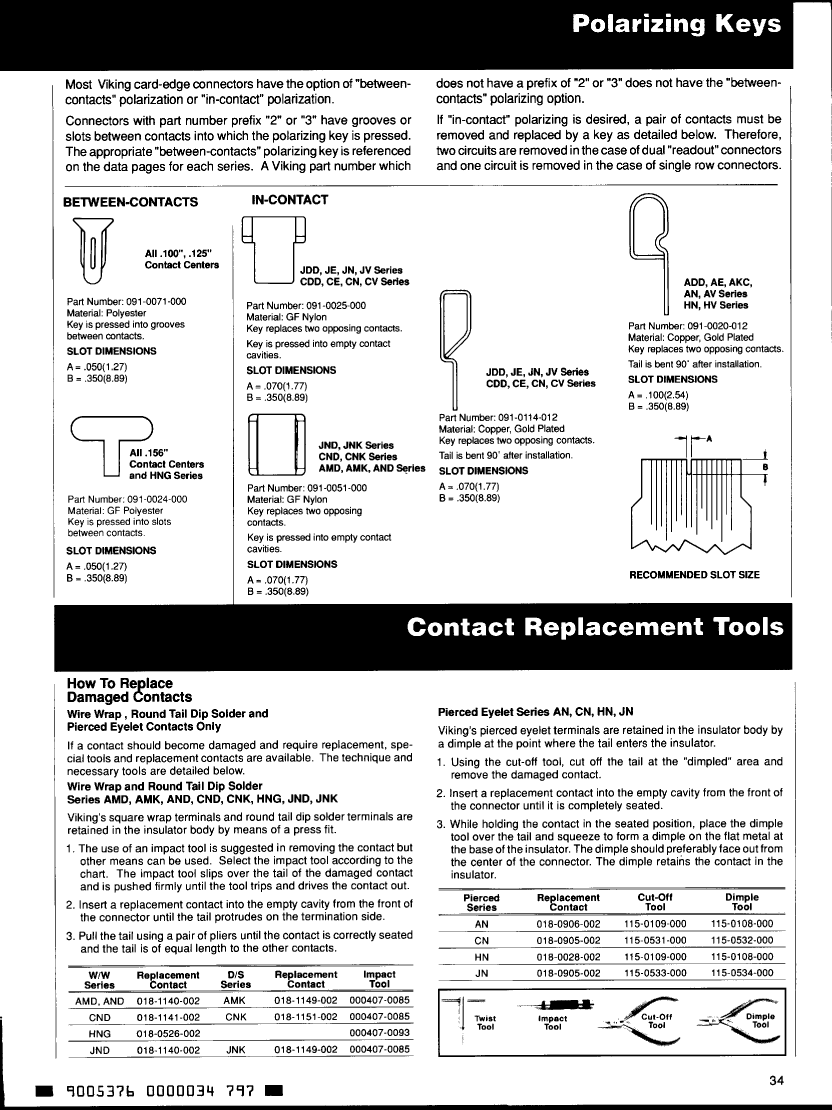

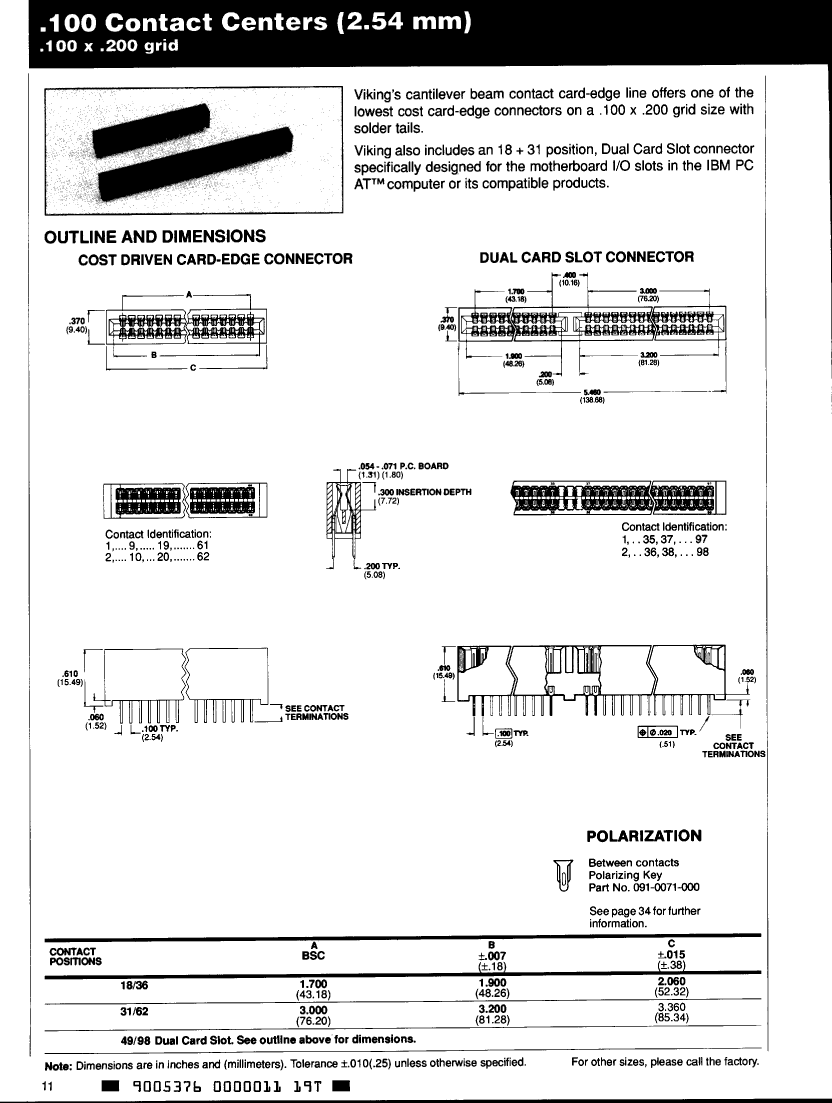

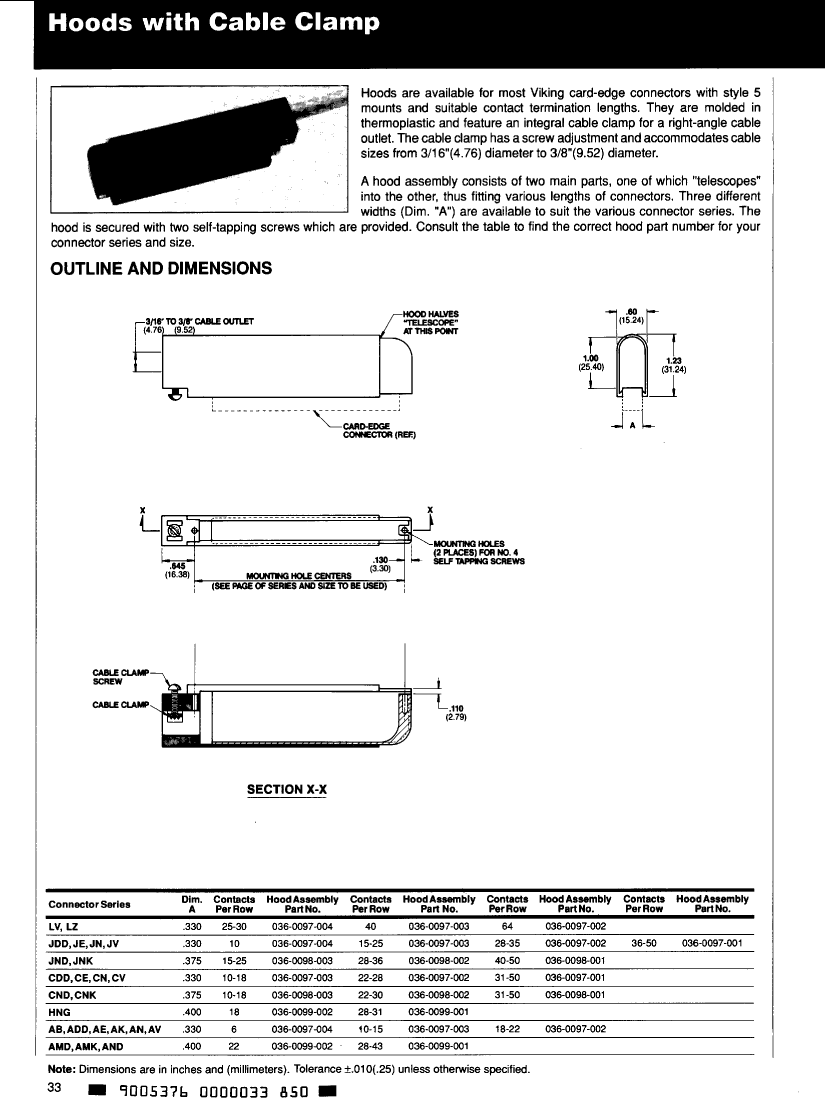

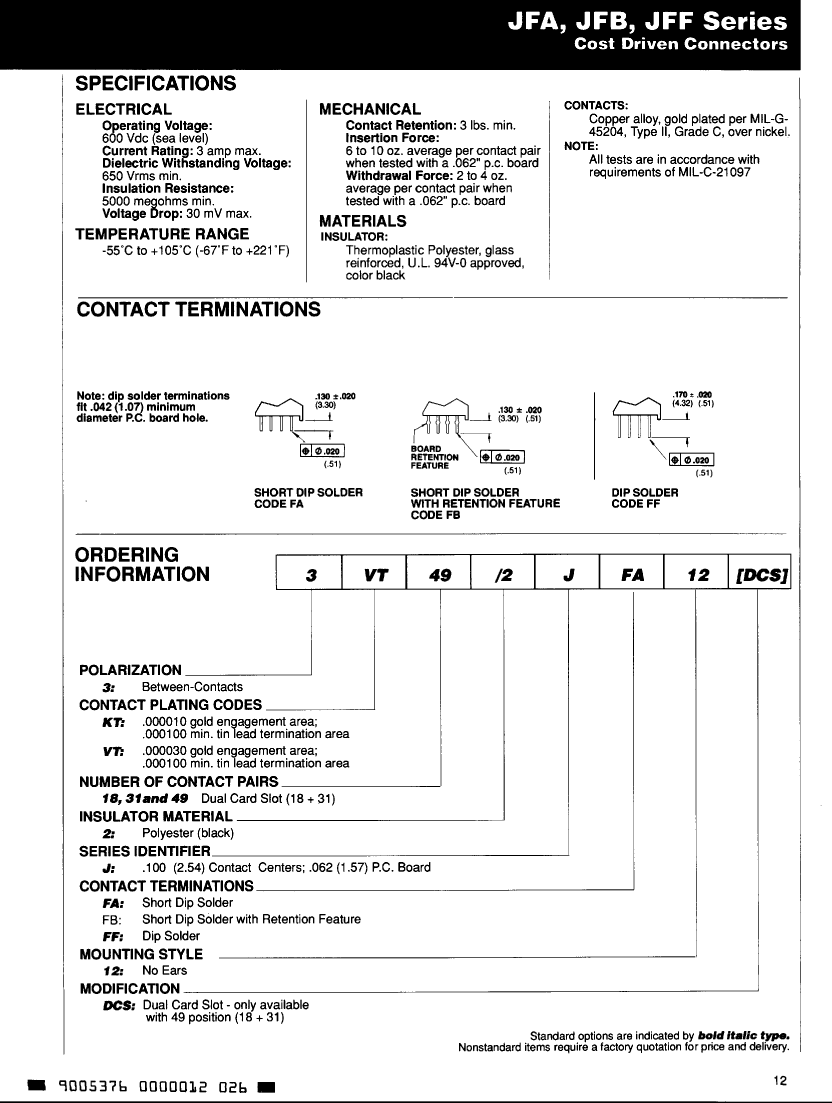

Preview

Download Datasheet

View All

3VT49/2JFB12DCS Related Products

	3VT49/2JFB12DCS	3KT49/2JFA12DCS	3VT49/2JFA12DCS	3KT49/2JFB12DCS
Description	Card Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle,	Card Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Card Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Card Edge Connector, 36+62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	NONE	NONE	NONE	NONE
body width	0.37 inch	0.37 inch	0.37 inch	0.37 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	5.46 inch	5.46 inch	5.46 inch	5.46 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	600VDC V	600VDC V	600VDC V	600VDC V
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	JFB	JFA	JFA	JFB
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Plating thickness	30u inch	10u inch	30u inch	10u inch
Rated current (signal)	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	MIL-C-21097	MIL-C-21097	MIL-C-21097	MIL-C-21097
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER KINKED LEADS	SOLDER	SOLDER	SOLDER KINKED LEADS
Total number of contacts	98	98	98	98
Evacuation force-minimum value	.556 N	.556 N	.556 N	.556 N
