PE44090: DescriptionMini UHF Male Connector Crimp/Solder Attachment For RG174, RG316, RG188; CategoryThe connector; File Size198KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE44090 Overview

Mini UHF Male Connector Crimp/Solder Attachment For RG174, RG316, RG188

Preview

Download Datasheet

View All

Mini UHF Male Connector Crimp/Solder

Attachment For RG174, RG316, RG188

TECHNICAL DATA SHEET

Mini UHF Male Connector Crimp/Solder Attachment For RG174, RG316, RG188

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mini UHF Male

RG174,RG316,RG188

Crimp/Solder

Straight

PE44090

Electrical Specifications

Impedance, Ohms

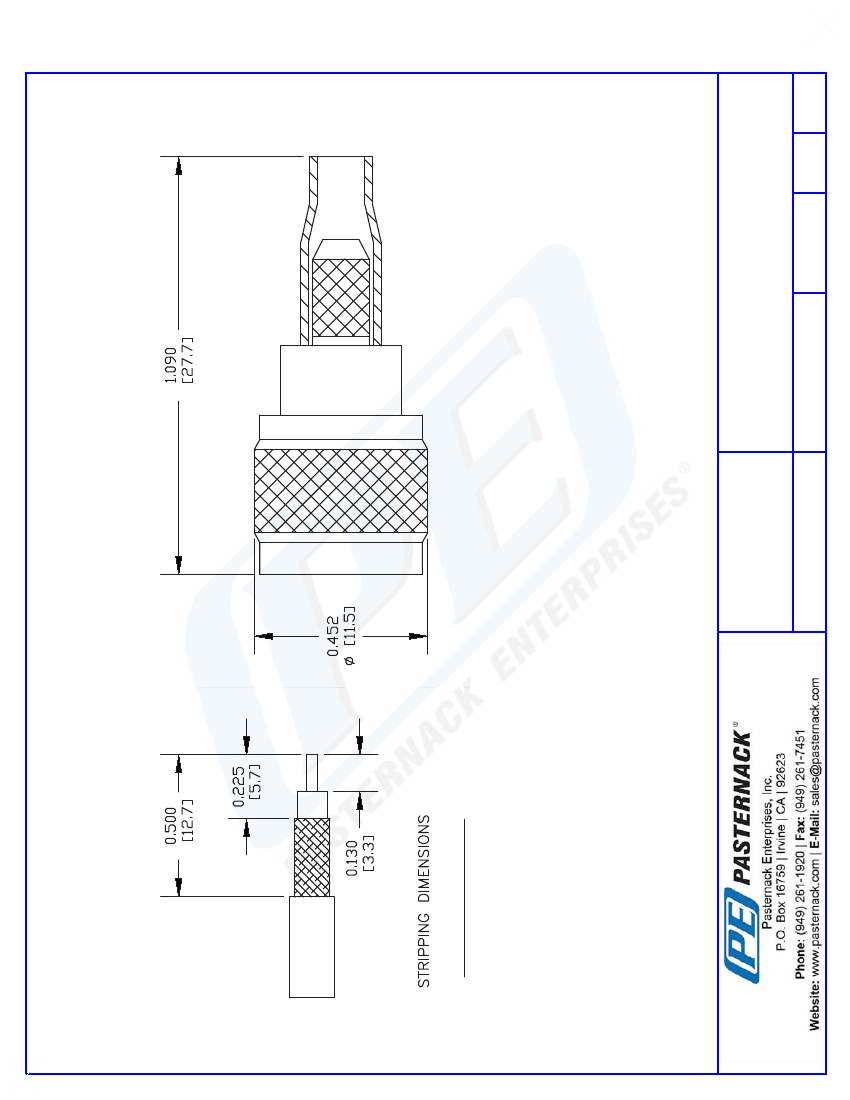

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

1.09 [27.69]

0.452 [11.48]

0.013 [5.9]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

Mini UHF Male

Gold

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

Mini UHF Male Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same day

shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and

are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

Mini UHF Male Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE44090

URL:

http://www.pasternack.com/mini-uhf-male-standard-rg174-rg316-rg188-connector-pe44090-p.aspx

PE44090 REV 01
