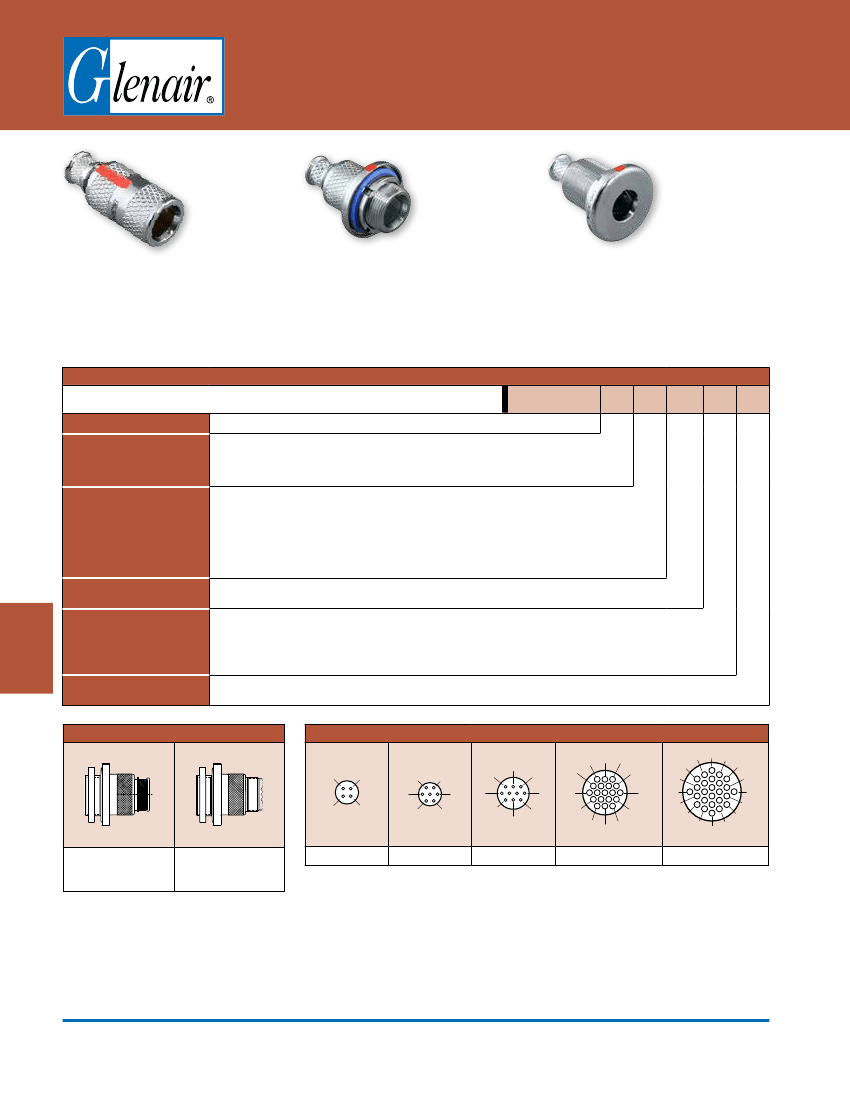

Series 804 Push-Pull
High-Speed
Mighty Mouse
Quick-Disconnect Receptacle Connector
with size #23 Crimp Rear Release Contacts
804-028 and 804-029 Ordering Information
In-Line
804-028-01
Rear Panel Jam Nut
Mount
804-028-07
Front Panel Jam Nut
Mount
804-028-00
Series 804
High-Speed
Integral Band Platform
for direct attachment of a cable shield.
Install a boot, or overmold directly
onto the band platform. Or, choose an
accessory thread for attaching strain
reliefs and backshells.
Three Shell Styles
Jam nut with O-ring for front or rear
panel mounting, or in-line receptacles
for free-hanging cables.
Watertight, Shielded
O-ring inside the receptacle provides a
dynamic seal when mated. Gold-plated
spring provides secure mechanical
retention and low shell-to-shell
resistance for excellent EMI shielding.
How To Order
Sample Part Number
Series (See Table I)
Shell Style
804-028
= With Banding Platform
-00
= Jam Nut, Front Panel Mount
-01
= In-Line for Free-Hanging Cable
-07
= Jam Nut, For Rear Panel Mounting
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
Shell Size - Insert
Arrangement (See Table II)
6-4, 6-7, 7-10, 9-19, 10-26
Connector supplied
with contacts
P
= Pin
S
= Socket
A
= Normal
Connector supplied
without contacts
A
= Pin Connector
B
= Socket Connector
Connector Supplied
with 30 AWG Crimp Barrel
G
= Pin
H
= Socket
804-028
804-029
= With Accessory Thread
-07
M
6-7
P
A
Shell Material and Finish
Q
Contact Type
Shell Key Positions
(See Table III)
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
Table I: Series
1
4
2
6
3
5
1
Table II: Shell Size – Insert Arrangement
2
7
3
3
7
10
2
1
4
8
7
12
16
3
2
1
4
8
13
6
11
15
18
23
3
1
2
4
9
12
16
21
4
9
19 18 17
25
26
24
804-028
Plug with Banding
Platform
804-029
Plug with Accessory
Thread
6-4
6-7
7-10
9-19
10-26
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
Q-6
