Sav-Con
®
connector savers
Mighty Mouse Series 805

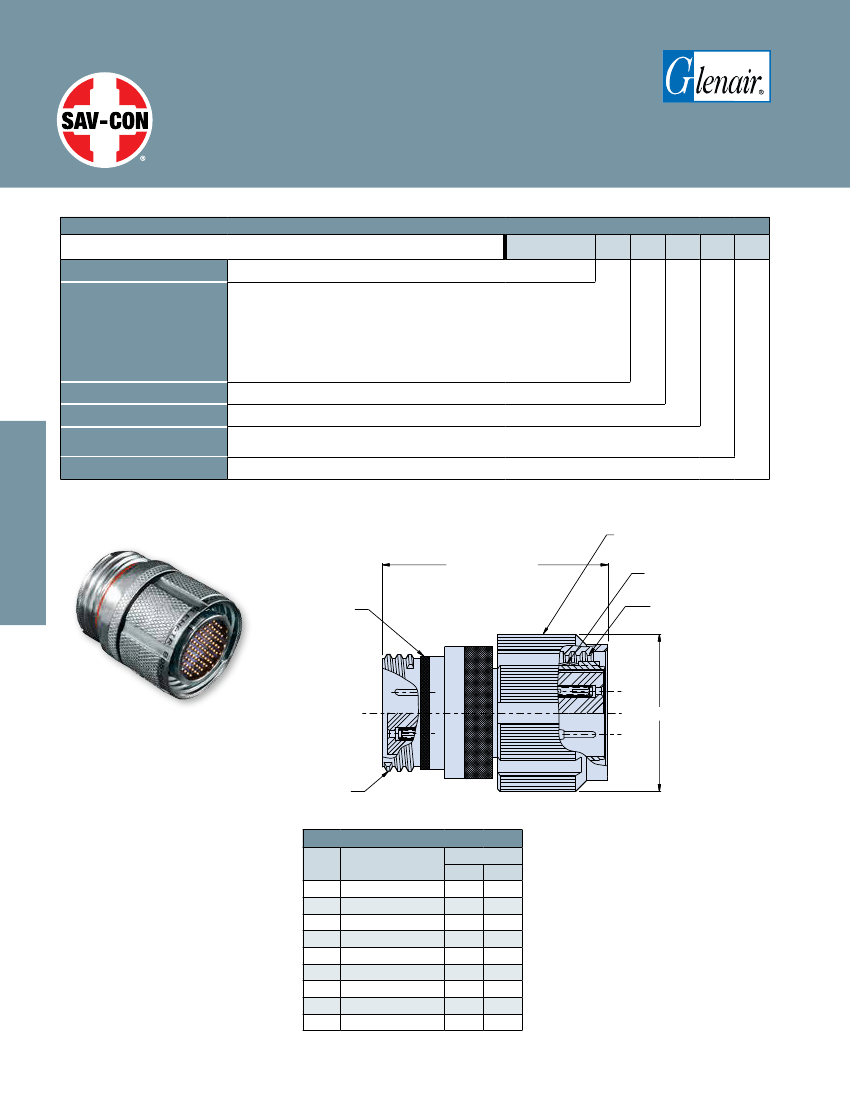

How To Order
Sample Part Number
Series
805-010
C
= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
See Table II
See Table II
P
= Pin Contact on Plug Side, Socket Contact on Receptacle Side
S
= Socket Contact on Plug Side, Pin Contact on Receptacle Side
A
= Normal,
B, C, D, B, F;
See Table III
805-010 Coupling with Triple-Start ACME Threads
805-010
Z1
12
-26
P
A
Finish
Shell Size
Insert Arrangement
Contact Type
Shell Key Position
B
1.70 (43.18) Max
Red Full Mate
Indicator Band
Self-locking Coupling Nut
With Ratchet
Nickel Plated
Emi Spring
A Thread
Receptacle
Side
ØB
Self-locking
Plug Side
A Thread
Dimensions
Shell
Size
8
9
10
11
12
15
18
19
23
38
A Threads
.5000-.1P-.3L-TS-2B
.5625-.1P-.3L-TS-2B
.6250-.1P-.3L-TS-2B
.6875-.1P-.3L-TS-2B
.7500-.1P-.3L-TS-2B
.9375-.1P-.3L-TS-2B
1.1250-.1P-.3L-TS-2B
1.1875-.1P-.3L-TS-2B
1.4375-.1P-.3L-TS-2B
ØB
In.
.691
.787
.826
.916
.982
1.097
1.290
1.310
1.562
mm.
17.55
19.99
20.98
23.27
24.94
27.86
32.77
33.27
39.67
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 94 Sav-Con® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
Sav-Con
®
connector savers
Mighty Mouse Series 805
Reference Information

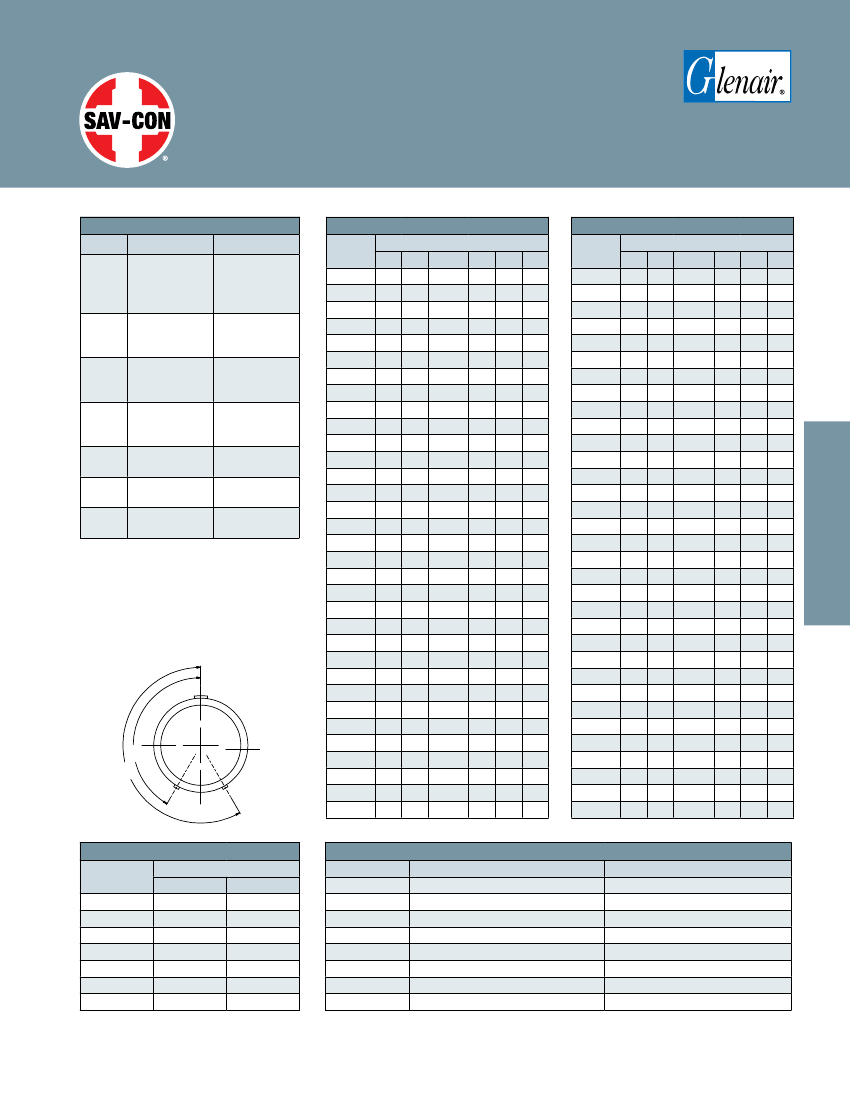

Table I: Material and Finish
Code
C
Material
Aluminum
Finish
Black Anodize
(Non-
Conductive)
RoHS Compliant
Electroless
Nickel RoHS
Compliant
Cadmium with
Olive Drab
Chromate
Zinc-Nickel
with Olive Drab
Chromate
Zinc-Nickel with
Black Chromate
Nickel-PTFE
RoHS Compliant
Passivated RoHS
Compliant
Table II: Insert Arrangements
No. of Contacts
Contact
Arr.
#23 #20 #20HD #16 #12
8-1
8-23
8-4
8-6
8-7
9-1
9-25
9-10
10-1
10-2
10-28
10-13
10-200
11-4
11-210
11-19
11-200
11-201
12-2
12-5
12-26
1
3
4
6
7
1
5
10
1
2
8
13
4
2
4
10
19
4
8
2
2
2
5
26
12
4
8
31
2
3
7
20
37
6
10
20
2
2
2
1
2
2
#8
Table II: Insert Arrangements
No. of Contacts
Contact
Arr.
#23 #20 #20HD #16 #12
15-203
15-204
15-205
18-2
18-5
18-12
18-235
18-55
18-204
18-205
18-206
18-207
18-208
19-3
19-7
19-14
19-241
19-85
19-203
19-204
19-205
21-4
21-19
21-255
21-100
21-201
21-202
23-5
23-12
23-22
23-269
23-130
23-200
69
130
28
4
100
44
12
12
22
35
55
40
32
34
20
32
7
14
41
85
40
28
40
19
55
2
4
5
4
4
1
4
2
4
2
4
1
3
12
12
4
4
2
4
2
5
12
#8
M
Aluminum
NF
Aluminum
ZN
ZNU
MT
Z1
Aluminum
Aluminum
Aluminum
Stainless Steel
B
Plug
Key Positions
12-200
12-201
12-202
13-31
15-2
15-3
15-7
15-220
15-37
15-200
15-201
15-202
A°
B°
Table III: Plug Keyway
Key Position
Normal (A)
B
C
D
E
F
Universal (U)*
Key Rotation
A°
B°
150
210
75
95
140
75
95
-
210
230
275
275
210
-
Table IV: Capacitor Array Code Capacitance Range for Filtered Connectors
Class
A
B
C
D
E
F
G
J
Pi - Circuit (pF)
38,000 - 56,000
32,000 - 45,000
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
70 - 120
C - Circuit (pF)
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
35 - 60
* Universal keyway is not intended for field use
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 94 Sav-Con® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
