MBR545L-SMB-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBR545L-SMB-R

MBR545L-SMB-R: Description5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size135KB，3 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

MBR545L-SMB-R Overview

5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD

MBR545L-SMB-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	LEAD FREE, SMB, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	5 V
Maximum reverse current	50 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

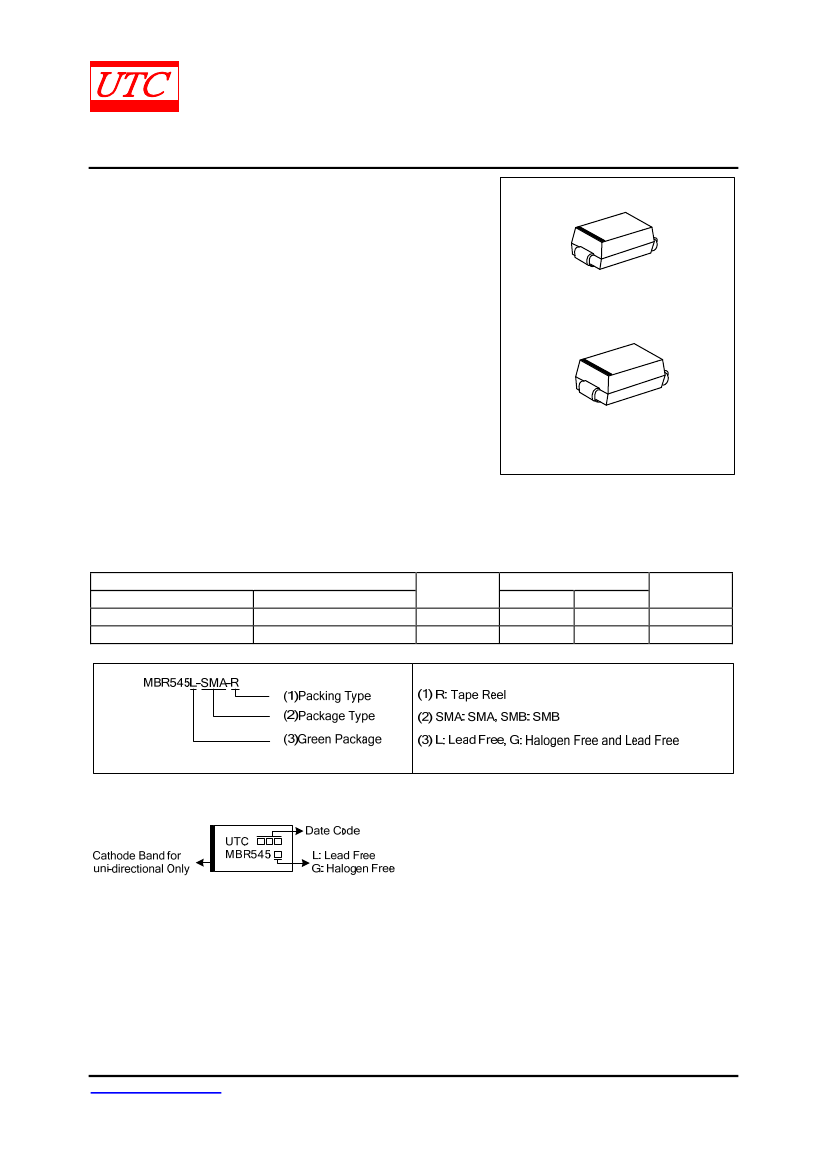

UNISONIC TECHNOLOGIES CO., LTD

MBR545

SCHOTTKY BARRIER

RECTIFIER

Preliminary

DIODE



DESCRIPTION

SMA

(JEDEC DO-214AC)

The UTC

MBR545

is a schottky barrier rectifier, it uses UTC’s

advanced technology to provide customers with low forward voltage

drop, high current capability and high efficiency, etc.

The UTC

MBR545

is suitable for use in free wheeling, high

frequency inverters, low voltage and polarity protection applications.



FEATURES

SMB

(JEDEC DO-214AA)

* Low forward voltage drop

* High efficiency

* Low power loss

* High surge capability

* High current capability



ORDERING INFORMATION

Package

SMA

SMB

Pin Assignment

Packing

Tape Reel

Ordering Number

Lead Free

Halogen Free

MBR545L-SMA-R

MBR545G-SMA-R

MBR545L-SMB-R

MBR545G-SMB-R

Note: Pin Assignment: A: Anode

K: Cathode



MARKING

www.unisonic.com.tw

1 of 3

QW-R601-229.b

MBR545L-SMB-R Related Products

	MBR545L-SMB-R	MBR545	MBR545G-SMA-R	MBR545G-SMB-R	MBR545L-SMA-R
Description	5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 45 V, SILICON, RECTIFIER DIODE, DO-201AD
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	LEAD FREE, SMB, 2 PIN	-	HALOGEN AND LEAD FREE, SMA, 2 PIN	R-PDSO-C2	LEAD FREE, SMA, 2 PIN
Reach Compliance Code	compli	-	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS	-	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	-	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V	-	0.7 V	0.7 V	0.7 V
JEDEC-95 code	DO-214AA	-	DO-214AC	DO-214AA	DO-214AC
JESD-30 code	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	150 A	-	150 A	150 A	150 A
Number of components	1	-	1	1	1
Phase	1	-	1	1	1
Number of terminals	2	-	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C
Maximum output current	5 A	-	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	5 V	-	45 V	5 V	45 V
Maximum reverse current	50 µA	-	50 µA	50 µA	50 µA
surface mount	YES	-	YES	YES	YES
technology	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	-	C BEND	C BEND	C BEND
Terminal location	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
