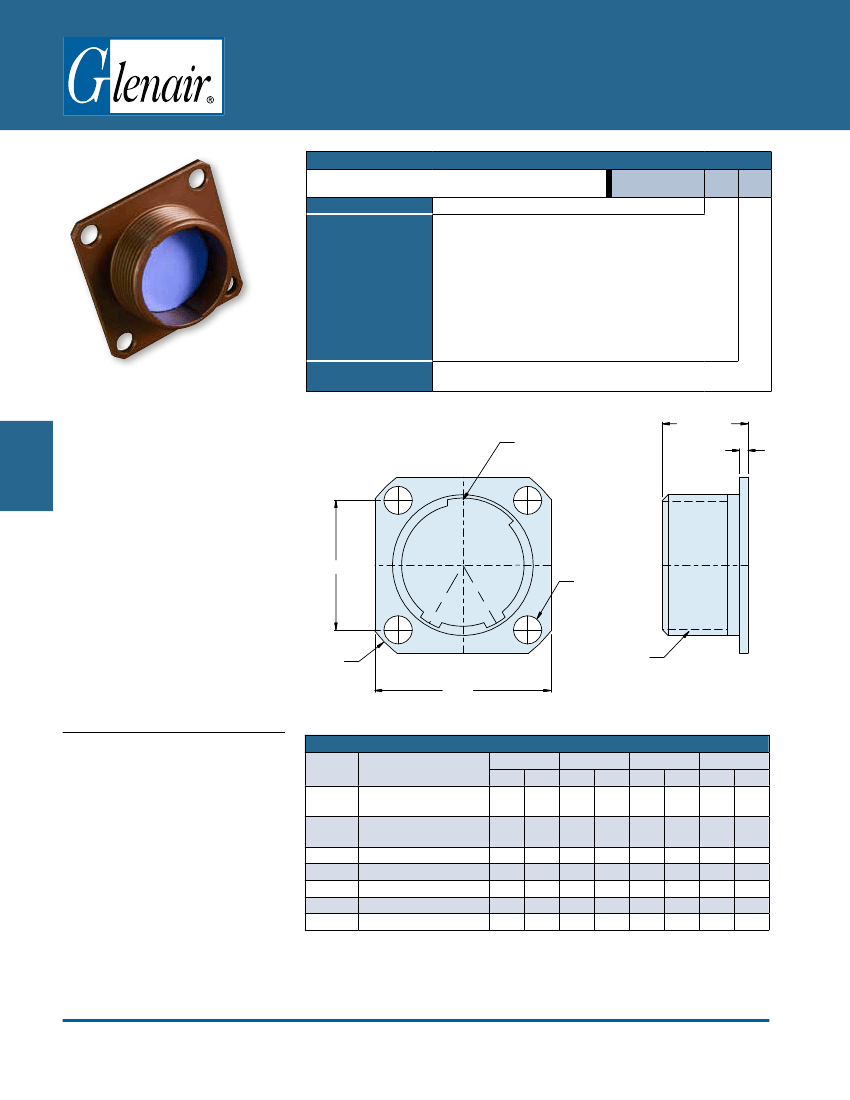

Series 80 Mighty Mouse
Dummy Receptacle for 800 Connectors
809-173 Flange Mount - Dimensions
How To Order
Sample Part Number
Series
809-173
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with Olive Drab
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated
ZB
= Stainless Steel / Olive Drab Chromate over Cadmium
ZC
= Stainless Steel / Zinc Cobalt Alloy / Black Chromate
Shell Size
(See Table II)
5, 6, 7, 8, 9, 10, 12
.500 (12.7)
MAX
.05 (1.27)
X
Accessories
809-173
-M
10
Shell Material
and Finish
These flange mount syle Series 800
dummy stowage receptacles provide a
safe and convenient place to store and
protect cabled connectors when not
in use, due to routine maintenance or
during repair of plug cables.
MASTER KEYWAY
UNIVERSAL
POLARIZATION
1
C SQ
4XøE
øD
B SQ
A THREAD
1. Master keyway is rotated 90° clockwise
for shell sizes 7 thru 12
Material/Finish:
• Shell: Al alloy or CRES
• Gasket: Fluorosilicone
NOTES
Table II
Shell Size
5
6
7
8
9
10
12
A Thread
.3125-28 UN-2A
.3750-28 UN-2A
.4375-28 UNEF-2A
.5000-32 UN-2A
.5625-32 UN-2A
.6250-32 UN-2A
.7500-28 UN-2A
B Sq
In.
.527
.588
.680
.710
.938
.938
1.031
mm.
13.4
14.9
17.3
18.0
23.8
23.8
26.2
In.
.363
.423
.483
.542
.719
.719
.812
C Sq
mm.
9.2
10.7
12.3
13.8
18.3
18.3
20.6
In.
.680
.750
.880
.938
1.250
1.250
1.375
ØD
mm.
17.3
19.1
22.4
23.8
31.8
31.8
34.9
In.
.096
.091
.096
.091
.128
.128
.128
.128
.128
ØE
mm.
2.4
2.3
2.4
2.3
3.3
3.3
3.3
3.3
3.3
Dimensions in Inches (millimeters) are subject to change without notice.
