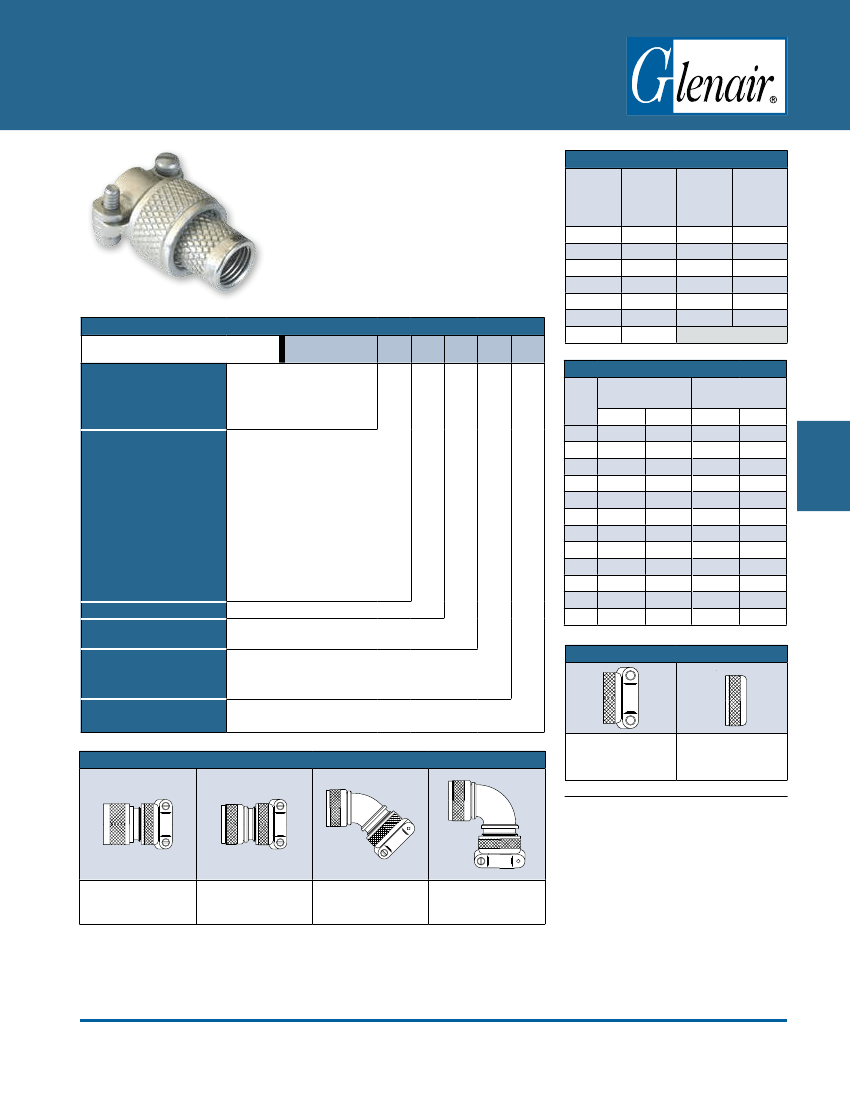

380MS135 and 380M*137 Straight, 45° and 90°
Ordering Information
EMI backshells feature an EMI ring for
easy shield termination.
Straight Entry backshells are available
with direct coupling or rotatable
coupling.
380MS135
Table II: Cable Entry Code
Cable
Entry
Code
01-
02-
03-
04-
05-
06-
07-
Saddle
Clamp
Dia. Fully
Closed
.11 (2.79)
.17 (4.32)
.23 (5.84)
.30 (7.62)
.36 (9.14)
.42 (10.67)
.48 (12.19)
Cable
Entry
Code
08-
09-
10-
11-
12-
13-
Saddle
Clamp
Dia. Fully
Closed
.55 (13.97)
.61 (15.49)
.67 (17.02)
.73 (18.54)
.86 (21.84)
.99 (25.15)
380-137 adapters feature rotatable
coupling nuts.
How To Order
Sample Part Number
380MS135
380MS135
= Straight Entry
380MS137
= Straight Entry,
380MB137
= 45° Entry
380MA137
= 90° Entry
M
07
04-
6
N
Table III: Std. Length
1
Size
Code
05
06
11
07
08
09
10
12
13
14
16
17
380MS137
Std. Length
In.
.75
.75
.75
.75
.75
.75
.75
.88
.88
1.00
1.00
1.13
mm.
19.05
19.05
19.05
19.05
19.05
19.05
19.05
22.35
22.35
25.40
25.40
28.70
380MS135
Std. Length
In.
.63
.63
.63
.75
.75
.75
.75
.88
.88
1.00
1.00
1.13
mm.
16.00
16.00
16.00
19.05
19.05
19.05
19.05
22.35
22.35
25.40
25.40
28.70
Series (See Table I)
Shell Material and Finish
UCR
= Aluminum
/
Zinc Cobalt with
Black
ZNU
= Aluminum / Zinc Nickel with
Black over Electroless Nickel
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with
Olive Drab
ZN
= Aluminum / Zinc-Nickel with
Olive Drab Chromate
MT
= Aluminum / Nickel-PTFE
Z1
= Stainless Steel / Passivated
05, 06, 11, 07, 08, 09, 10, 12, 13, 14, 16, 17
01-, 02-, 03-, 04-, 05-, 06-, 07-, 08-, 09-, 10-, 11-,
12-, 13-
For Straight Entry Only.
Use Standard lengths listed in Table III for Best Availability
Specify length in .125 (3.18) inch increments (e.g. 6 = .75 in)
Omit
= Clamp with Saddle Bars
N
= Compression Nut, Low Profile
Size Code (See Table V)
Cable Entry Code
(See Table II)
Length (See Table III)
Table IV: Clamp Style
Clamp Style (See Table IV)
Omit
N
Compression Nut,
Low Profile
Table I: Backshell Style
Clamp with Saddle
Bars
380MS135
Straight Entry,
Direct Coupling
380MS137
Straight Entry,
Rotatable Coupling
380MB137
45° Entry,
Rotatable Coupling
380MA137
90° Entry,
Rotatable Coupling
1. Minimum length is .63 Inches. Applies
to straight entry only.
2. Use shrink sleeve or bushing to build
cable to dia. shown under saddle bars.
Materials
• Adapter, Clamp, Nut and Saddles:
Aluminum Alloy 6061-T6 or 300 Series
Stainless Steel
• Hardware: 300 Series Stainless Steel
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-31
E-Mail: sales@glenair.com
