249-005: DescriptionEMI/RFI Backshell; File Size74KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

249-005 Overview

EMI/RFI Backshell

Preview

Download Datasheet

View All

Conductive Gaskets

and Accessories

Sample Part Number

EMI/RFI Backshell

Finish

Shell Size

Hardware Option

Band Option

(See Table I)

.390 Max

.320

1.195 (Ref.)

.875

Connector Shown For

Reference Only

for MIcro-D Filter Connectors

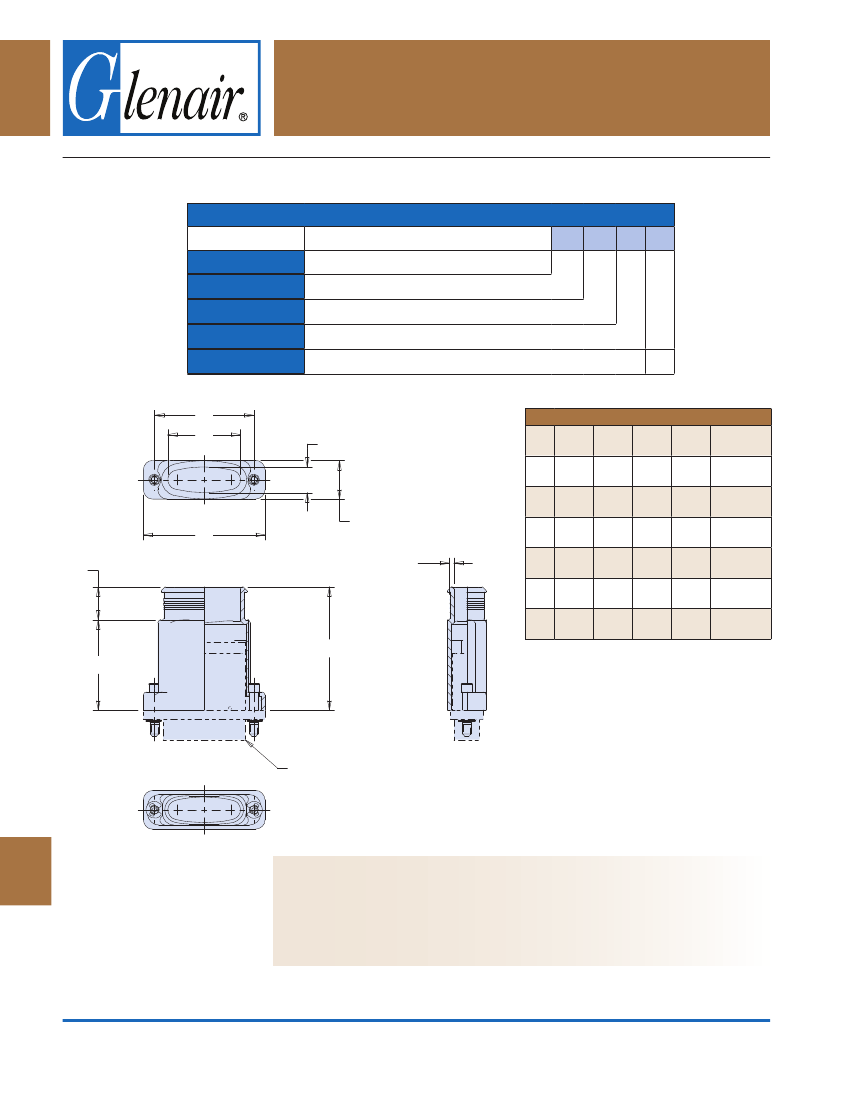

EMI/RFI BACKSHELL FOR MICRO-D FILTER CONNECTORS

How To Order

249-005

EMI/RFI Backshell

249-005

for Micro-D Filter Connectors

= Electroless Nickel

= Gold Plate

= Slotted Head

= Hex Socket Head

= Micro-Band Included

= No Band Supplied

Table I: Shell Size/Dimensions

Dia / Sq.

Size A Max

In.

0.785

(19.9)

0.935

(23.7)

1.085

(27.6)

1.185

(30.1)

1.335

(33.9)

1.485

(37.7)

0.565

(14.4)

0.715

(18.2)

0.865

(22.0)

0.965

(24.5)

1.115

(28.3)

1.265

(32.1)

0.180

(4.6)

0.230

(5.8)

0.220

(5.6)

0.220

(5.6)

0.220

(5.6)

0.220

(5.6)

0.180

(4.6)

0.230

(5.8)

0.380

(9.7)

0.480

(12.2)

0.630

(16.0)

0.780

(19.8)

0.171/0.023

(0.6/4.3)

0.216/0.037

(0.9/5.5)

0.257/0.052

(1.3/6.5)

0.276/0.060

(1.5/7.0)

0.306/0.074

(1.9/7.8)

0.367/0.106

(2.7/9.3)

.045 (Ref.)

Notes

1. Assembly identified with Glenair’s name, P/N and date code, space permitting

Material/Finish

Backshell - Al Alloy

Hardware - 300 Series CRES/Passivated

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-8
