230-041

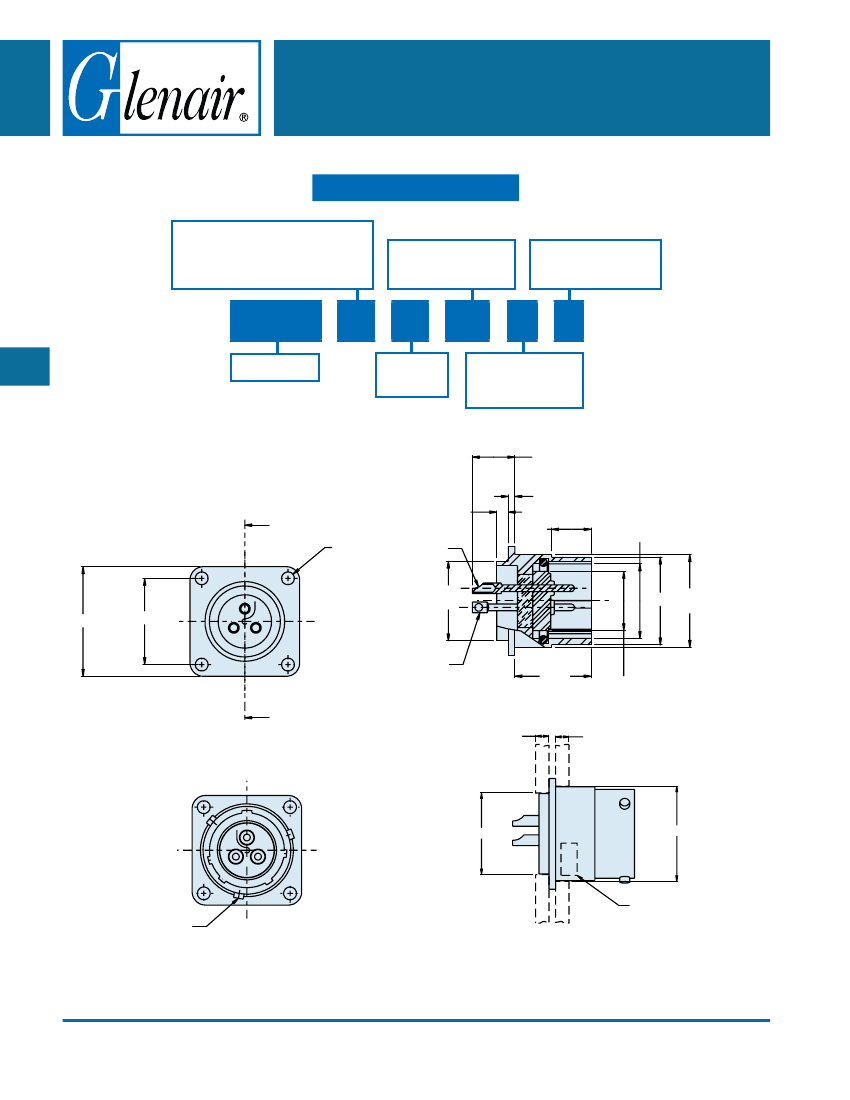

MIL-DTL-26500 Type Hermetic Class Receptacle
Square Flange Mount, Bayonet Coupling
MIL-DTL-26500
Type
How To Order:
Commercial
Connector Material / Finish
FT
- Carbon Steel, Tin Plate
Z1
- Stainless Steel - Passivate Finish
ZL
- Stainless Steel - Nickel Plated
Insert Arrangement
Per MIL-STD-1554
See Pages F-2 – F-3
Alternate Key Position
6, 7, 8, 9, 10
(Omit for Normal)
230-041
FT
12
-
Shell Size
See Table I
3
P
6
F
Basic Series
Contact Termination
P
- Pin, Solder Cup
X
- Pin, Eyelet
A
ØH
"P" Type
Contact
.108
.078
.400 Max
(Contact Size 16 & 12)
.330 Max
(Contact Size 20)
.072
.052
.376
.366
ØD
Shell I.D.
1
A (Typ)
B (Typ)
2
3
ØC
Max
ØF
ØG
Max
"X" Type
Contact
A
Section A-A
.125
Max
.728
.708
Ø E Max
Resilient
Insert
.125
Max
1
ØK
ØJ
32
Painted
Bayonet
Pin Ends
Marking Location
Optional
Panel Cutout
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-16
E-Mail: sales@glenair.com
Square Flange Mount, Bayonet Coupling
TABLE I: Shell Size, Connector Dimensions and Panel Cut-Out
Shell
Size
8
10
12
14
16
18
20
22
24
A
0.812
(20.6)
0.937
(23.8)
1.031
(26.2)
1.125
(28.6)
1.250
(31.8)
1.343
(34.1)
1.437
(36.5)
1.562
(39.7)
1.703
(43.3)
B
0.594
(15.1)
0.719
(18.3)
0.812
(20.6)
0.906
(23.0)
0.969
(24.6)
1.062
(27.0)
1.156
(29.4)
1.250
(31.8)
1.375
(34.9)
CØ
Max
0.437
(11.1)
0.562
(14.3)
0.750
(19.1)
0.812
(20.6)
0.937
(23.8)
1.062
(27.0)
1.187
(30.1)
1.312
(33.3)
1.437
(36.5)
DØ Shell
I.D.
.433/.428
(11.0/10.9)
.535/.530
(13.6/13.5)
.705/.700
(17.9/17.8)
.774/.769
(19.7/19.5)
.901/.896
(22.9/22.8)
1.007/1.002
(25.6/25.5)
1.132/1.125
(28.8/28.6)
1.257/1.252
(31.9/31.8)
1.382/1.377
(35.1/35.0)
EØ
Resilient
Insert
0.312
(7.9)
0.388
(9.9)
0.558
(14.2)
0.627
(15.9)
0.772
(19.6)
0.860
(21.8)
0.985
(25.0)
1.110
(28.2)
1.235
(31.4)
FØ
.536/.531
(13.6/13.5)
.659/.654
(16.7/16.6)
.829/.824
(21.1/20.9)
.898/.893
(22.8/22.7)
1.025/1.020
(26.0/25.9)
1.131/1.126
(28.7/28.6)
1.256/1.251
(31.9/31.8)
1.381/1.376
(35.1/35.0)
1.506/1.501
(38.3/38.1)
GØ
Max
0.561
(14.2)
0.696
(17.7)
0.875
(22.2)
0.935
(23.7)
1.062
(27.0)
1.187
(30.1)
1.312
(33.3)
1.437
(36.5)
1.562
(39.7)
HØ
Thru
4 Pl.
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.120
(3.0)
0.149
(3.8)
Panel
Panel
Cutout
Cutout
Rear
Front
Mount JØ Mount K Ø
.630/.620
.457/.447
(16.0/15.7)
(11.6/11.4)
.758/.748
.582/.572
(19.3/19.0)
(14.8/14.5)
.923/.913
(23.4/23.2)
.990/.980
(25.1/24.9)
1.117/1.107
(28.4/28.1)
1.219/1.209
(31.0/30.7)
1.347/1.337
(34.2/34.0)
1.462/1.452
(37.1/36.9)
1.587/1.577
(40.3/40.1)
.770/.760
(19.6/19.3)
.832/.822
(21.1/20.9)
.958/.948
(24.3/24.1)
1.082/1.072
(27.5/27.2)
1.202/1.192
(30.5/30.3)
1.332/1.322
(33.8/33.6)
1.452/1.442
(36.9/36.6)
APPLICATION NOTES
1.
2.
3.
Assembly identified with manufacturer’s name and part number, space
permitting.
Glenair 230-041 will mate with any QPL MIL-DTL-MS24266 type
bayonet coupling plug of same size, keyway and insert polarization.
Performance:
Hermeticity - <x10
-7
ccHe/sec @ 1 atmosphere differential
Dielectric withstanding voltage - consult factory or MIL-STD-1554
Insulation resistance - 5000 megohms min @ 500VDC
5.
4.
Material/ Finish:
Shell––specified by class
Bayonets––Stainless Steel/Passivated
Contacts—52 Nickel alloy/Gold plated
Insulators—Glass/NA
Seals—fluorosilicone elastomer N.A.
Metric Dimensions (mm) are indicated in parentheses.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-17
E-Mail: sales@glenair.com
MIL-DTL-26500
Type
230-041
MIL-DTL-26500 Type Hermetic Class Receptacle
F
